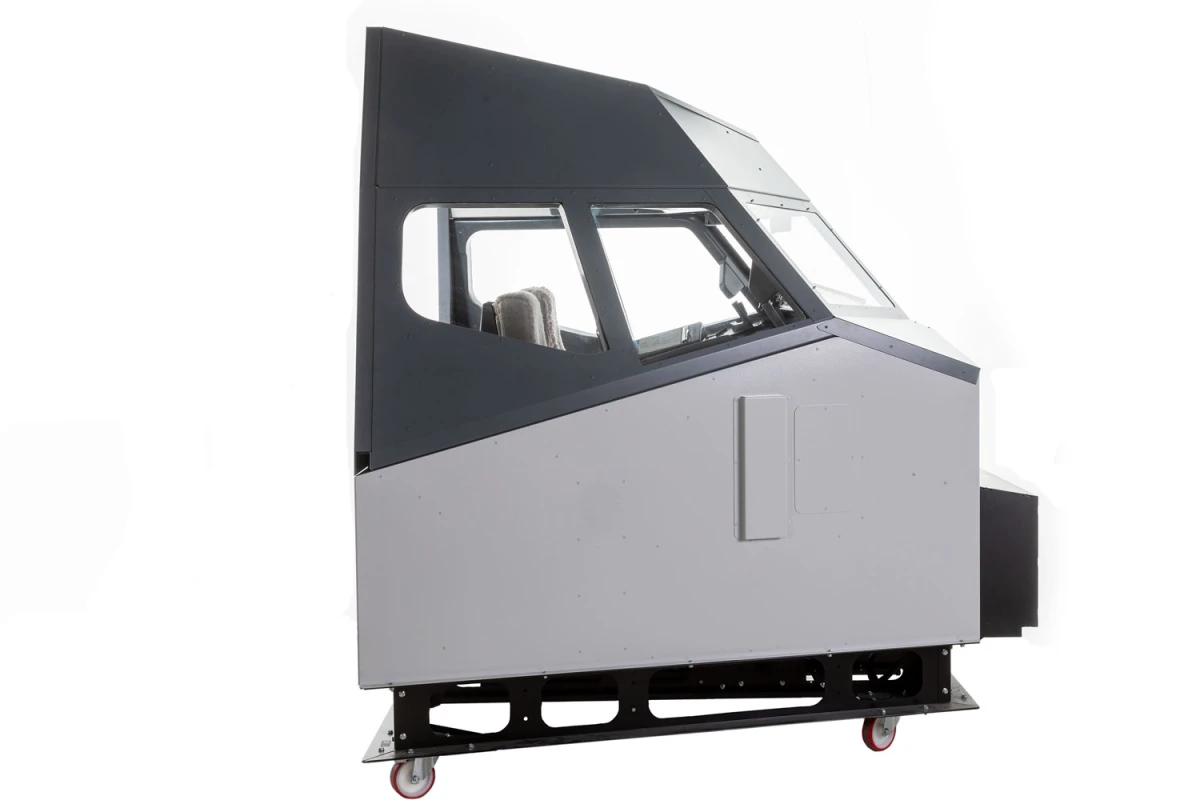

1:1 scale cabin complete with cockpit shell, flight controls, avionics, audio, pc and visual system. Ranging from generic flight simulators to advanced FTD (Flight Training Devices)
Designed to be compatible with leading avionics software
Possibility of customization according to specific needs
Speed of production thanks to highly specialized staff
Possibility of having certifications for training
Training for assembly/start-up and prompt after-sales support
We offer metal products and high-quality materials, designed to ensure maximum durability and performance over time.
Designed and tested in collaboration with airline pilots and instructors
Made in Italy is synonymous with care and mastery in creating quality products.

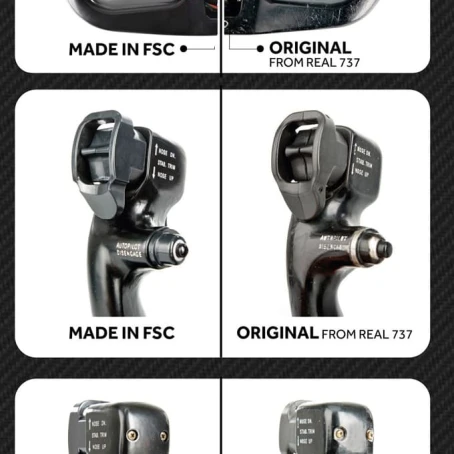

Years ago, FSC acquired 3 full cockpits stripped from real B737, B747 and A320. FSC engineers have them at their disposal in our headquarters, to create products as close as possible to the real things. Being able to access the original components all classows us to precisely evaluate controls response and feeling, and then re-engineer them to manufacture simulation products that really match the real controls in feeling and response.
As a result, we provide a full spectrum of simulation solutions, ranging from generic flight simulators to advanced FTD (Flight Training Devices).
Aside from airline pilots' and instructors' tips and advice, FSC benefits from consumer experience, often from people who are new to flight simulation.
In a world where quality makes the difference, FSC is committed to ensuring that each product in the simulator is made with the best materials available on the market. Our mission is to offer not only items that are aesthetically faithful to the original but also functional and durable over time.
We design our products by focusing on both mechanical strength, for minimal periodic maintenance on the item, and resistance to intensive use by the end user.
Durability is one of our main priorities: our simulators are designed to withstand extreme conditions of use and to maintain their performance over time. We perform rigorous checks at every stage of production to ensure that the final tests meet the high standards we want to offer our customers.
The constant research in the development of new technologies has led the FSC engineering department to the creation of multiple high-tech mechanical and electronic products.

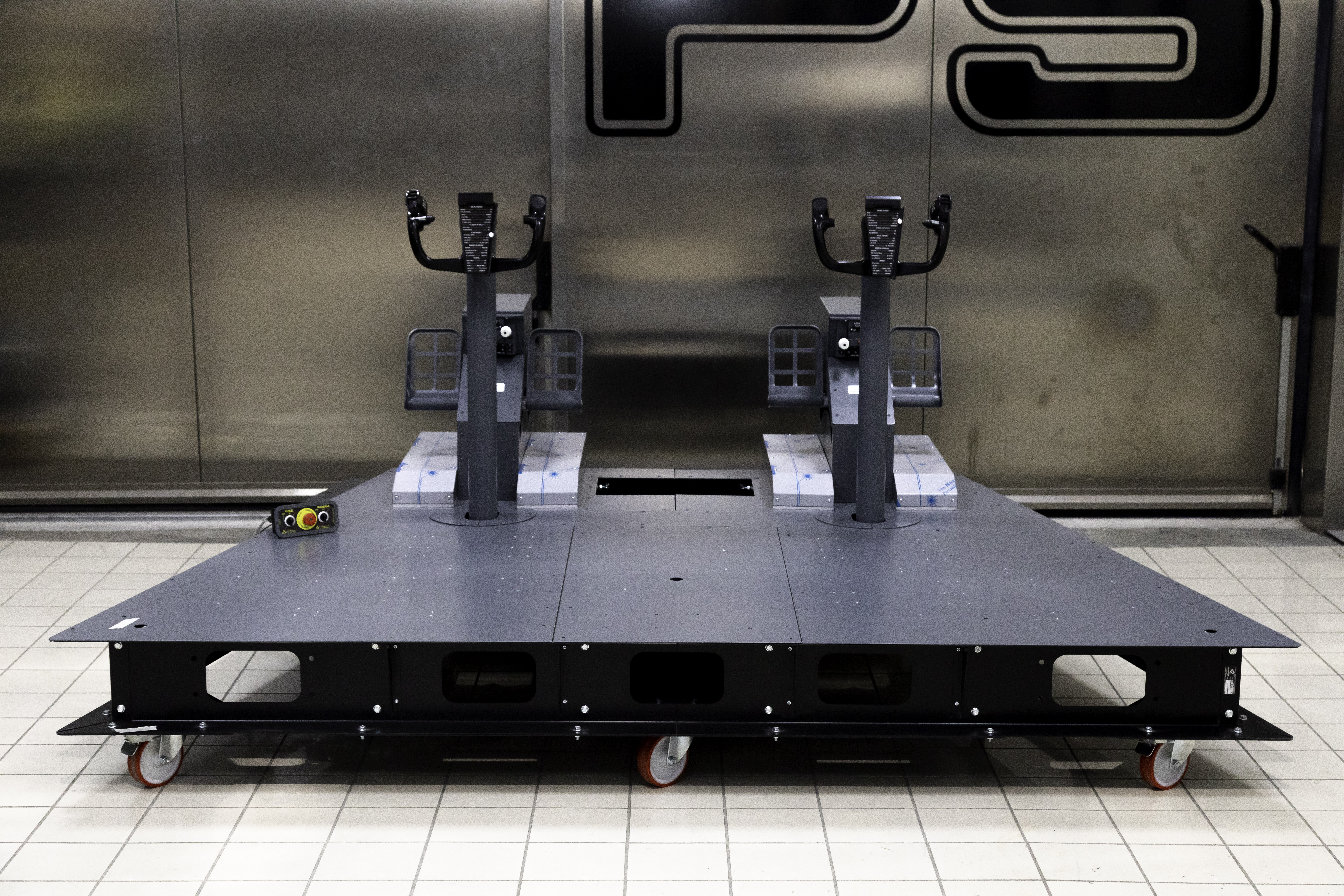

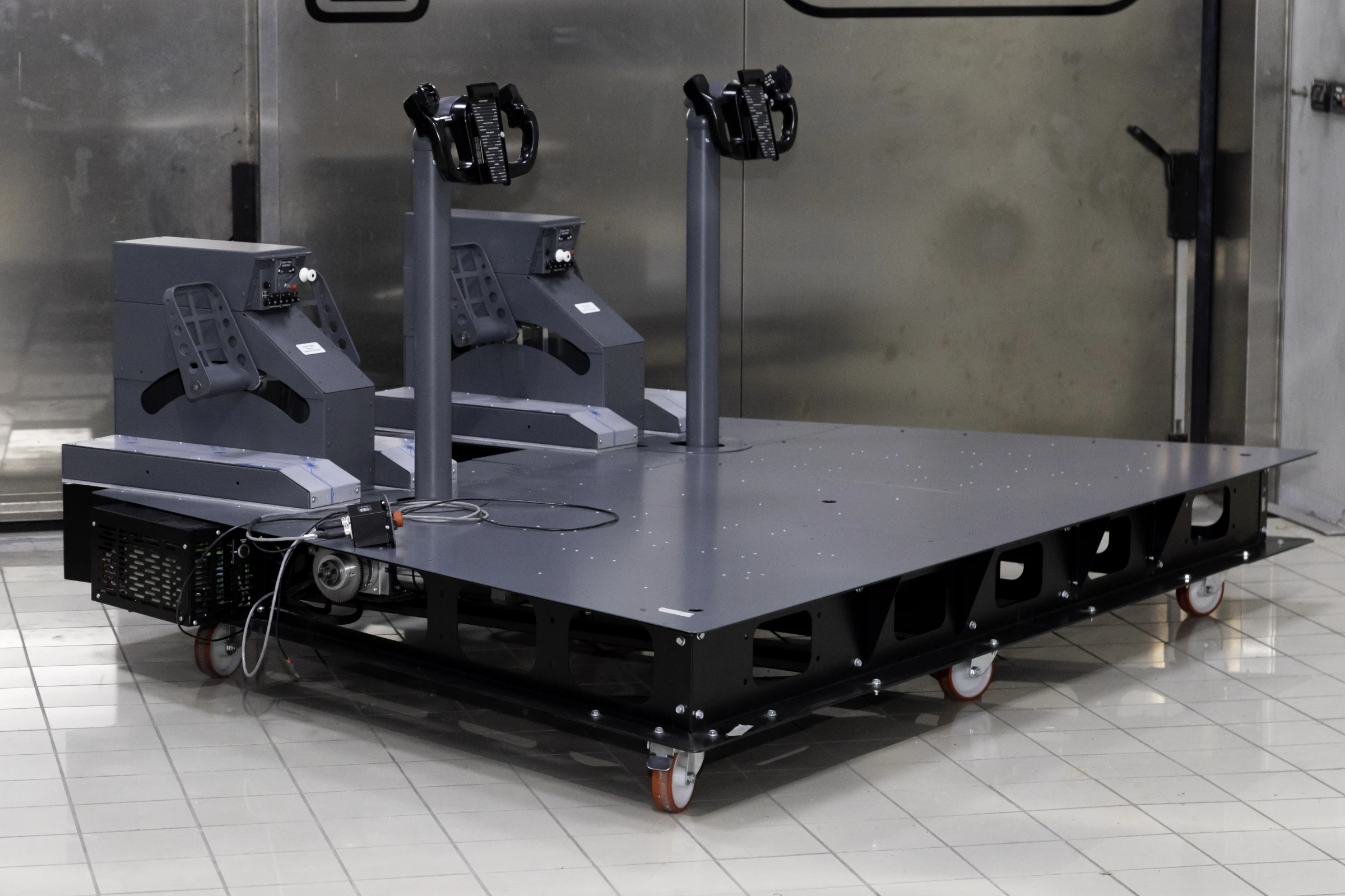

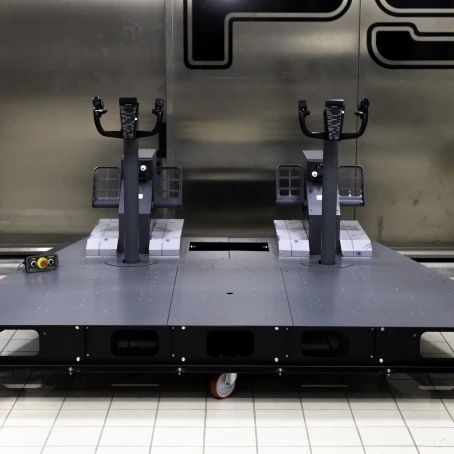

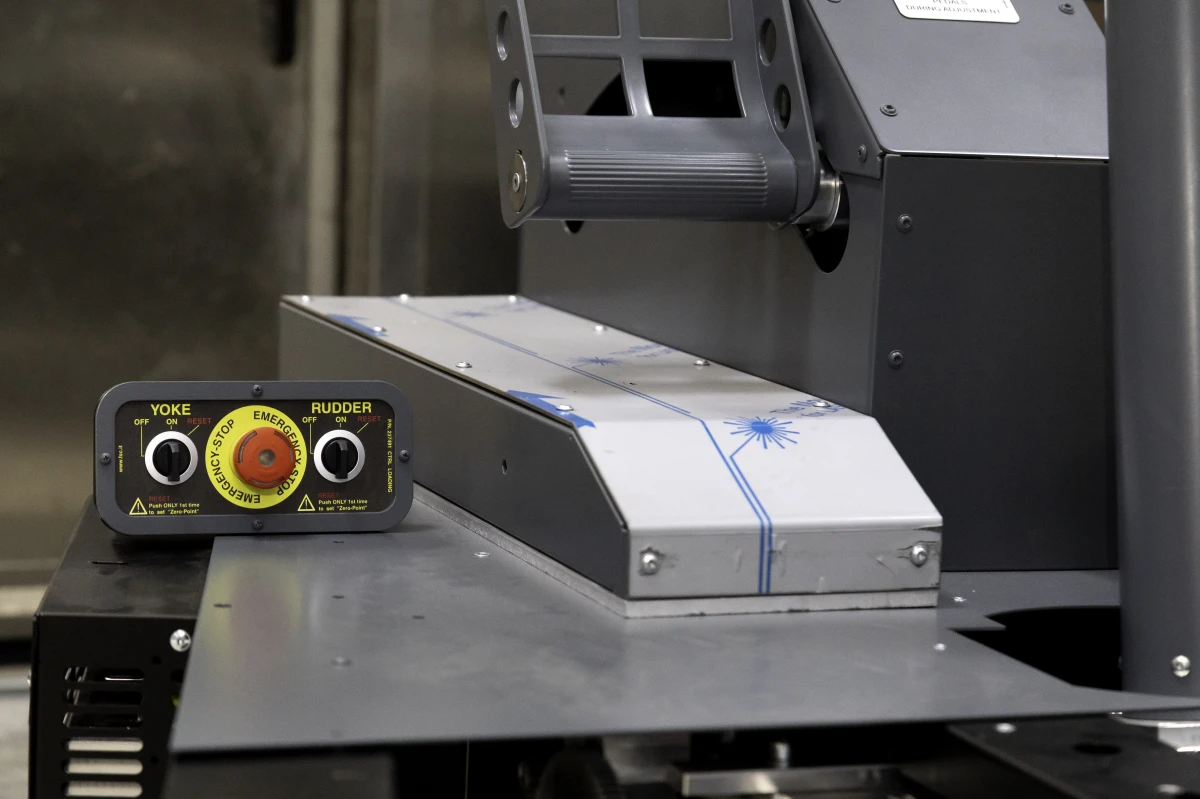

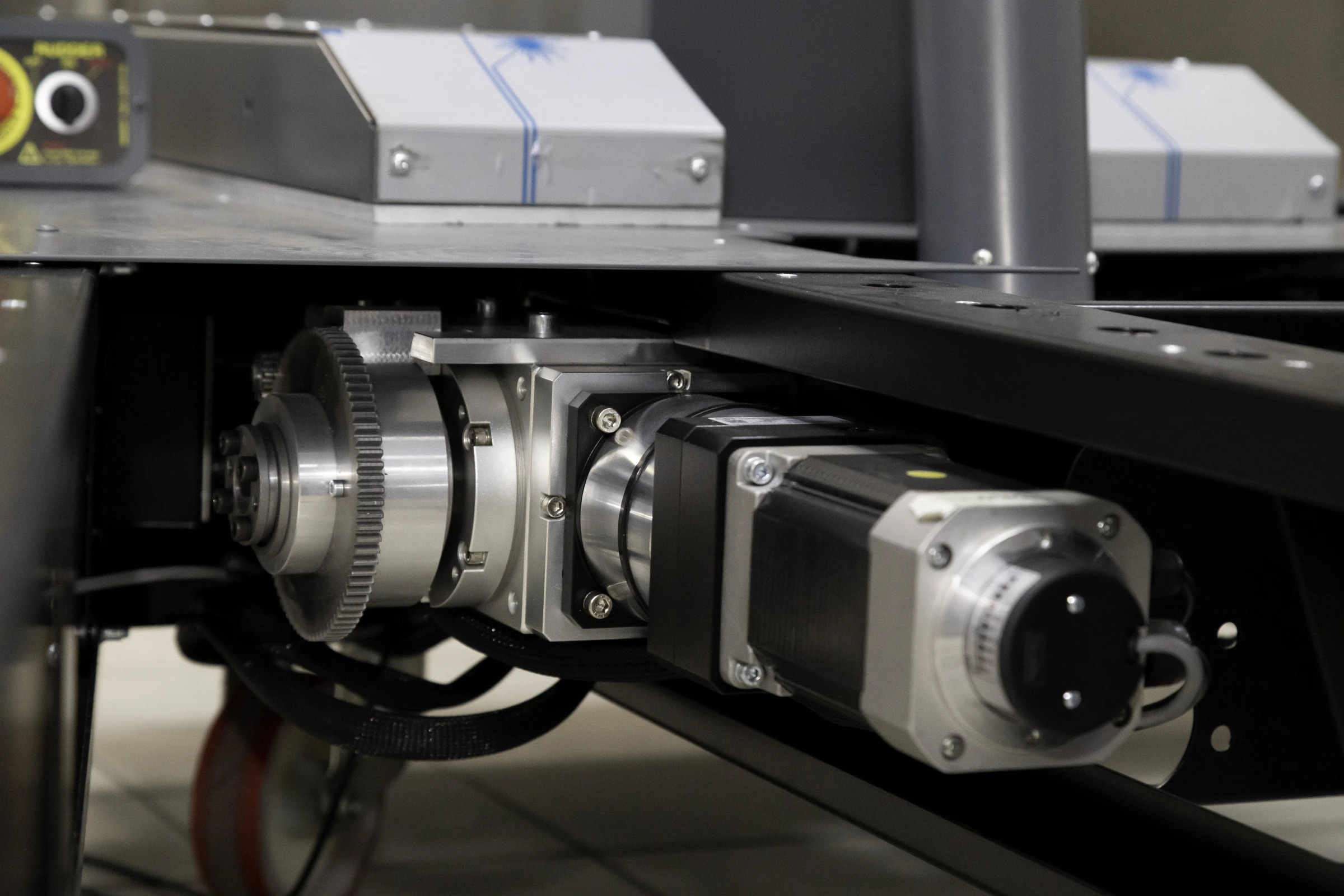

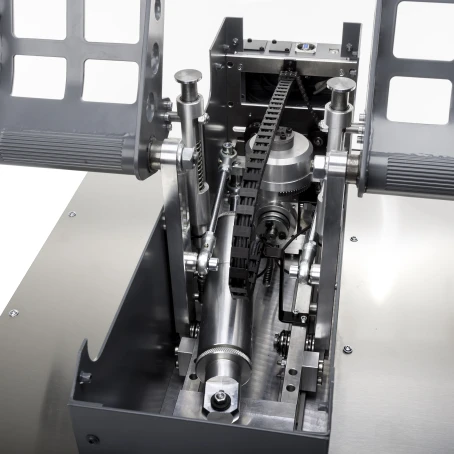

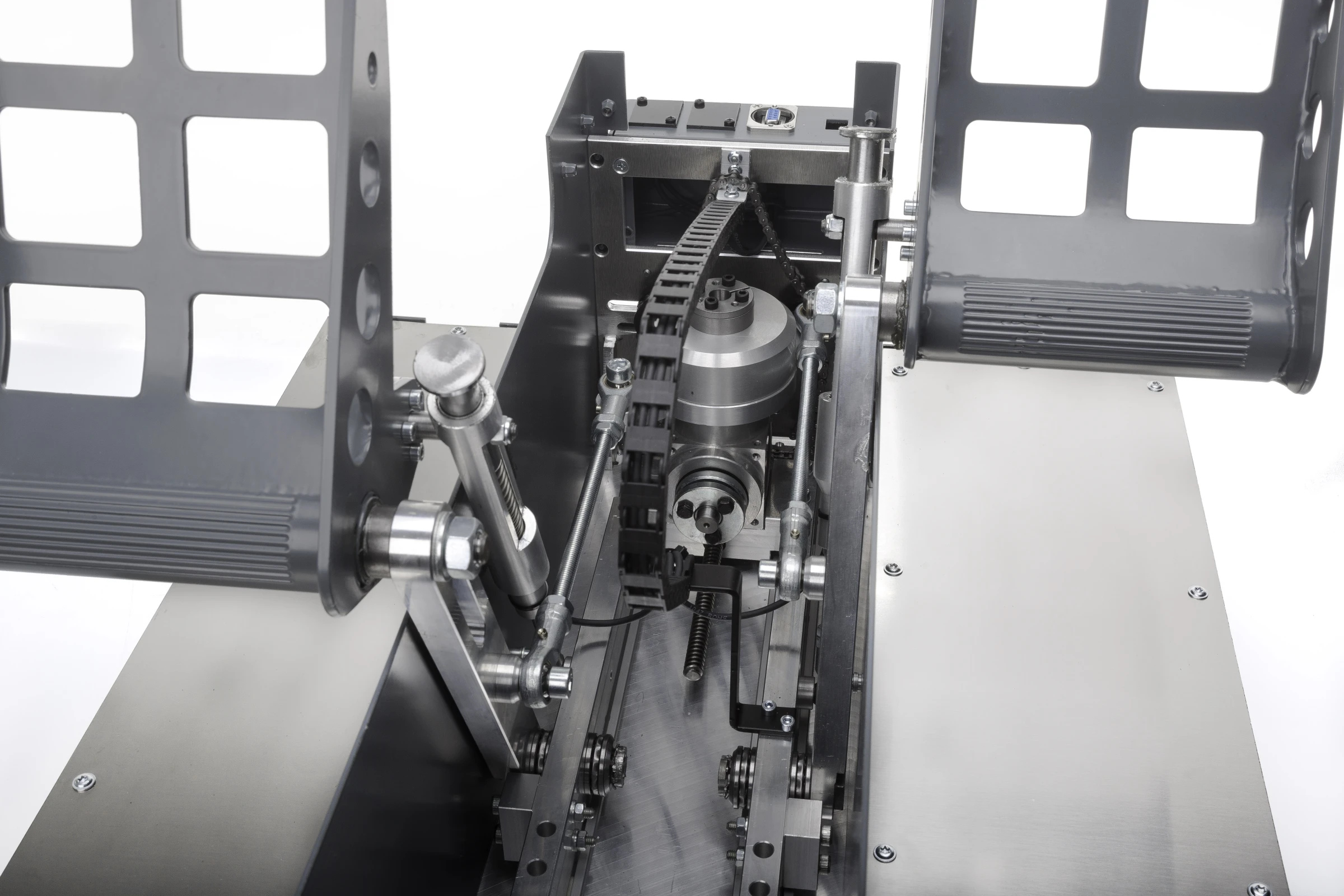

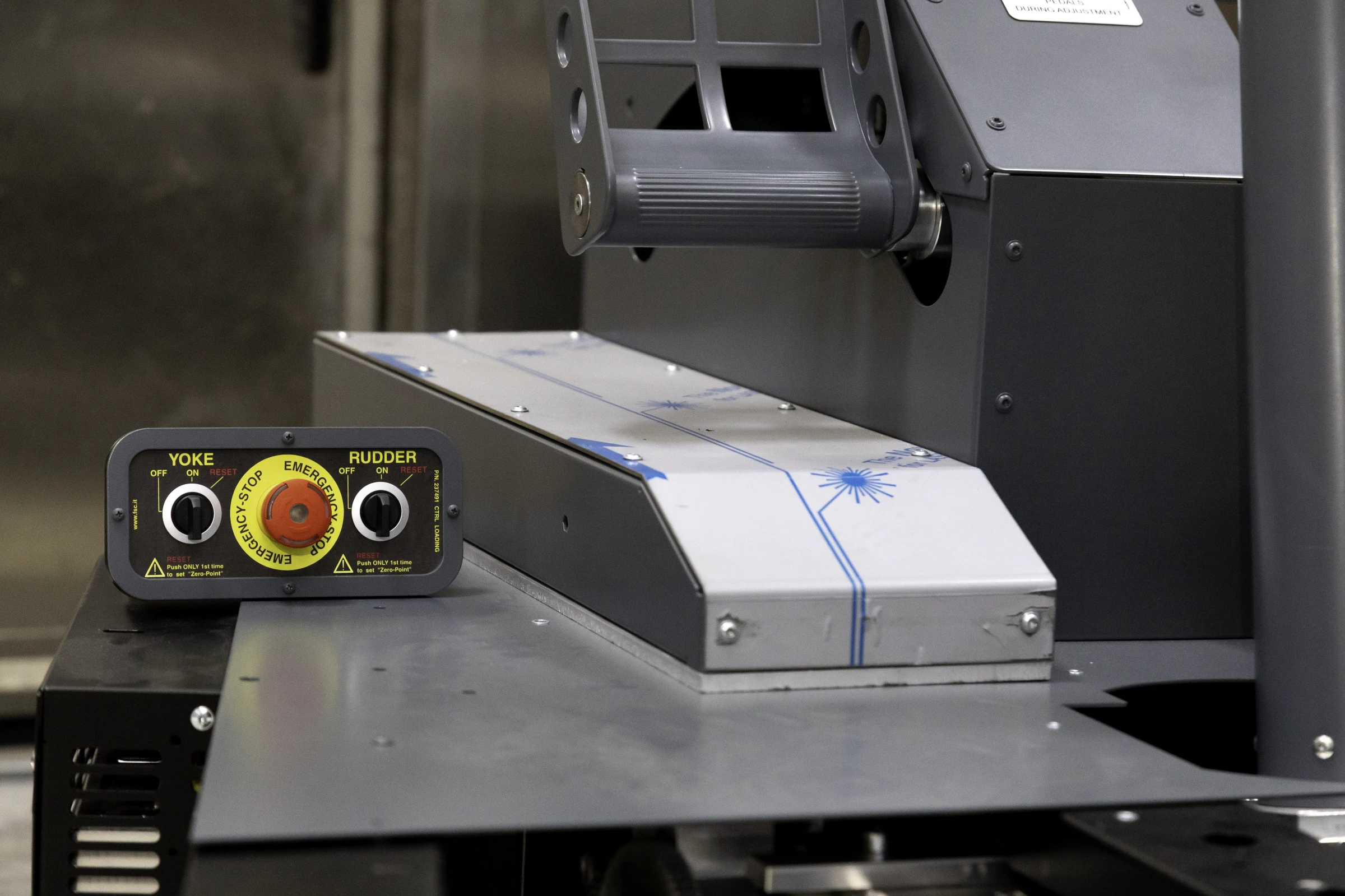

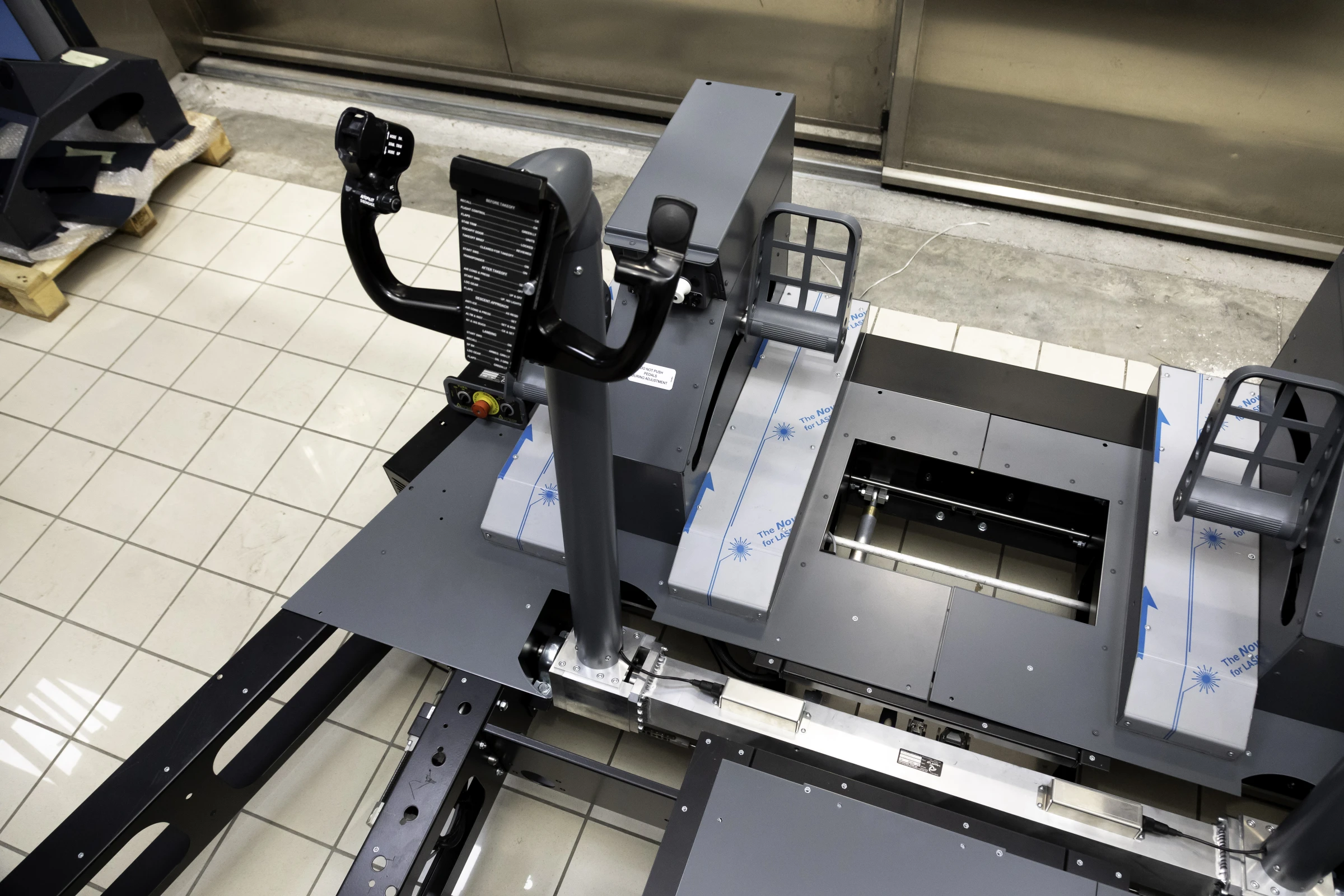

The control loading technology guarantees a realistic simulation of the forces on the controls, which vary based on:
- Aircraft speed.
- Wing loading.
- G acceleration.
- Trim value.
A fundamental aspect is the variable rudder trim, which faithfully reproduces conditions such as flight with one engine out, offering an experience without compromises.
We provide cutting-edge PC systems, equipped with the most up-to-date and high-performance components available on the market; they are built respecting the customer's needs based on the software chosen in the initial development phase of the project.

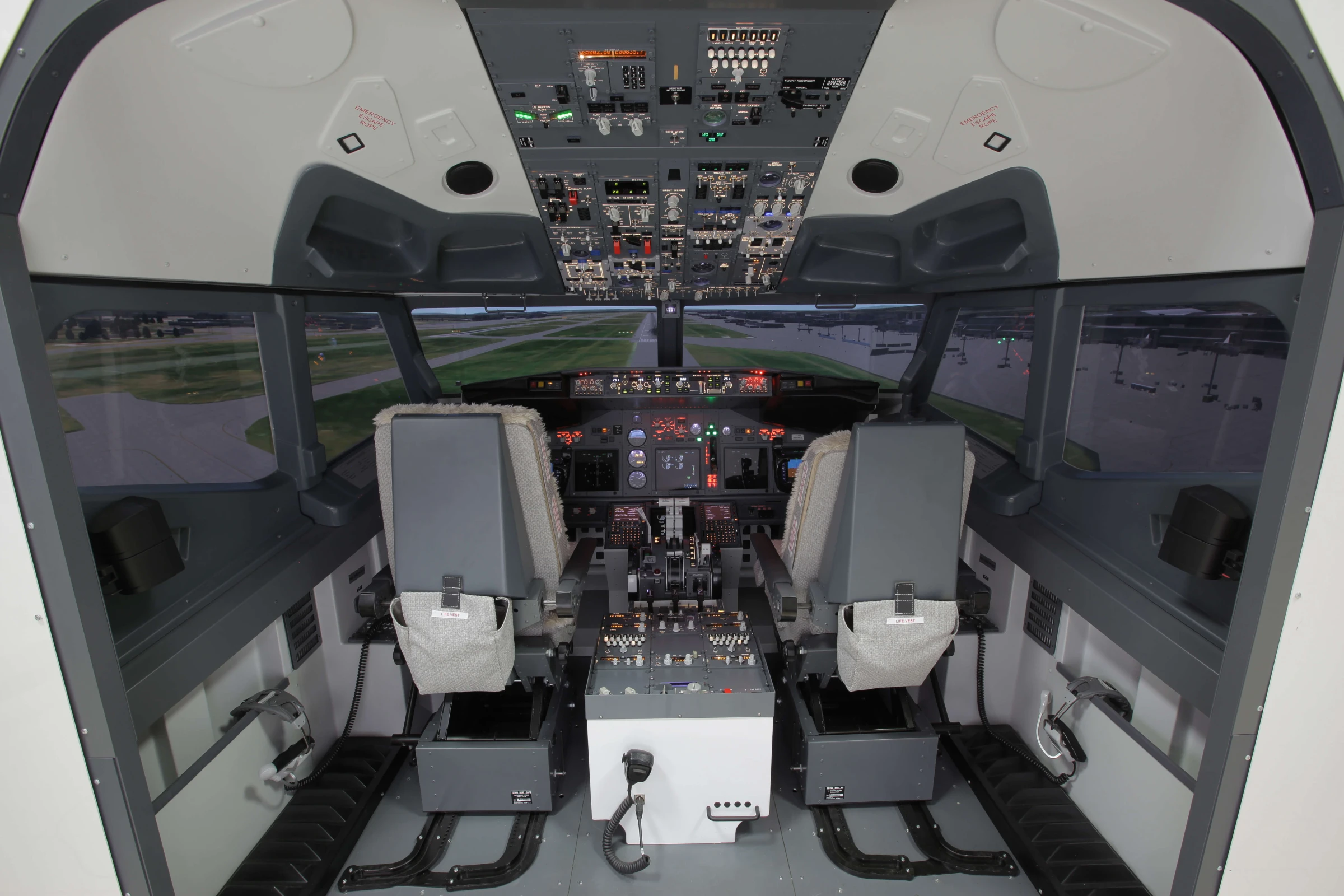

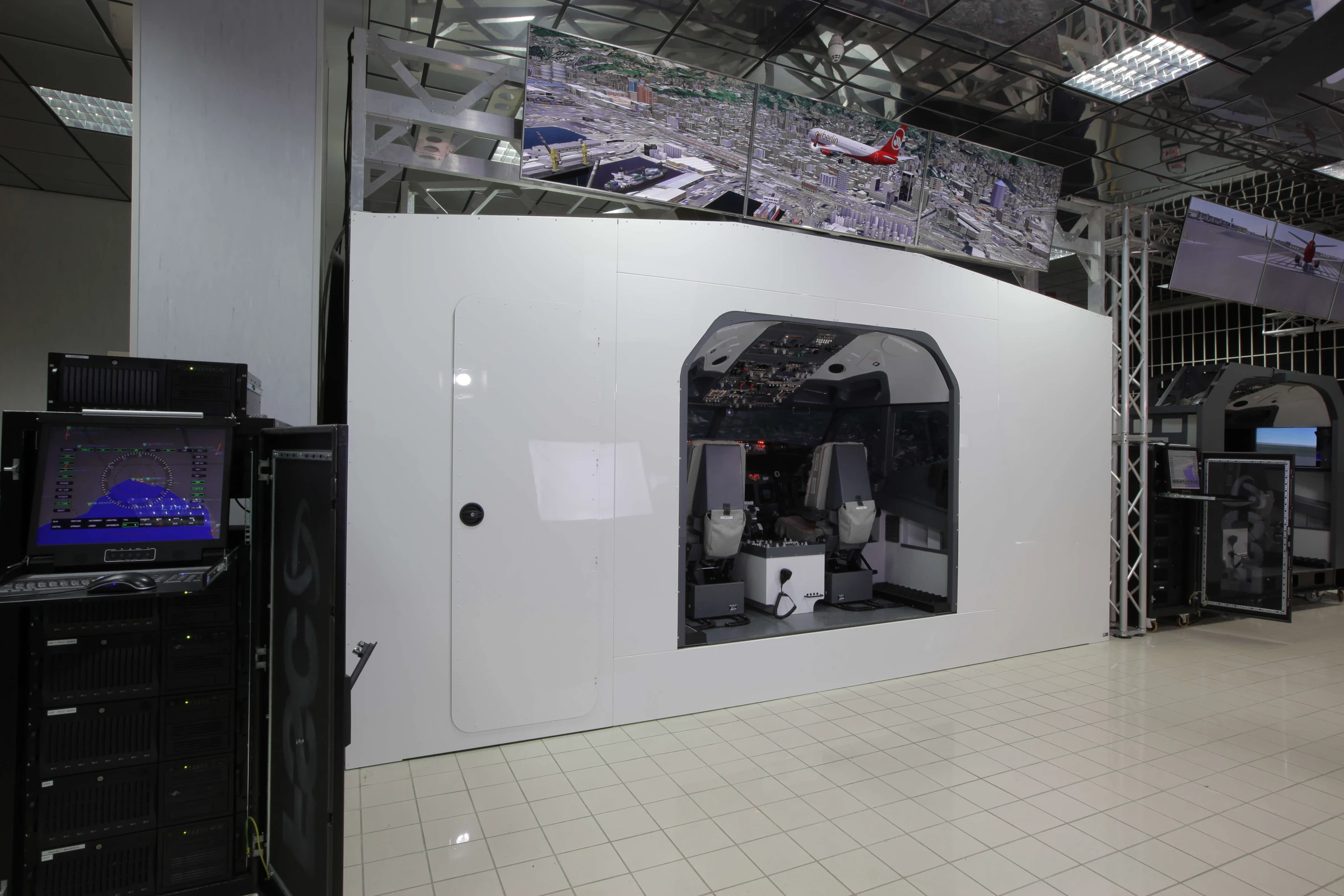

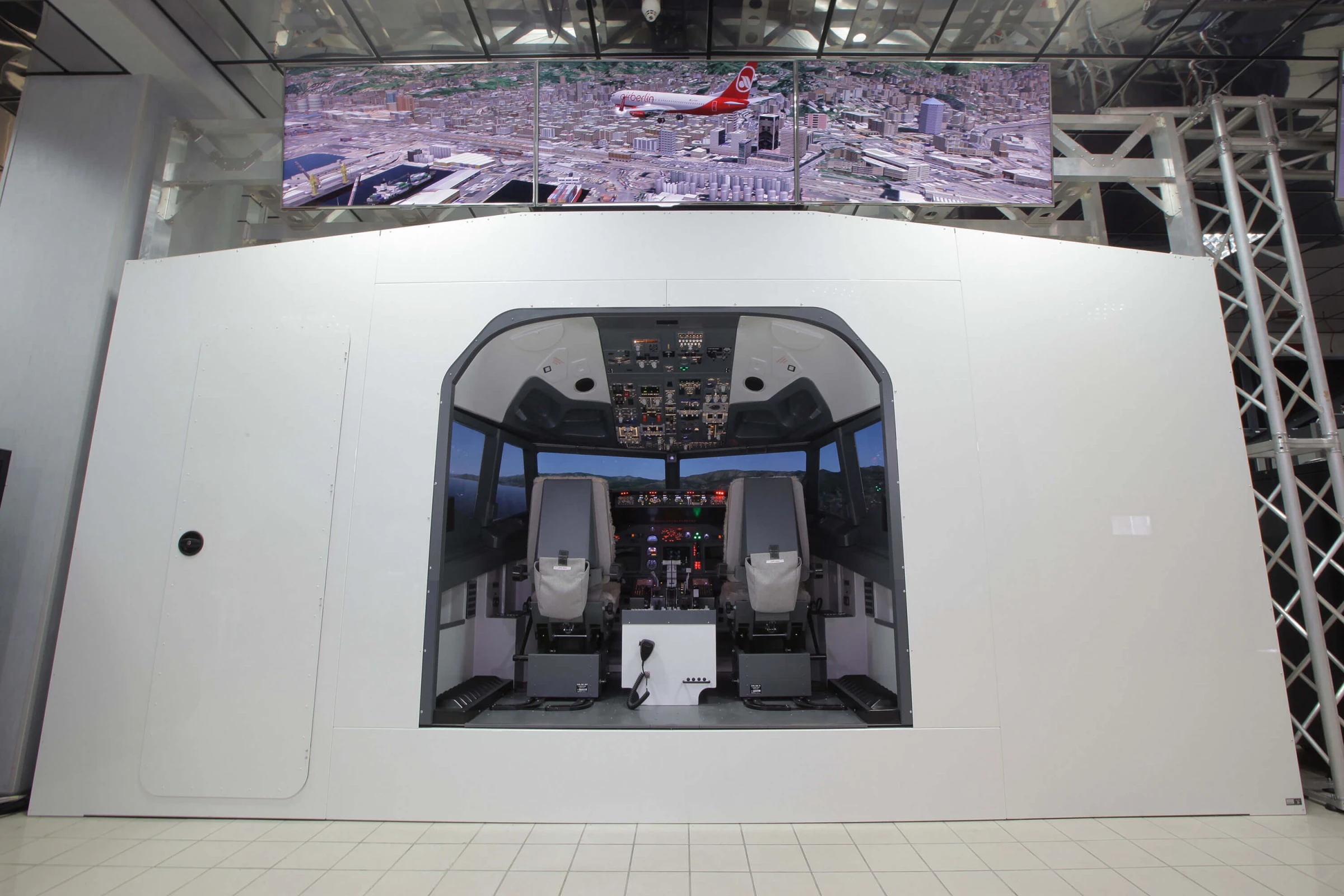

The simulators are equipped with a visual system COTS PC-based, with multi-channel front projection, a frame rate of 60 Hz, and a horizontal field of view of 220° and vertical of 40°.
The angular resolution is around 550 microsteradian/pixel, ensuring exceptional visual quality and precise details essential for complex operations.
The visual system uses an optical blending technique to optimize dark management, a crucial aspect to ensure a realistic visual experience, especially during night flight operations.

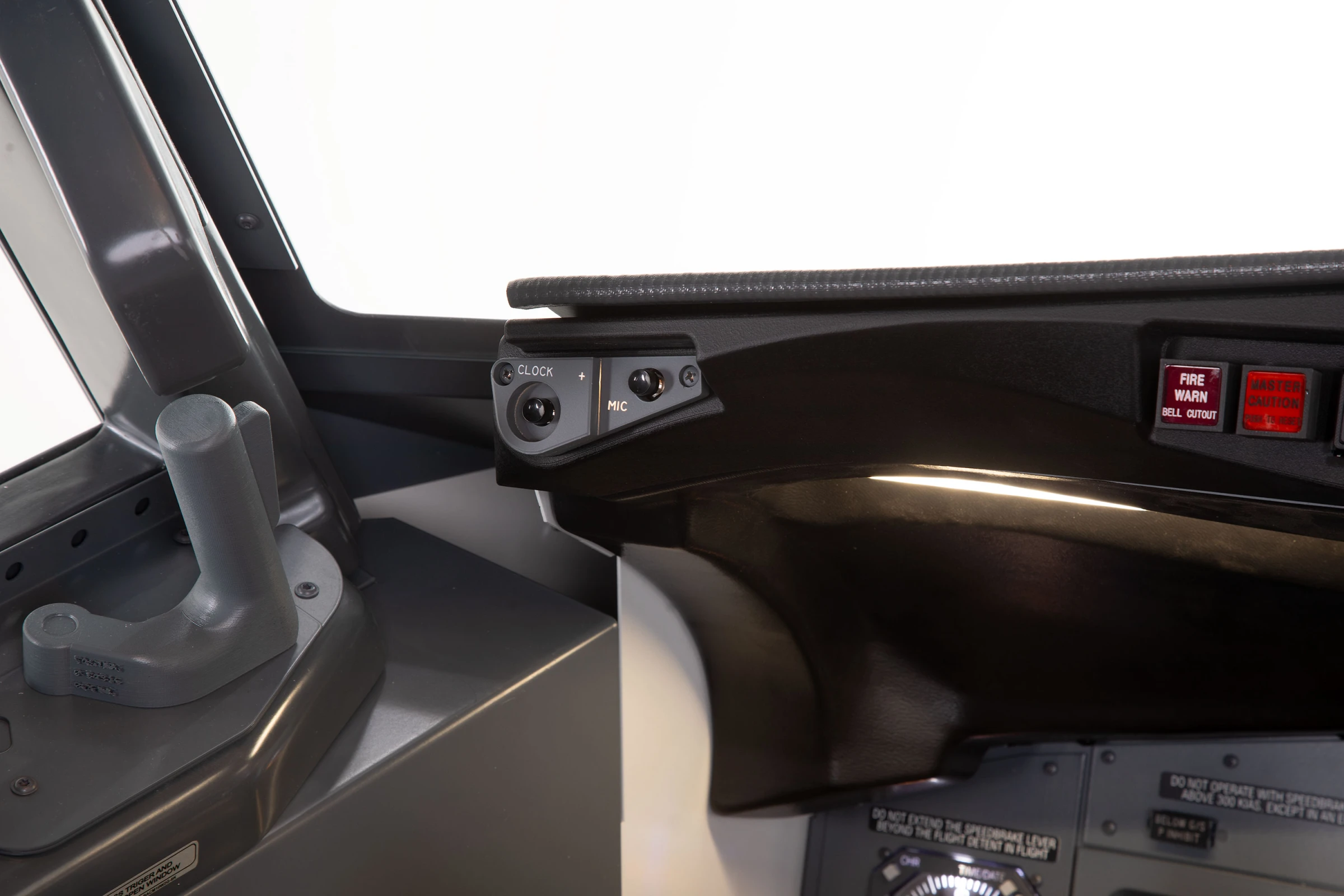

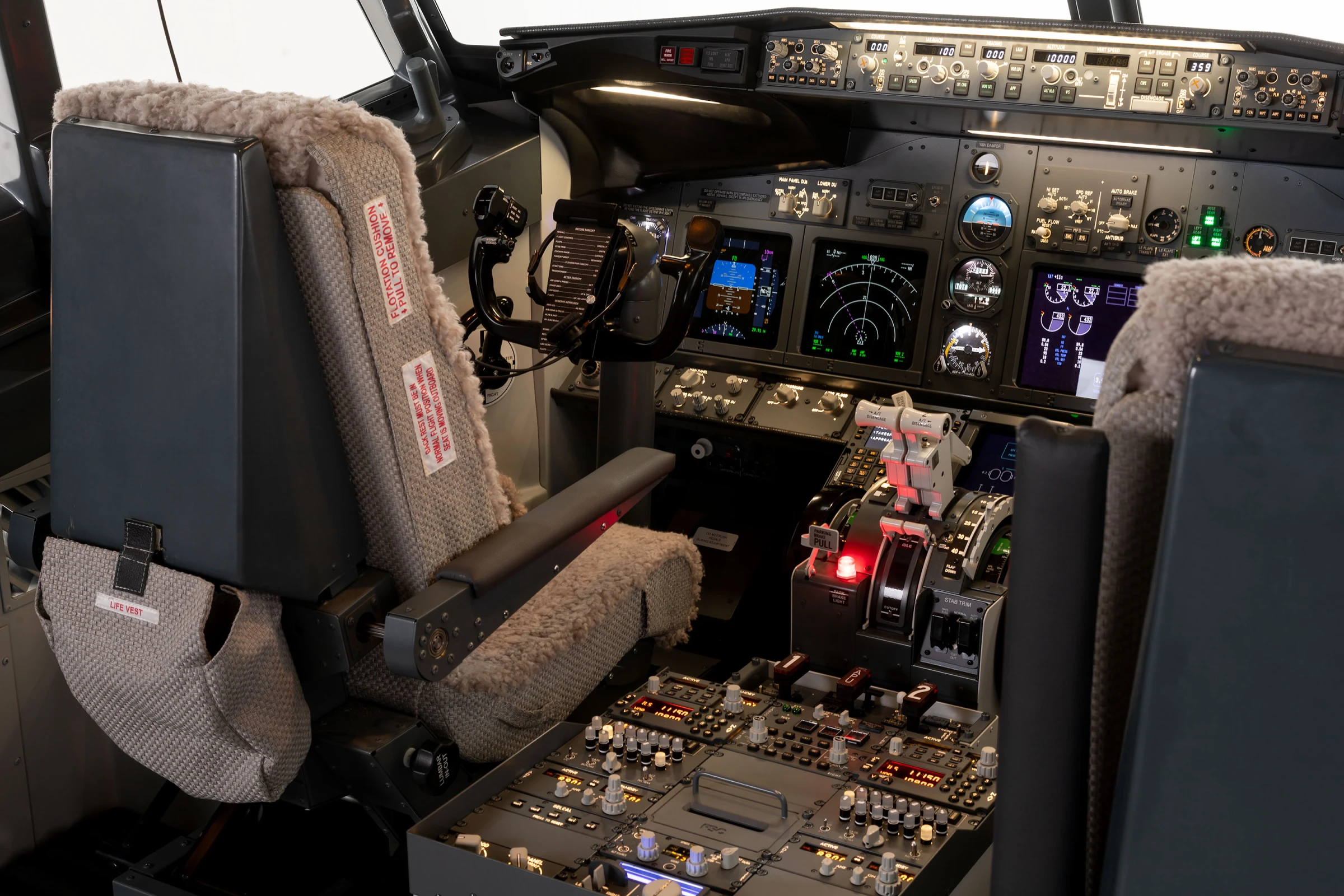

The audio and communication system is designed to offer an advanced and realistic simulation:
- Simulation of COM and NAV radios with a simplified frequency matching algorithm.
- Intercom and Public Address for simulated internal communications.
- Instructor role: Simulated radio communication with the aircraft via the Instructor Station.
- Each FTD seat is equipped with a complete headset (microphone, earphones, attachment system, connection cable and final jack).
- Cockpit speakers: Controlled by the audio system to reproduce the sounds indicated in the flight manual.

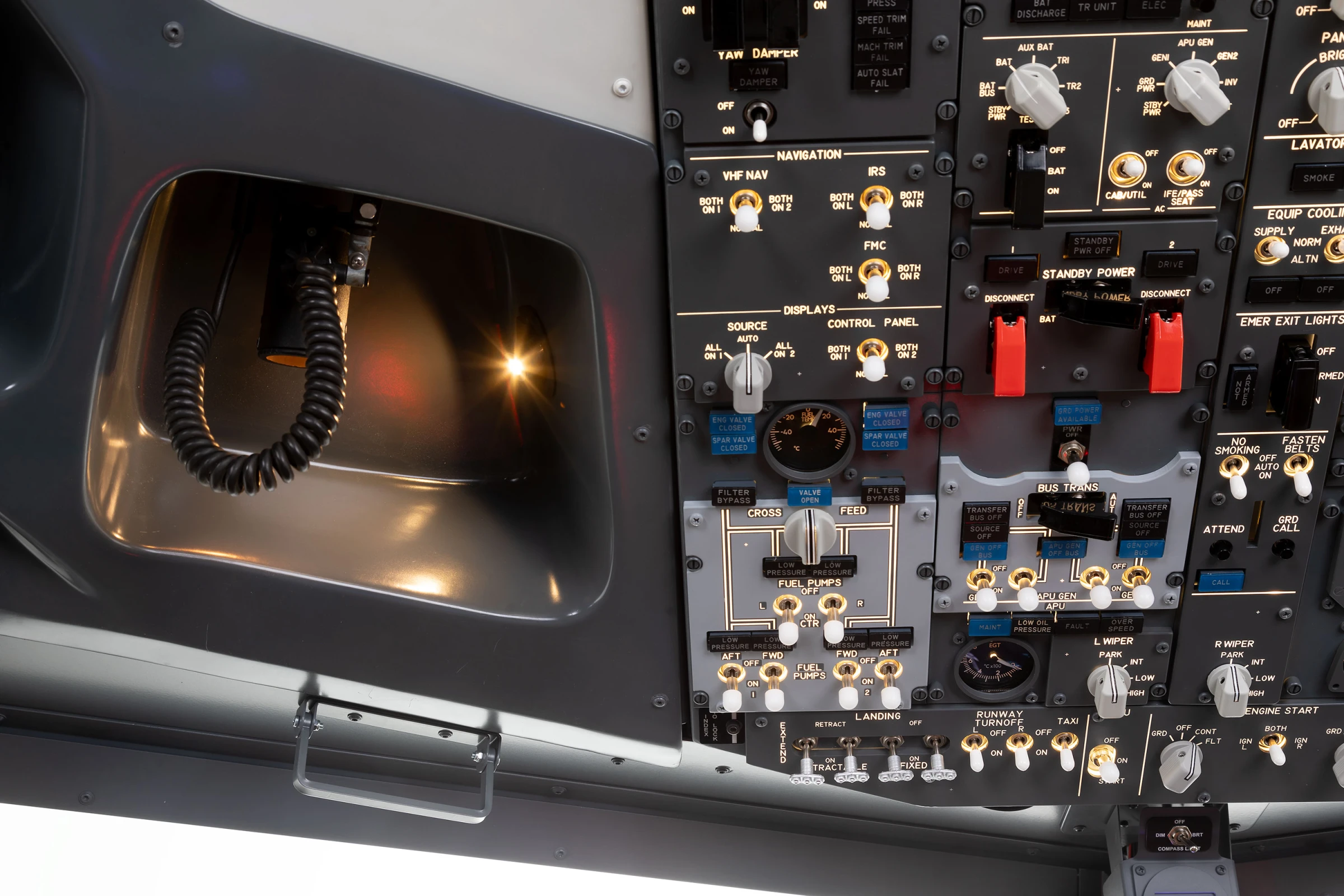

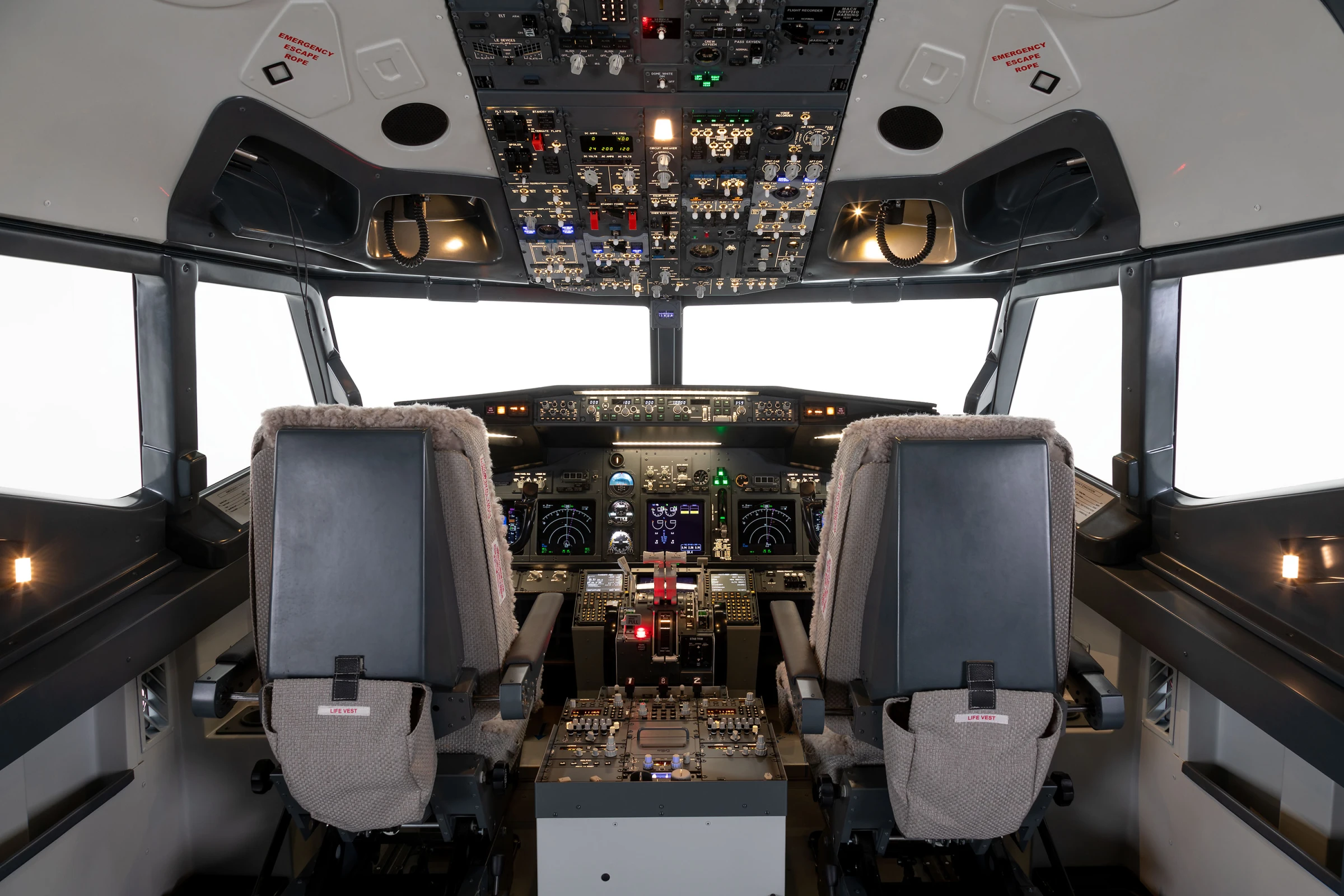

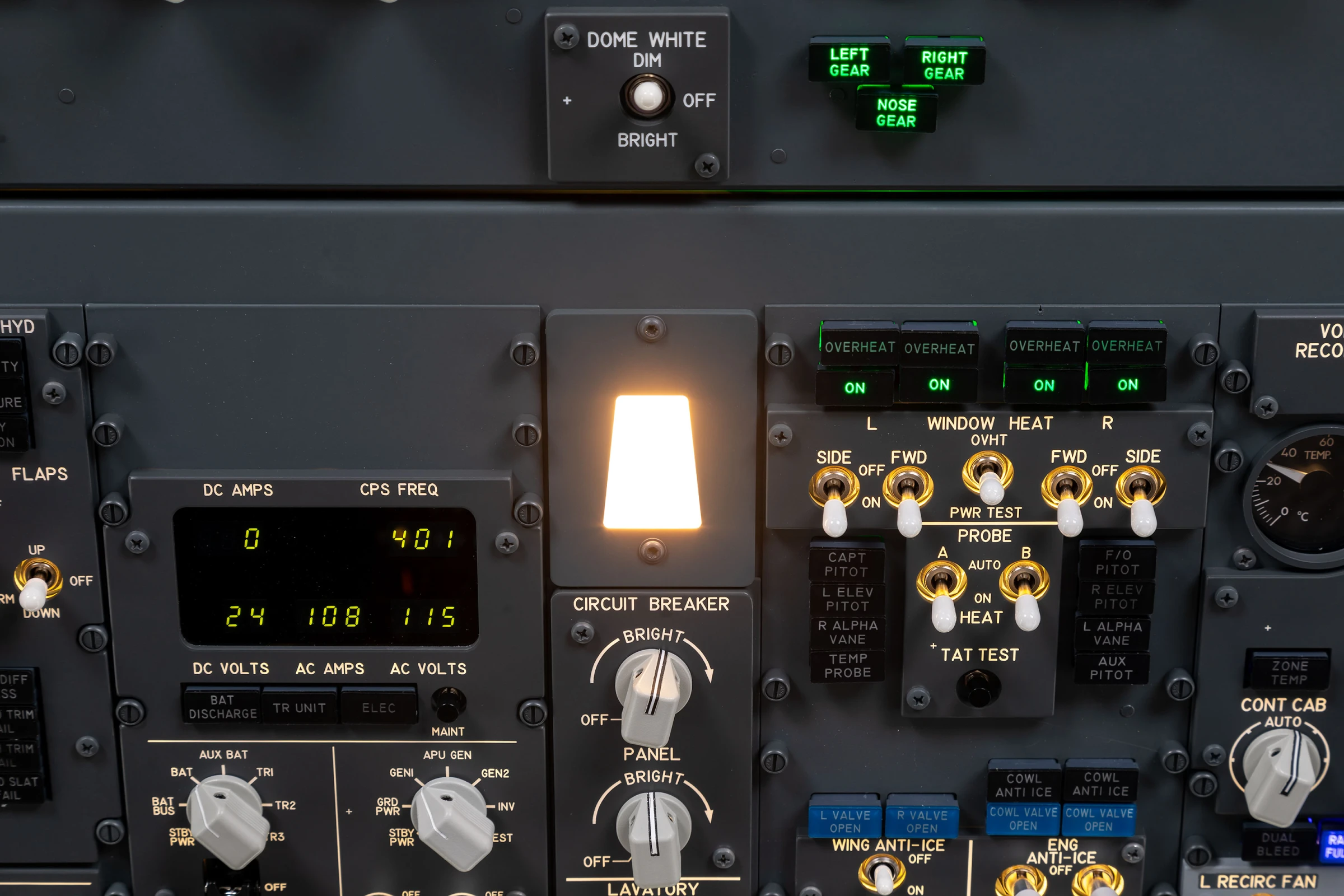

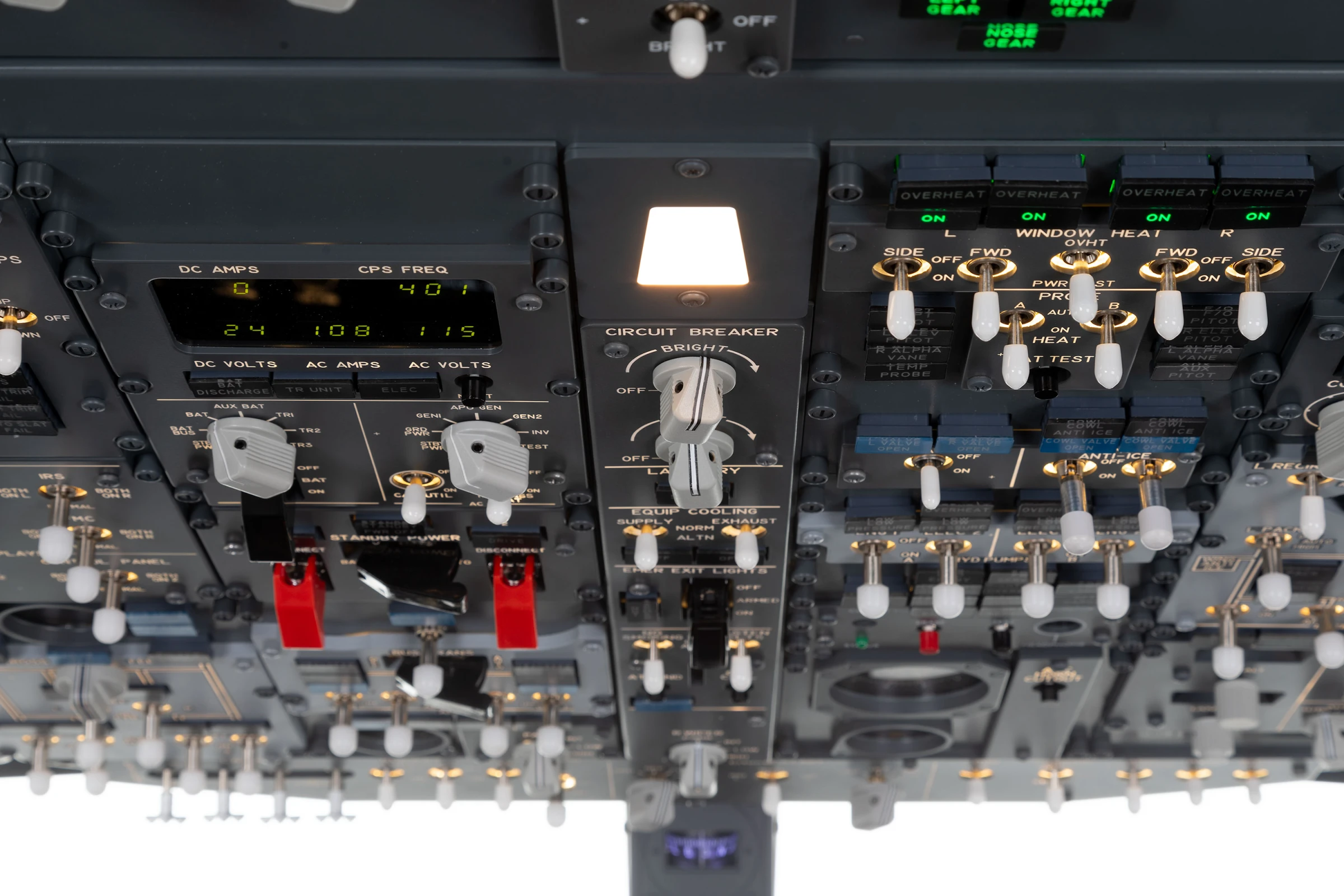

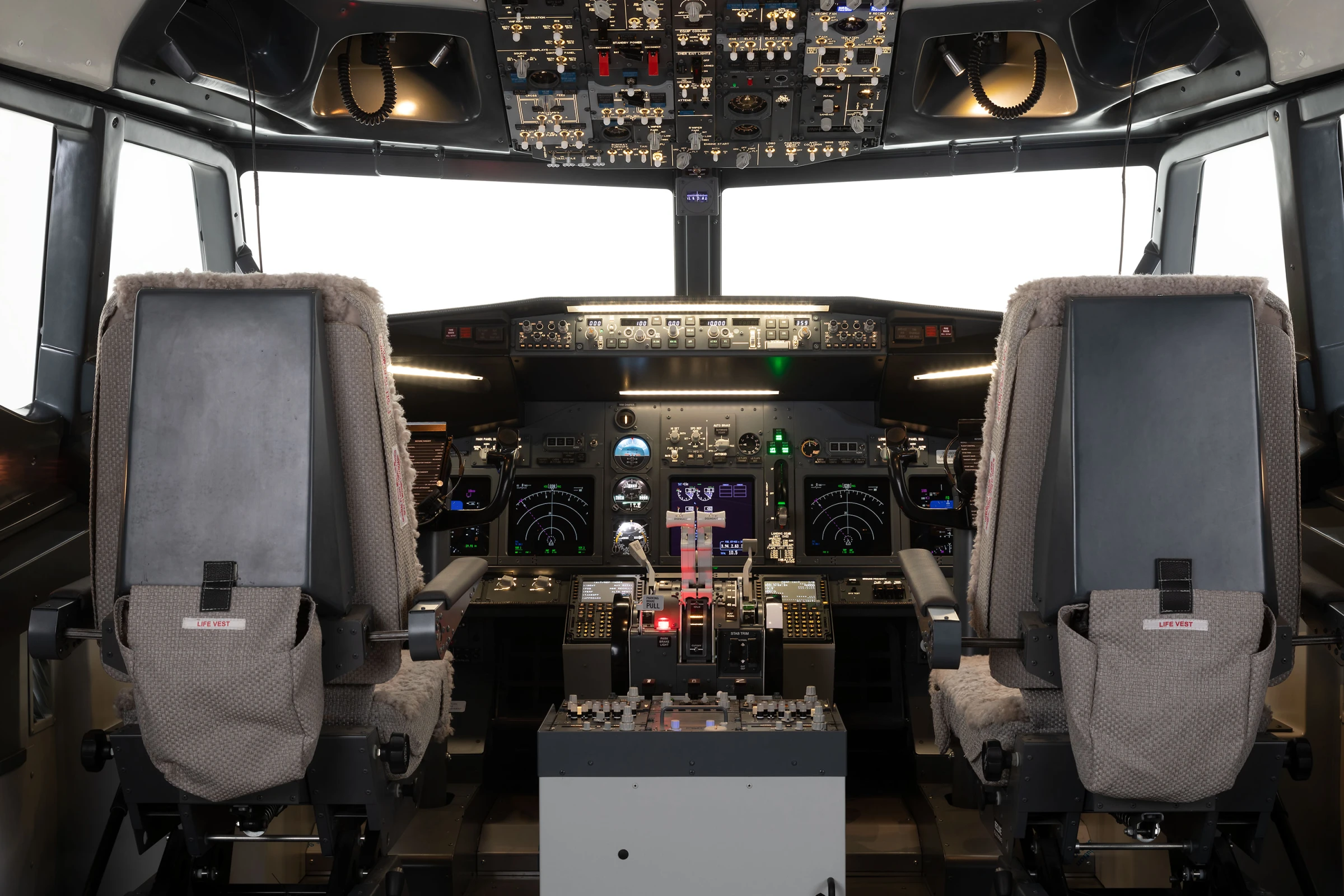

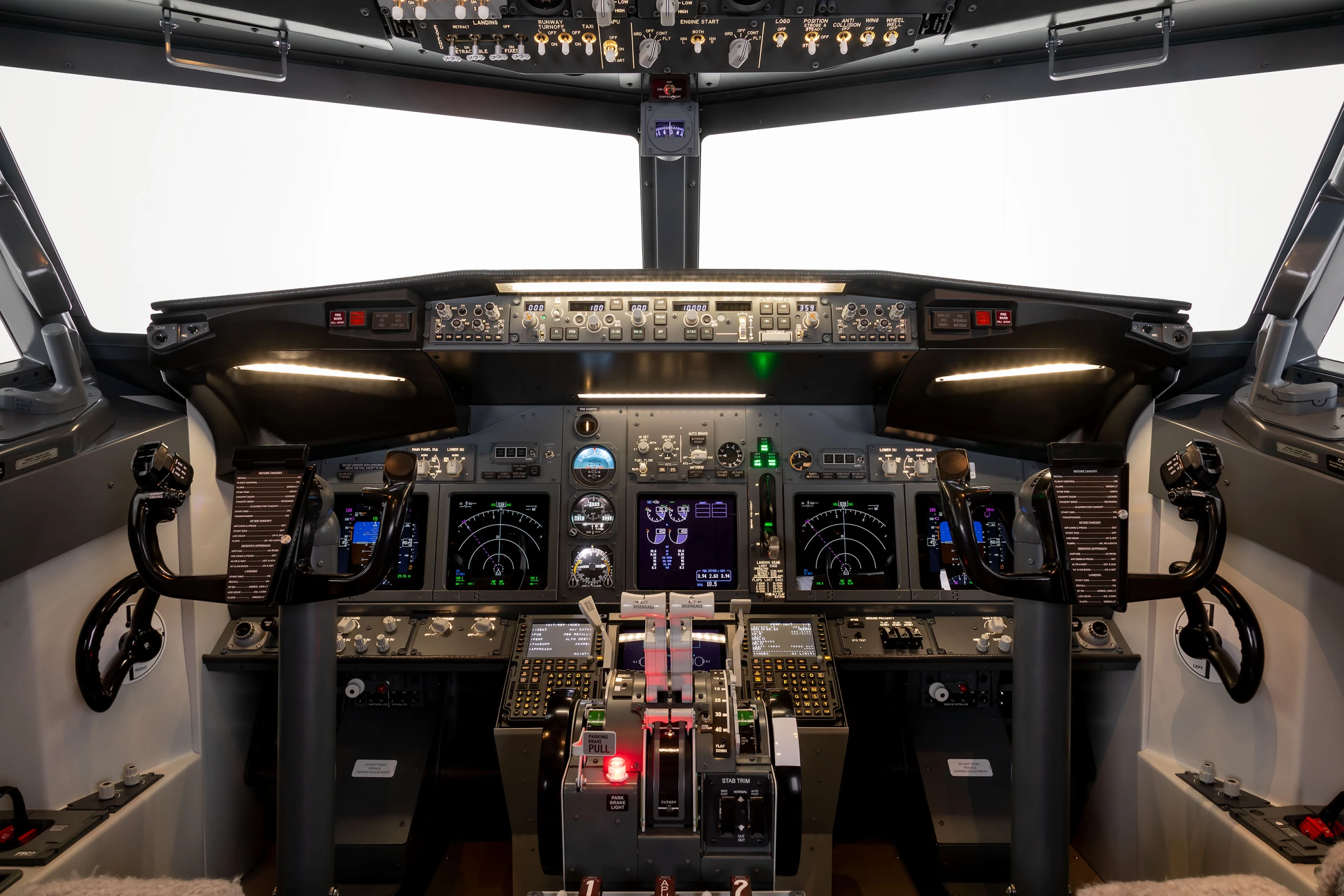

The utmost attention to detail has also driven us to develop the professional lighting system that allows the pilot to faithfully manage the brightness inside the cockpit just as it happens in reality.
The simulators include complete management of the cockpit interior lighting, with all the light points reproduced exactly as in the original aircraft. The power supply of the lights depends on the AC generator, faithfully replicating the behavior of the aircraft's electrical system.
The cabin lights have been designed to minimize visual fatigue and ensure maximum comfort for the crew.
Lighting management in night flight
During night flight, cockpit lighting plays a crucial role in instrument visibility and pilot concentration. Simulators have precise adjustments for the different phases of night flight, including instrument brightness reduction, flood light management and progressive light adaptation to avoid glare.
Emergency lights
Emergency lighting is fully simulated to reproduce realistic scenarios, allowing crew training in operating procedures in critical conditions. In the event of an electrical failure, the emergency lighting system comes into operation, replicating the same dynamics present in the real aircraft, ensuring complete training even for total blackout situations or poor visibility conditions.

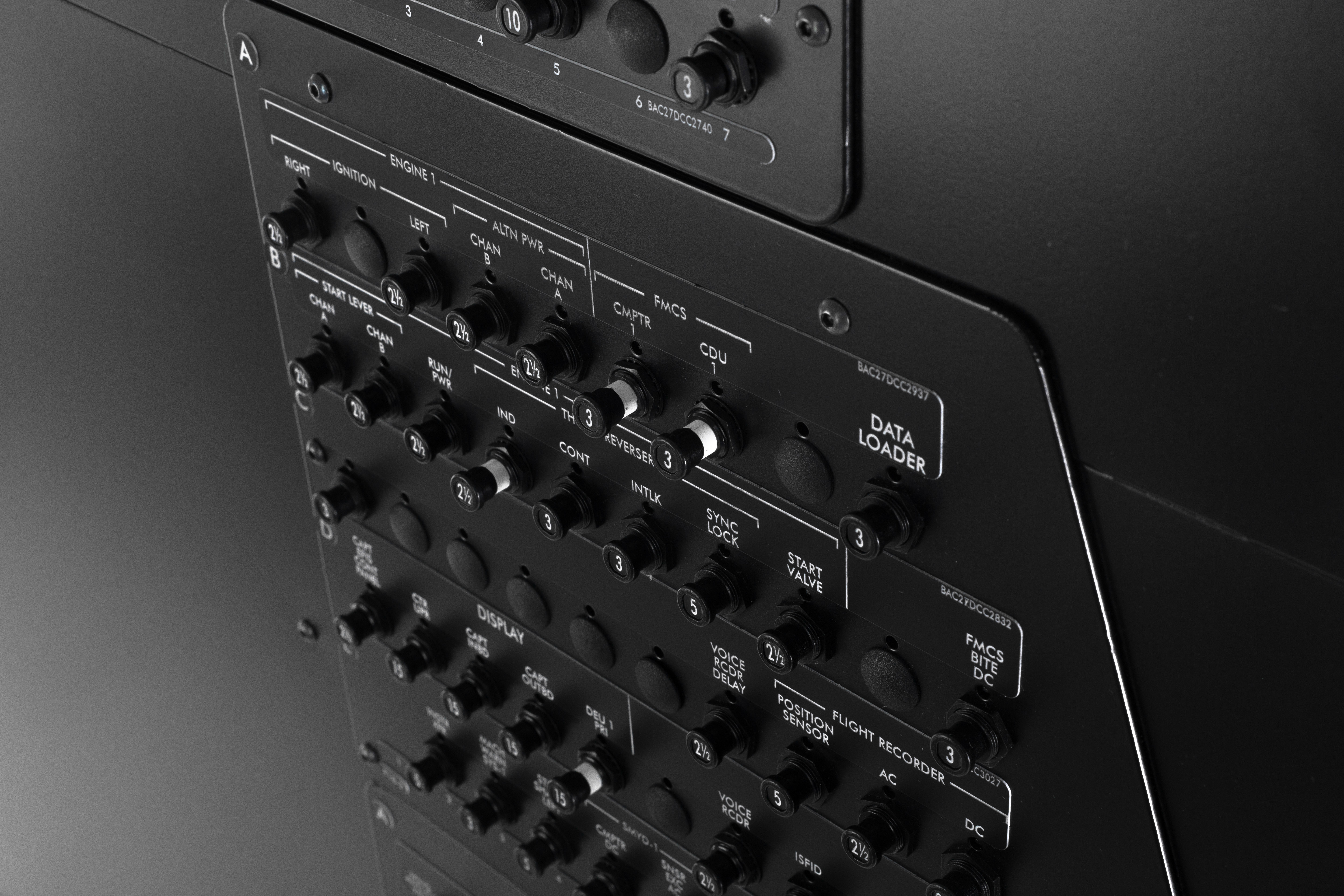

The simulators include all operational circuit breakers, fully functional. The number of breakers varies according to the type of aircraft simulated:
- About 150-200 for Liner simulators.
The panels are faithfully reproduced, with the circuit breakers positioned exactly as in the real aircraft, ensuring maximum consistency with the operational experience of the aircraft.

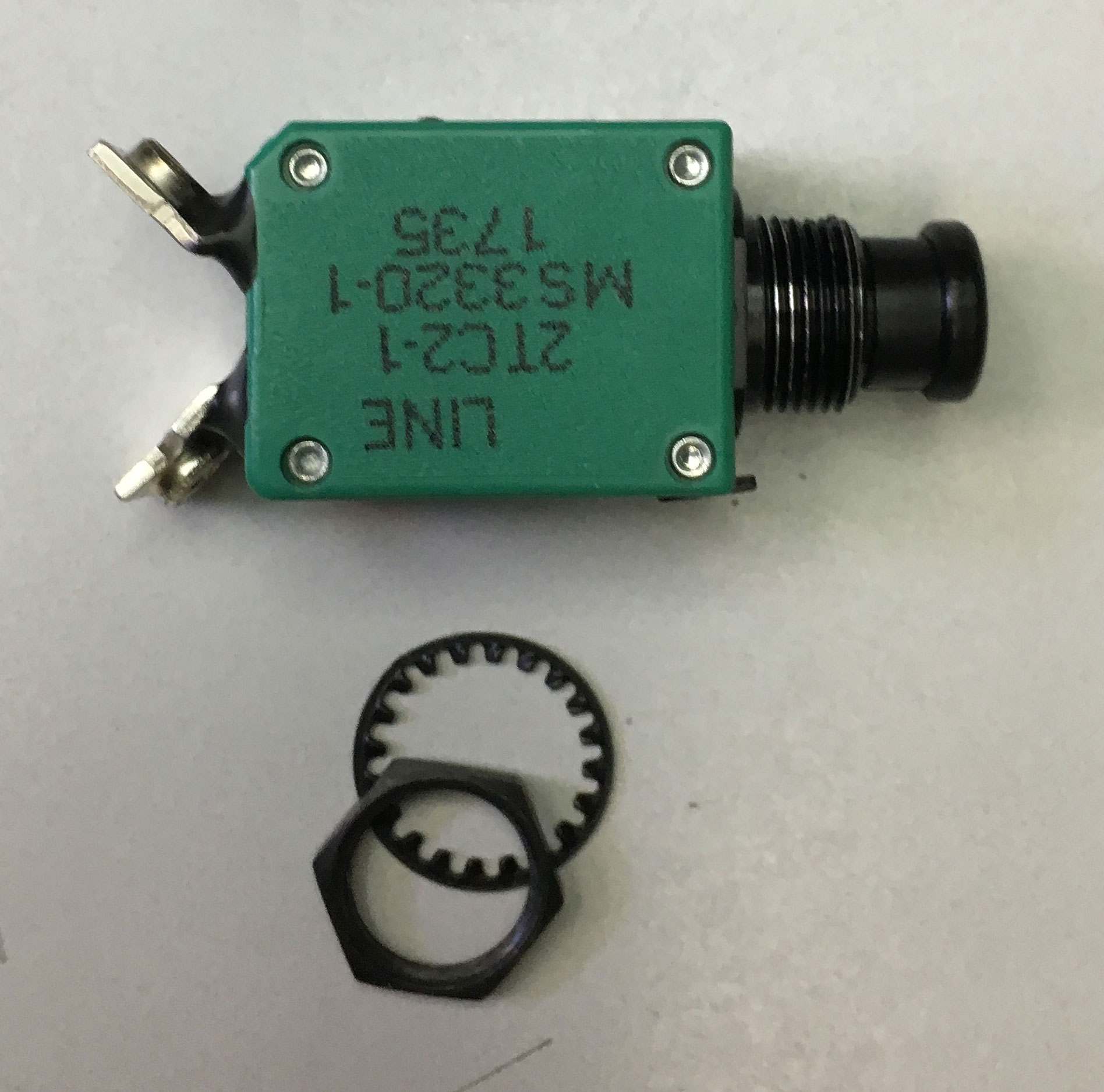

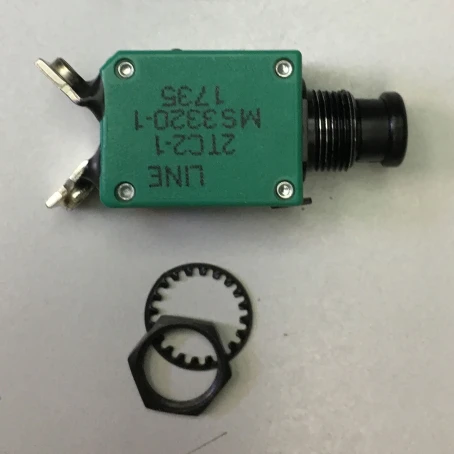

The circuit breakers used in the simulators are real breakers and can also be activated or deactivated from the Instructor Station. This functionality allows you to simulate failures and perform advanced training sessions for ground maintenance technicians.
The Nonlinear 6 DoF (Degree of Freedom) flight model is fully configurable in the following aspects:
- Flight control system
- Aerodynamics
- Propulsion
- Landing gear configuration
Main features:
- Rotation effects: Modeled Coriolis and centrifugal accelerations.
- Oblate spheroid shape: Geodetic coordinates according to the WGS84 system.
- Realistic atmosphere: Based on the International Standard Atmosphere (ISA 1976), with representation of temperature, pressure and humidity.
- Dryden Turbulence Model: Turbulence simulation.
- NASA Glenn Icing Model: Simulation of the effects of ice formation.
FSC has an efficient and proven structure with numerous organized departments. Areas equipped for the production, assembly and testing of simulators, a service and repair laboratory, a large and organized warehouse, a specialized IT department, a department for 3D/2D graphic design.
A strong point is the FSC assistance, designed to guarantee continuity of service:
- Technical support via e-mail, telephone and remote sessions.
- Rapid shipment of vital components within 24 hours, essential to minimize downtime.
This assistance is particularly important for customers with students coming from other cities or countries, who need a simulator that is always operational. It is essential to avoid the loss of the already programmed schedule and to guarantee the lowest possible machine downtime. This level of reliability distinguishes FSC as a leader in technical and management of operational support.
| Power Consumption |
Up to 6.0 KW |
|
|---|---|---|
| Power Requirement |
210-240V / 50HZ Upon request: 110-240V / 50-60HZ version |
|
| Professional audio system |
Bose audio system with matrix amplifier that manages 8 audio channels via Dante: 2 speakers in the MIP to reproduce the "Voice Warming System" 2 speakers in the ceiling and 2 side speakers to reproduce ambient sounds 2 subwoofers/bass shakers for cabin vibrations |
|
| Visual system |
Projection arena 3 x Full-HD projectors or 5 x 65" 4K monitors |
|
| High-End Simulation PCs |
2 x PC Server Windows High-Performance 3 x PC Client Windows High-performance (visual system with 3 projectors) 5x PC Client Windows High-performance (visual system with 5 monitors) |
|
| External view |
3 x monitors LCD/Led 55" Full-HD + 1 x PC Server Windows High-Performance (upon request) |
|
| Visual resolution |
Global resolution on 180° projector arena with 3 x Full-HD projectors: 5.760 x 1.200 pixels Global resolution on visual arena with 5 x Full-HD monitors: 19.200 x 2.160 pixels |
| Light system |
Full and adjustable backlighting like the real one |
|
|---|---|---|
| Motorized flight controls |
Control loading system force feedback on rudder pedals and yoke (upon request) |
|
| Cockpit |

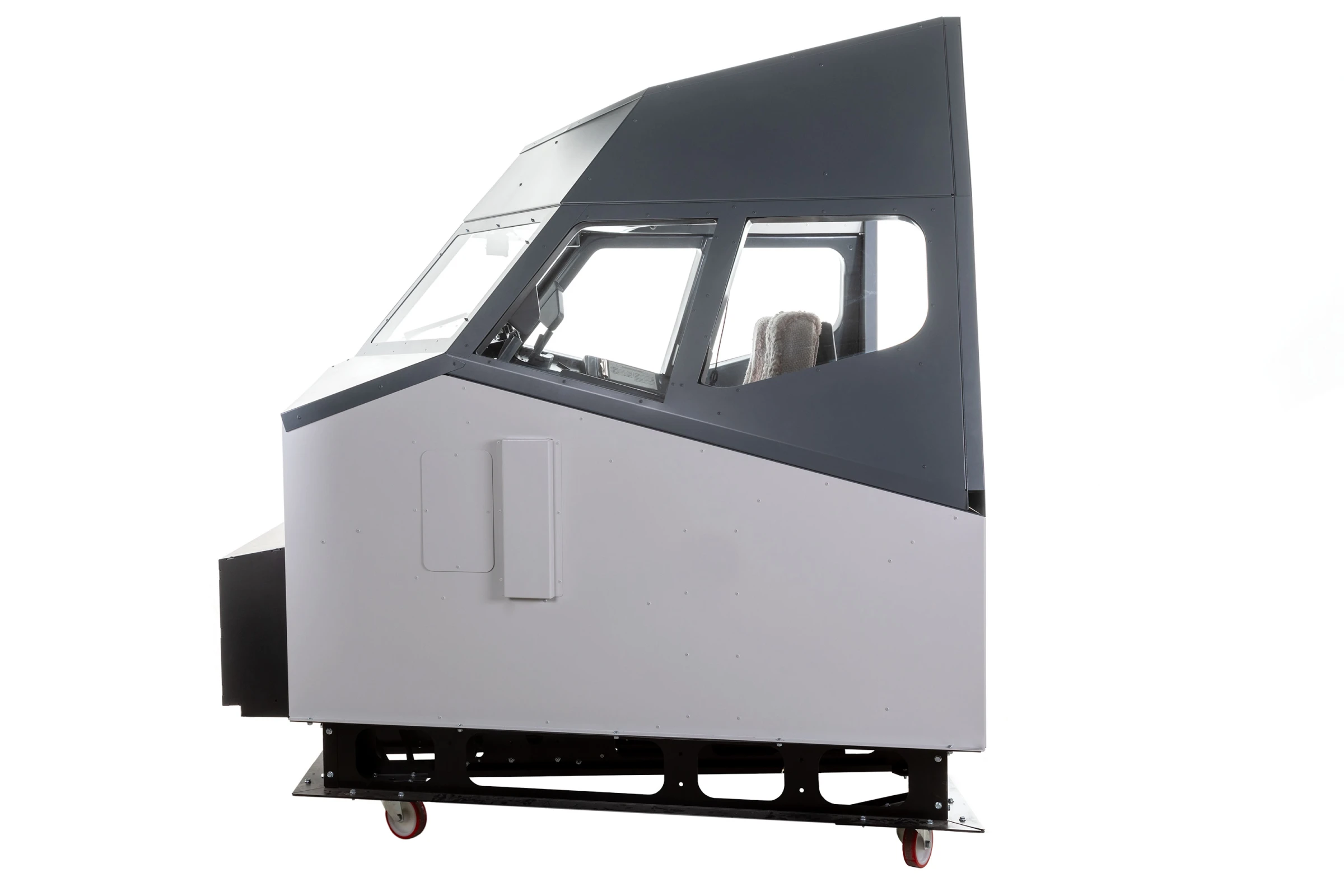

Structure made entirely of metal with fiberglass finishes |
|
| 1:1 scale |
All cockpits are faithful and real reproductions and are equipped with fully functional instrumentation |
|
| Weight |
Cockpit : 500Kg Visual System : 350Kg Electronics and Racks : 600Kg |
|
| Wireless tablet with customized interface |
iPad Connectivity for use with ForeFlight & other aviation apps (upon request) |
|
| Software |
Compatible with most of the software available on the market: Prosim, Project Magenta, PMDG 737, MSFS2020, X-Plane, Zibo Mod., Prepar3D, FSX etc etc |
|
| Circuit Breakers panels |

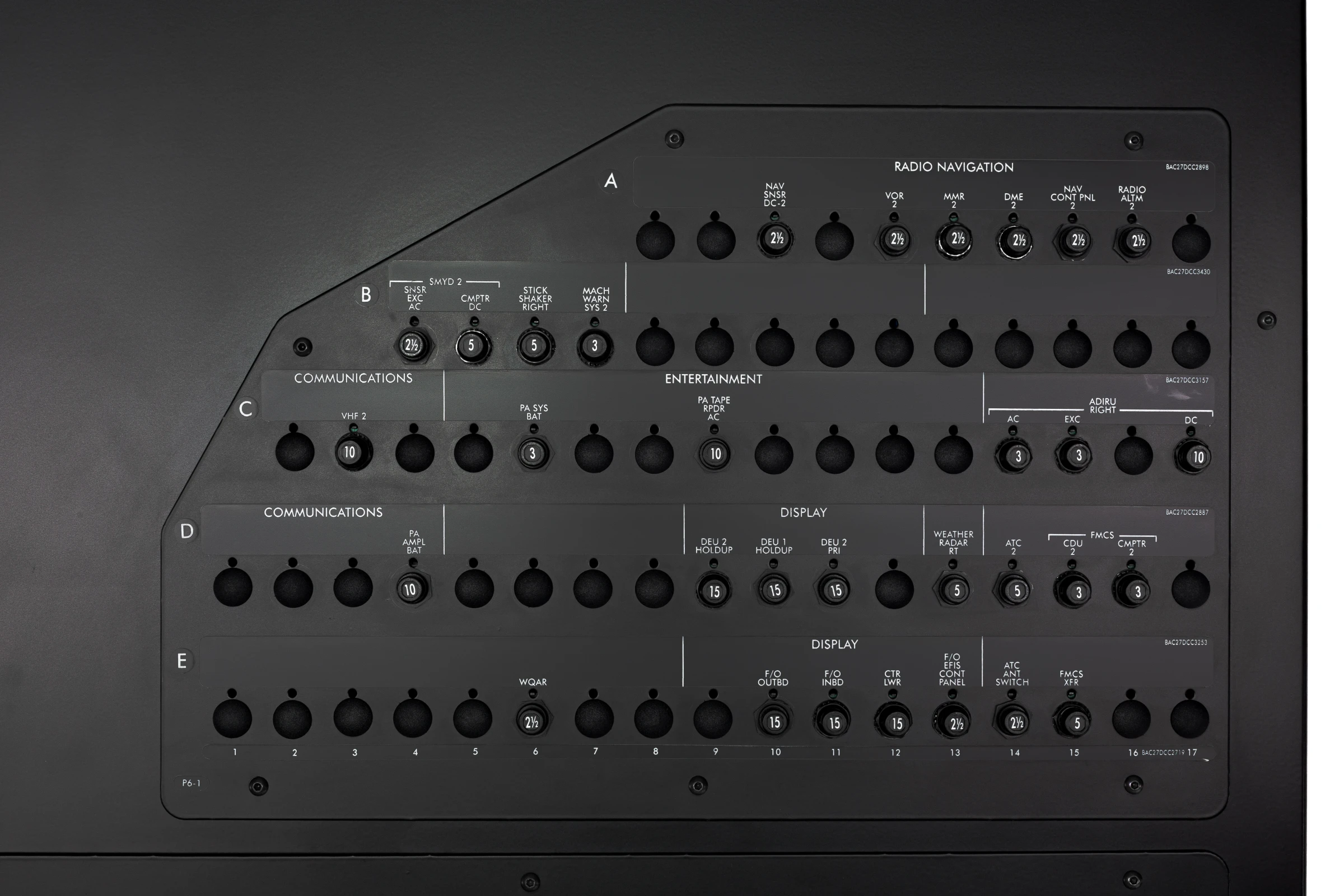

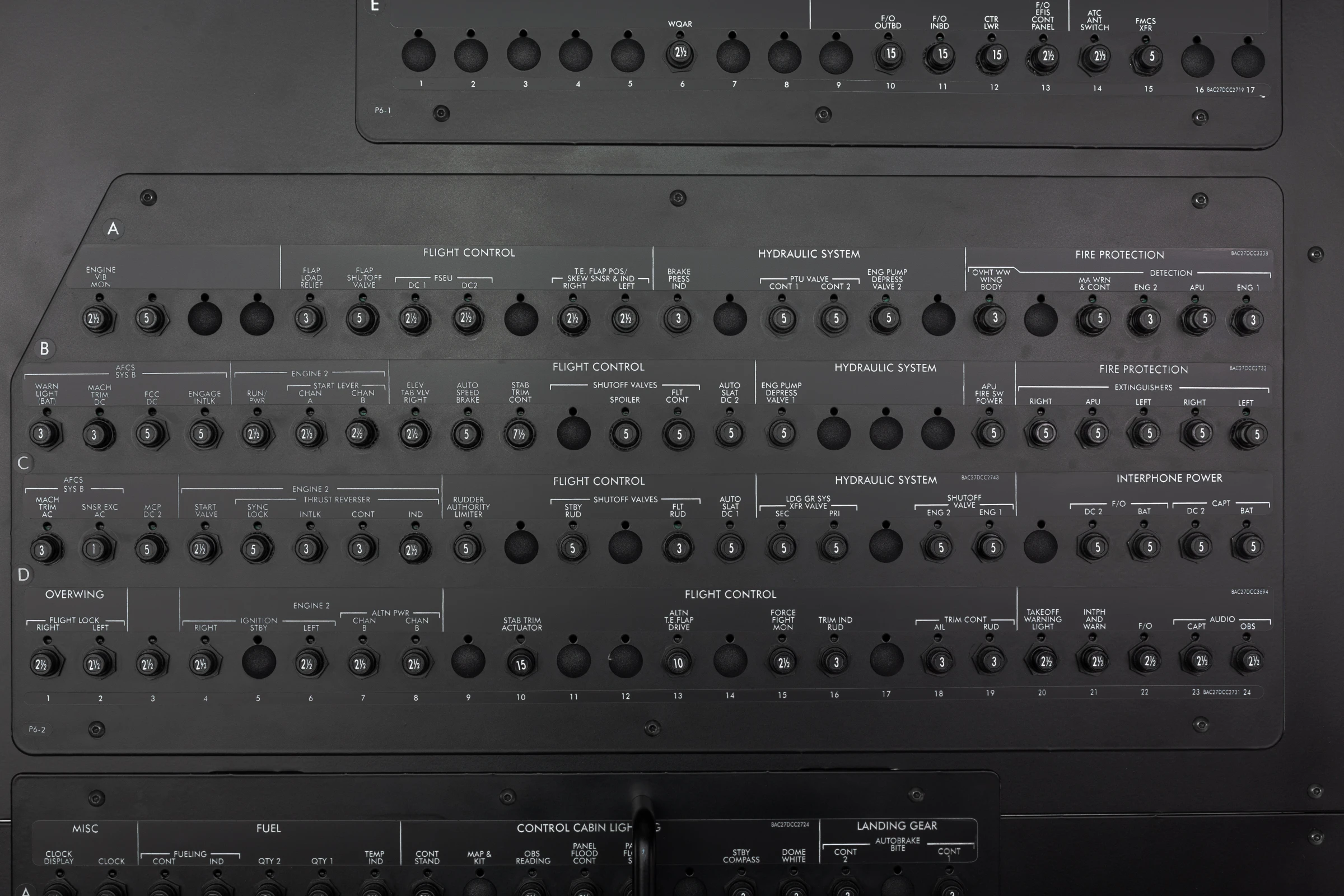

The simulator can be equipped with circuit breaker panels P6 (First Officer) : 100 active breakers and 377 dummy breakers P18 (Captain) : 187 active breakers and 40 dummy breakers |
|
| Ready for integration with instructor station |
Suitable to simulate emergency and instrument failures (upon request) |
|
| Certification |
FNPT II MCC certification process with MQTG preparation and specific technical consultancy (upon request) |
|
| Assembled and tested in Italy |
System assembled and tested in FSC laboratories with the assistance of 737 pilots |

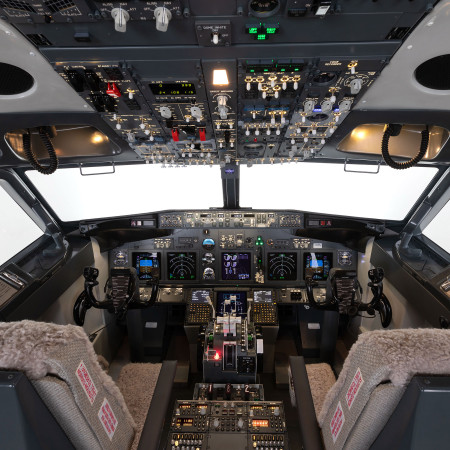

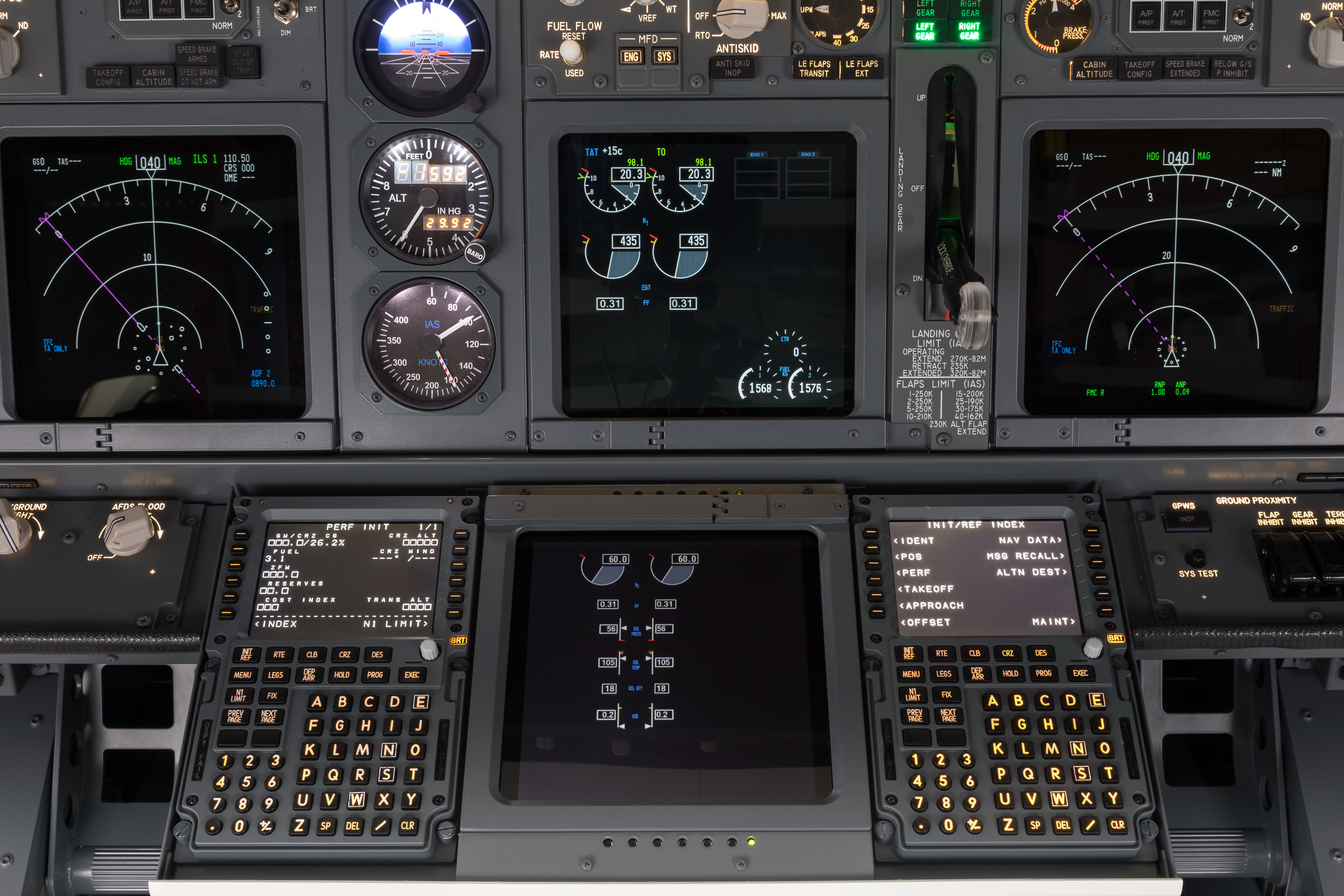

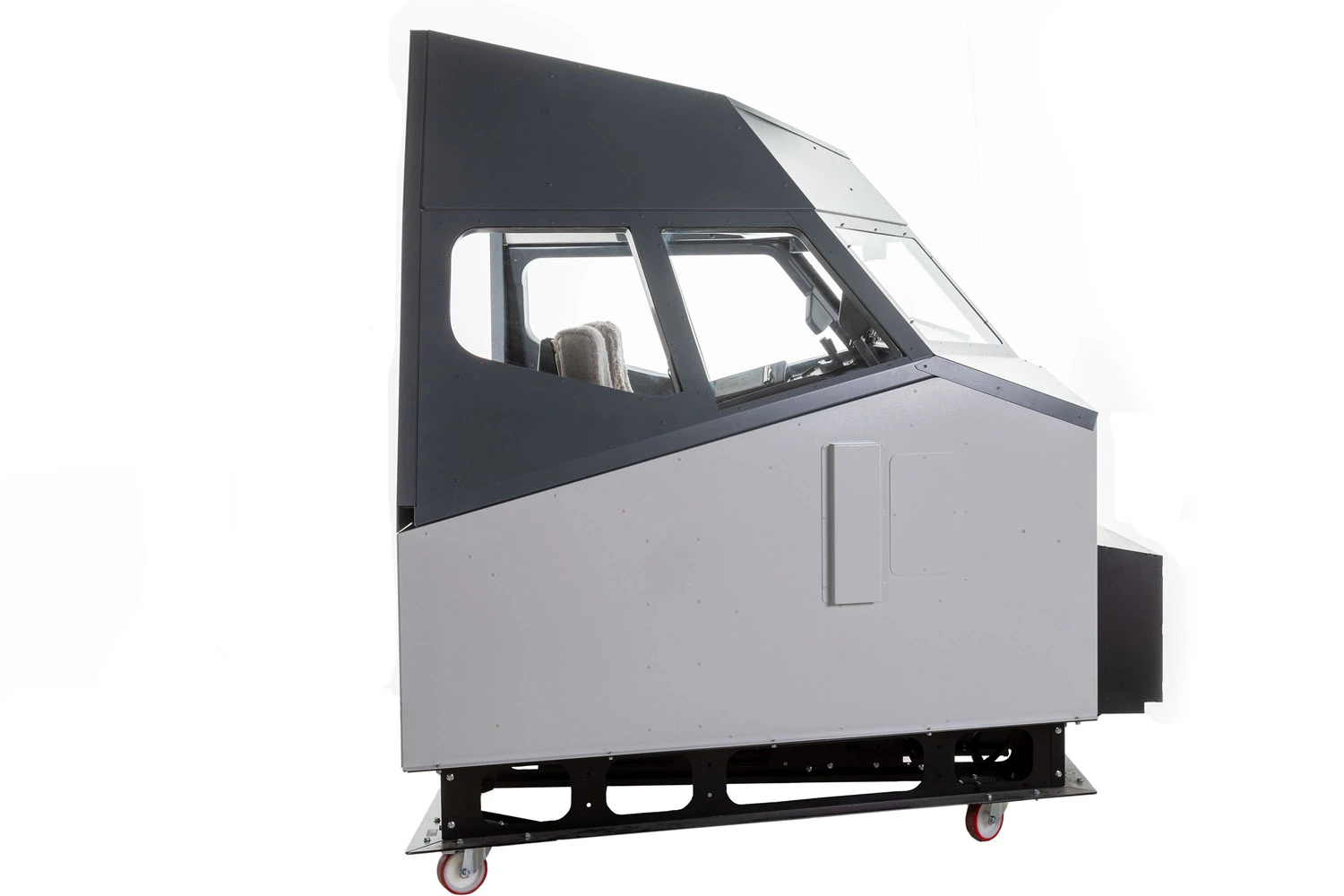

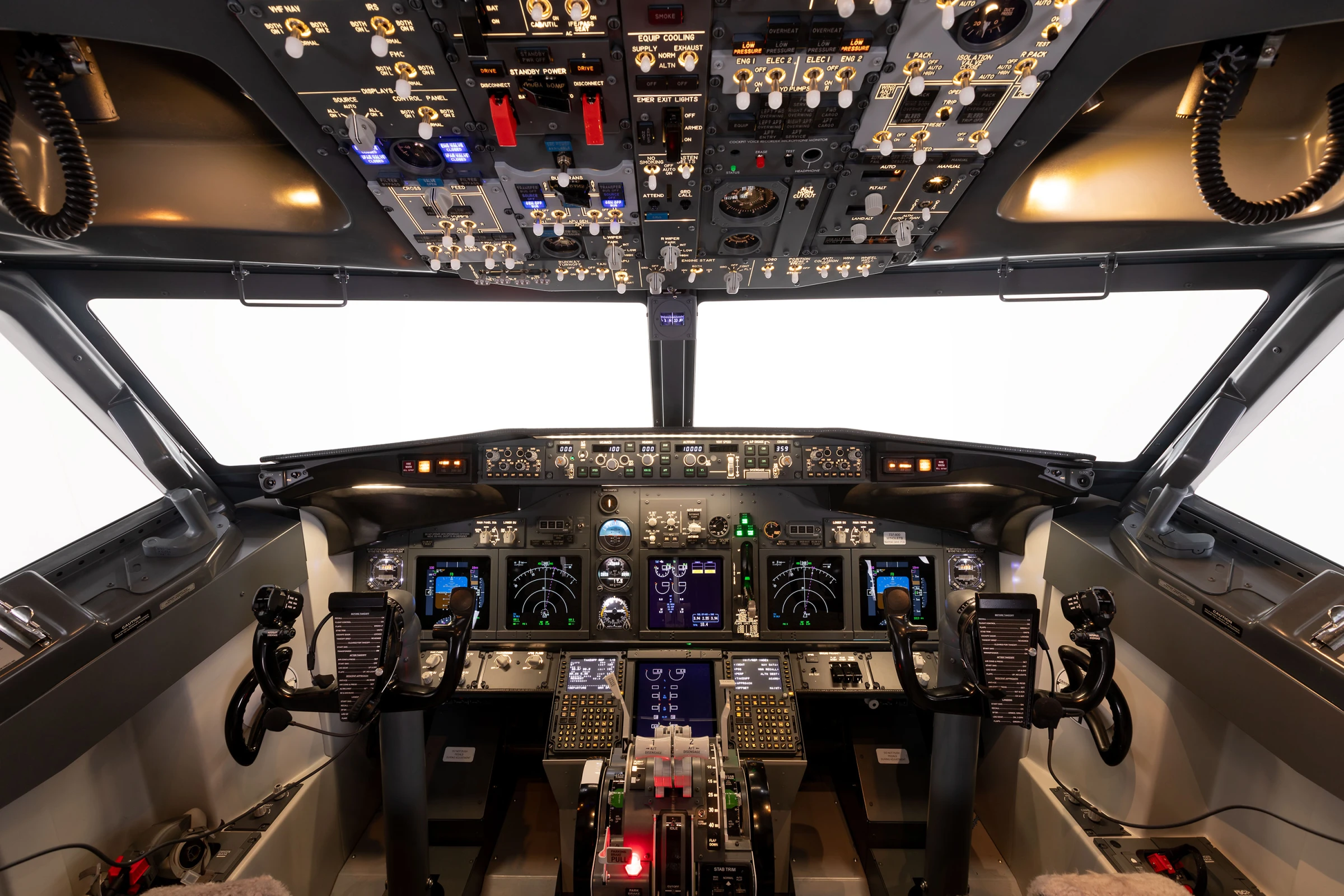

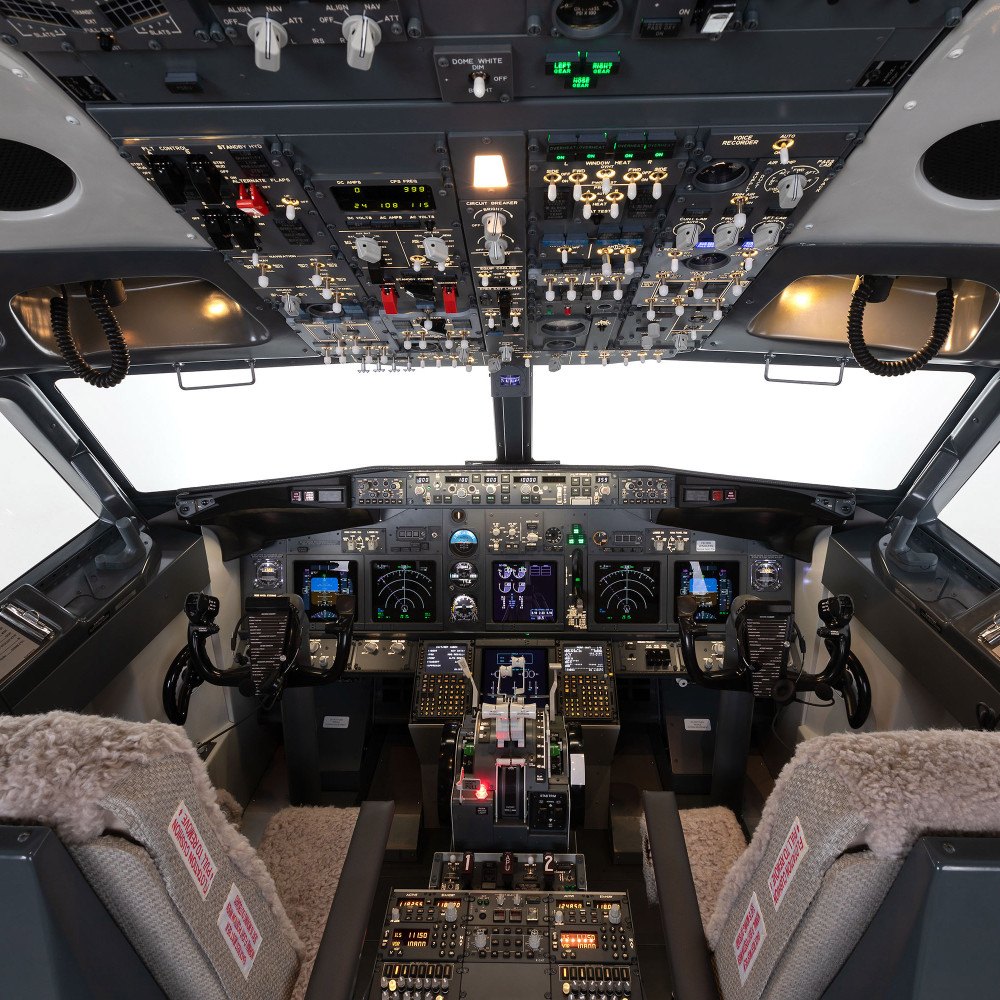

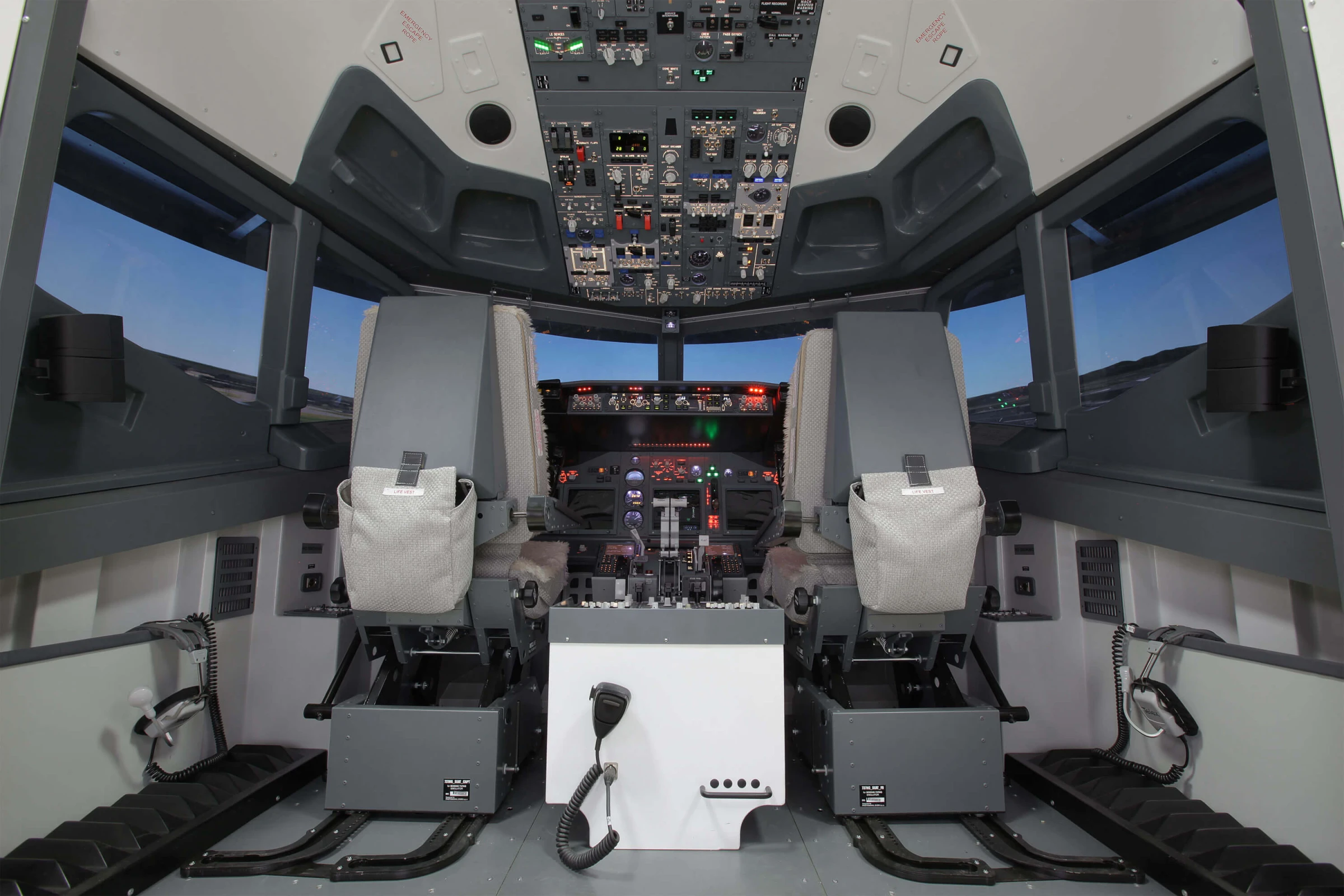

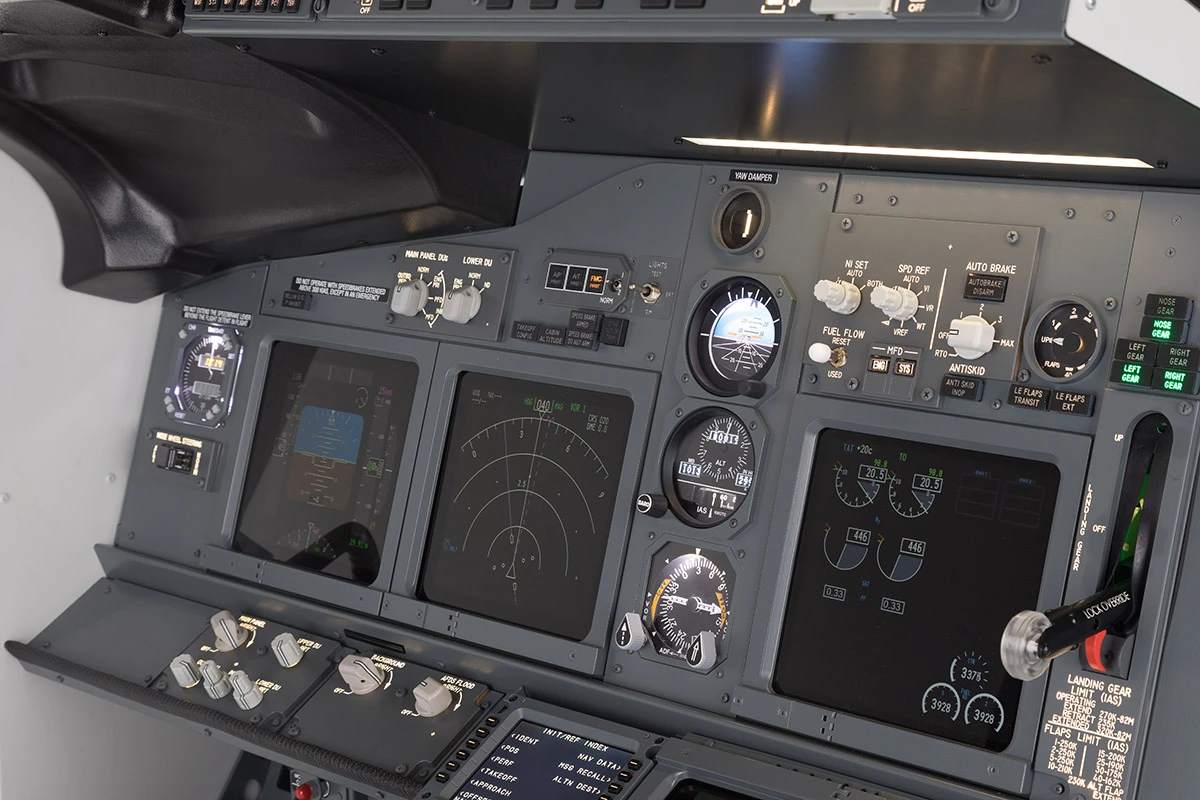

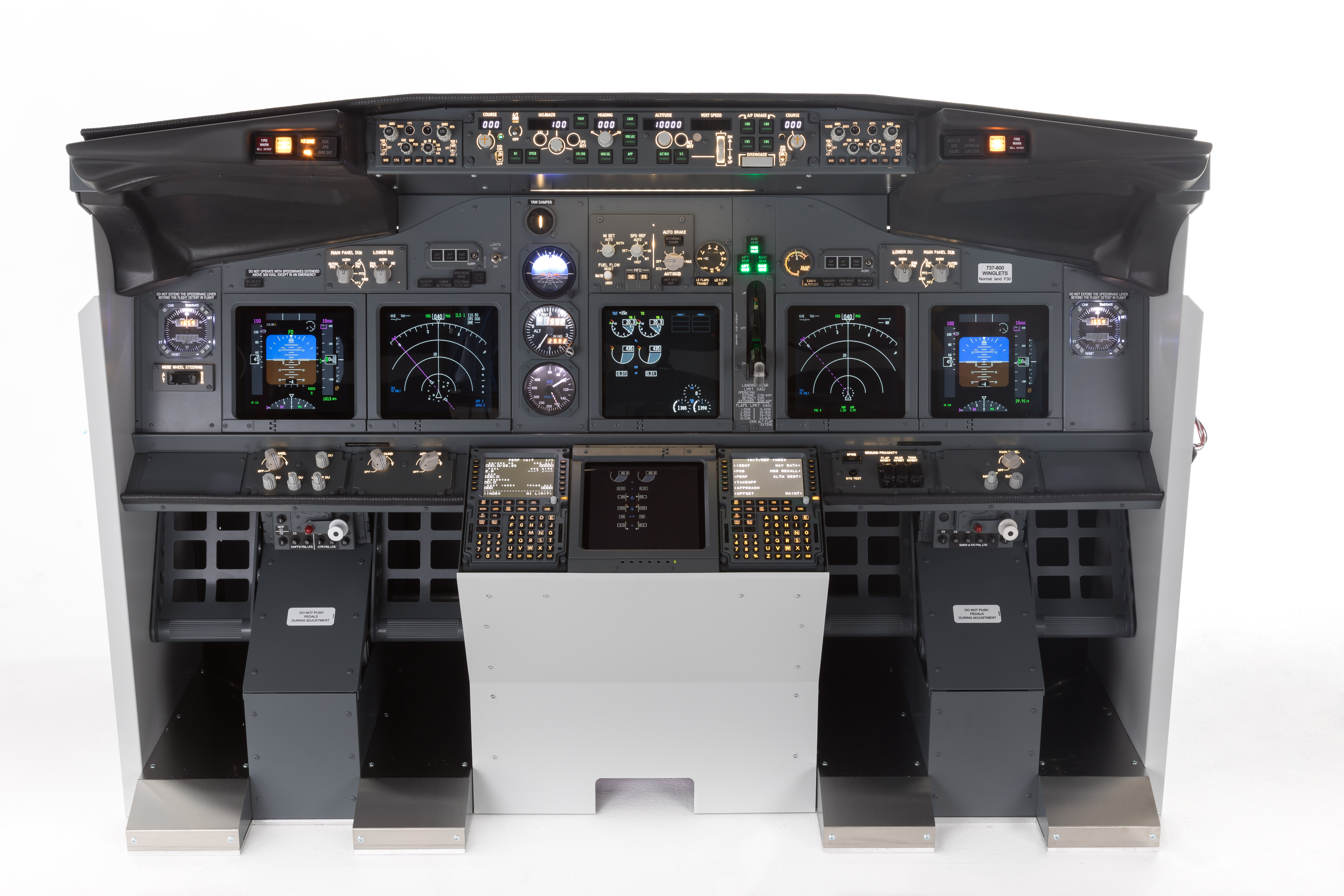

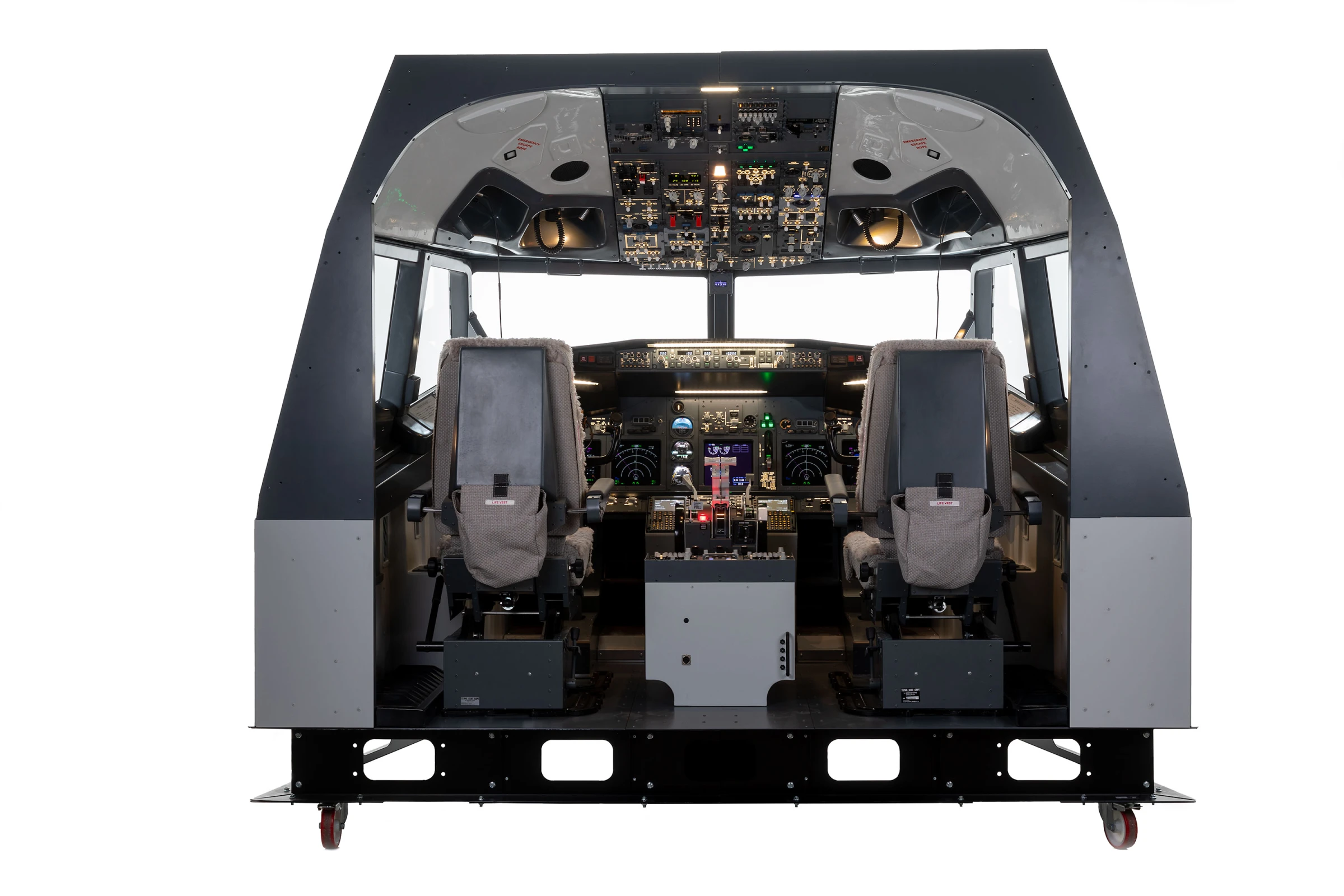

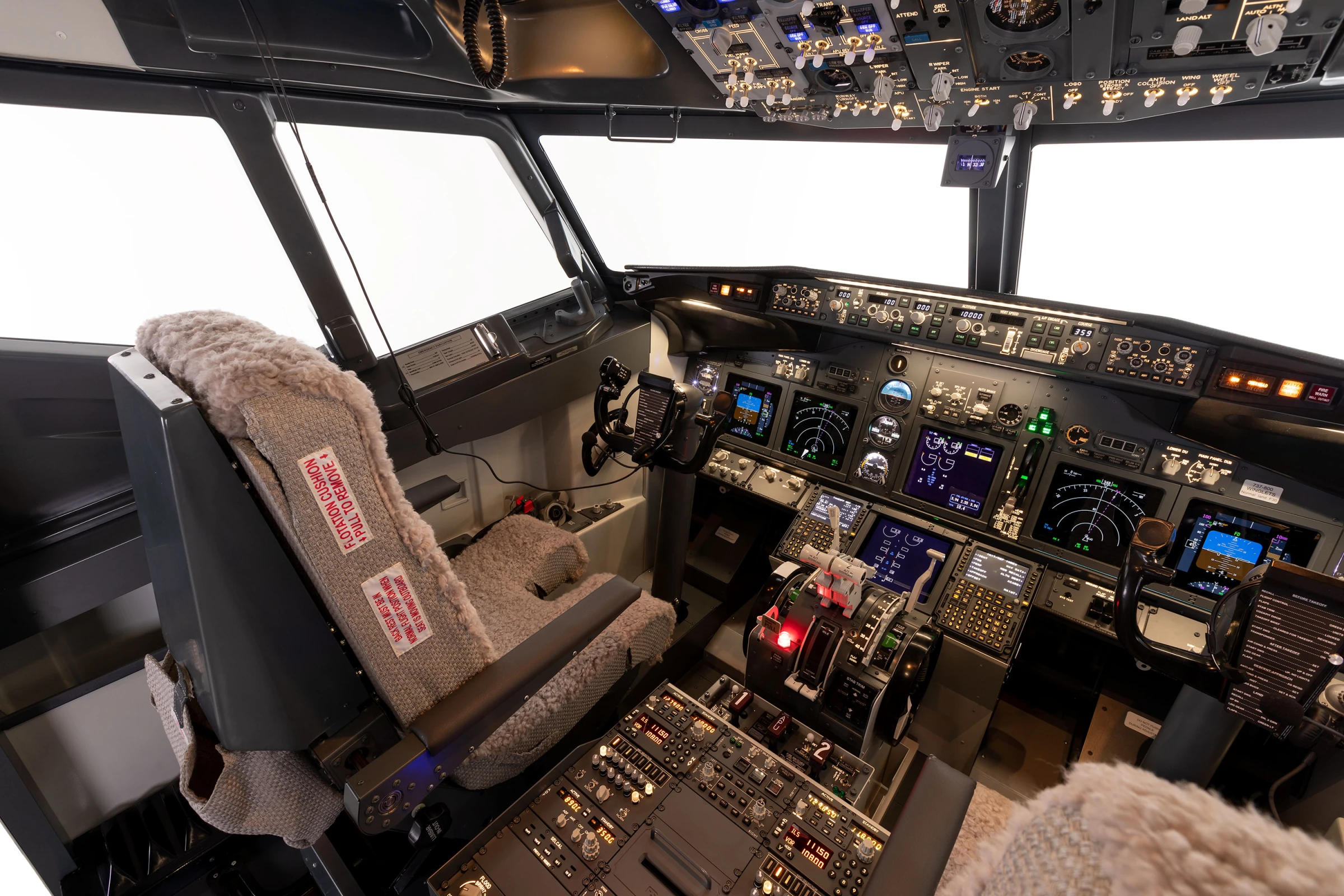

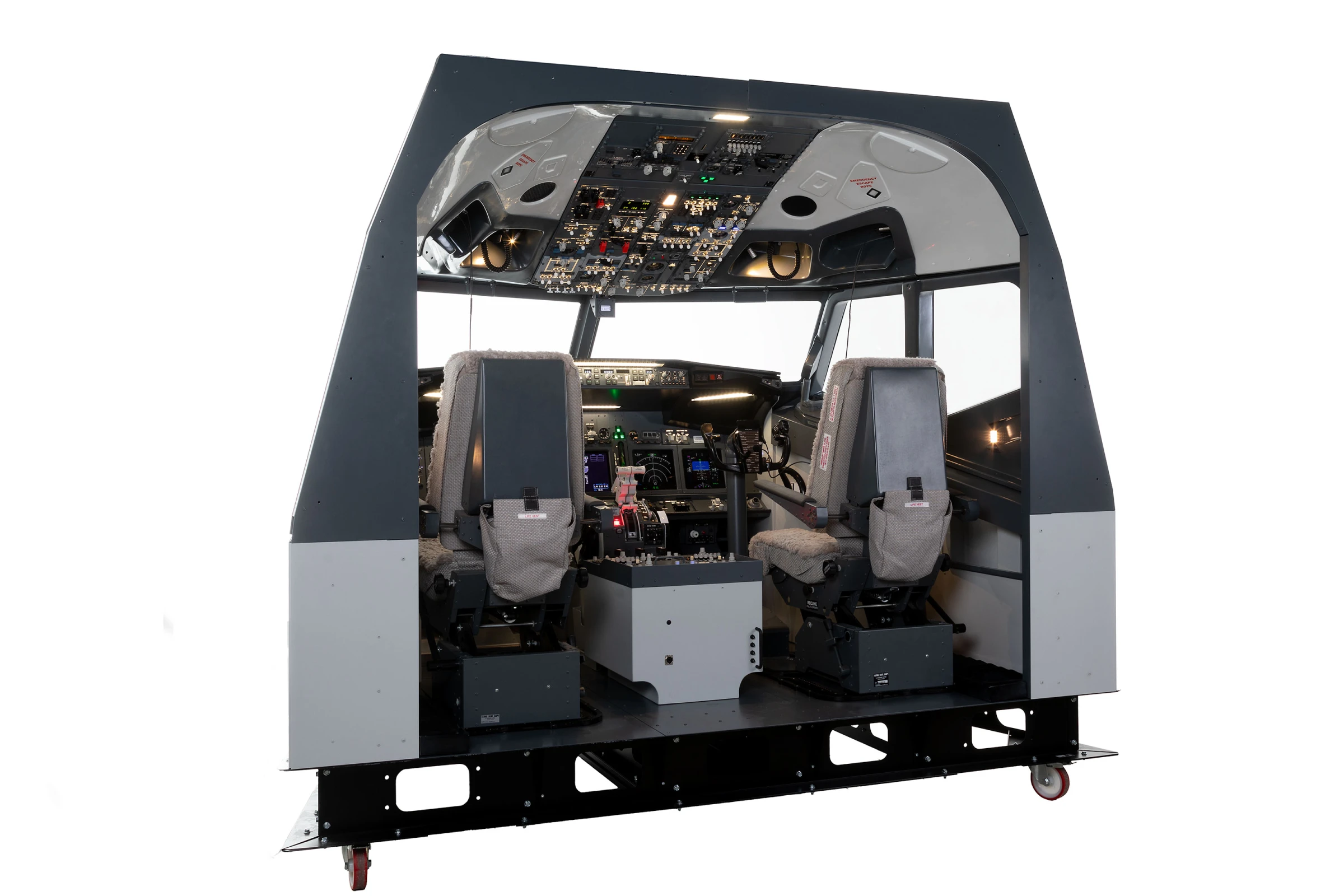

Main view with all the working components that are included.
PVC engraved labels with the exact wording.
Useful for night flights
Fully adjustable and of robust construction.

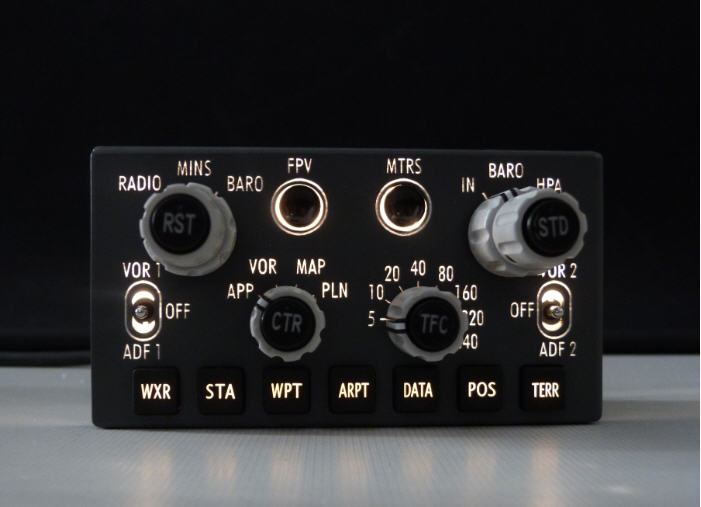

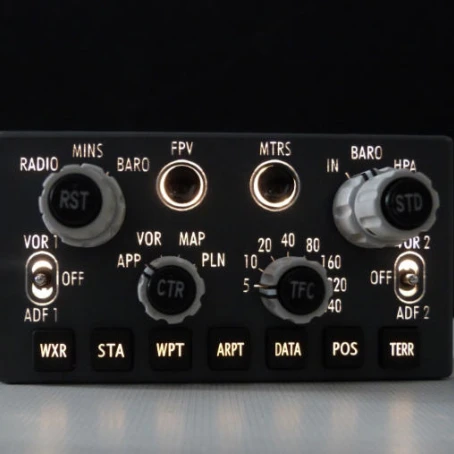

Left side backlight.
Advanced, reliable solution designed for intensive use.
Ideal for external visual with projectors or monitors.
Professional device made of aluminum and steel.

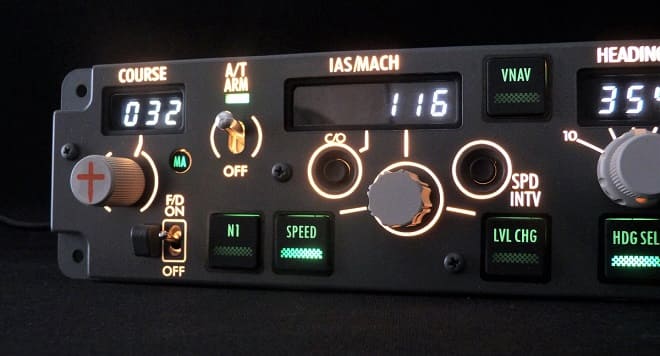

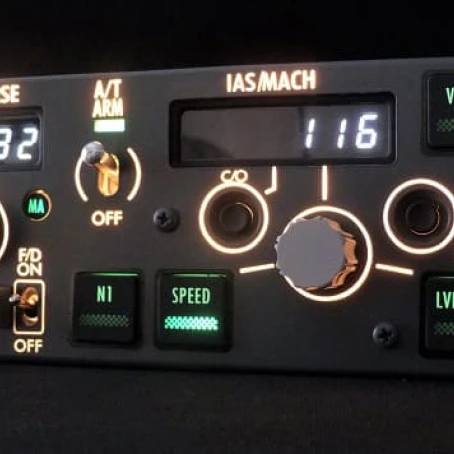

With annunciator ligths and brightness potentiometer.
Control Loading software produced by FSC included.

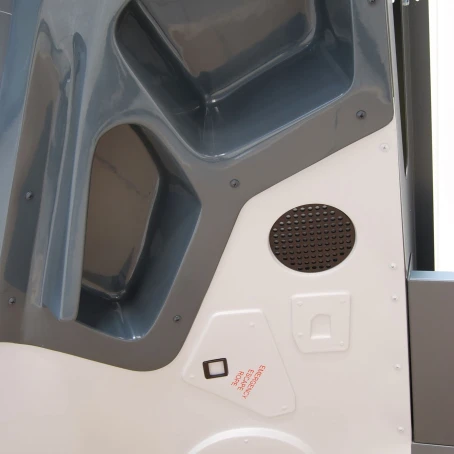

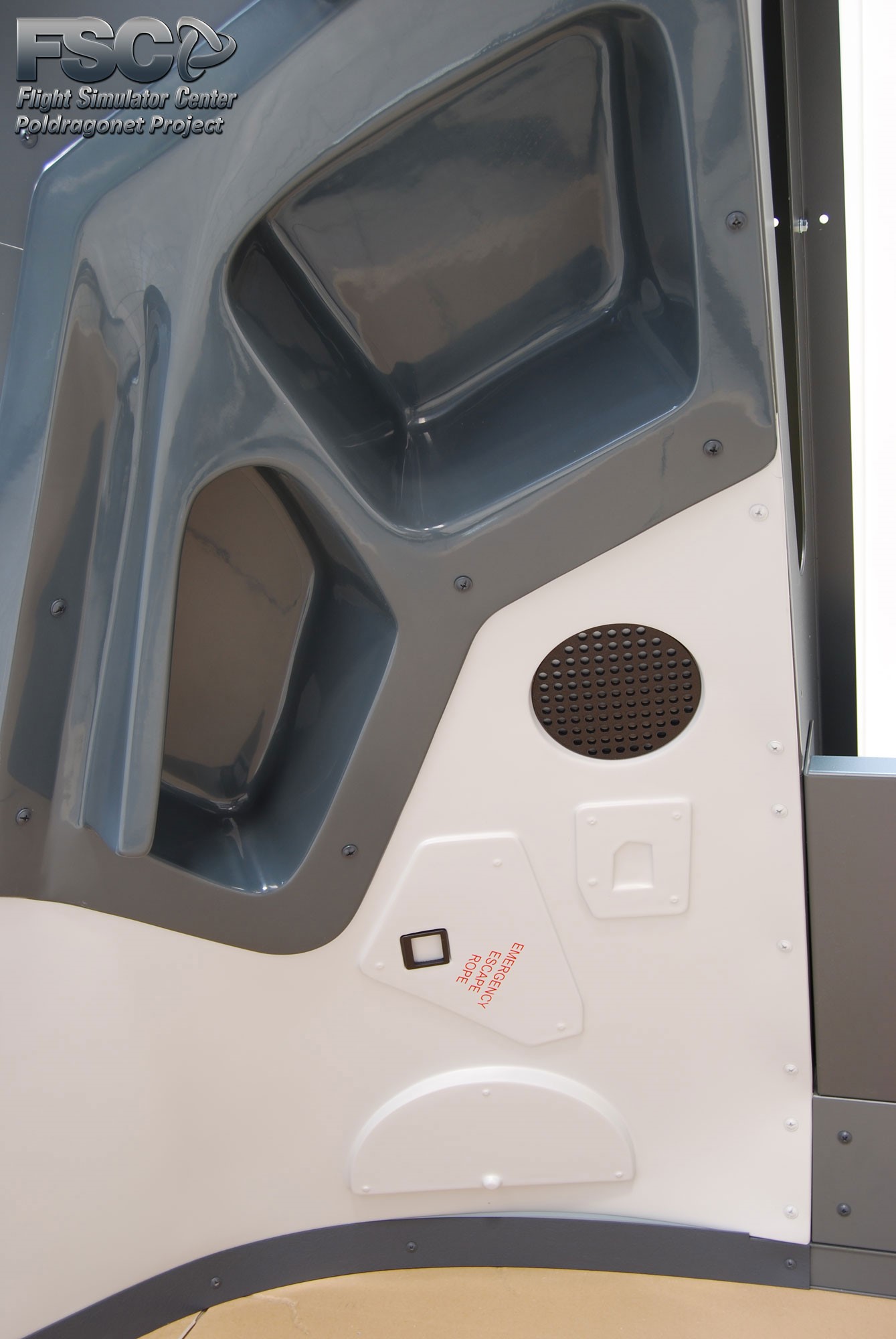

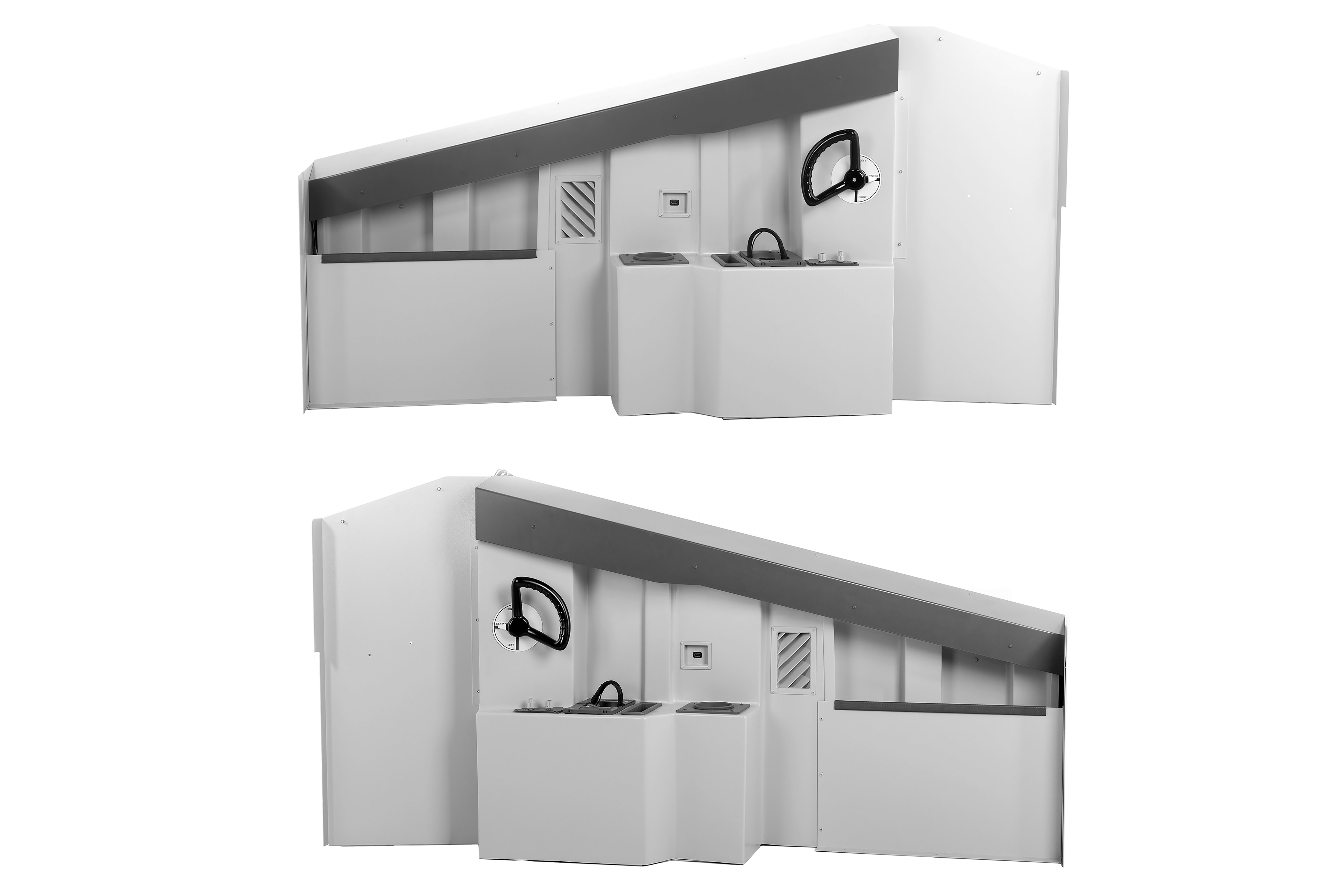

Internal finishes in fibreglass.

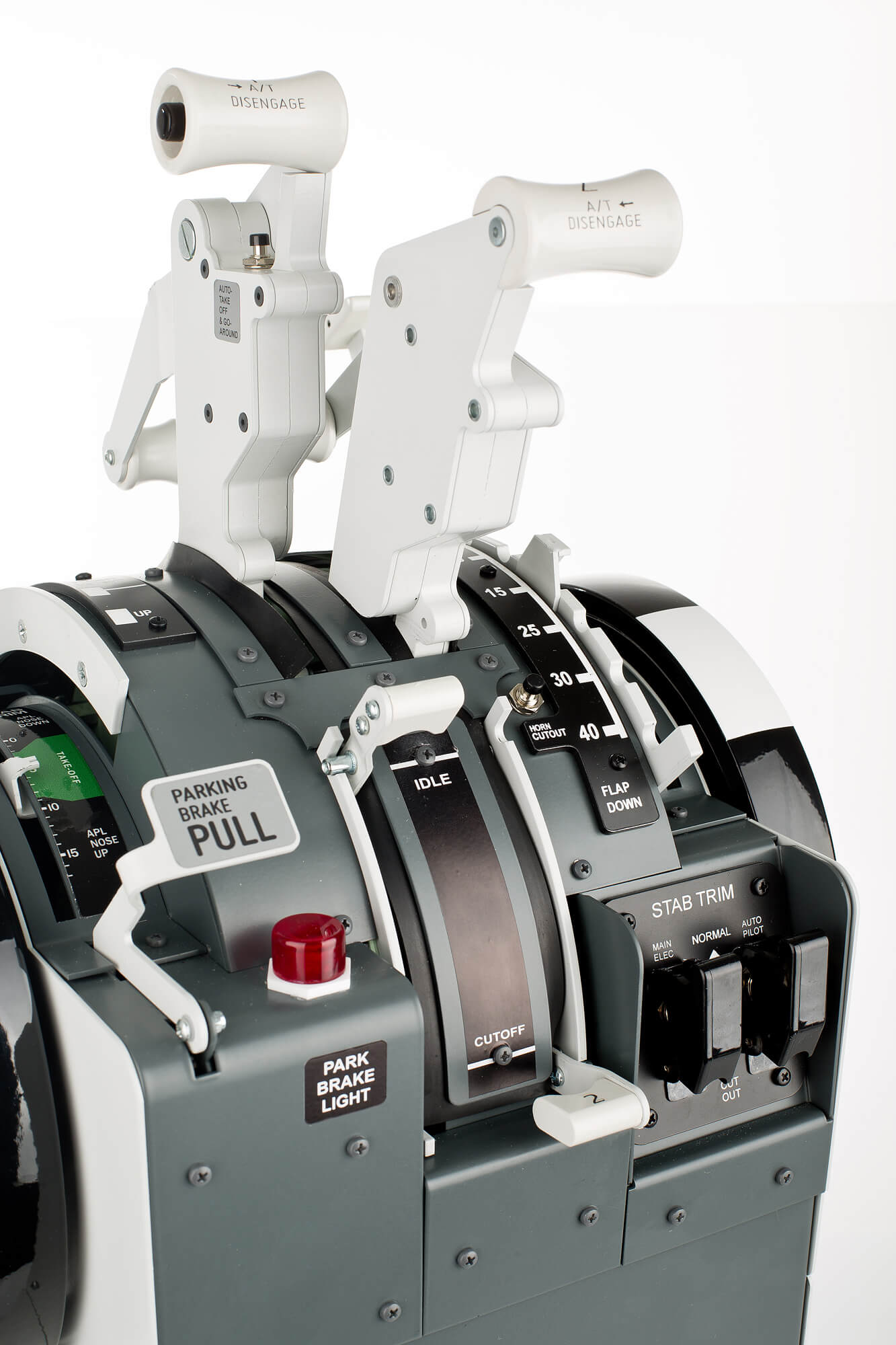

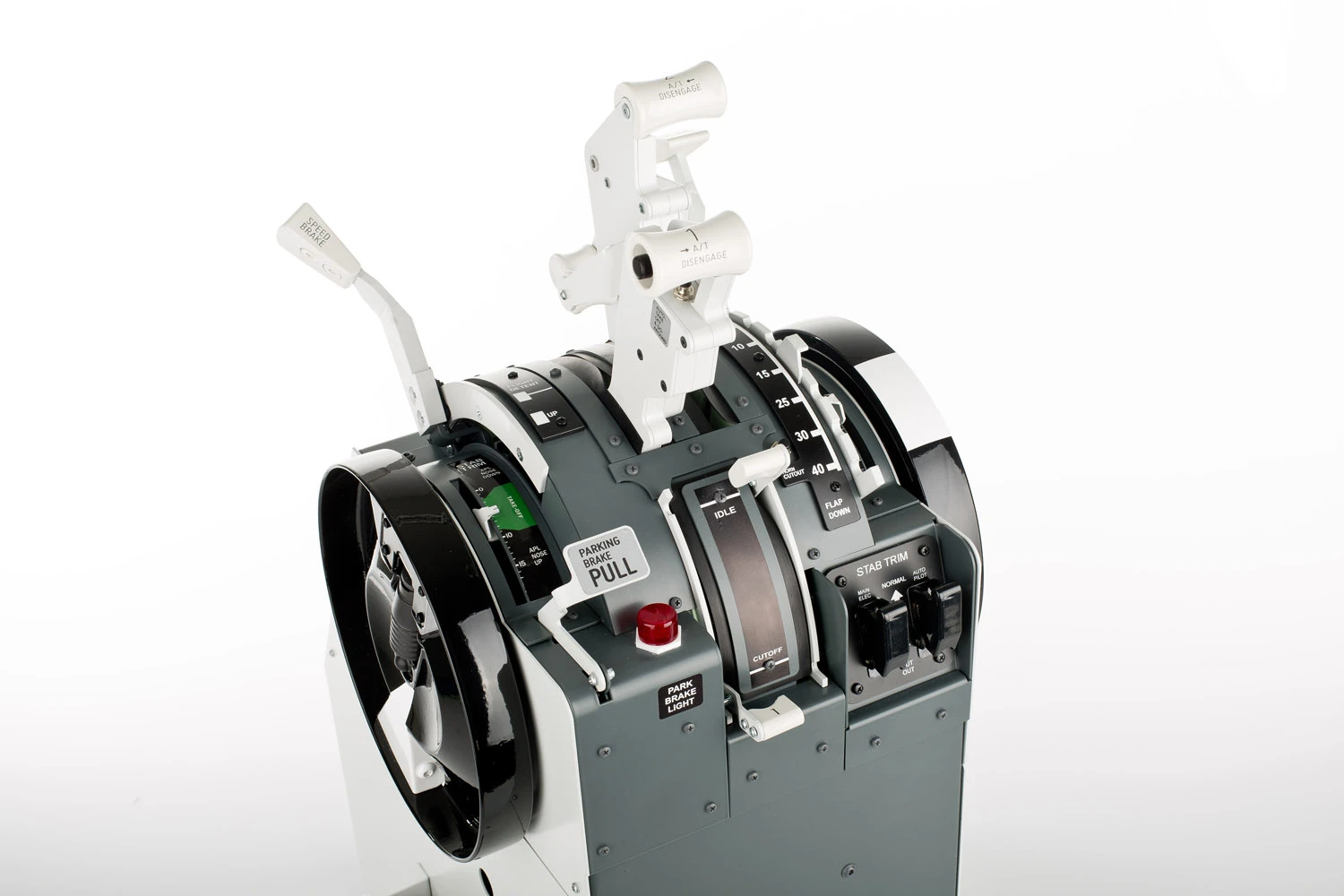

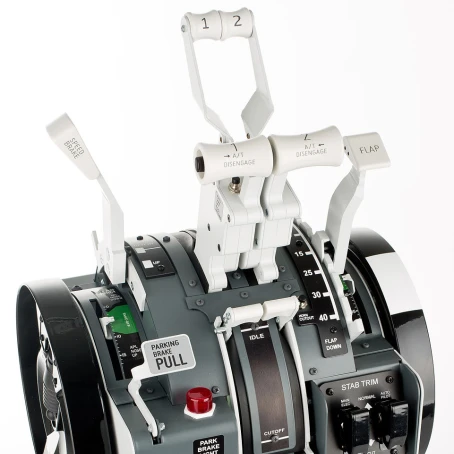

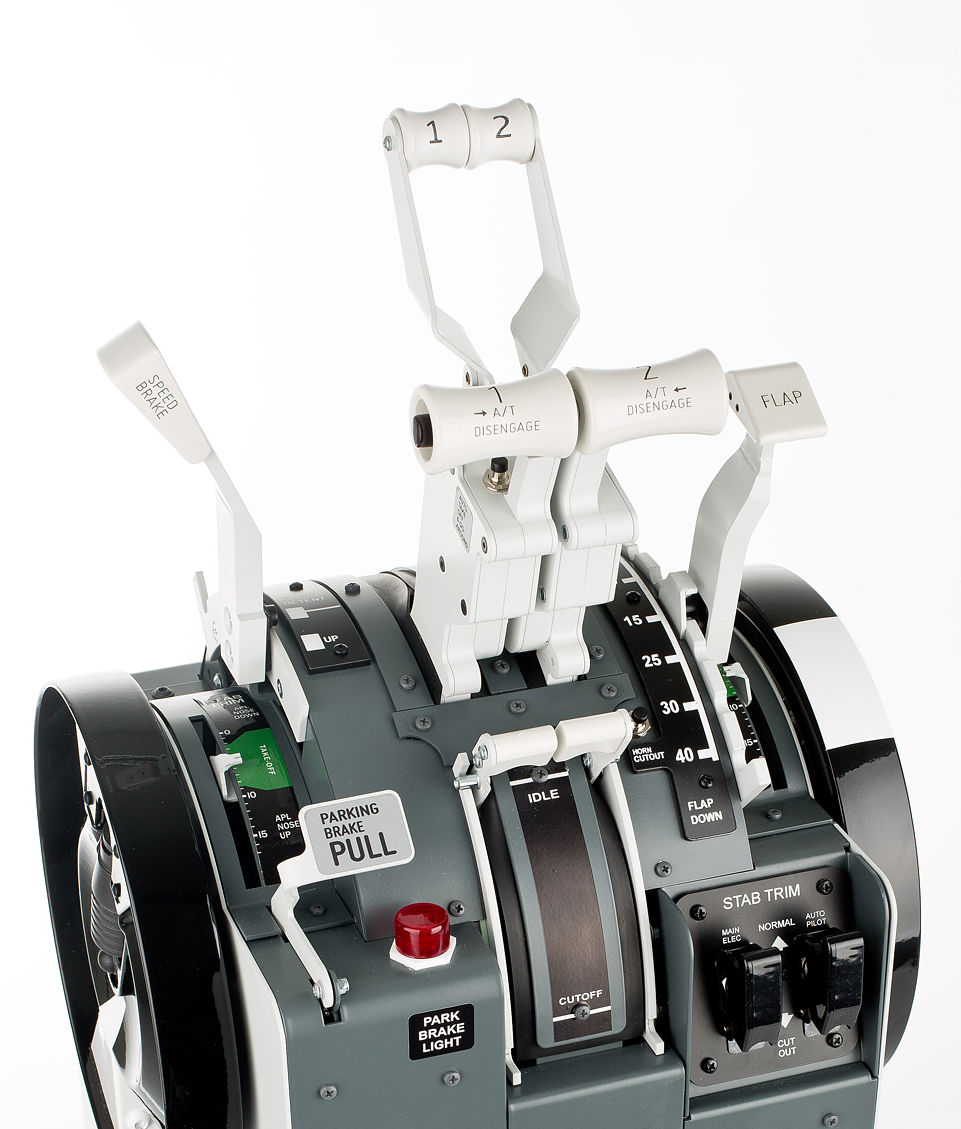

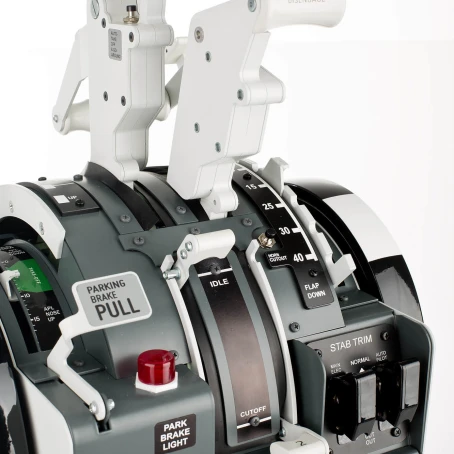

Thrust reverse levers cannot be lifted unless they are in the idle position.

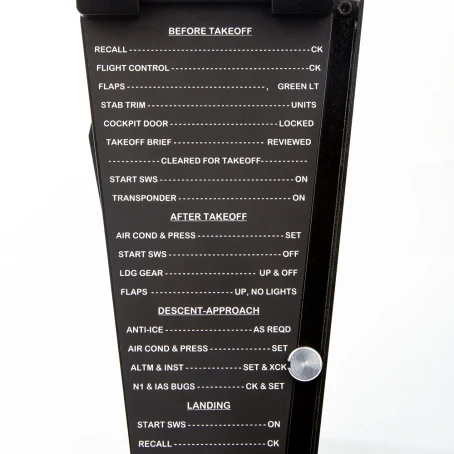

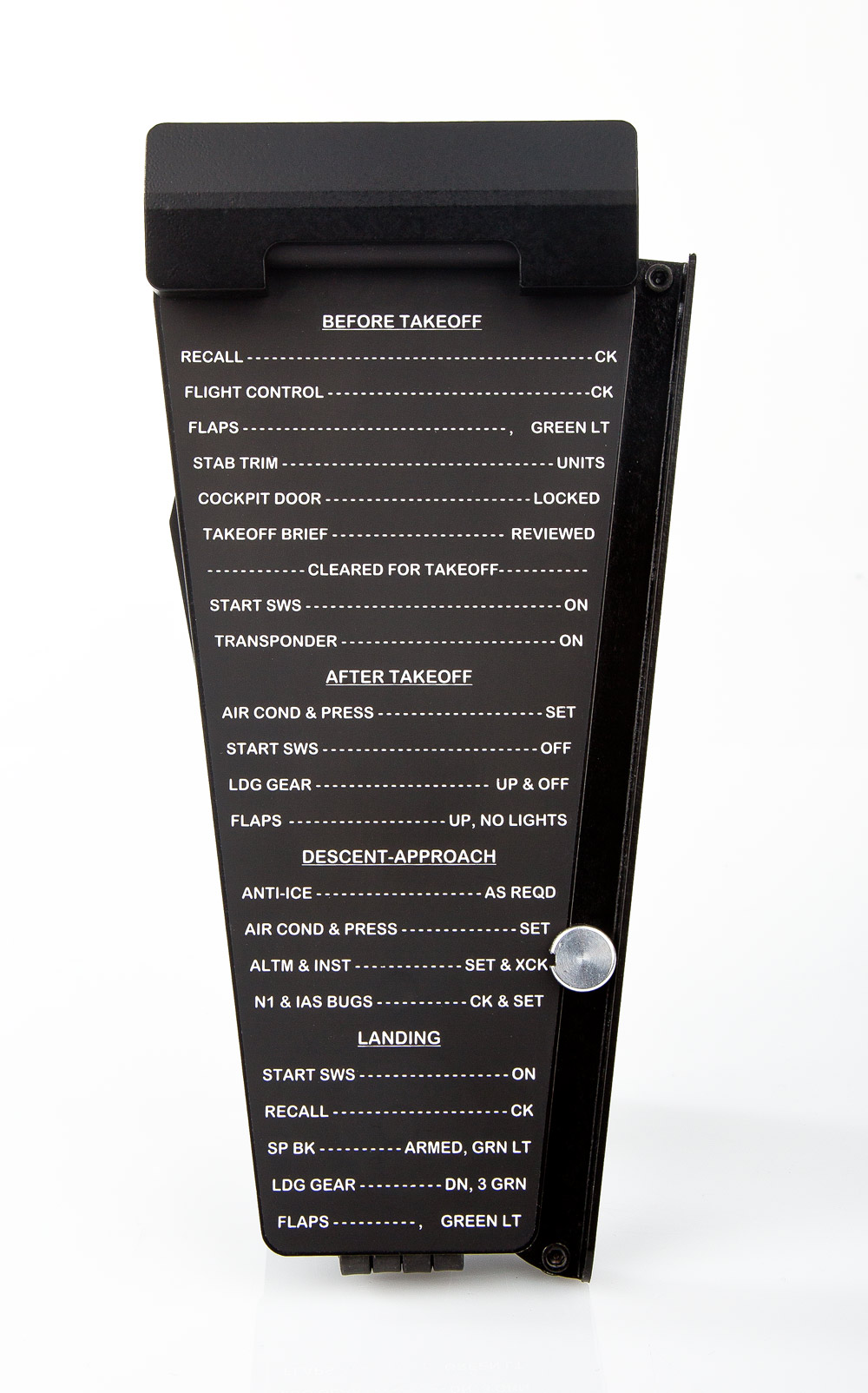

An aluminum snap selector can be moved for each step of the checklist.
Real bank angle as the original.

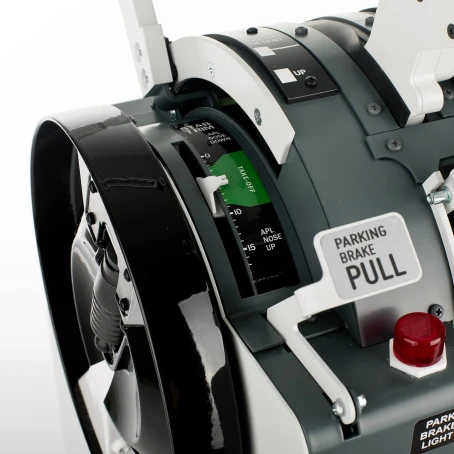

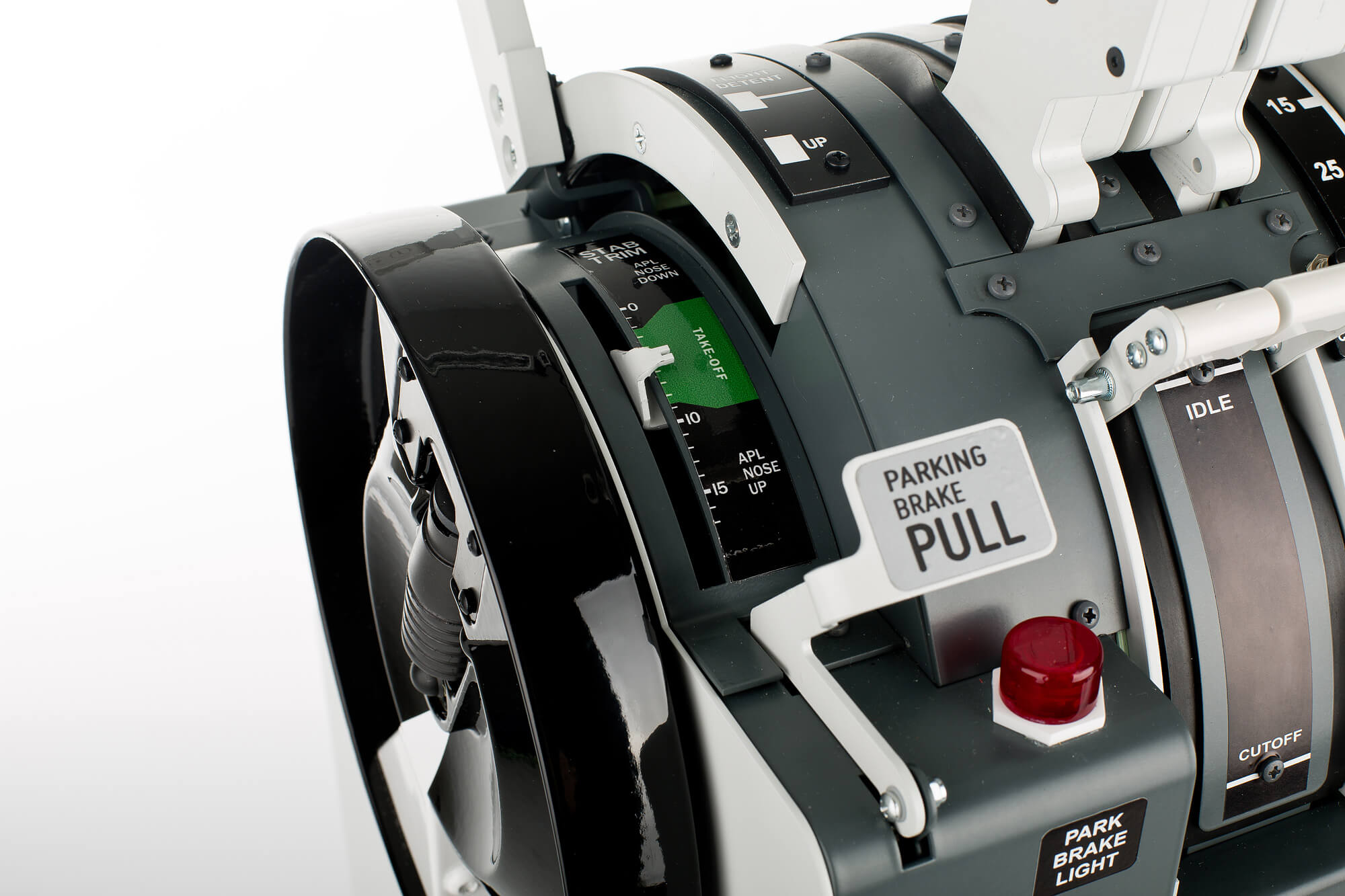

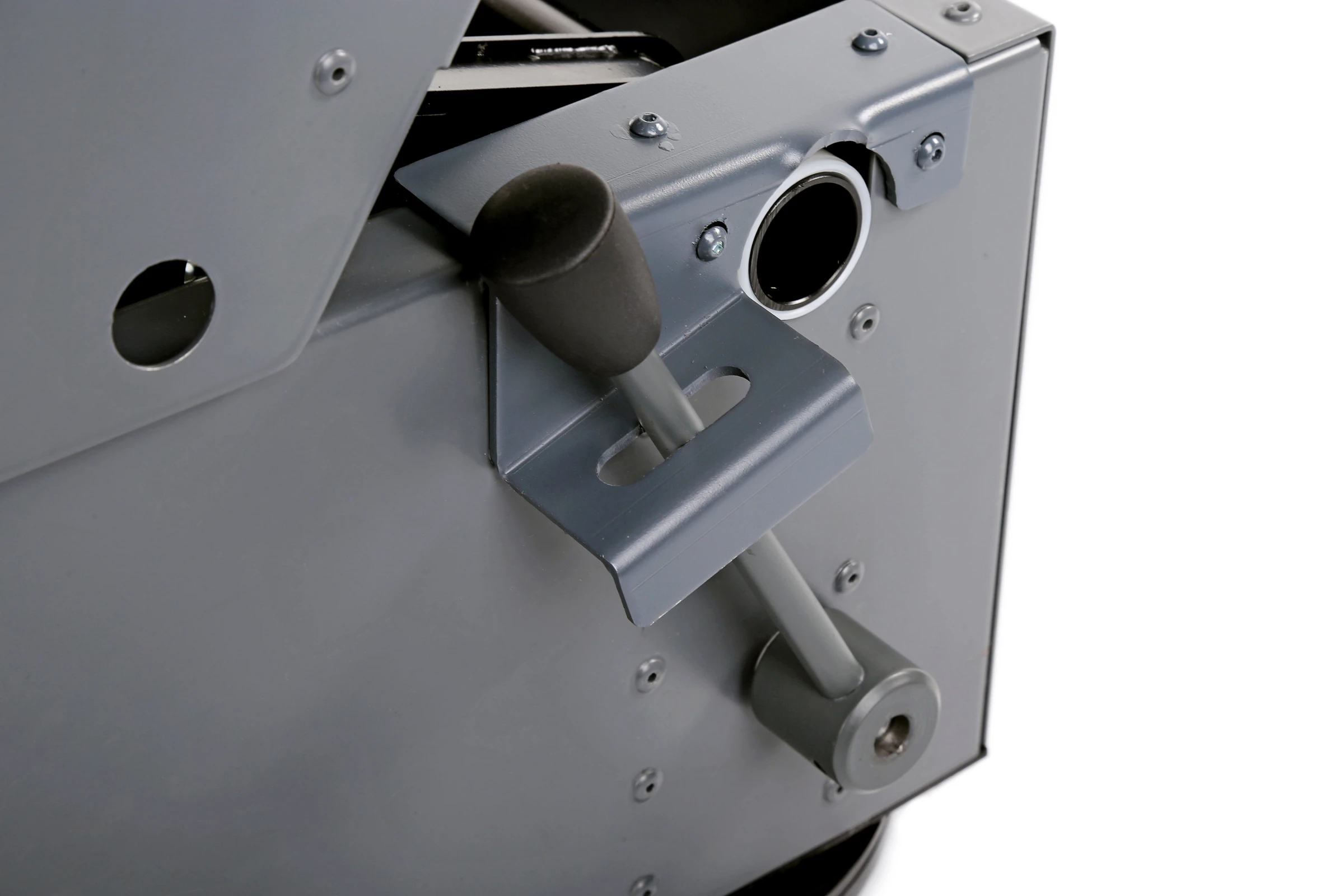

When the lever is up pressing the pedals will fully release the lever.

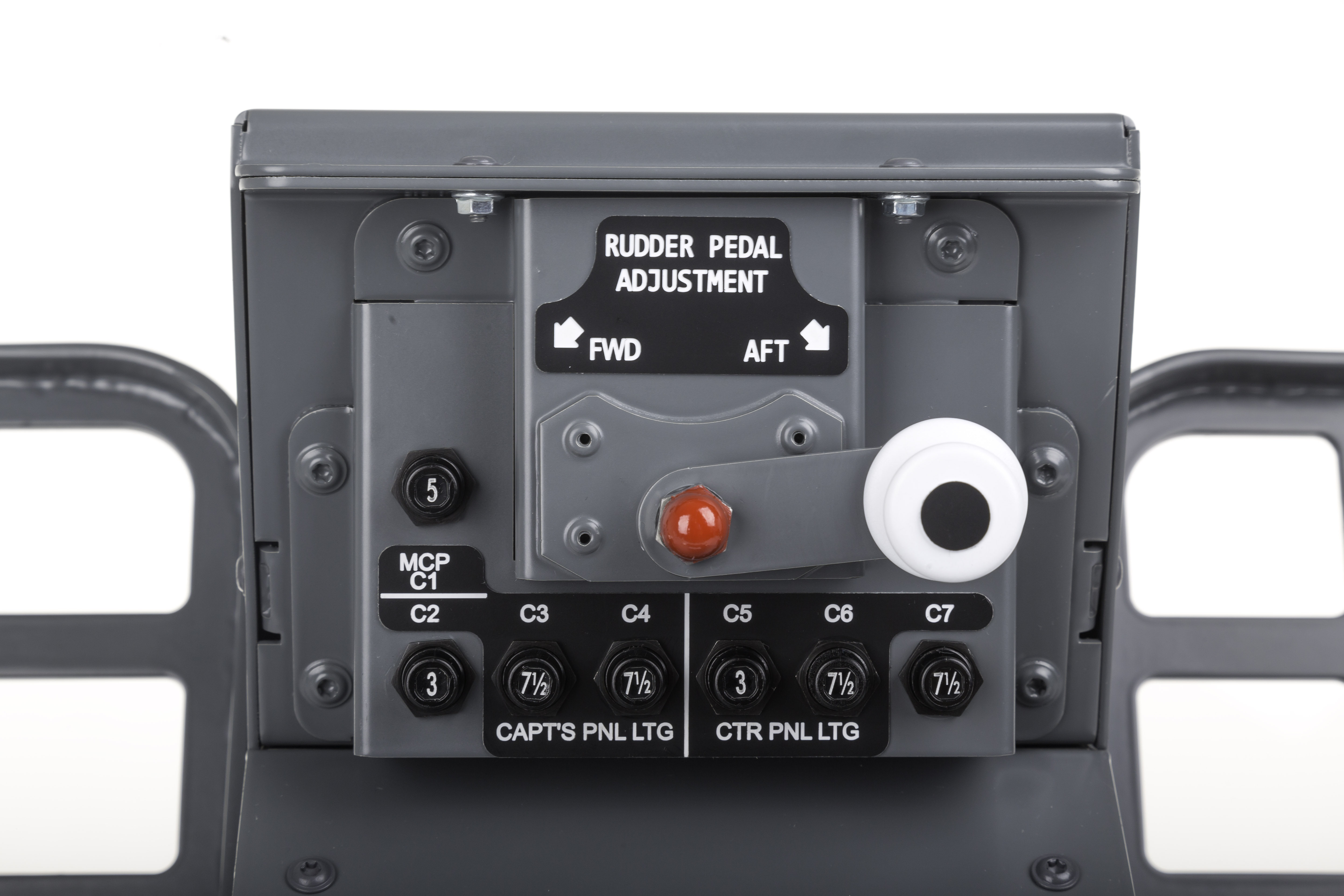

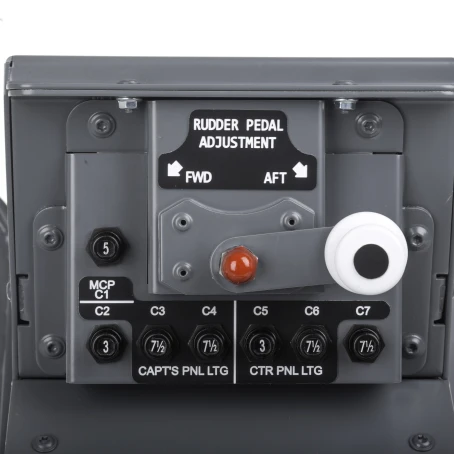

Pedals distance adjustment and dummy circuit breakers.
Perfect integration with yoke and chart holder.

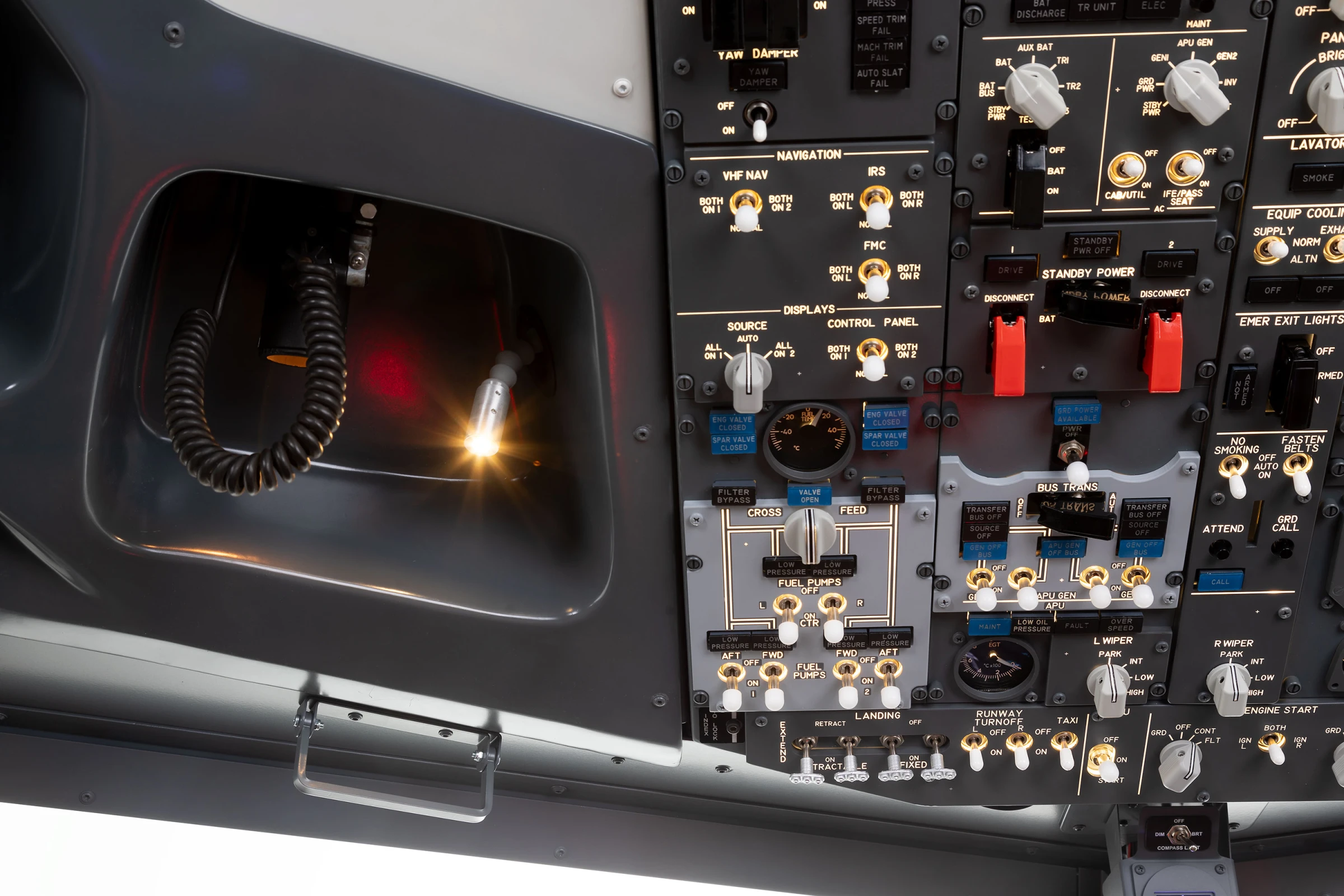

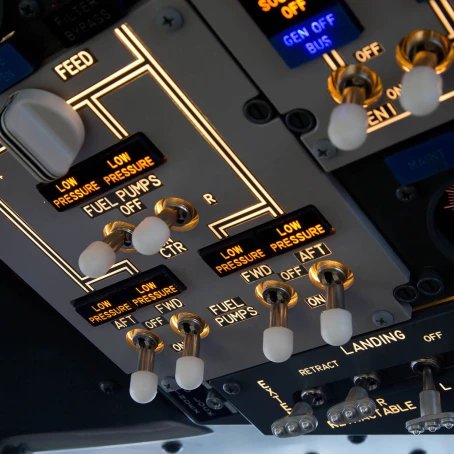

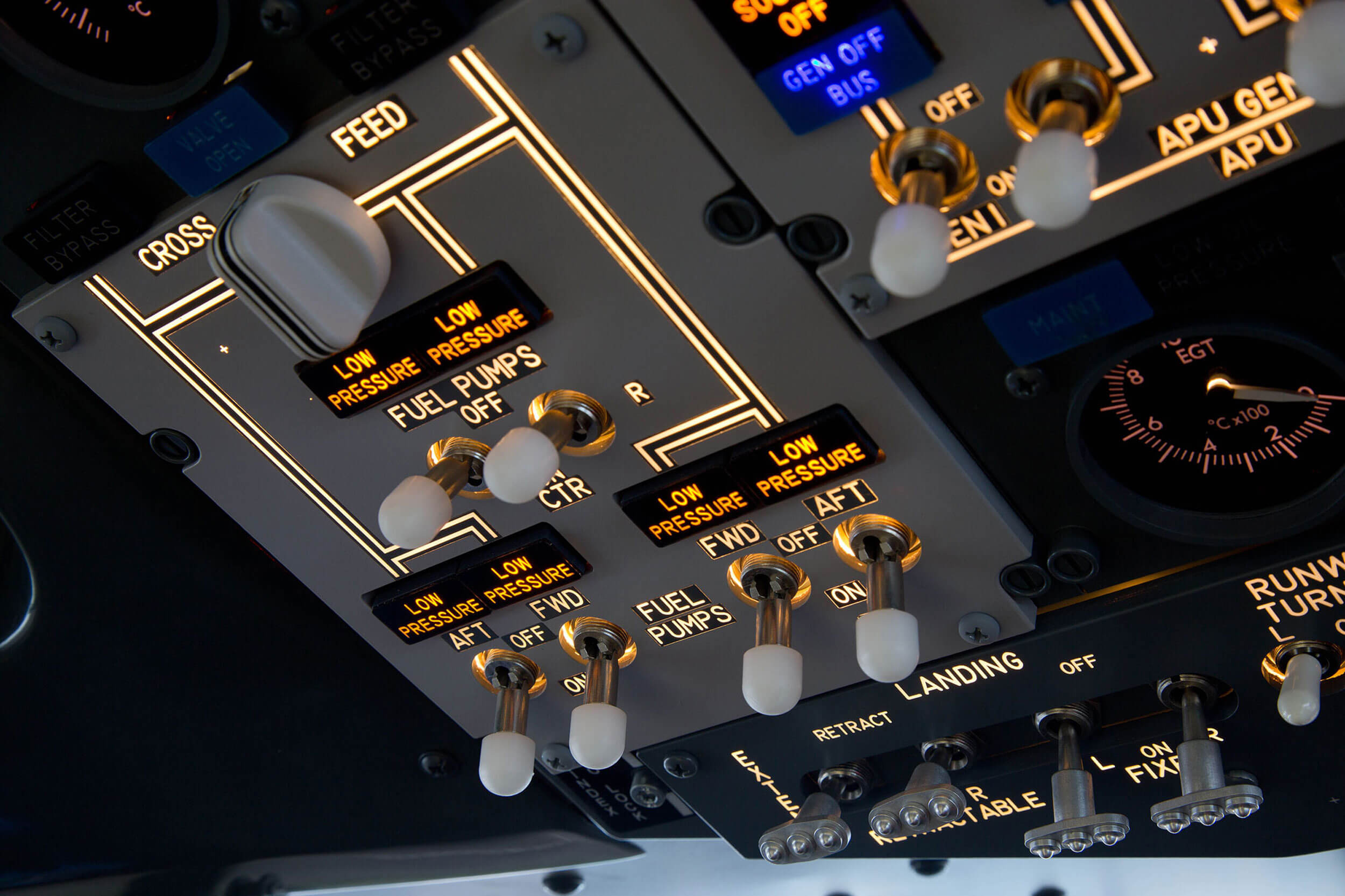

Fuel Panel, Cross Feed and Pumps switches.

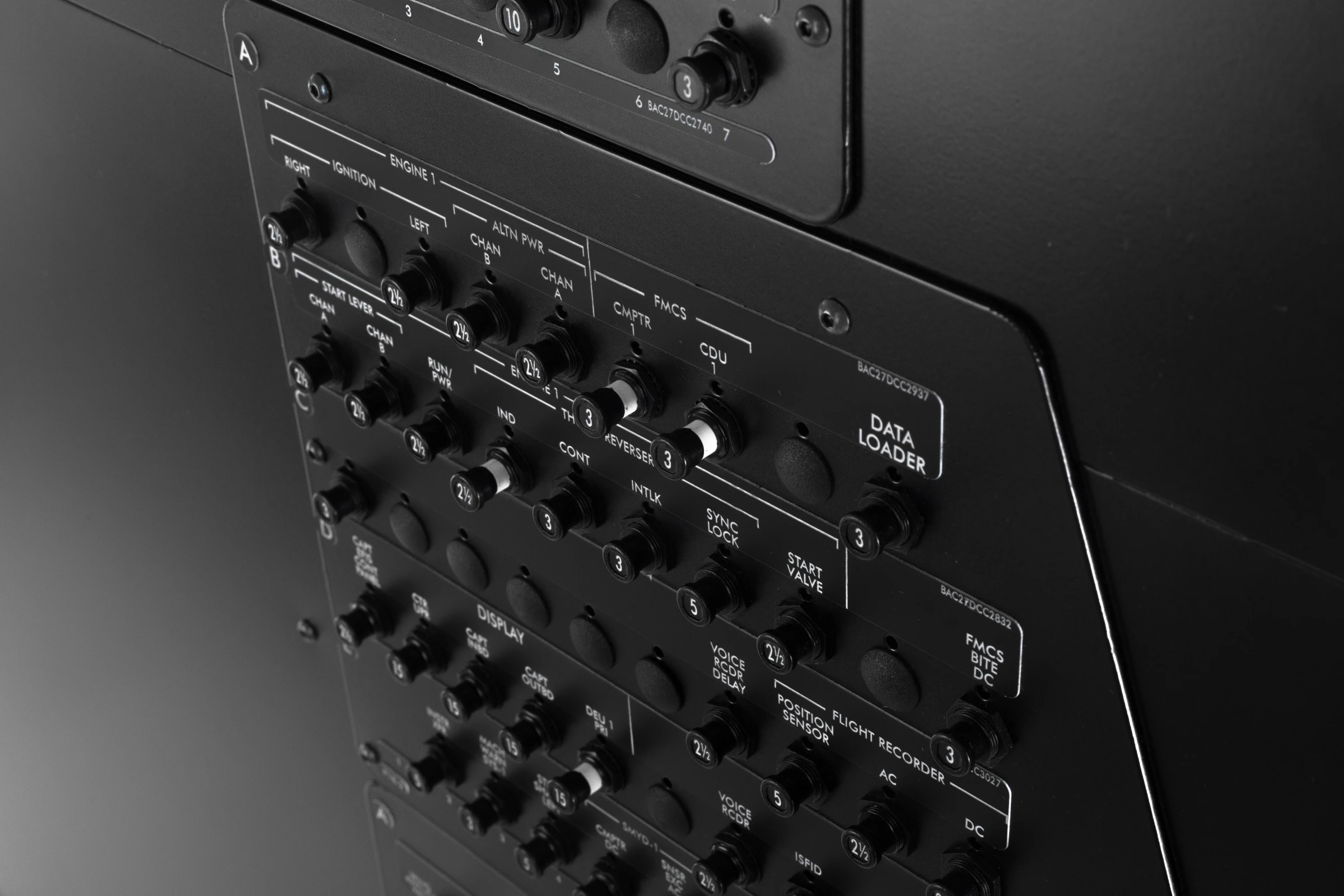

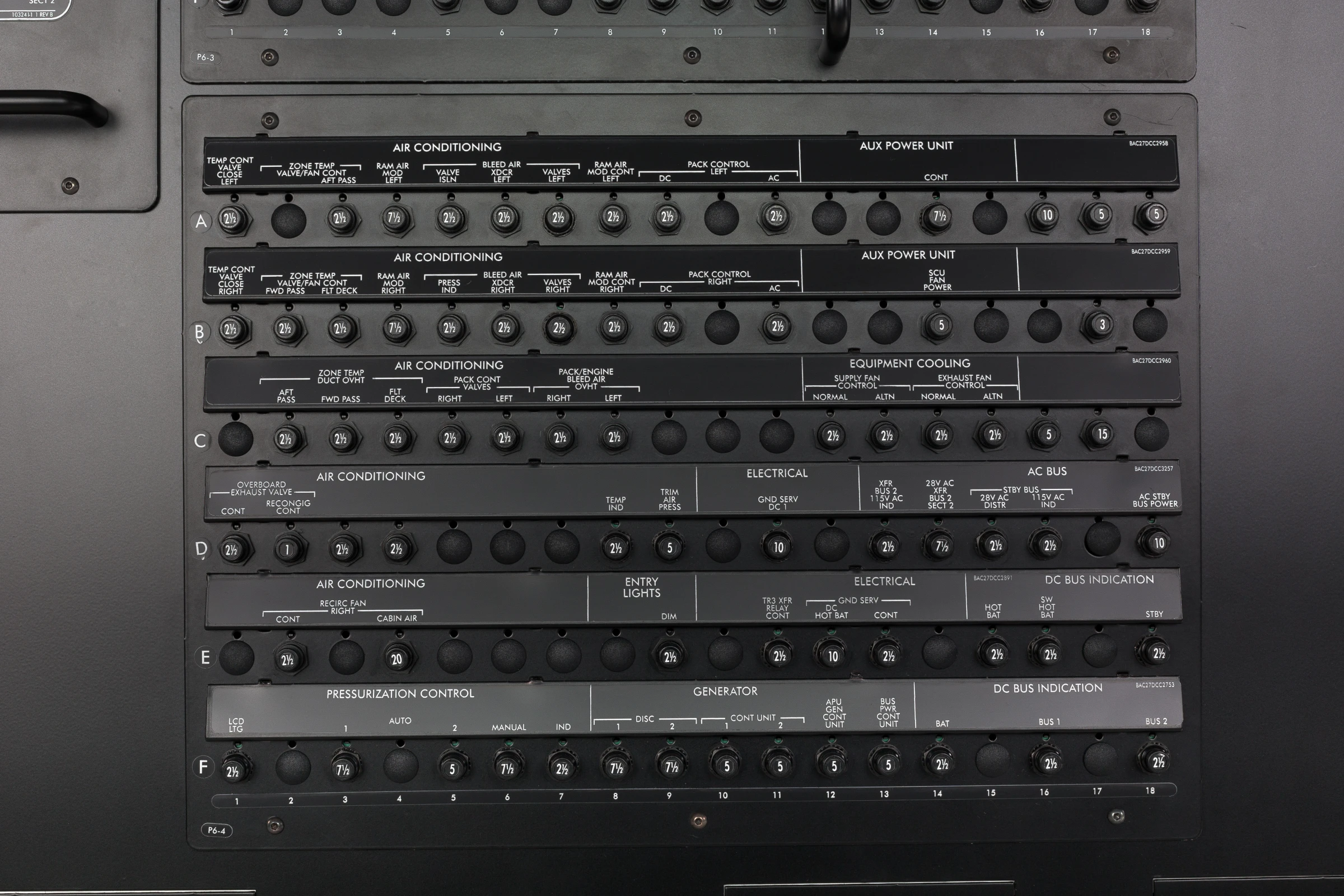

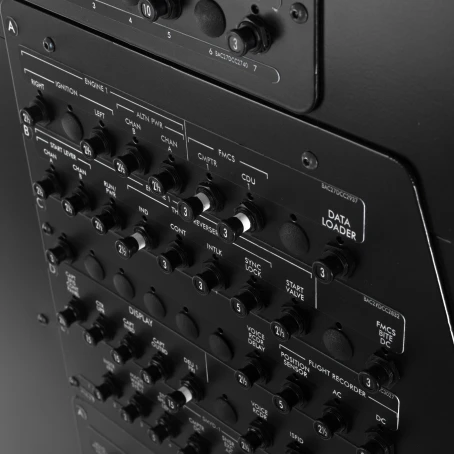

Wall panels equipped with the original circuit breakers.

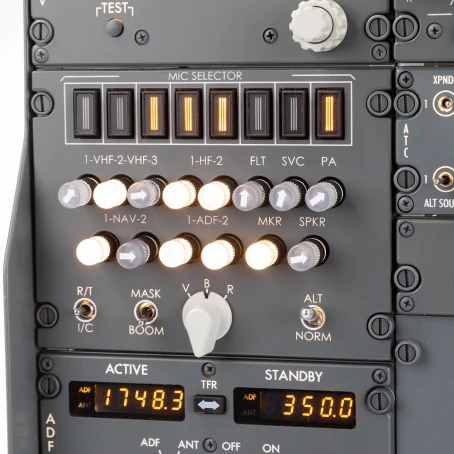

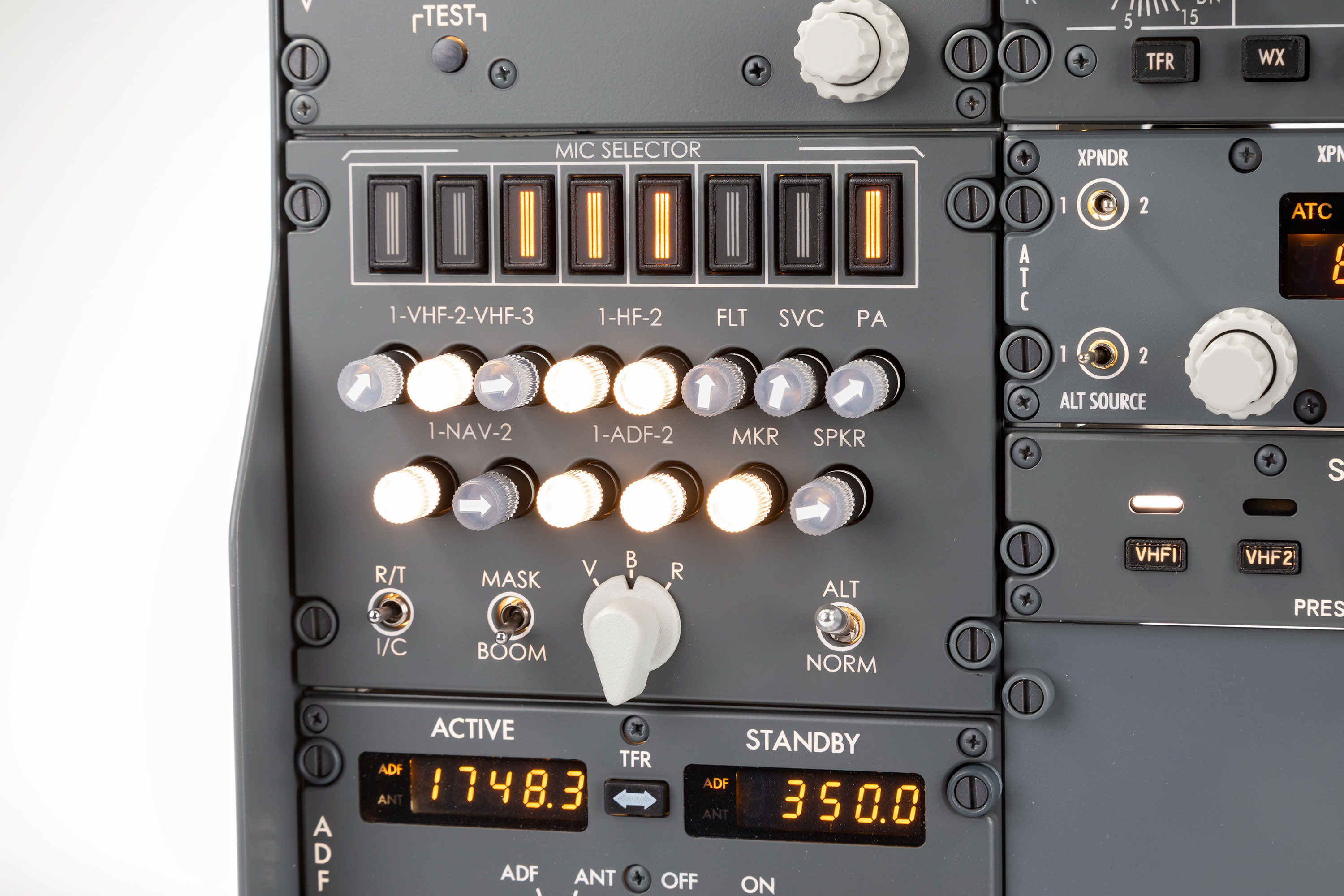

Full scale replica Boeing 737 of CP & FO Audio Selector panel.

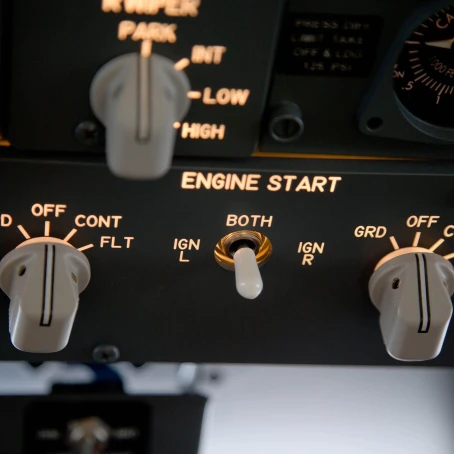

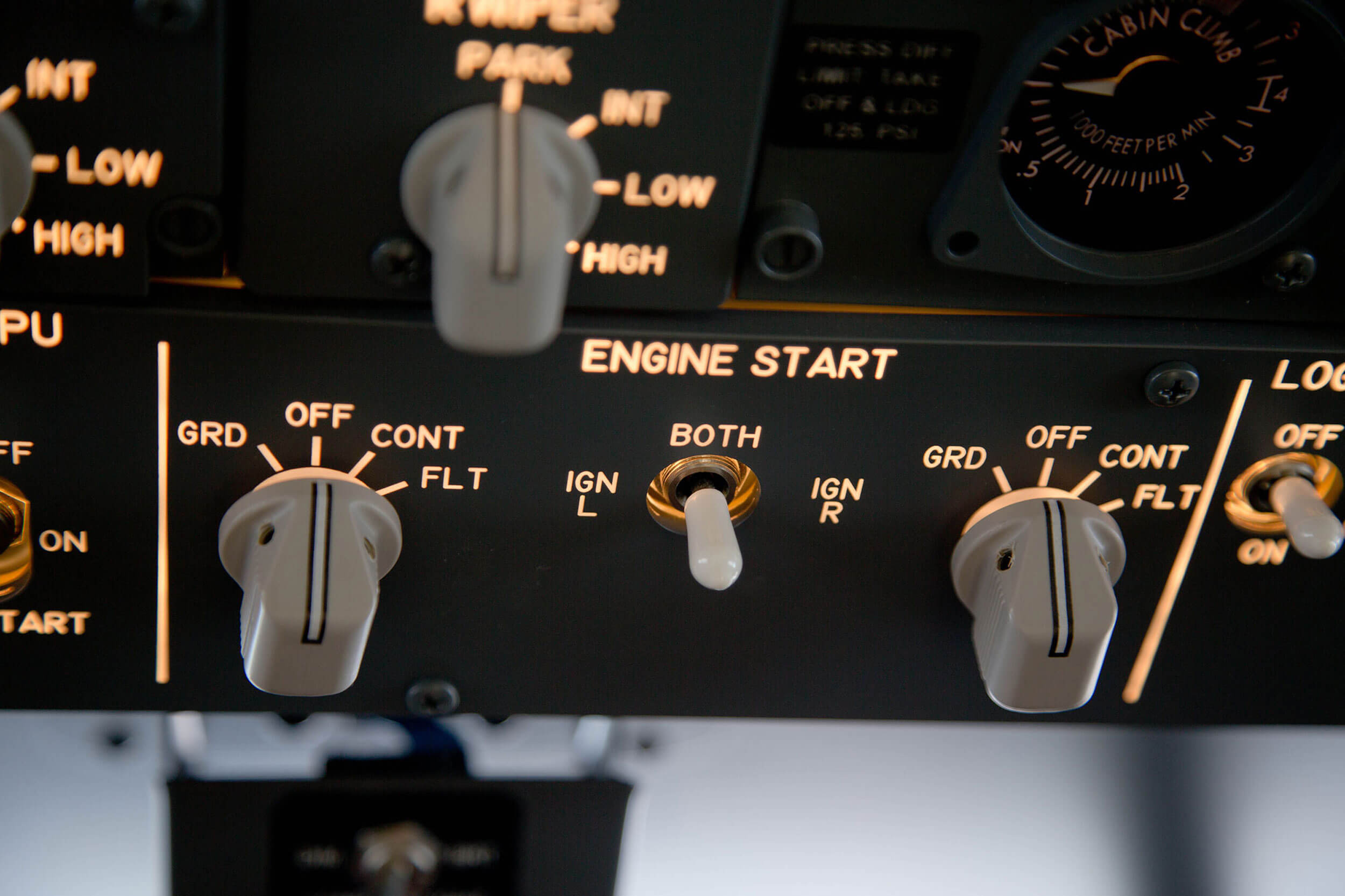

Engine Start switches and Ignition selector.

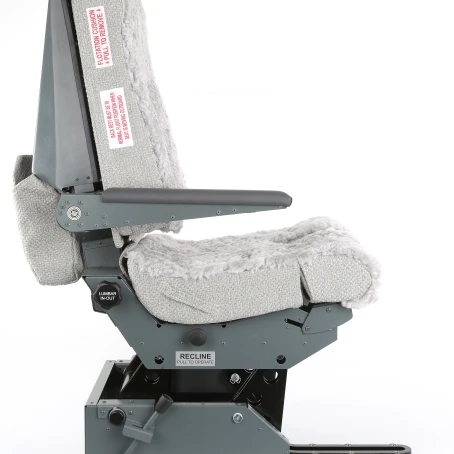

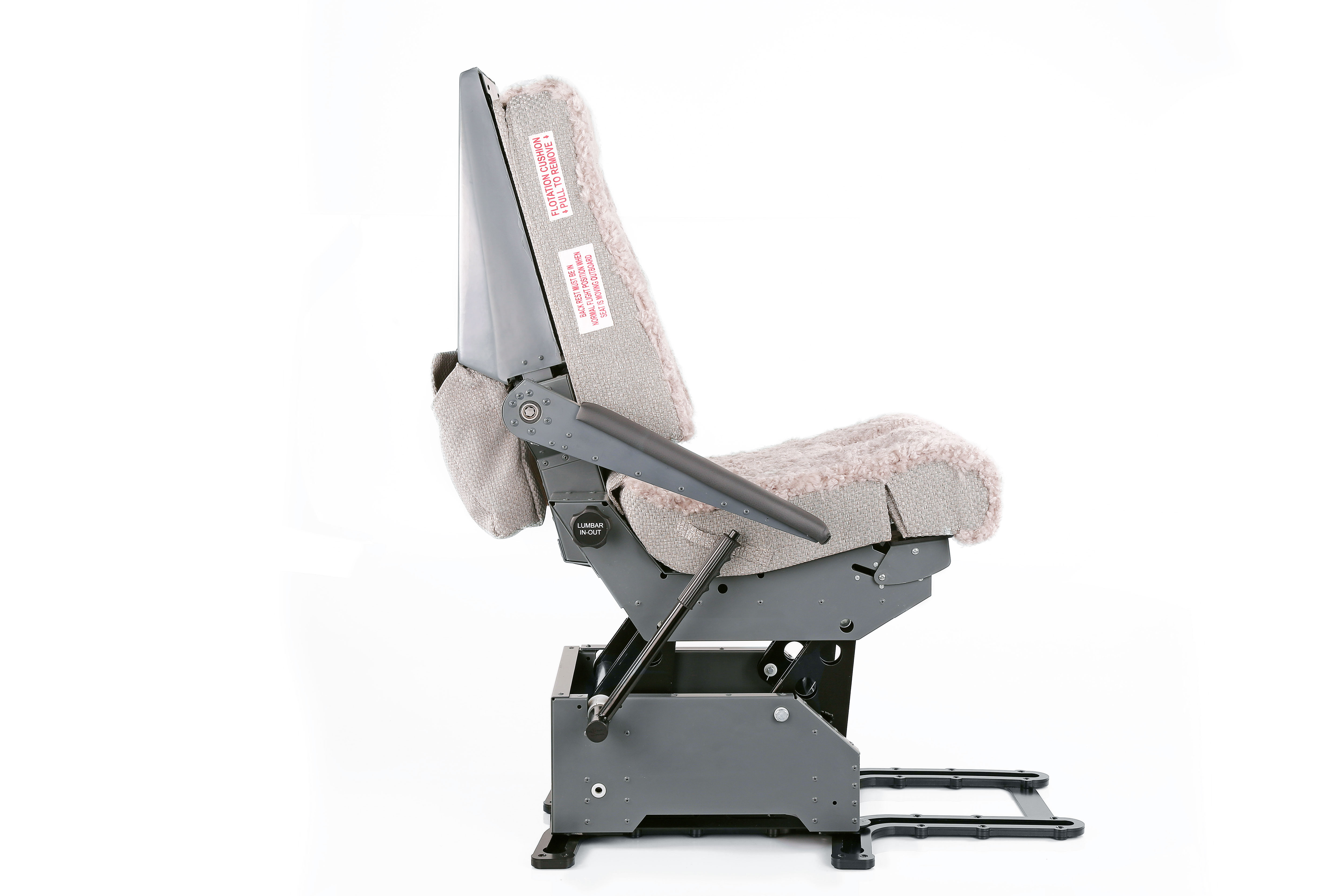

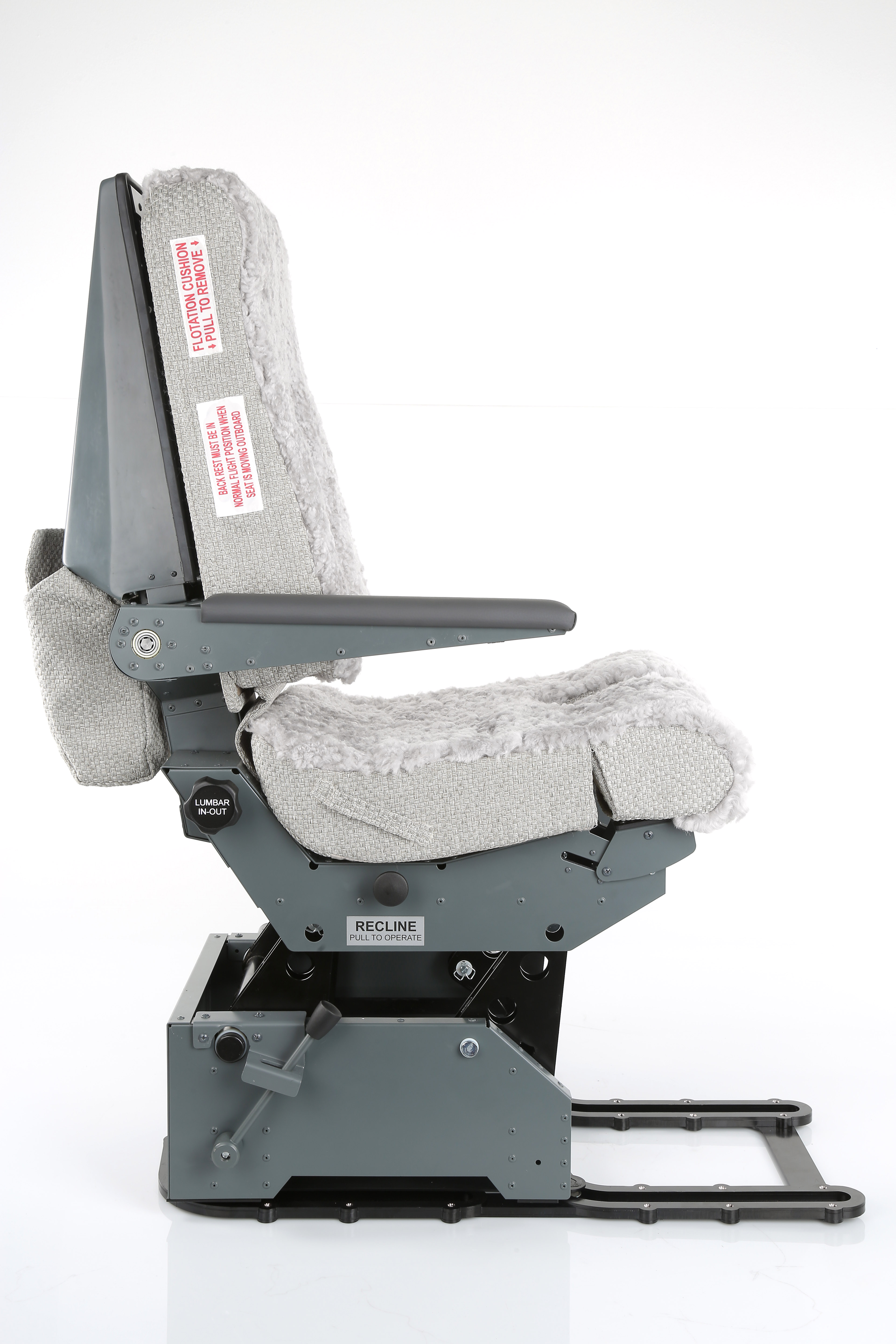

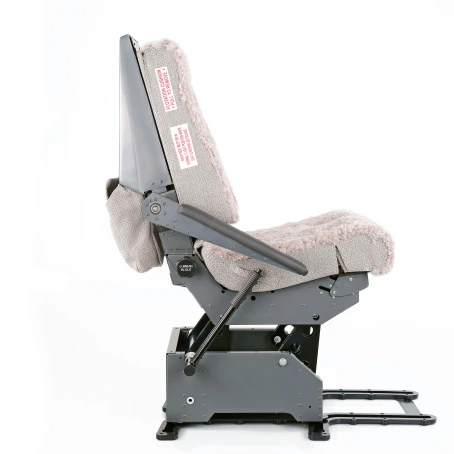

Individual tilt adjustment and folding.
If one of the levers is manually forced a clutch is engaged.

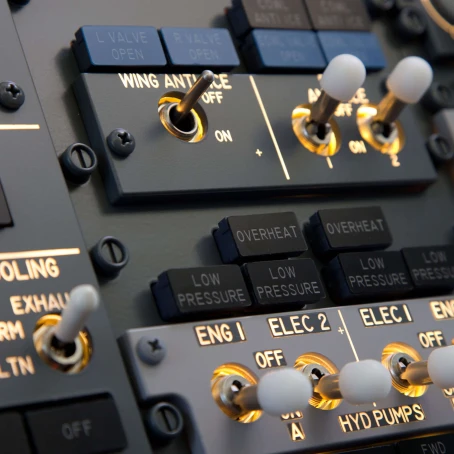

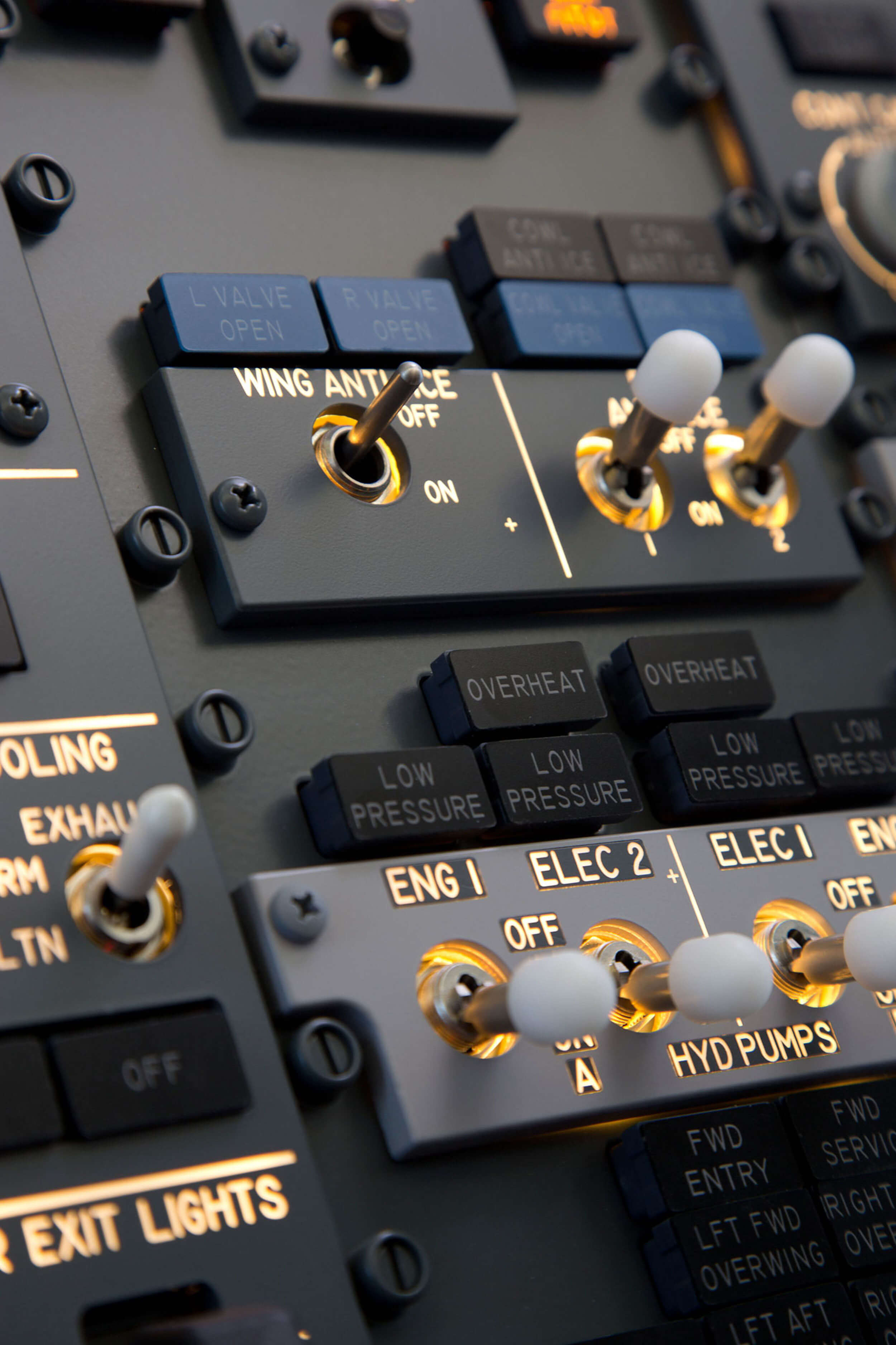

Anti Ice & hydraulic electric pumps and Wings anti ice.
Handles with lift-UP/LEFT/RIGHT positions and "Hard Click" feeling.

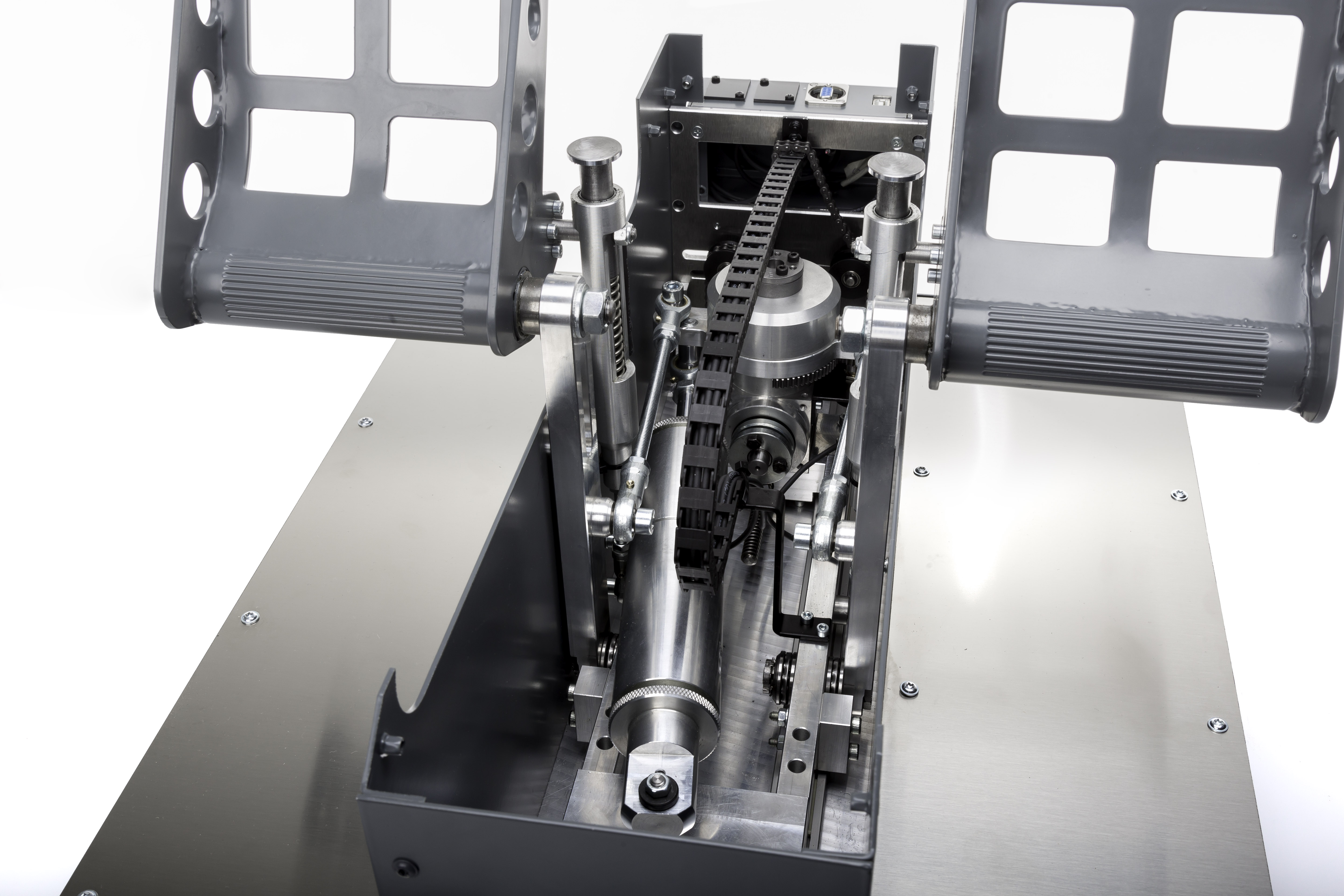

The entire mechanism is rail-mounted for AFT/FWD adjustment.

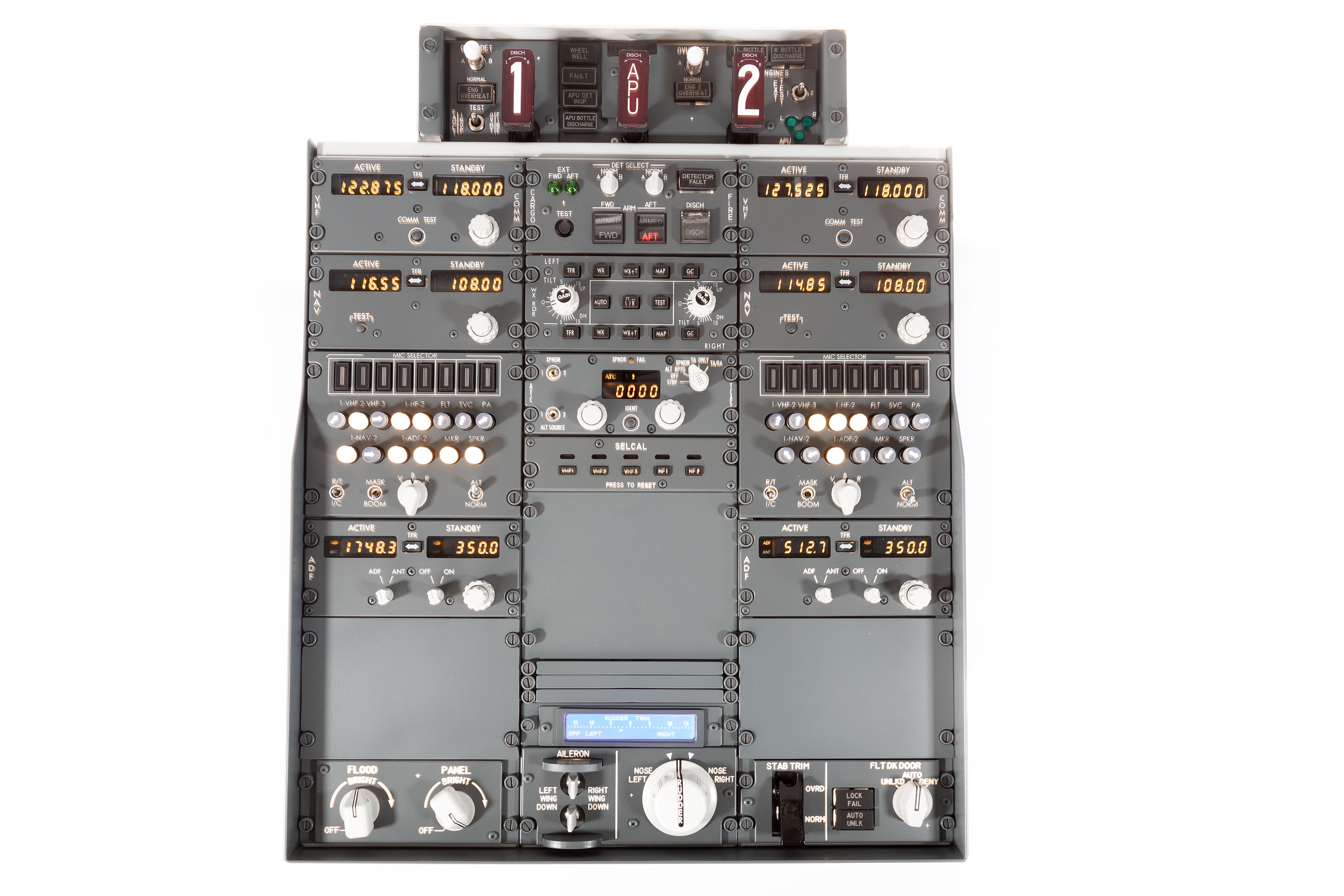

The Pedestal is built/wired/tested in our laboratories.
Sturdy aluminum construction and mechanism, adjustable in DN, UP, OFF.
Build to last and all function are working. Upgradeable firmware via browser.

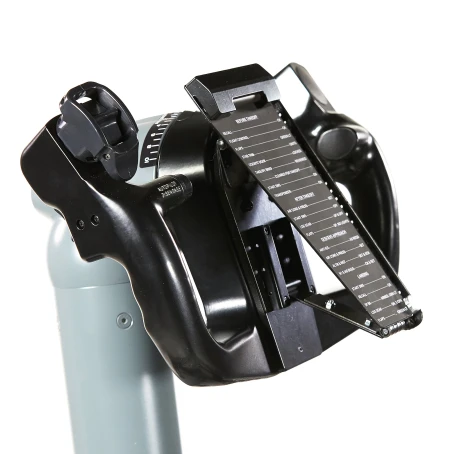

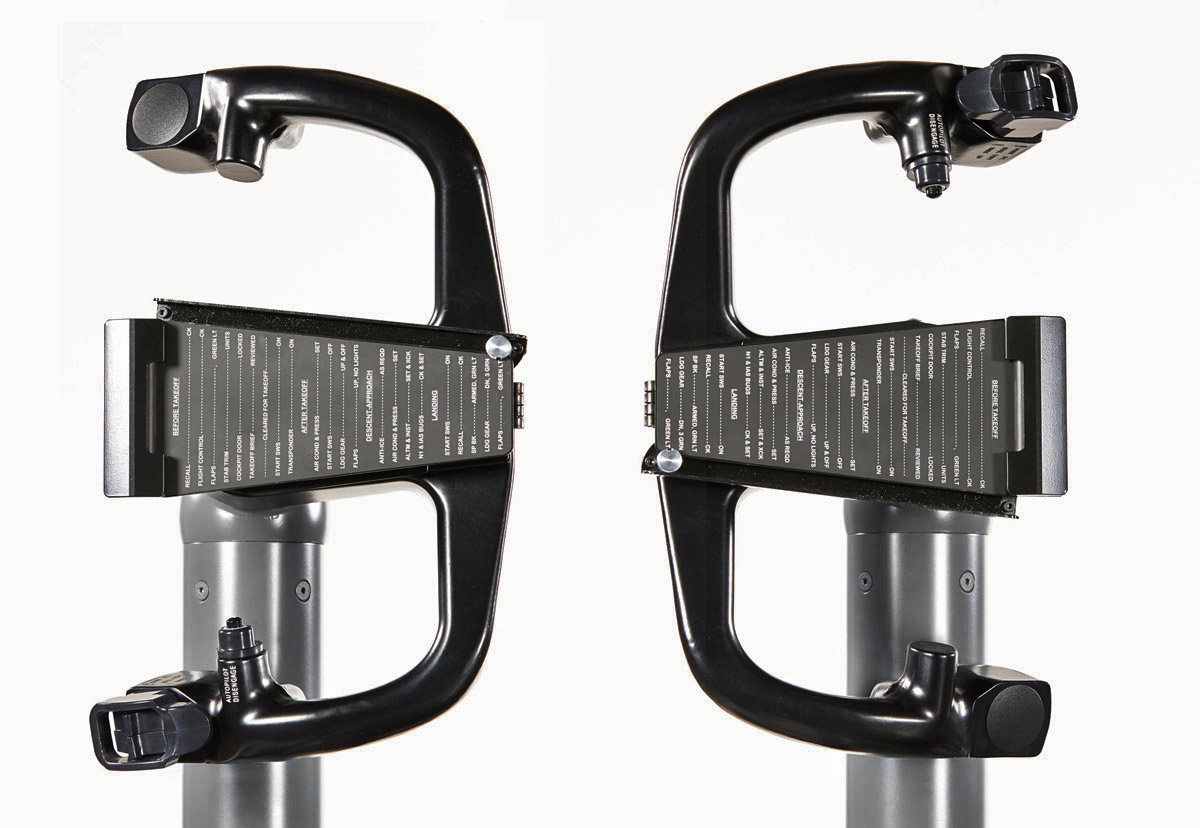

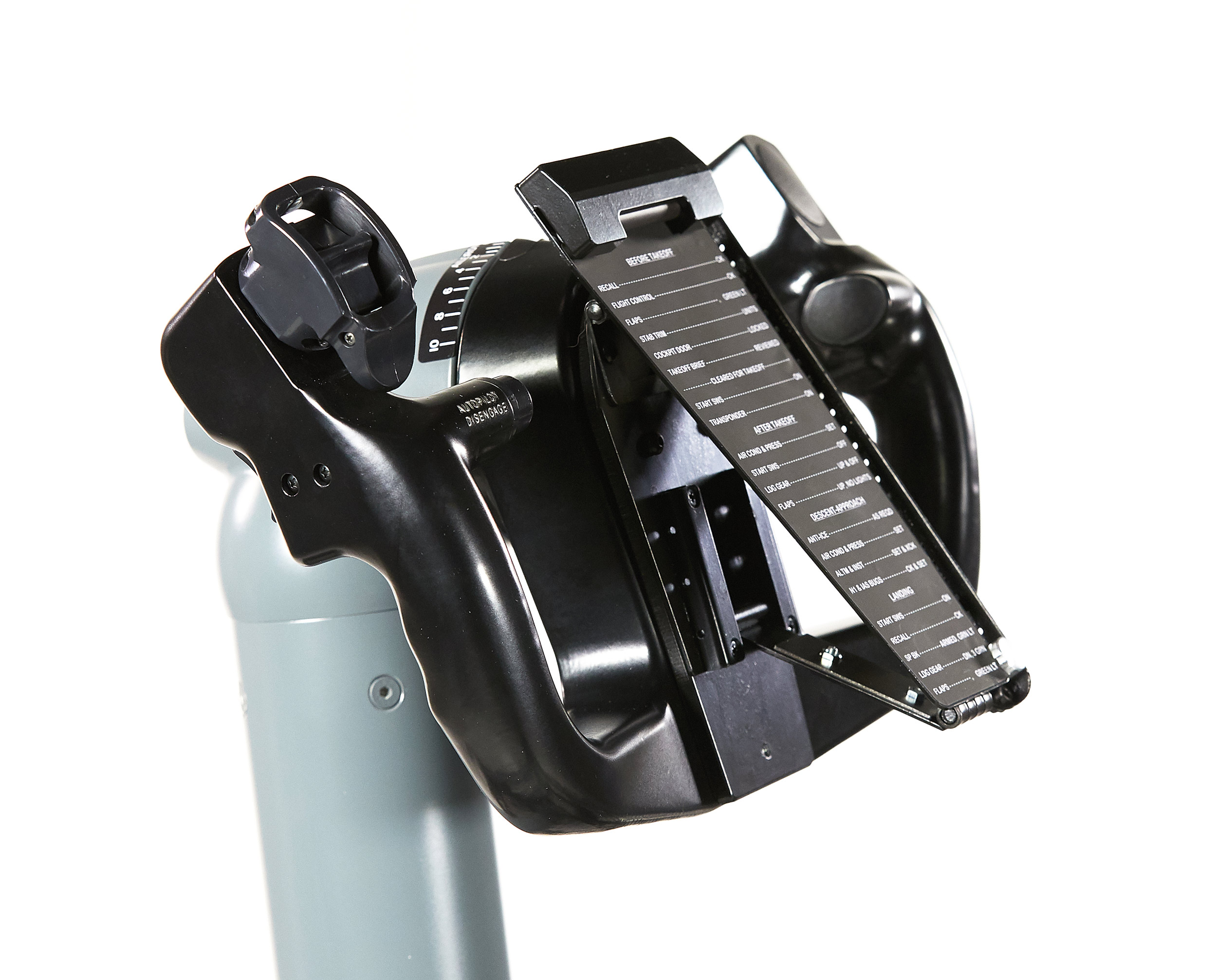

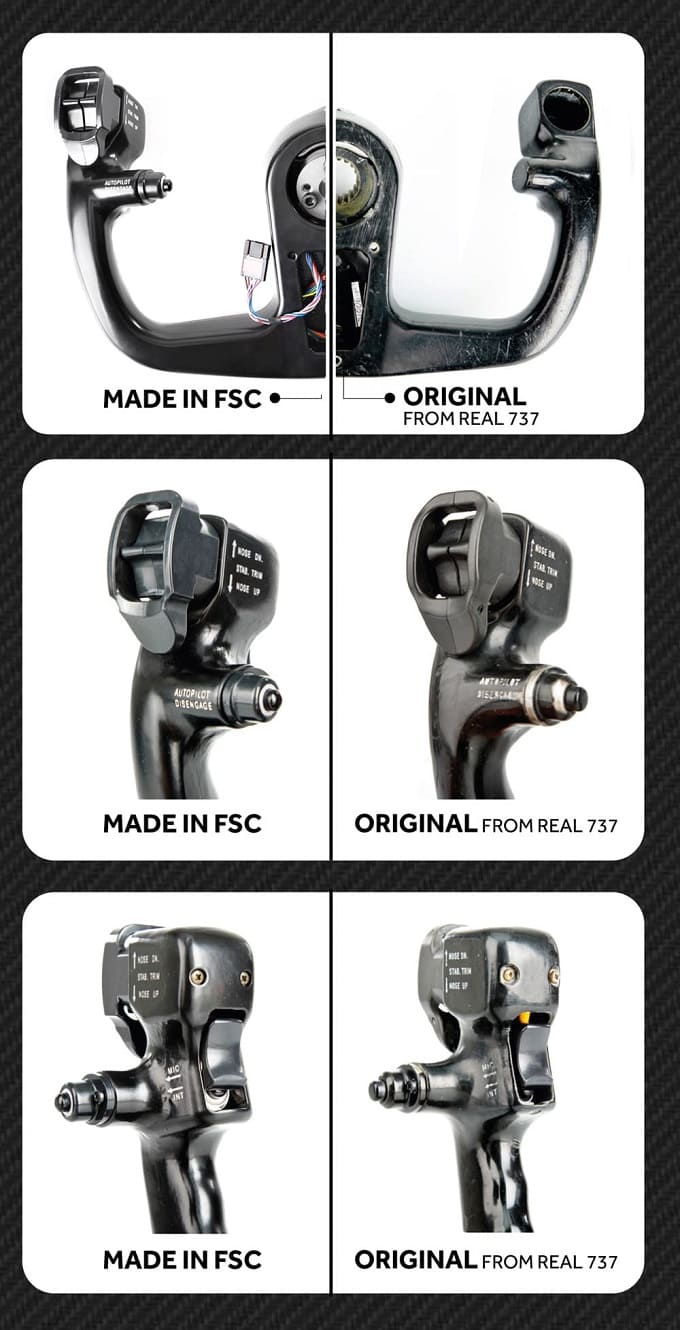

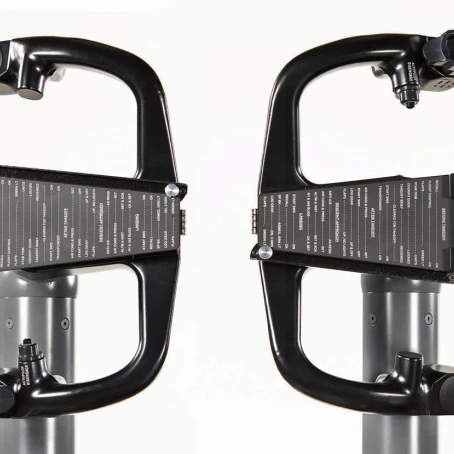

The yoke wheel is created through aluminum casting.
We prepare our products for dispatch with care, to ensure they reach our customers in exactly the same condition as when they leave our premises.
We avoid generic packaging and work with specialist partners who create bespoke solutions for us for each product, using extremely robust, high-quality packaging materials.
Where necessary, we provide additional protection for individual components using heat-sealed, multi-layer internal barriers to ensure complete protection against moisture, temperature fluctuations and any extreme weather conditions.
