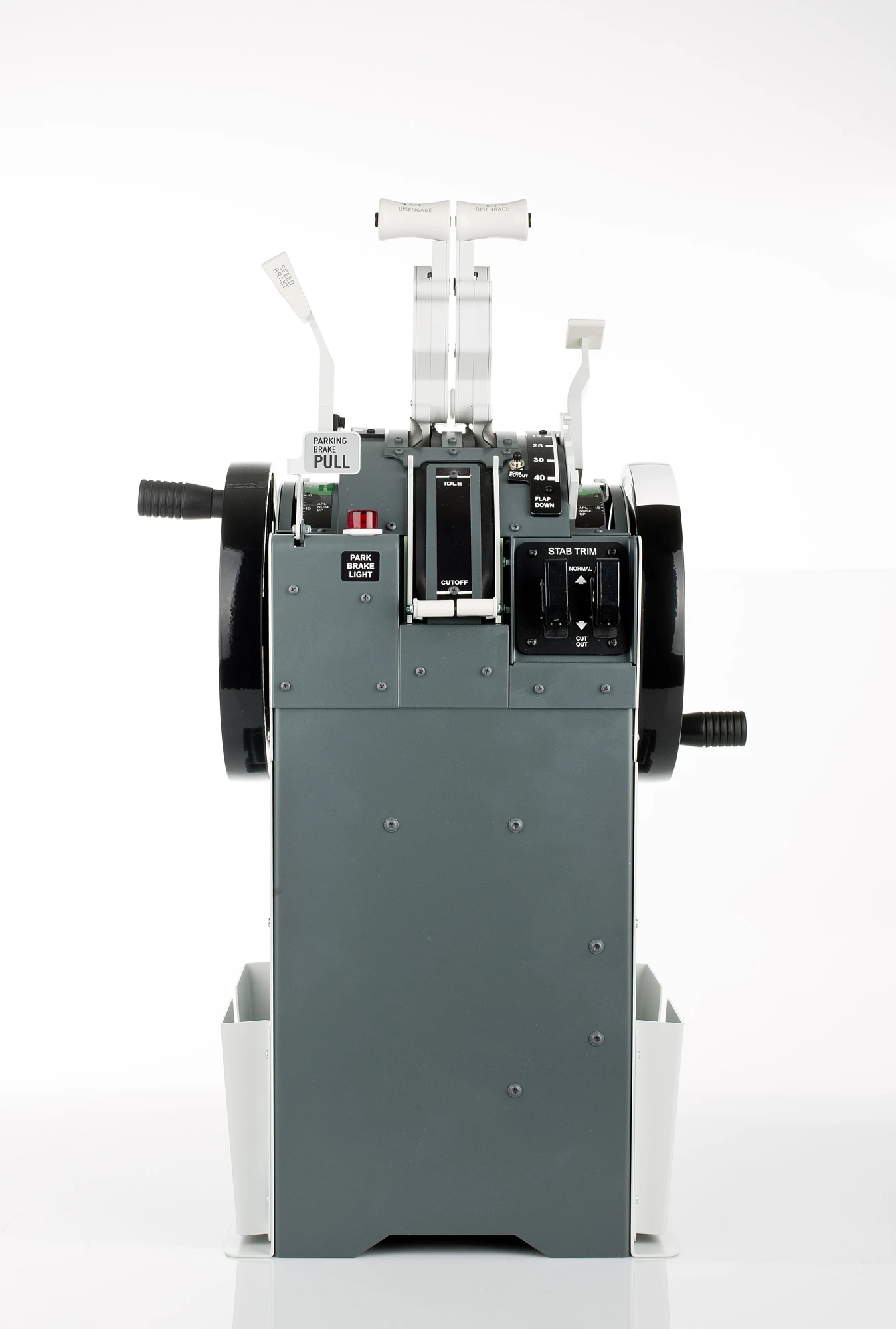

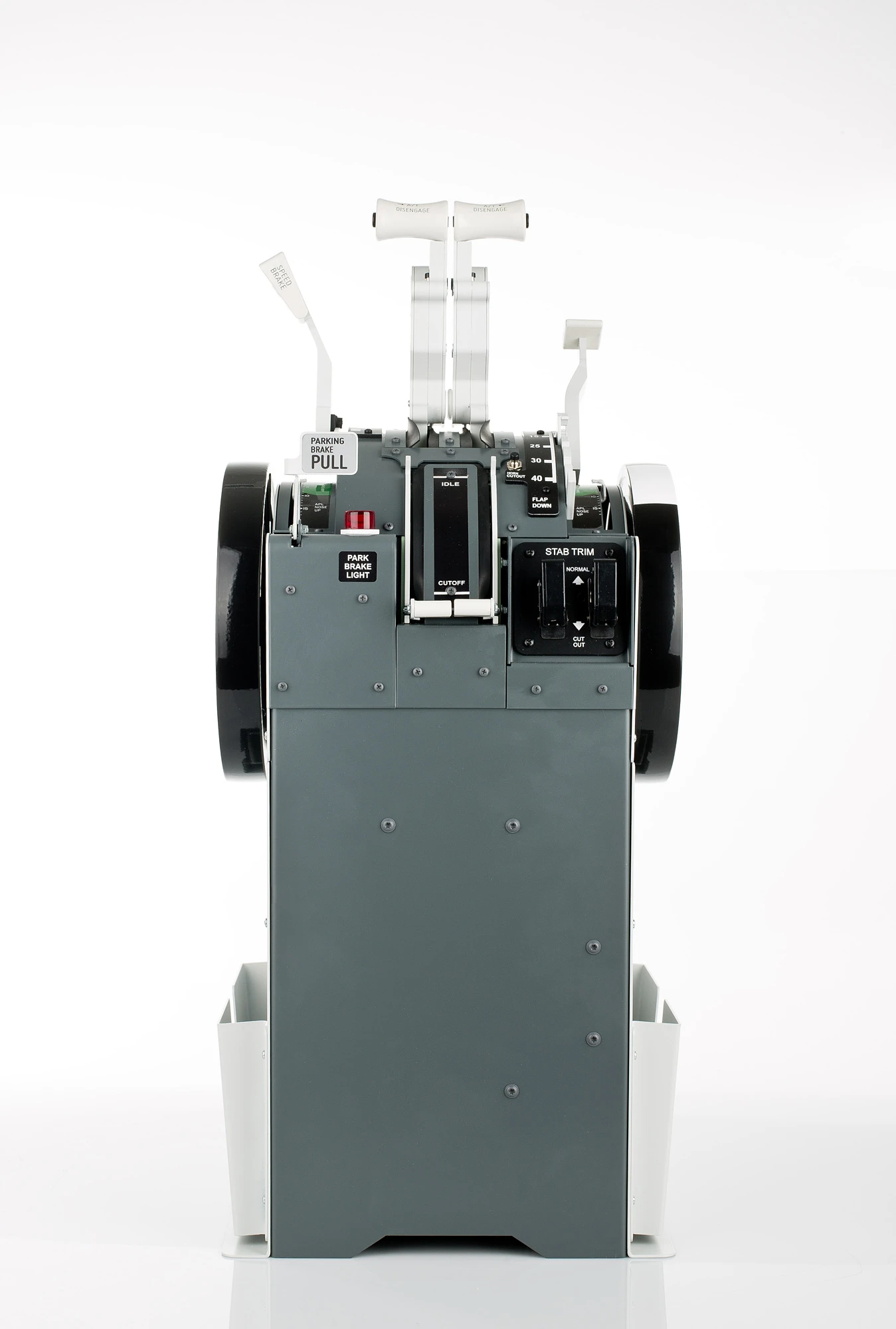

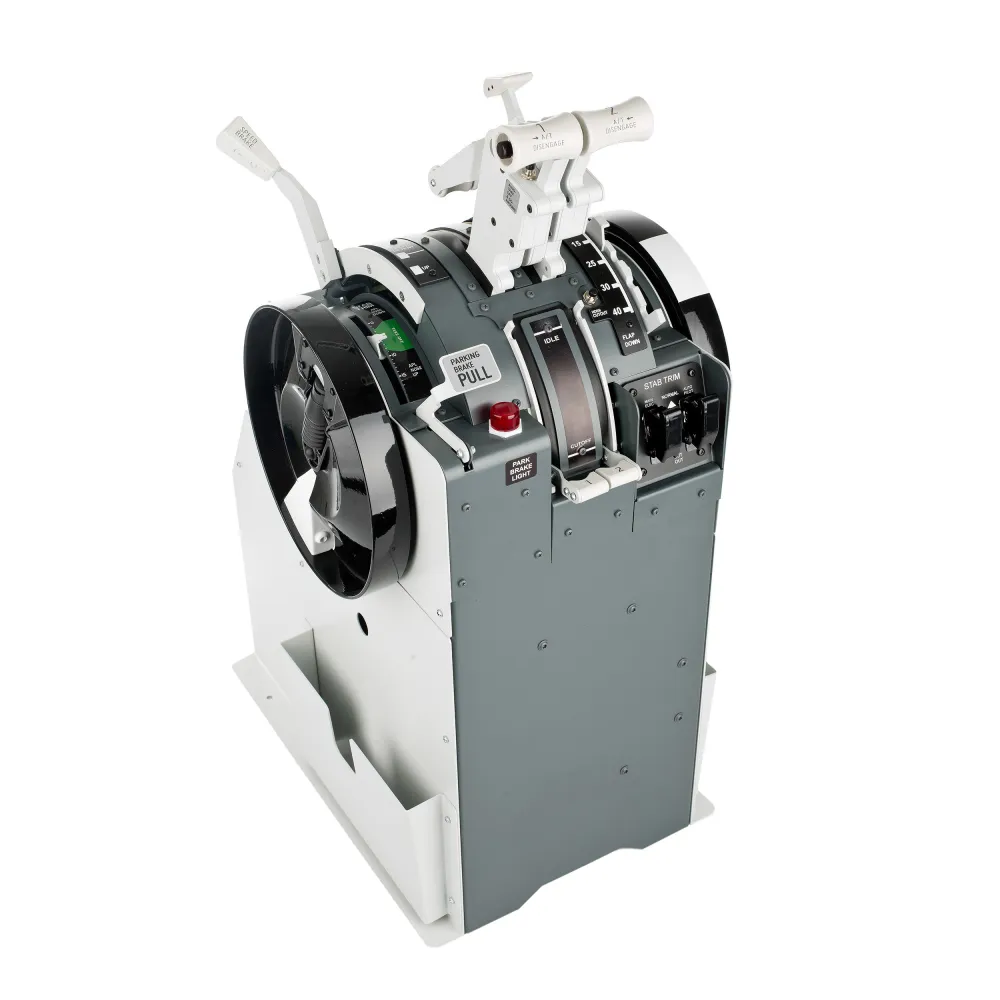

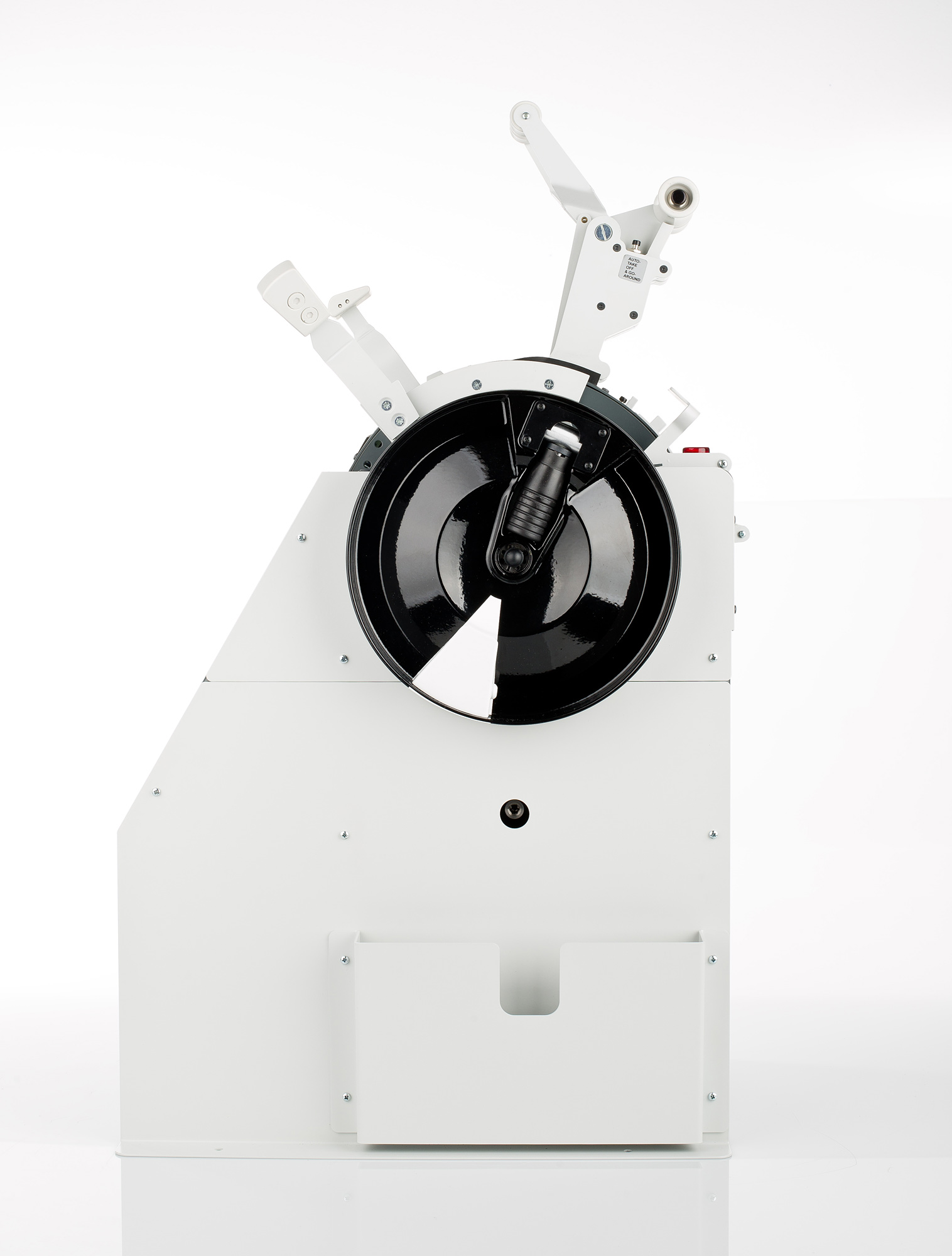

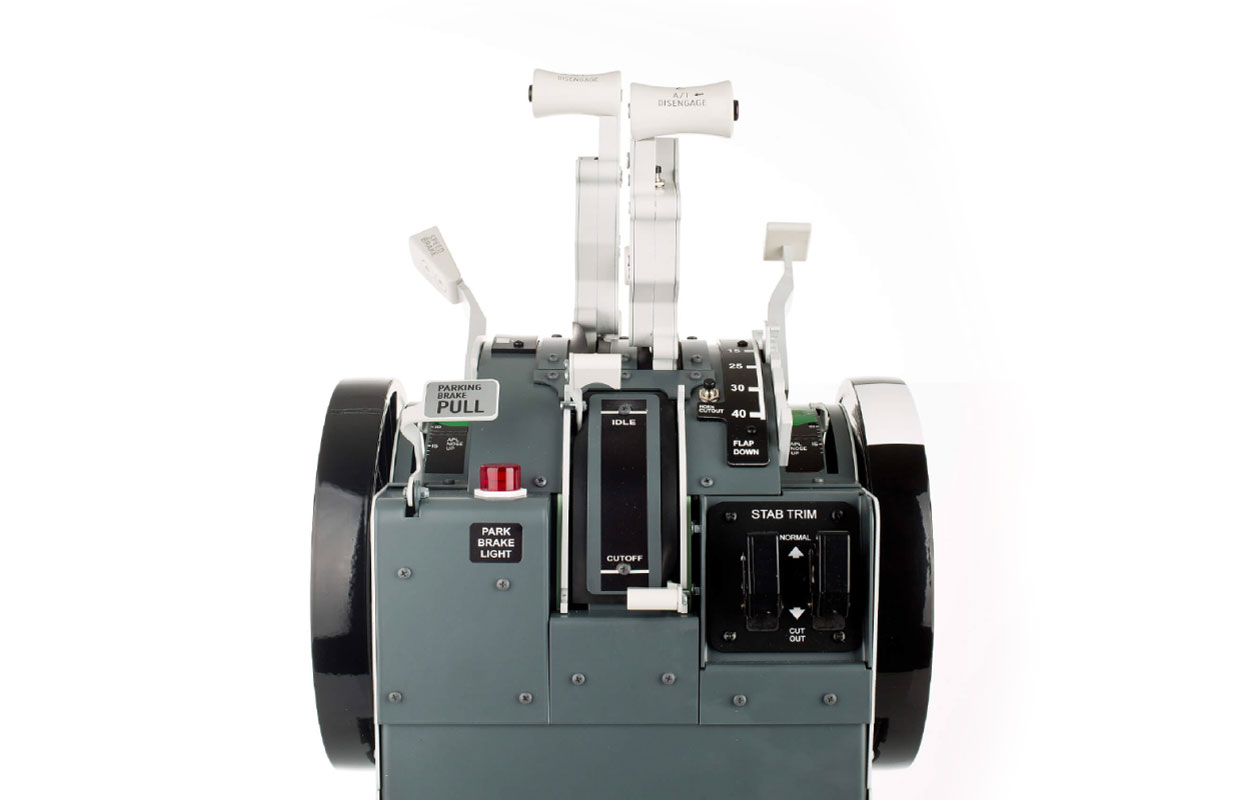

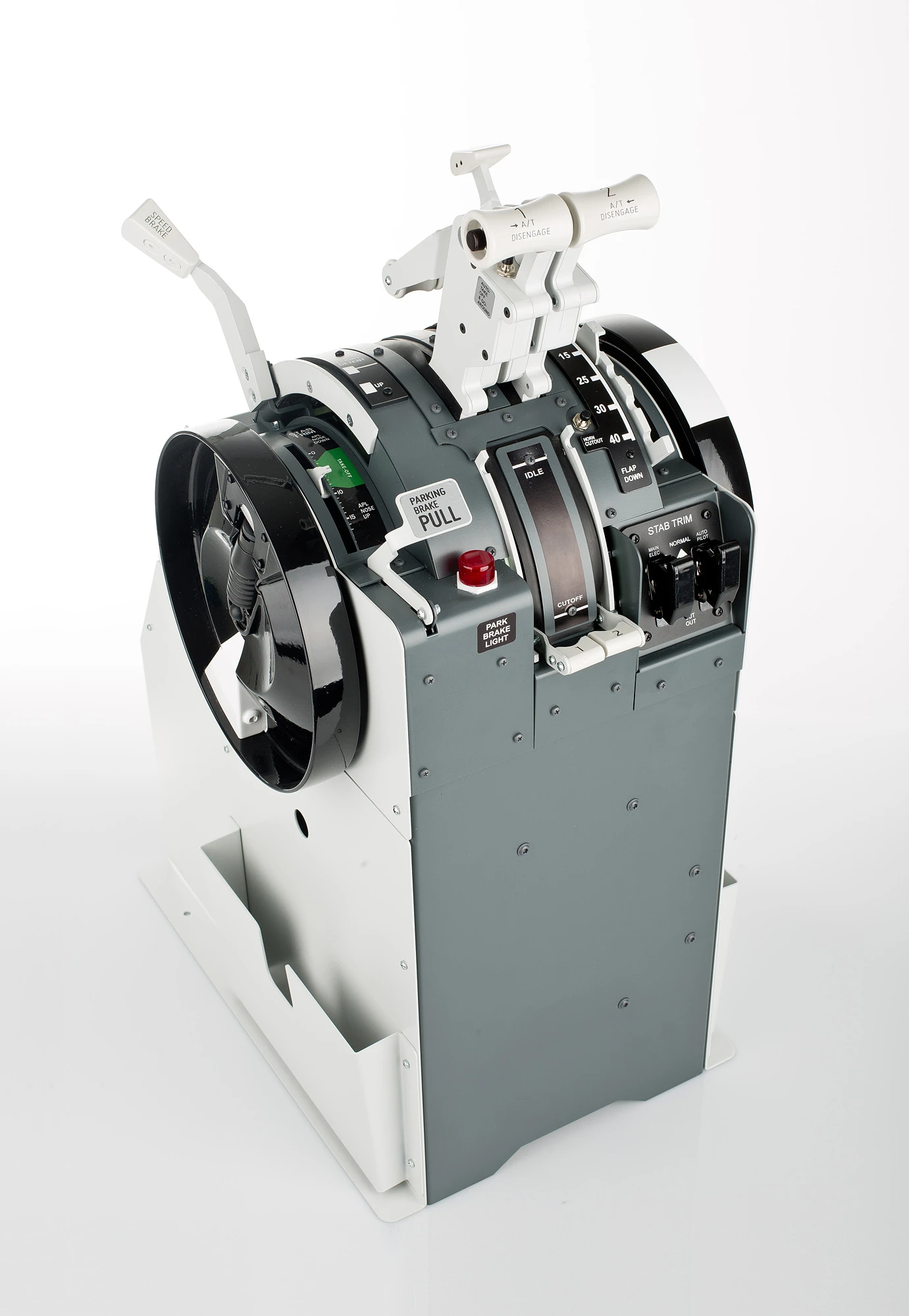

Throttle Quadrant Professional motorized for Boeing 737NG style Flight Simulators.
System that locks thrust reverse levers if the throttles are not in idle
Every single button, switch, lever and mechanism works to simulate the original
Ethernet connection to Simulator local network
Software engineered by FSC to drive the simulator with all the necessary functions
Made of aluminum using high quality electrical/electronic materials

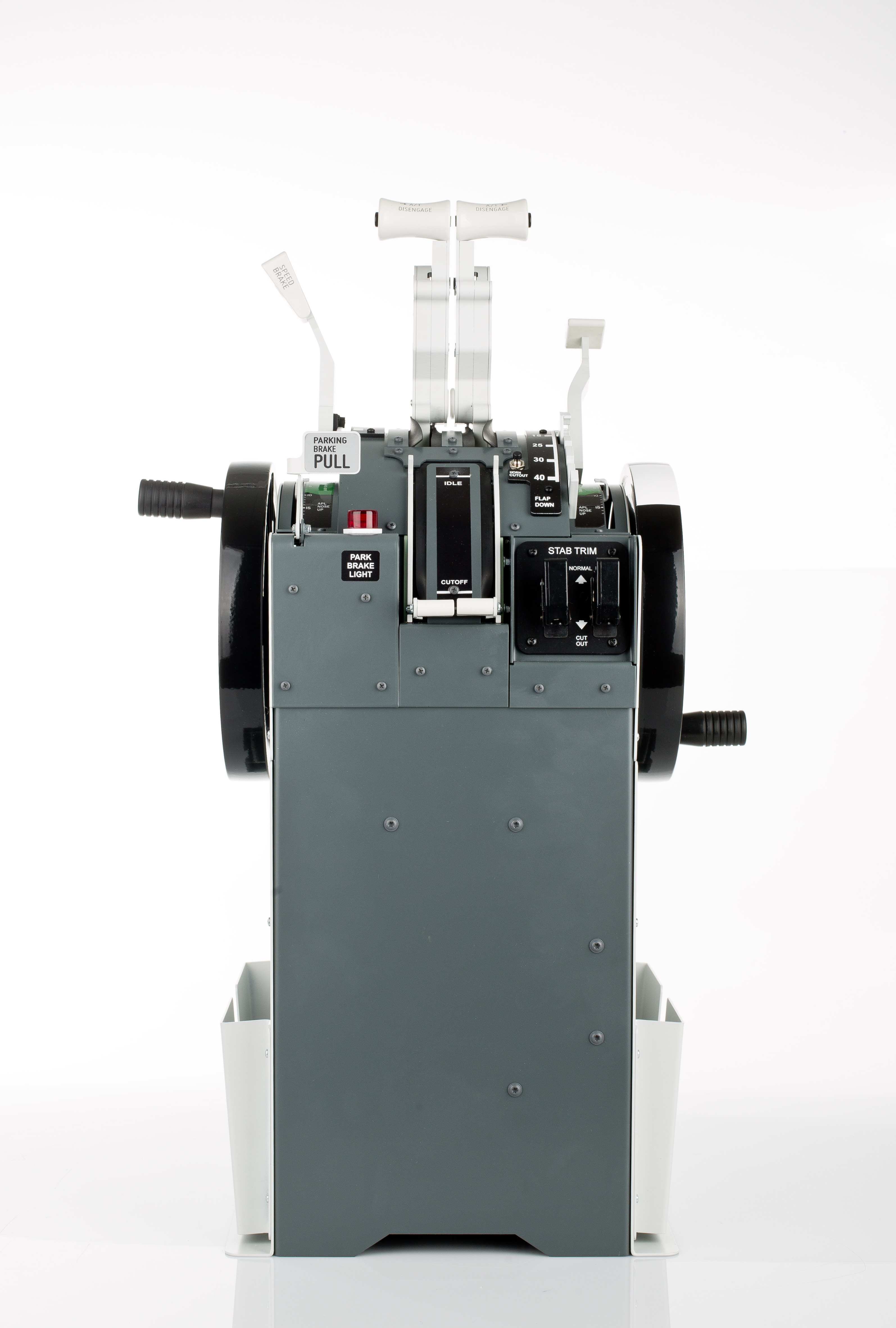

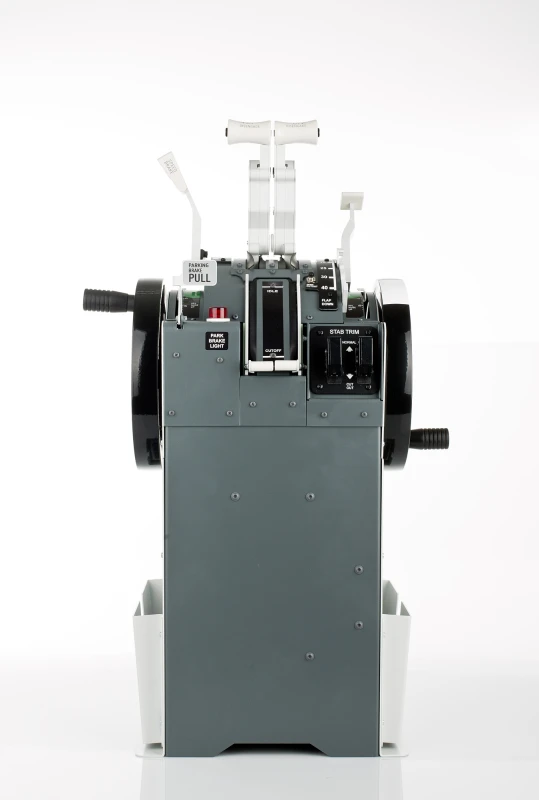

Equipped with foldable handles
| Optical encoder flap lever |
Optical sensor for flap lever detents |
|
|---|---|---|
| High quality OTTO switches |
Aviation quality buttons allow 1000000 actuations |
|
| Power AC 110-240V required |
Multi-voltage power supply (no change necessary) from 110 to 240V AC |
|

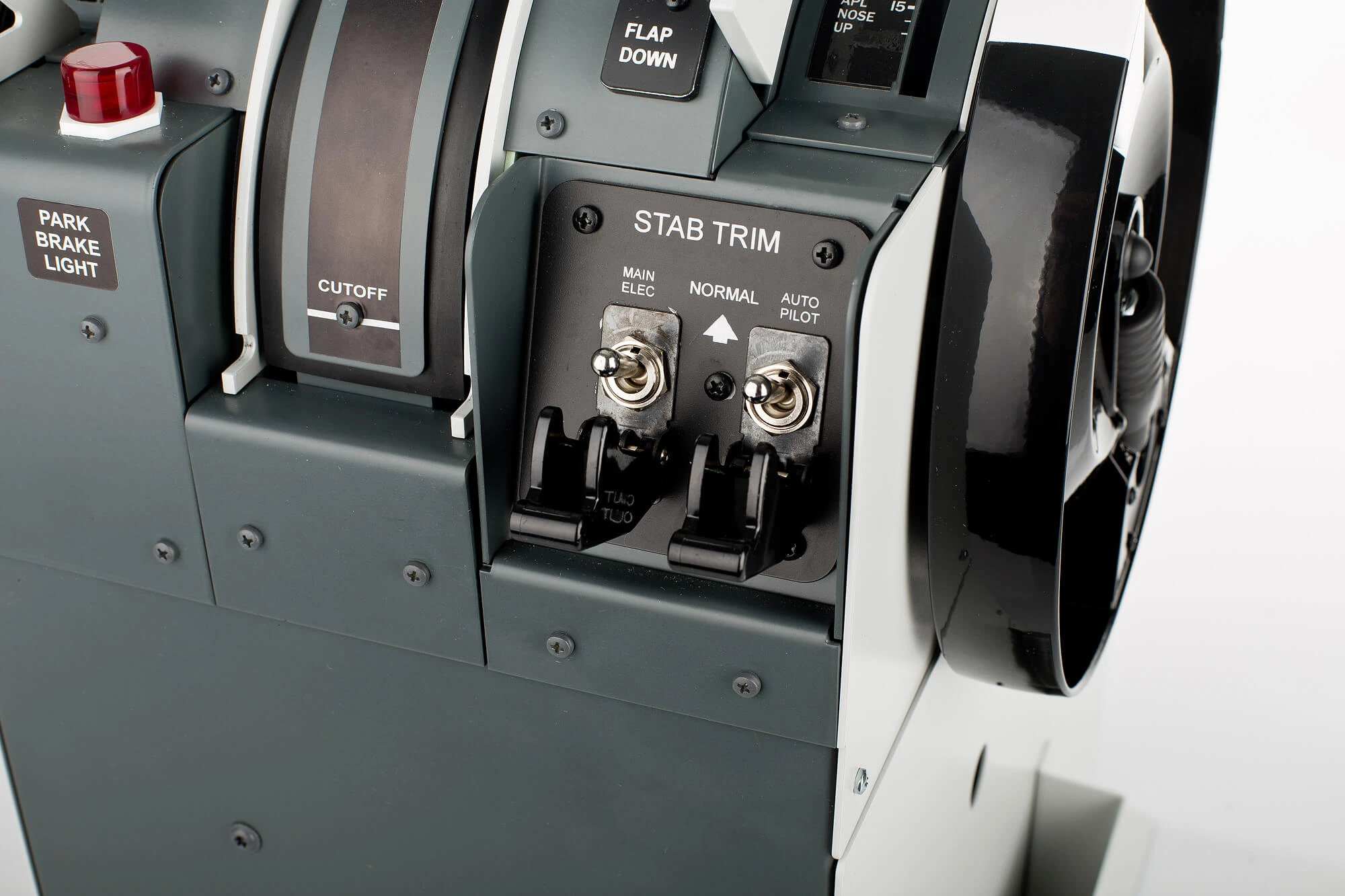

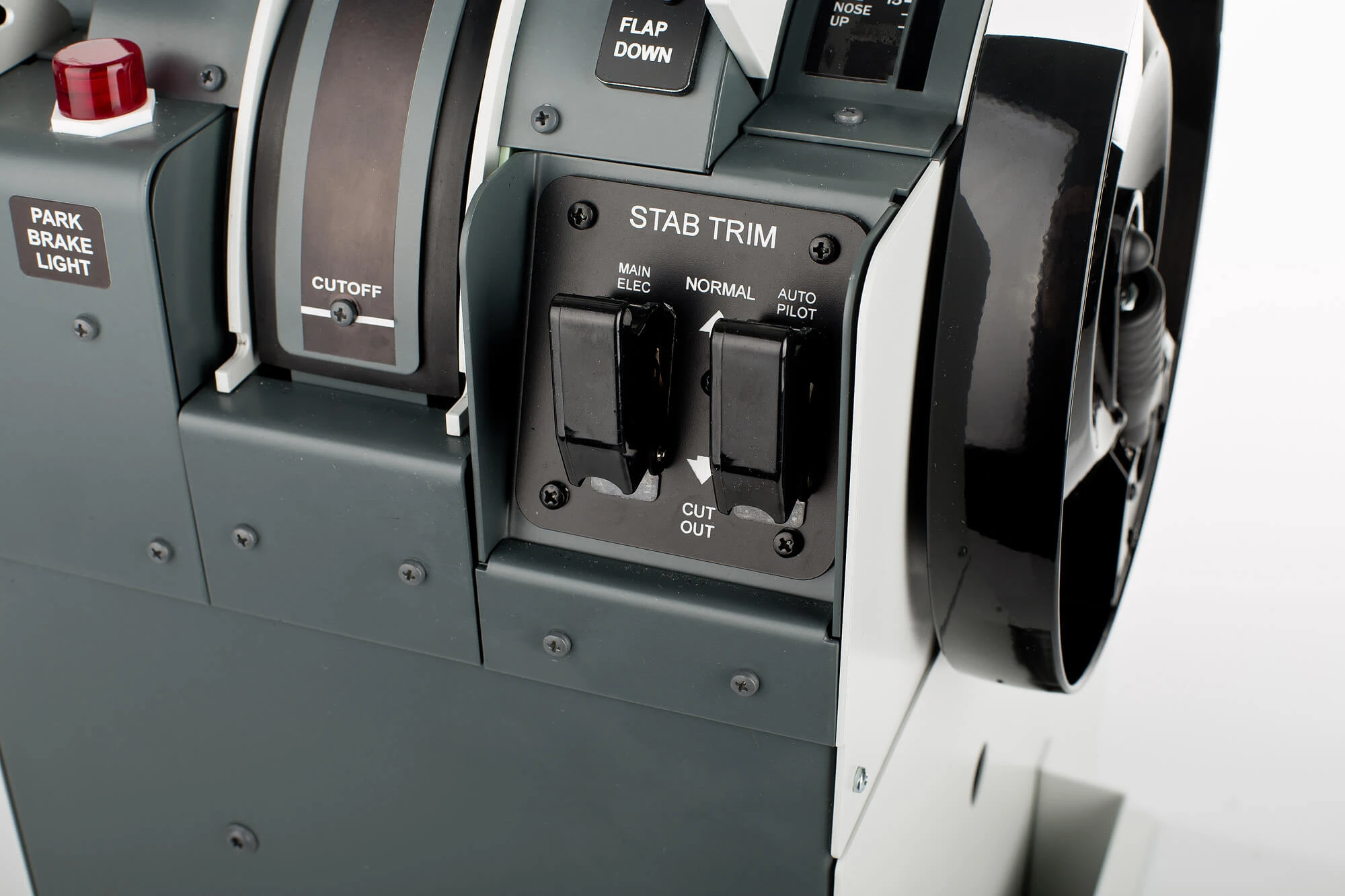

| Stab Trim indicators |
Working elevator trim indicators |
|
| USB Connection |
All USB types are supported |
|
| Boeing style gray painted |
RAL 7011, Professional anti-corrosion coating |
|
| Motorized Spoiler Lever |
With mechanical lock to flight detent position during flight |
| 1:1 real scale |
Designed by studying the dimensions of the original components |
|
|---|---|---|
| Plug&Play |
Each unit is individually calibrated and ready to use |
|
| Flap lever with lock passage |
at 1° and 15 ° |
|

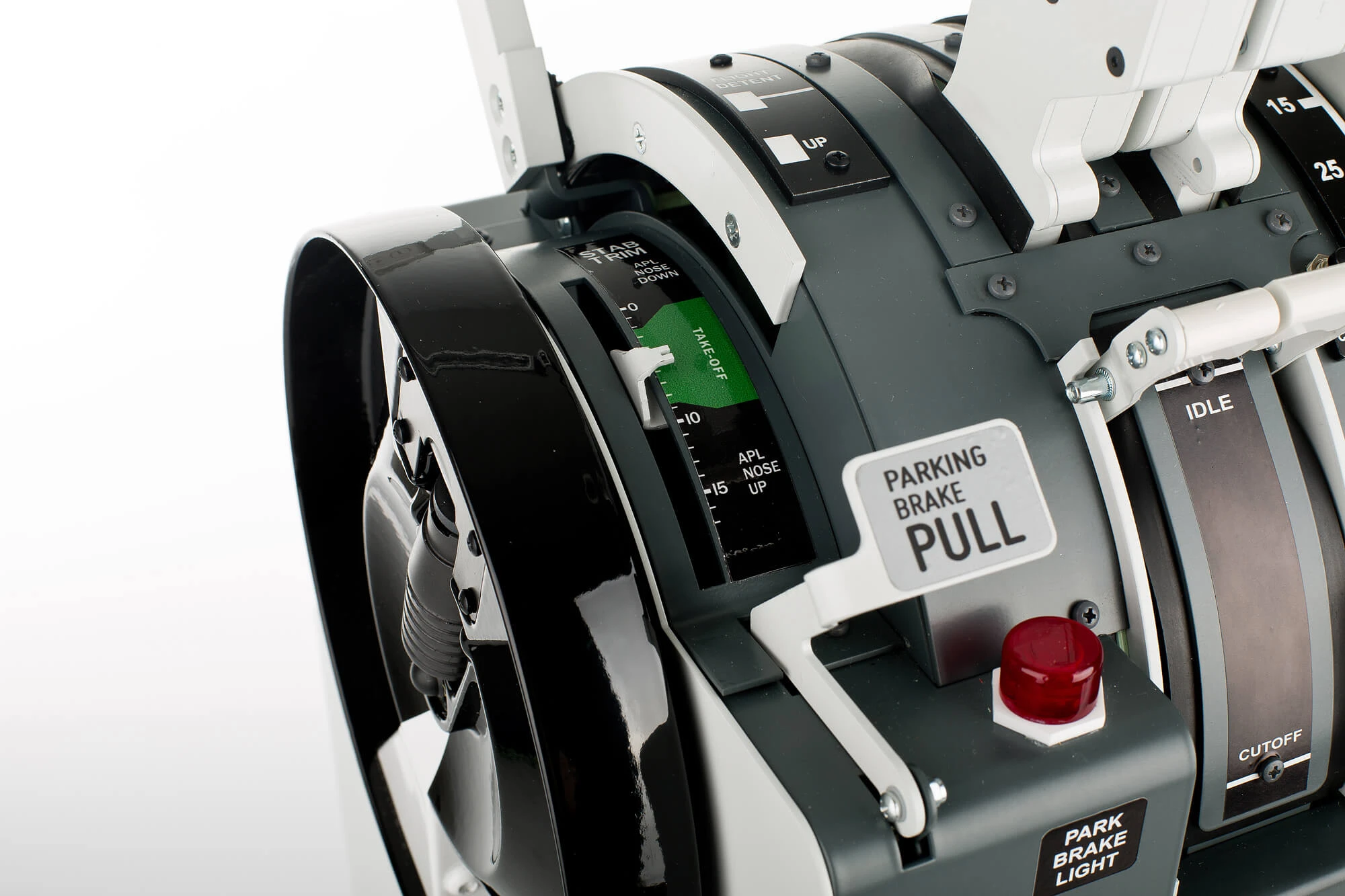

| Park brake lever included |
With unlock solenoid and red light |
|
| Horn Cutout pushbutton |
Included and working |
|
| Additional features |
|
They allow manual adjustment of the stabilizer trim.
When the lever is up pressing the pedals will fully release the lever.

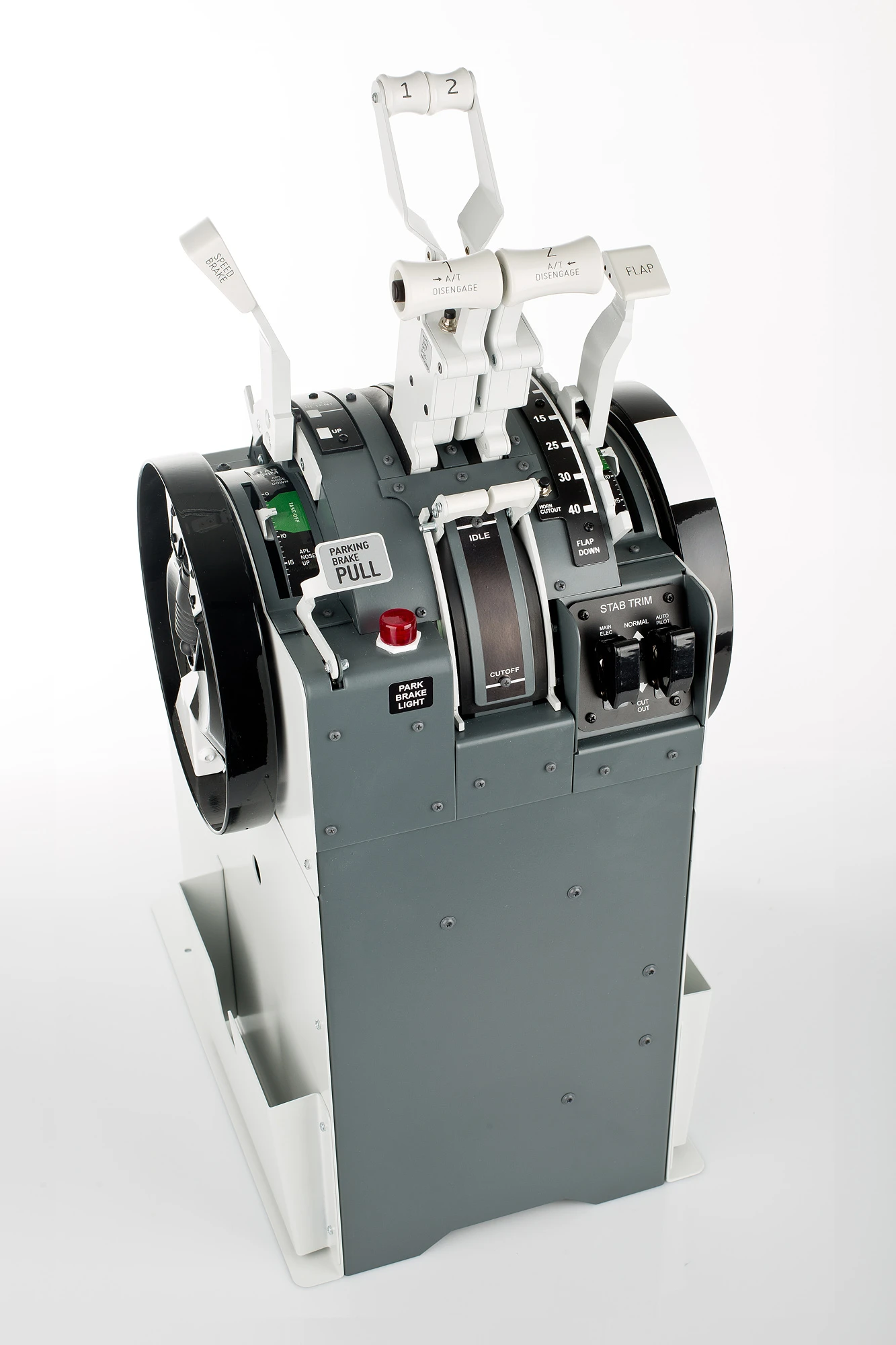

Thrust reverse levers cannot be lifted unless they are in the idle position.

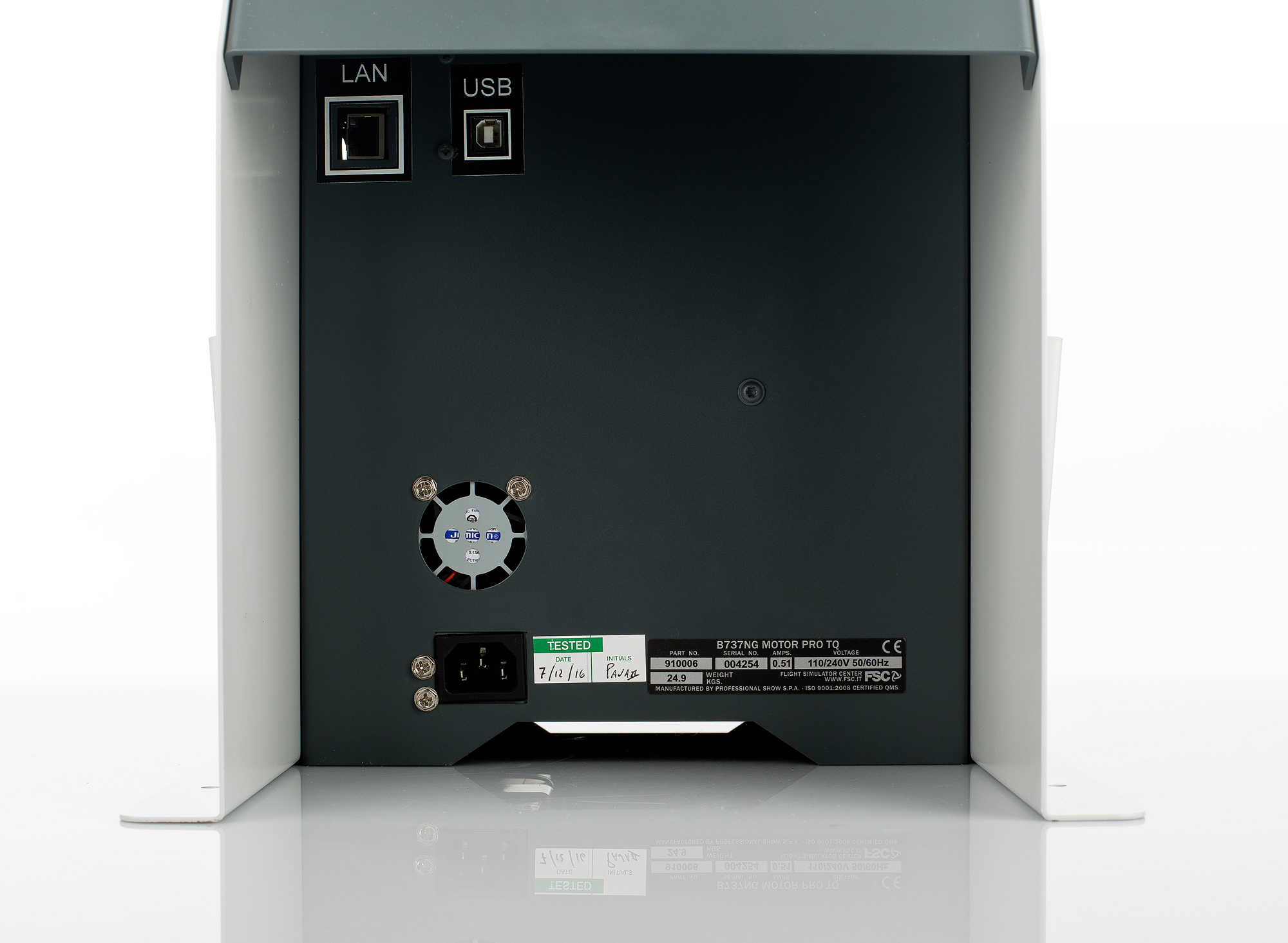

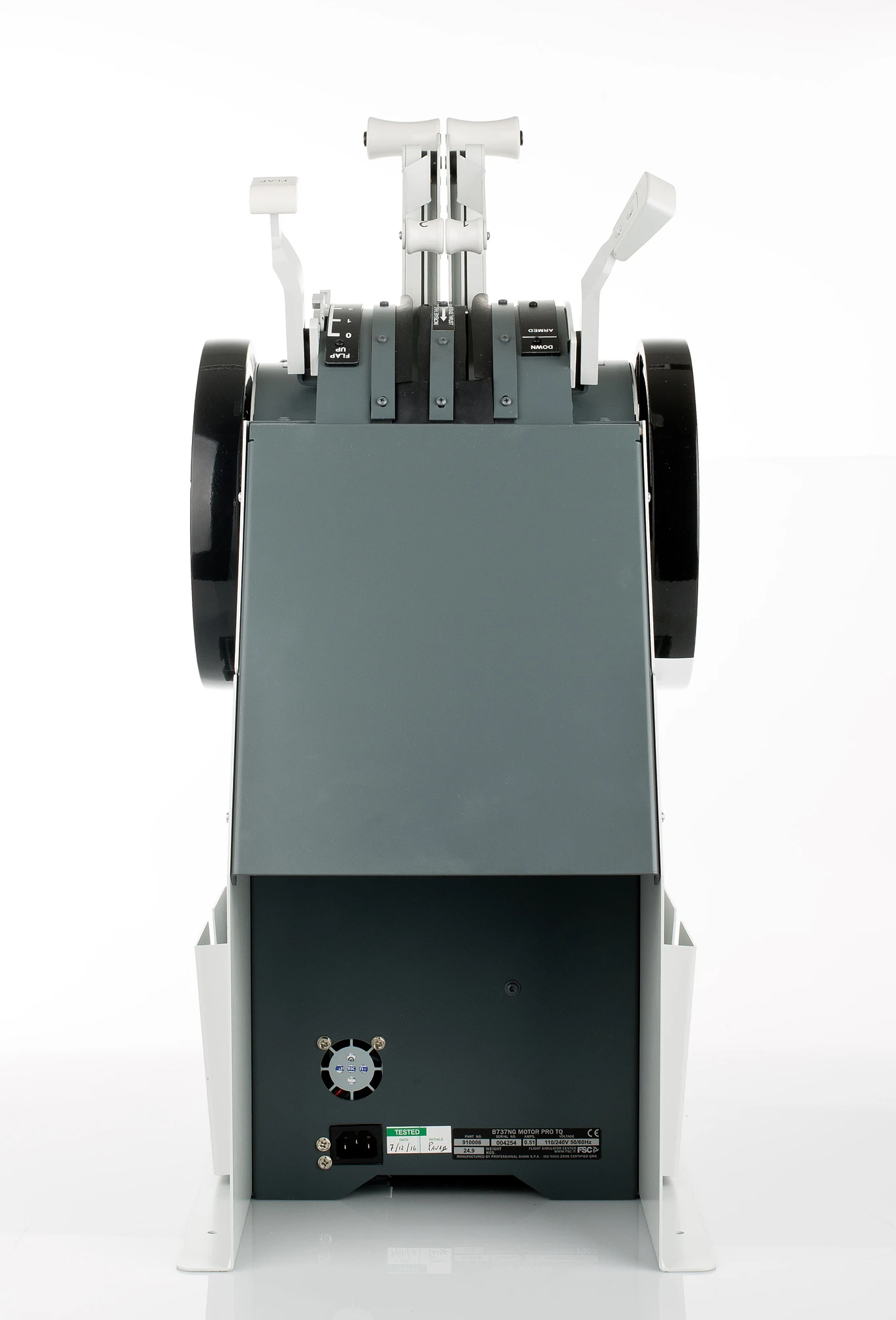

USB/ETHERNET interface available.
If one of the levers is manually forced a clutch is engaged.
The clutch serves to protect the engines and is adjustable.
TQs are shipped in a sturdy industrial wooden box.
The B737NG TQ series are designed to be accurate fully functioning replicas of the original part and provide the same reliability to intensive use.
Developed in close collaboration with Project Magenta and Prosim, our TQ are also tested by professional airline pilots to grant the high quality realism we are known for.
Our Throttle Quadrants are true Plug & Play devices: each unit requires only a single USB connection, and every quadrant is delivered with its own dedicated calibration file to ensure a fast and effortless installation. This allows users to get up and running quickly, with minimal configuration and maximum reliability.
For professional and high-demand environments, we also offer a network interface. This solution is ideal when the computer is located at a distance, or in setups where an excessive number of USB devices could introduce communication or power-related issues. The network interface enables stable, long-distance connectivity, improved cable management, and greater flexibility for system integration—making it particularly suited for training centers, multi-station simulators, or complex cockpit builds.
If needed, additional customization, redundancy options, or integration support is also available to meet the unique requirements of professional simulation systems.
A USB connection can serve various purposes: in fact, USB is the acronym for "Universal Serial Bus."
Some of these connections are used to create virtual COM ports to allow serial communication.
The disadvantage of this solution is related to the fact that there are two connections on the PC: one to the peripheral and one to the operating system.
In fact, in Device Manager, you can see both the USB device and its corresponding COM port.
If software is using the COM port and the USB connection is lost, communication is interrupted, but the software continues to occupy the port.
When communication resumes, because the original port is still occupied, the driver will assign a new port with a different number, effectively preventing reconnection.
A solution could be a LAN TCP/IP connection.
Not all of our peripherals have dual ports (USB and LAN), but where they are solely USB, it is a design choice to simplify circuitry or for reasons strictly related to speed (such as the Control Loading system).
For HID peripherals (joysticks), these problems do not occur because the peripheral is always recognized even if it was previously disconnected.
