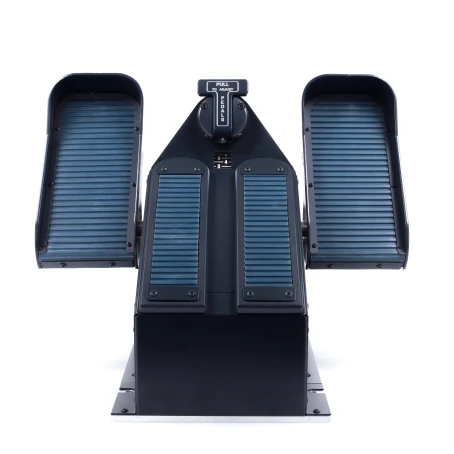

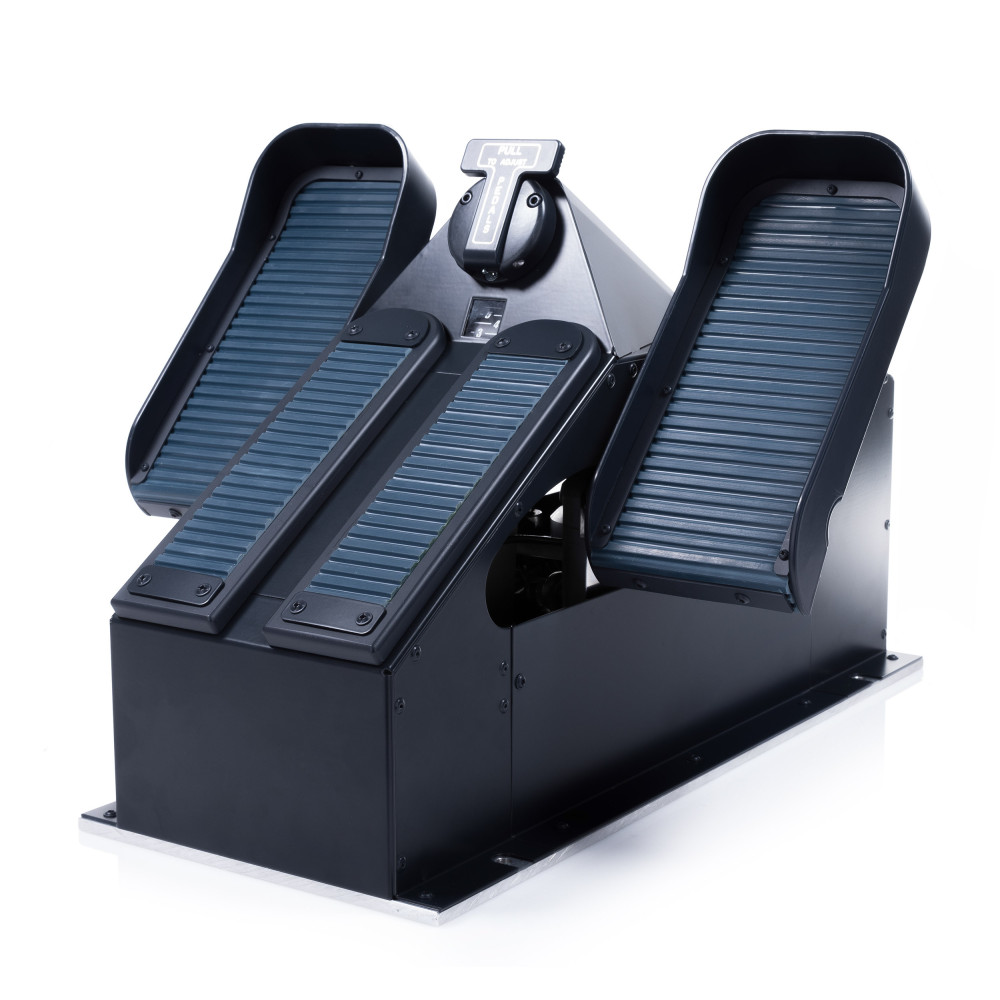

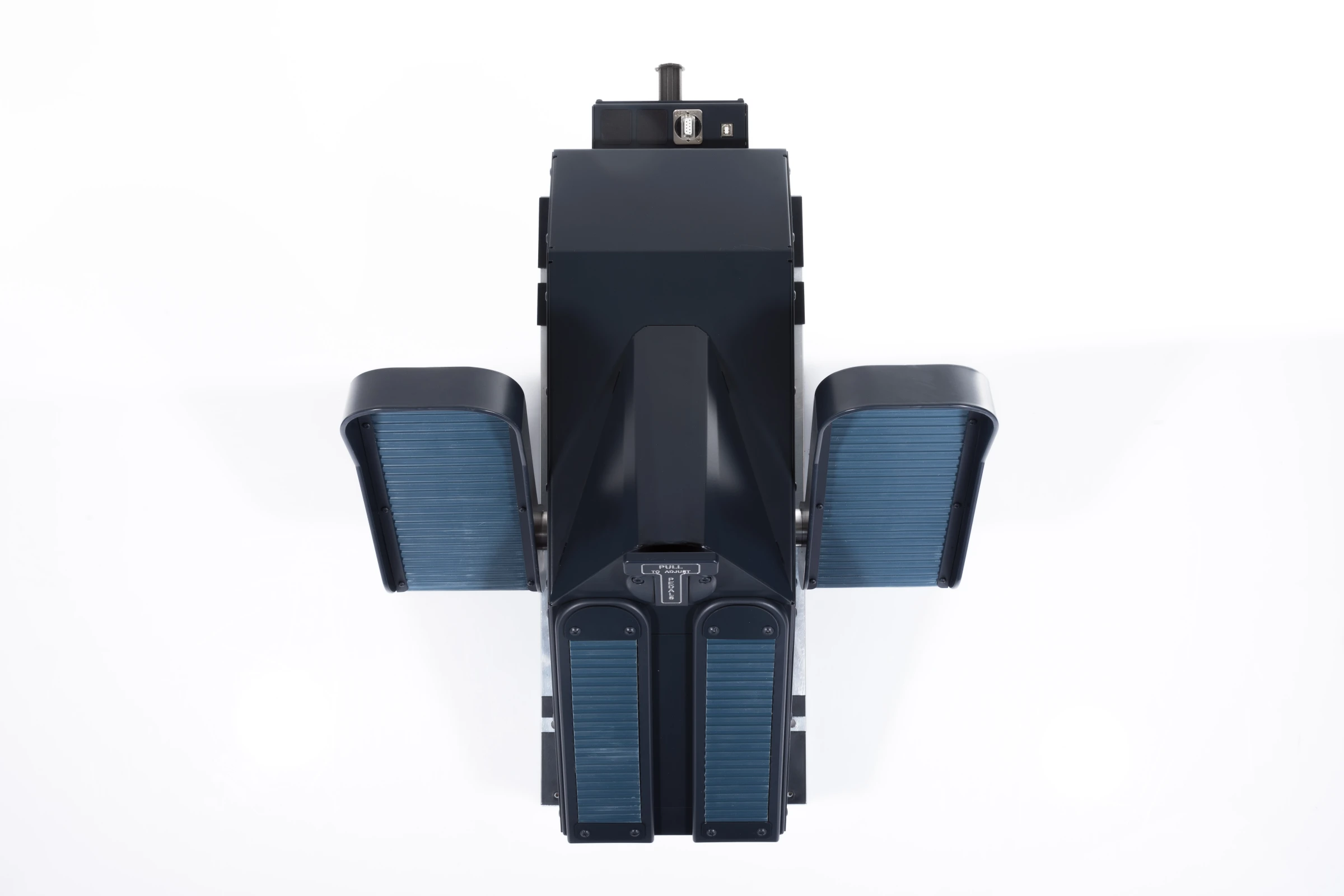

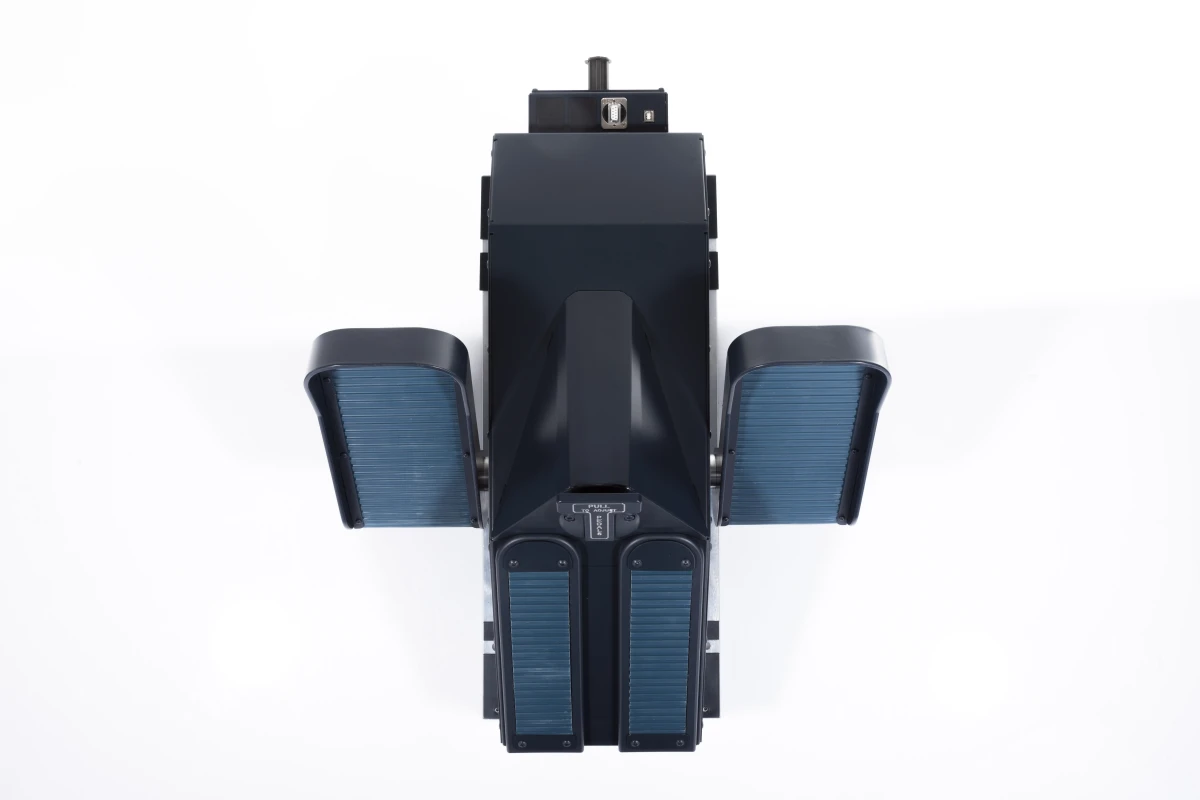

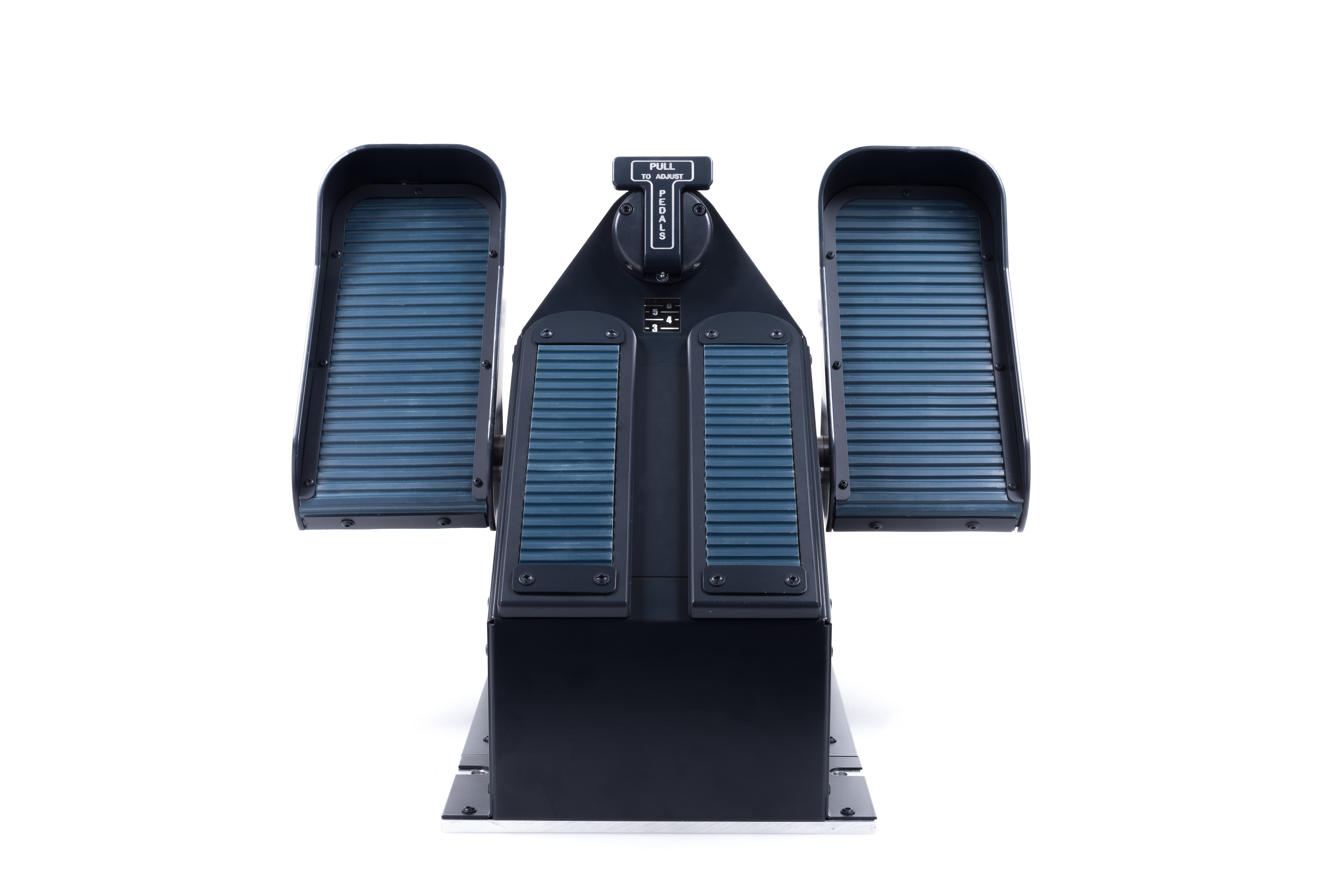

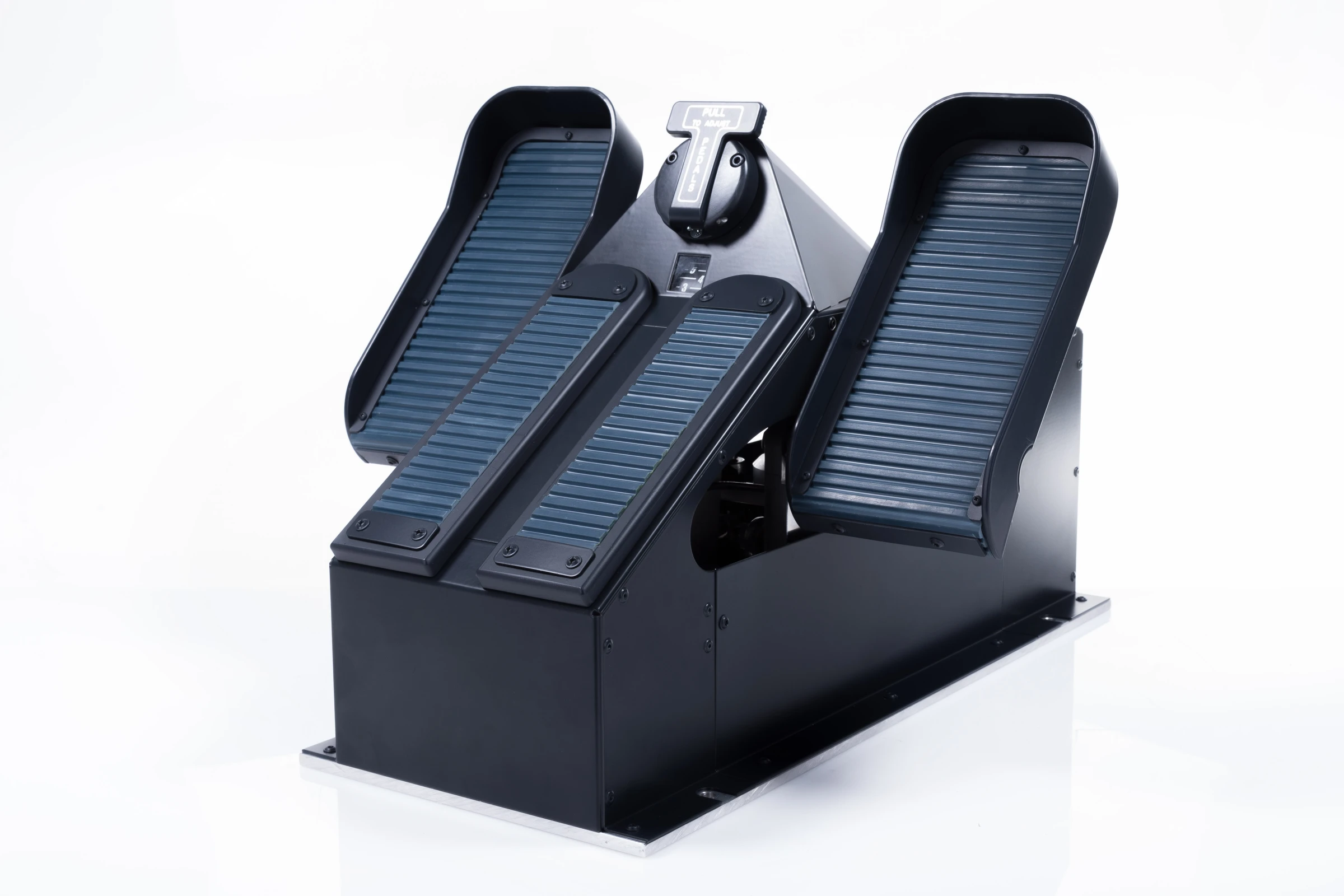

Above Floor adjustable rudder pedals for A320 Airbus style Simulators, Cpt.
System assembled and tested in FSC laboratories with the assistance of A320 pilots
Made of aluminum using high quality electrical/electronic materials
Designed by studying the dimensions of the original components
Reliable and built to last
Accurate position indicator and stable, durable locking mechanism
Linkable to F.O. side
Precision in control and correct return to zero point
| Joystick board included |
USB connection, Standard Joystick |
|
|---|---|---|
| Bodnar Joystick card |
USB interface board designed for use with flight simulators, driving simulators, and other custom game controls. It supports up to 32 buttons. It has 8 analog inputs for potentiometers (for example, for joystick axes). Compatible with Windows without the need for additional drivers, as it uses standard HID (Human Interface Device) drivers. The board is plug-and-play, so once connected via USB, it is automatically recognized by the operating system |
|
| Double spring and damper, double potentiometer |
In case of coupling with the pedalboard of the other side, double springs and dampers are supplied (one for each pedal) and double potentiometer to have the same behavior and response on the simulator for both sides |
|
| USB Connection |
All USB types are supported |
|
| Airbus style blue painted |
Professional anti-corrosion coating |
|
| Upgradeable with control loading system |
The passive version can be motorized later |
Exceptional reliability over time.

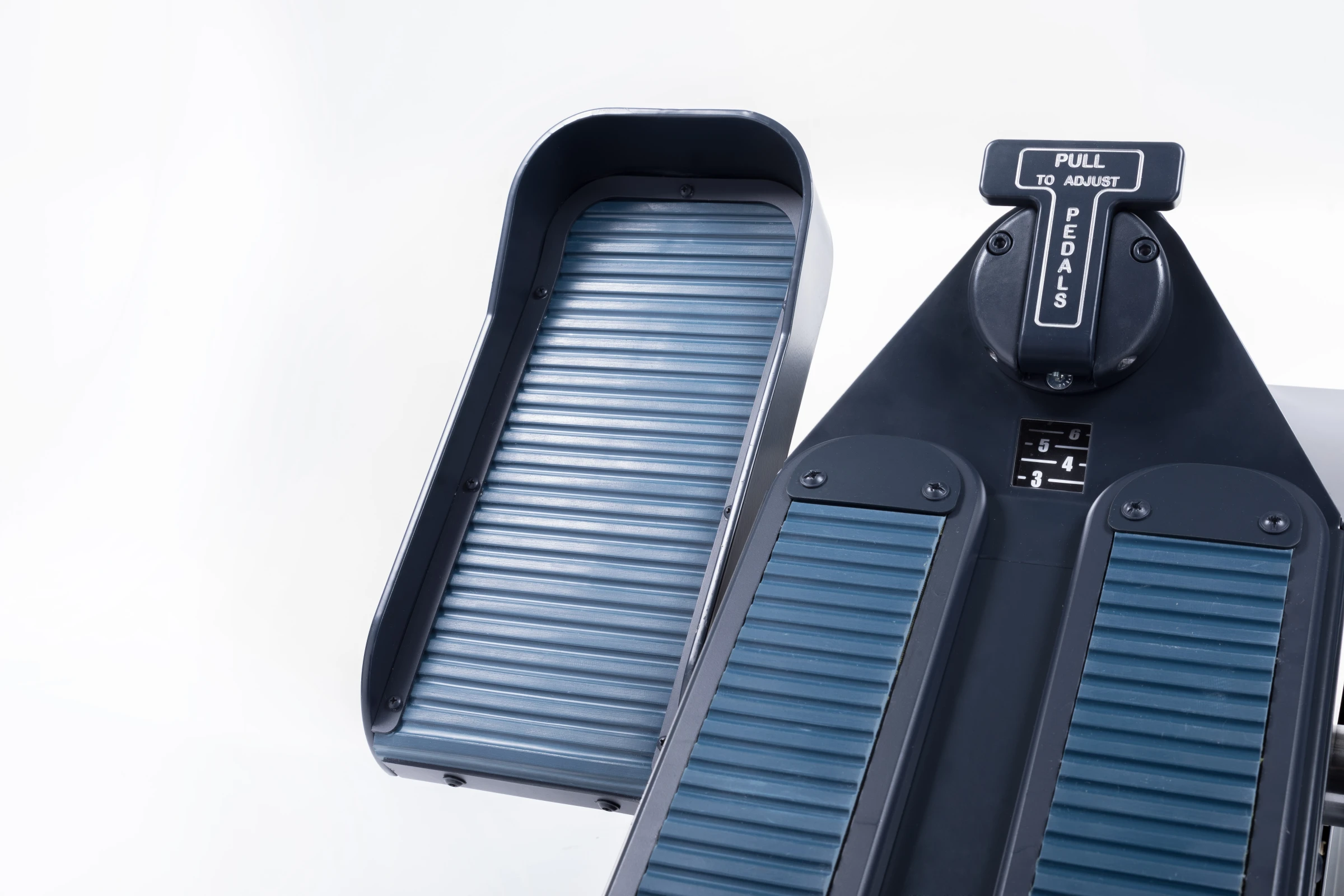

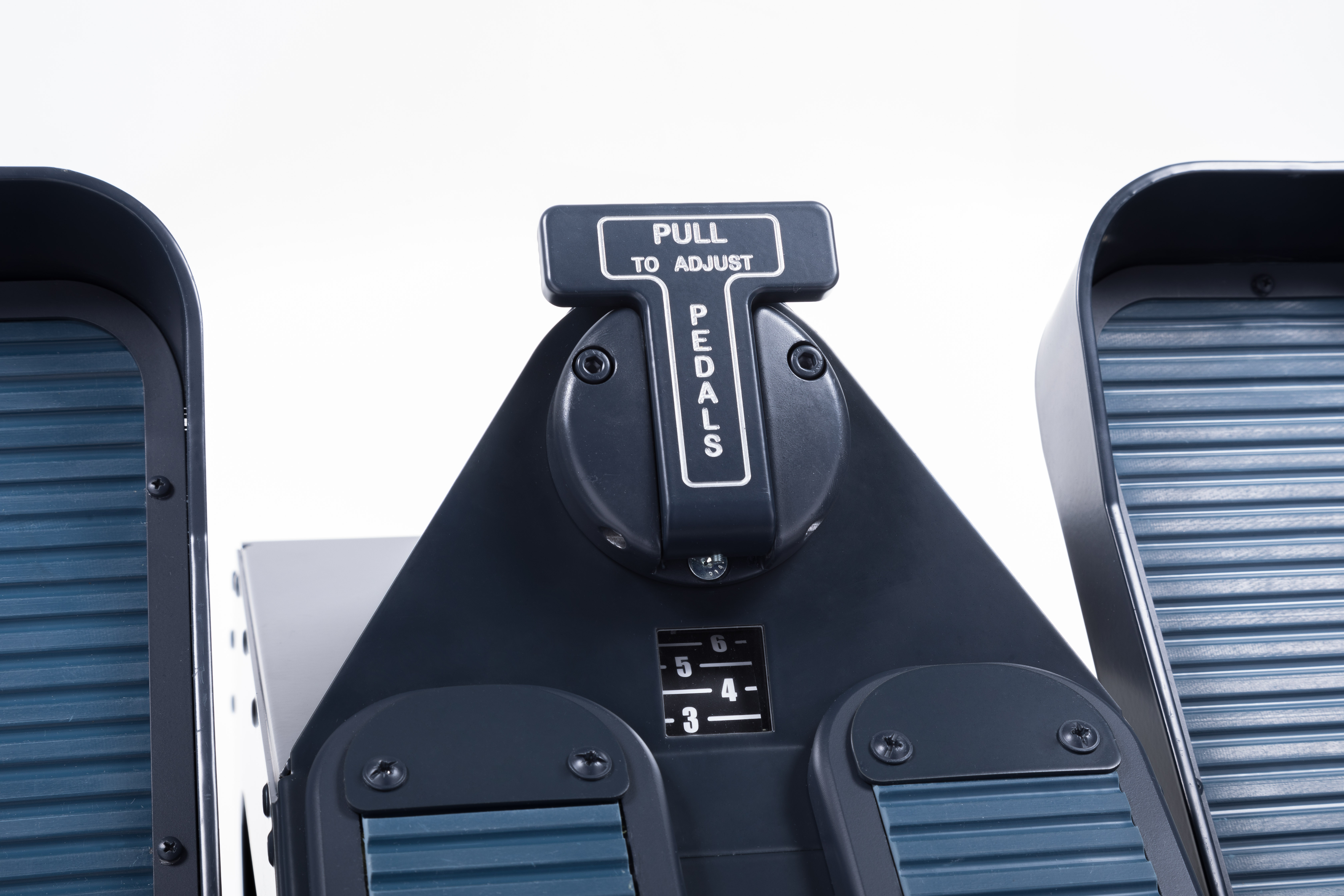

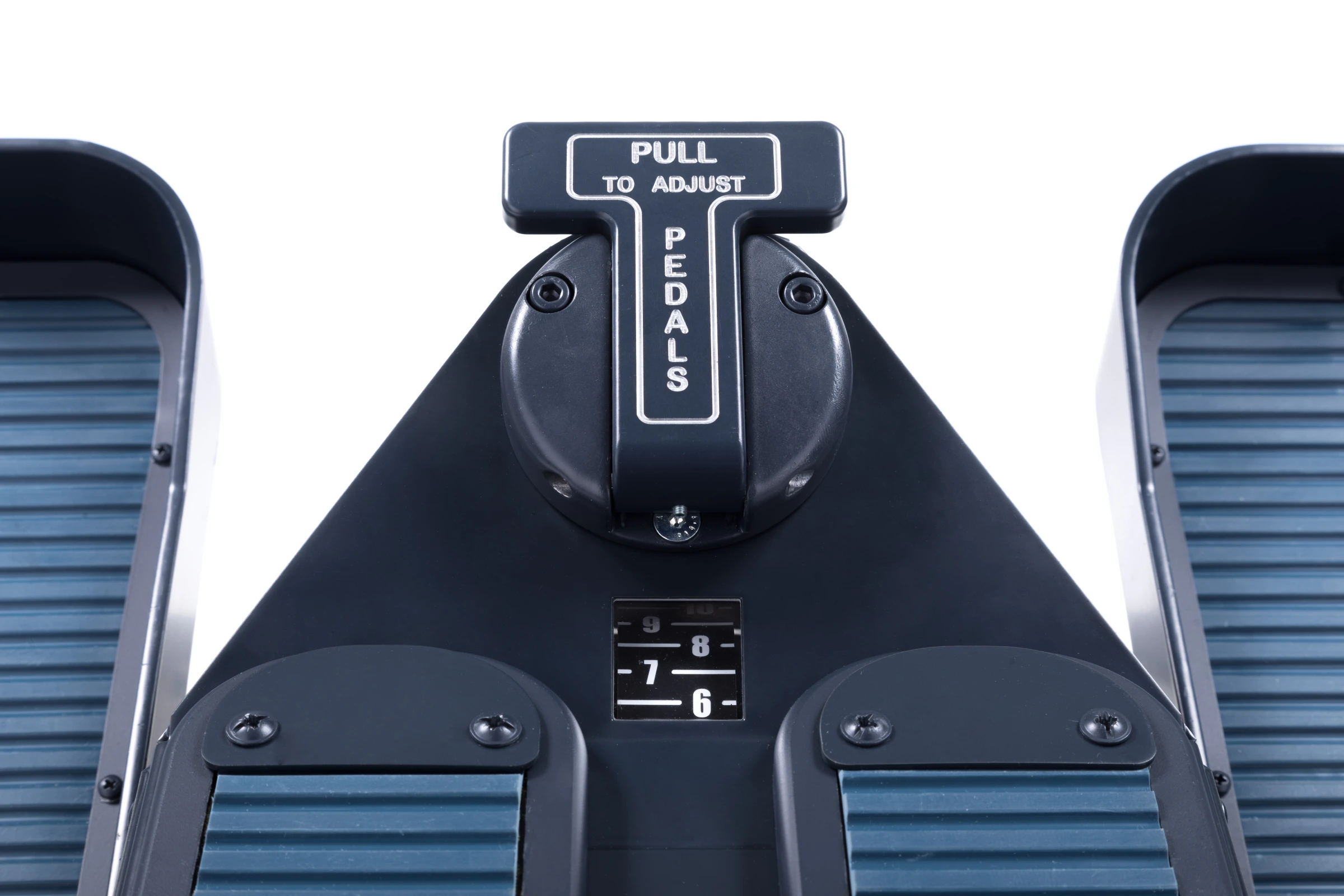

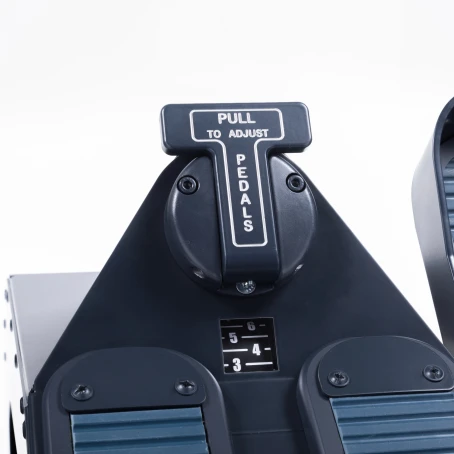

Pedal distance adjustment with graduated scale from 4 to 12.

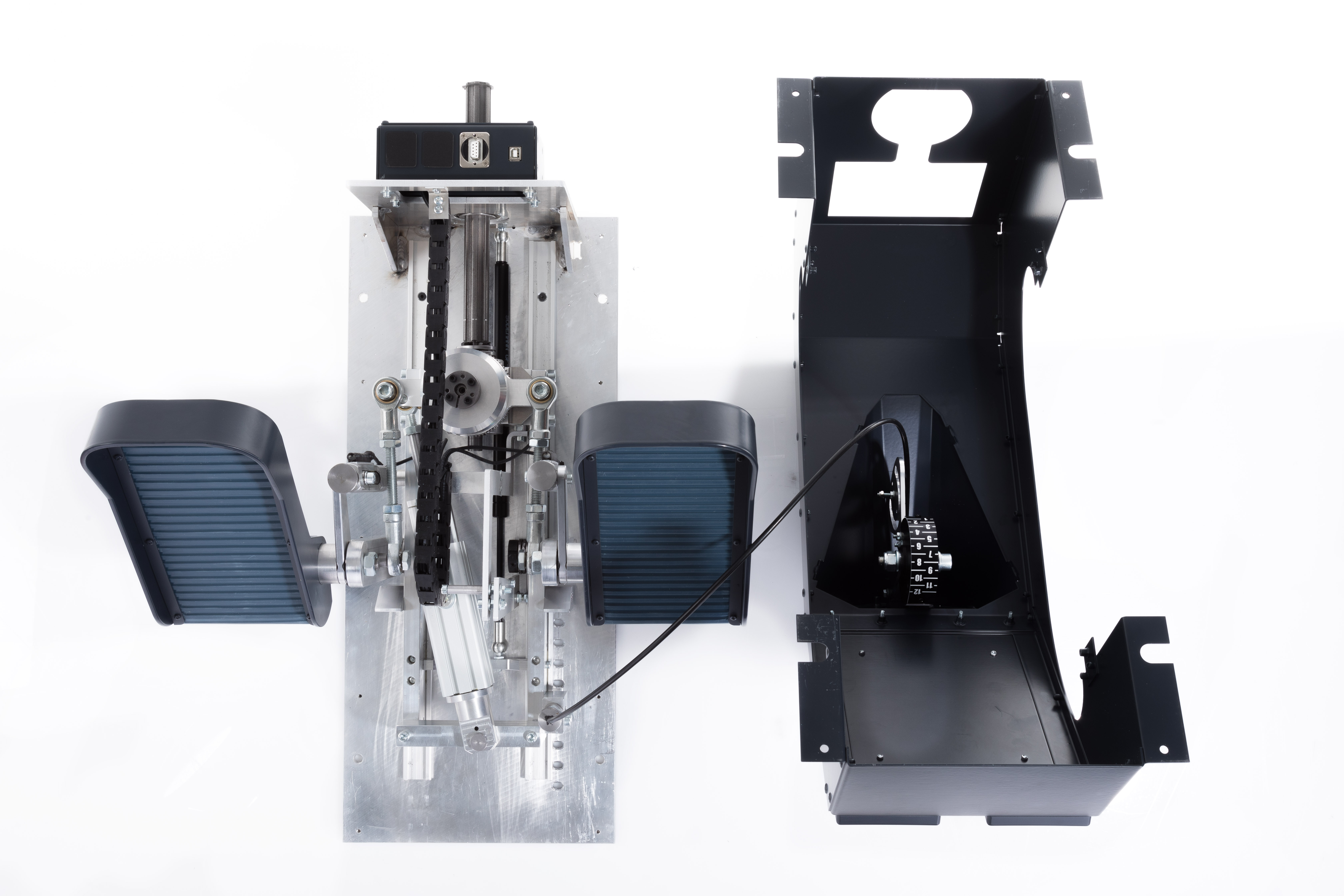

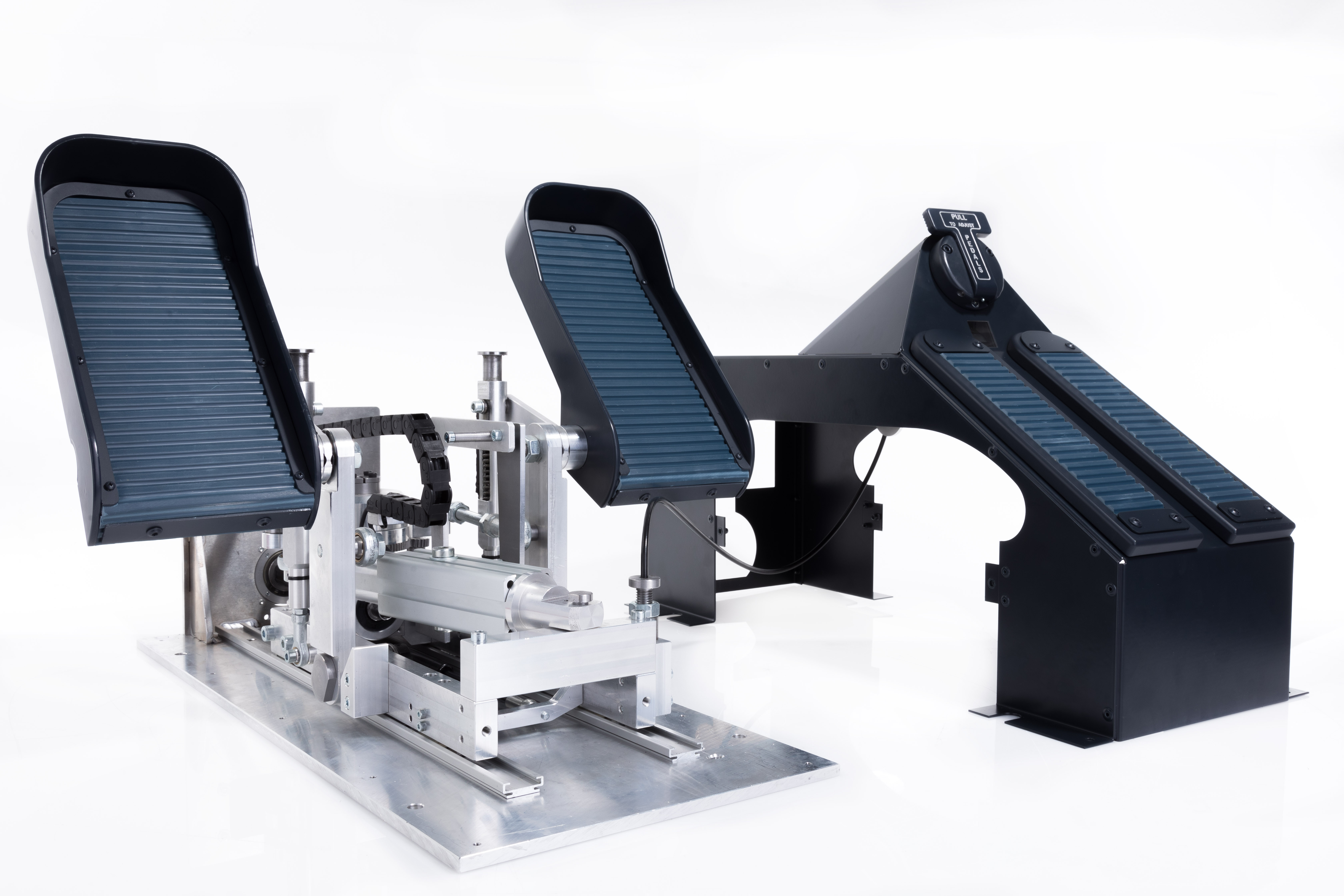

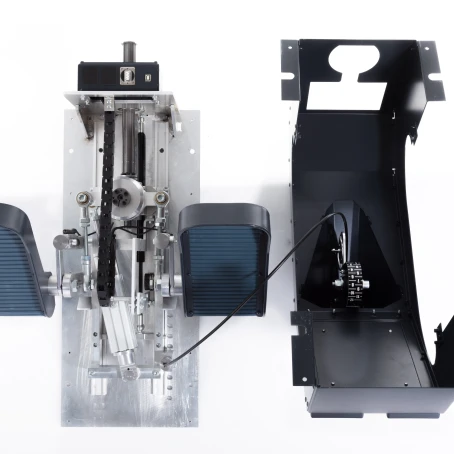

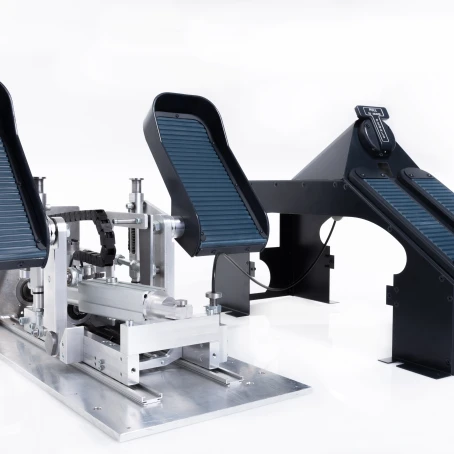

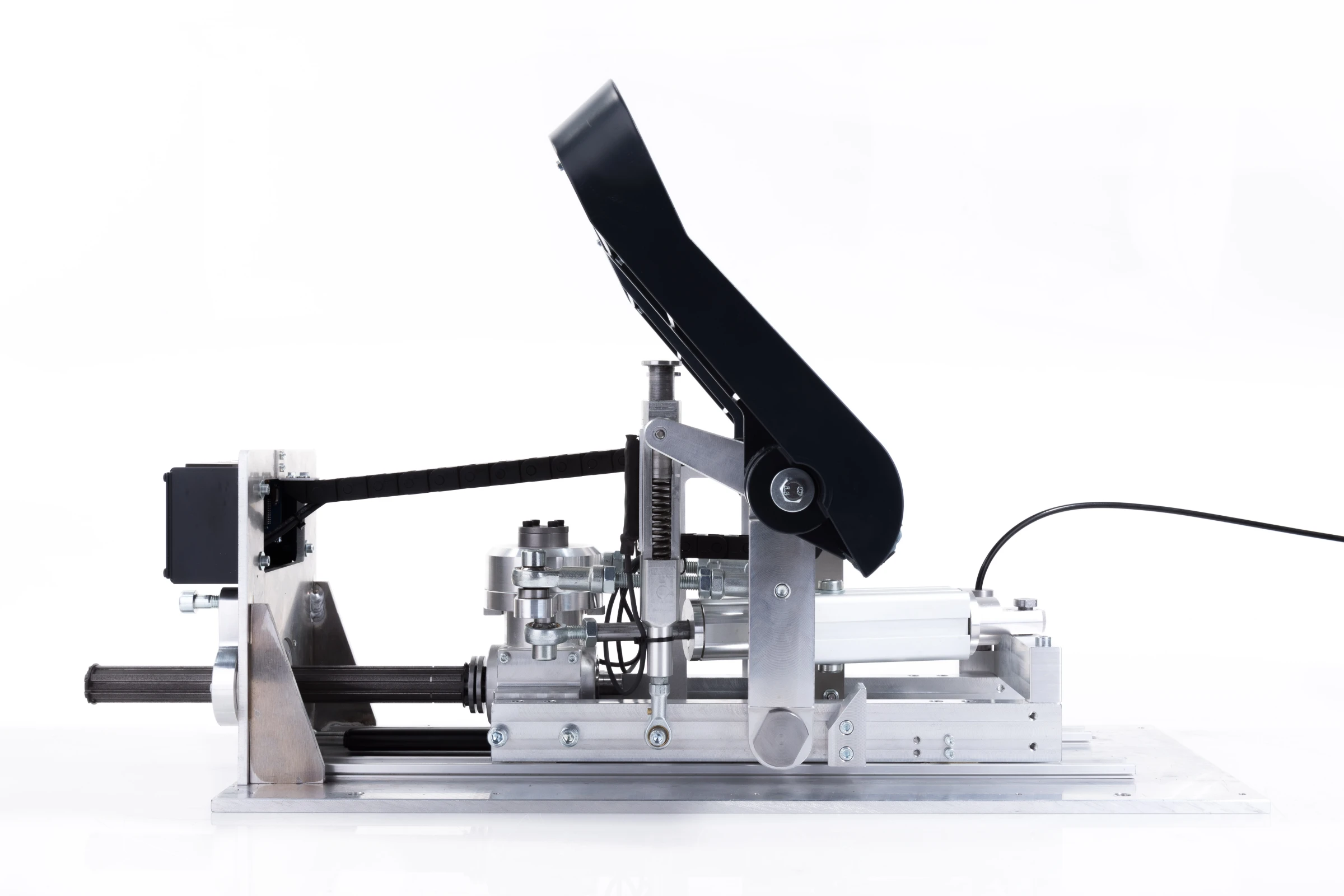

The entire mechanism is rail-mounted for AFT/FWD adjustment.
A bowden cable allows AFT/FWD adjustment.

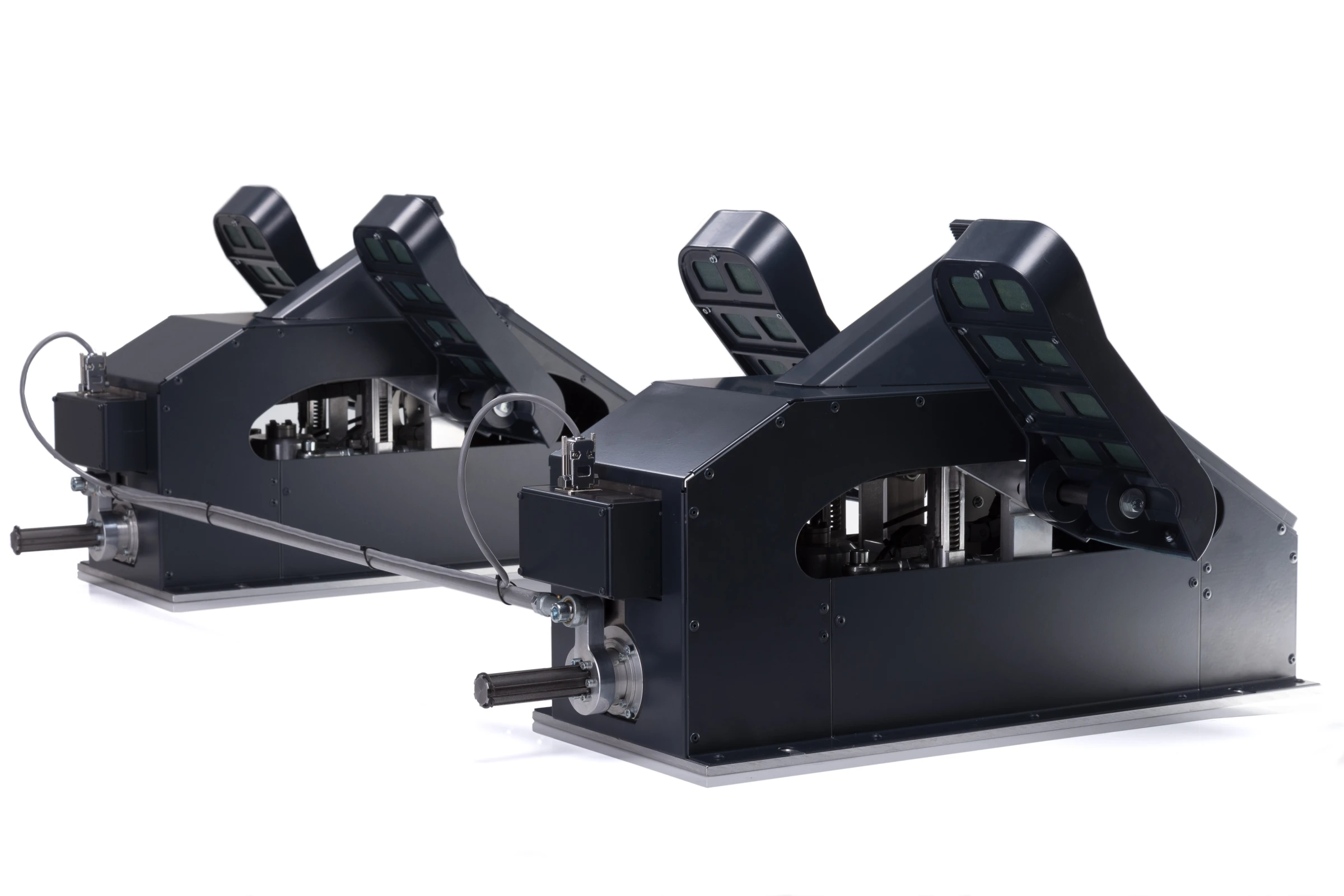

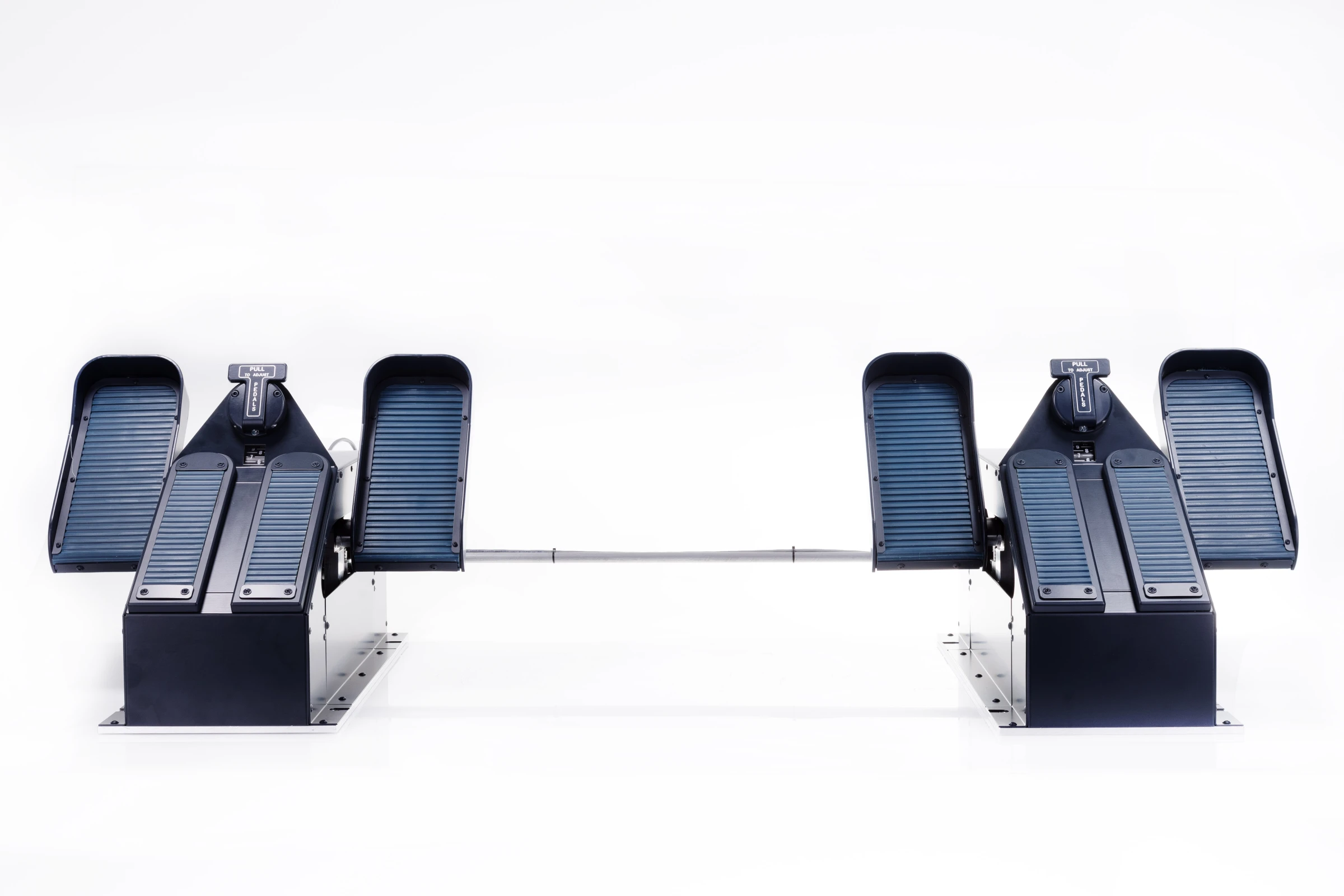

A sturdy mechanism allows the connection of the two pedals.

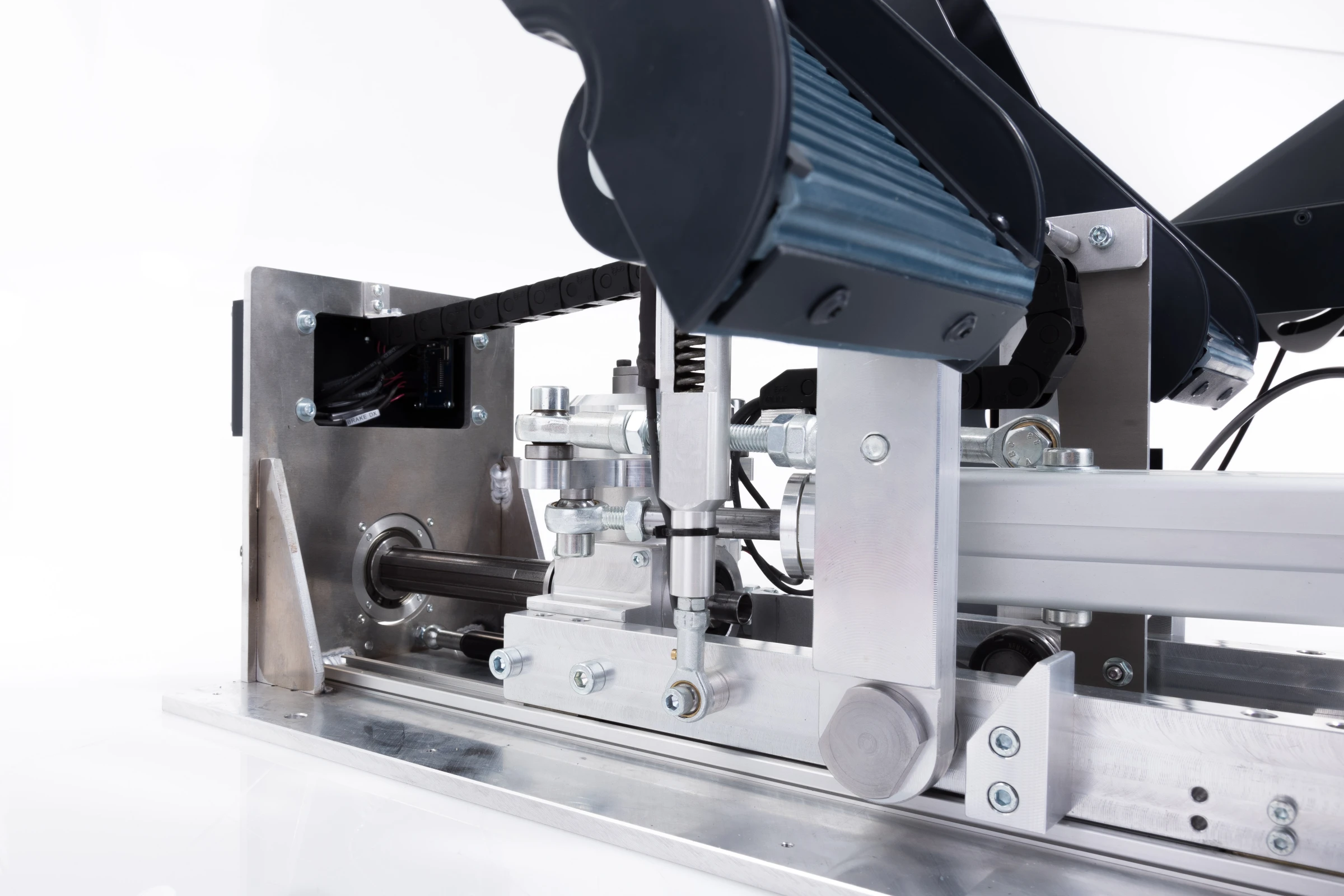

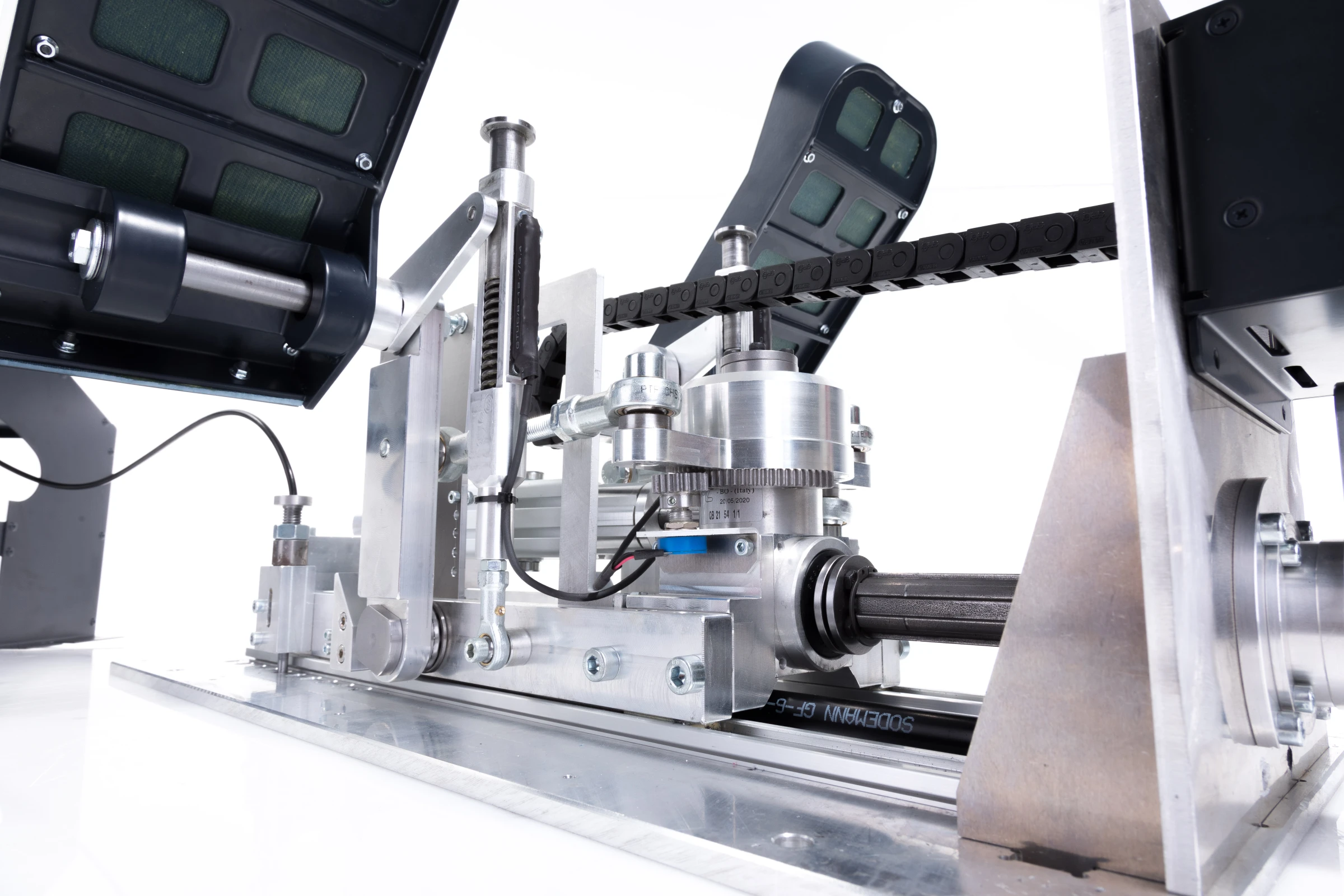

Levers and pistons for force dampening.
the connection cable is supplied with the F.O. pedal.

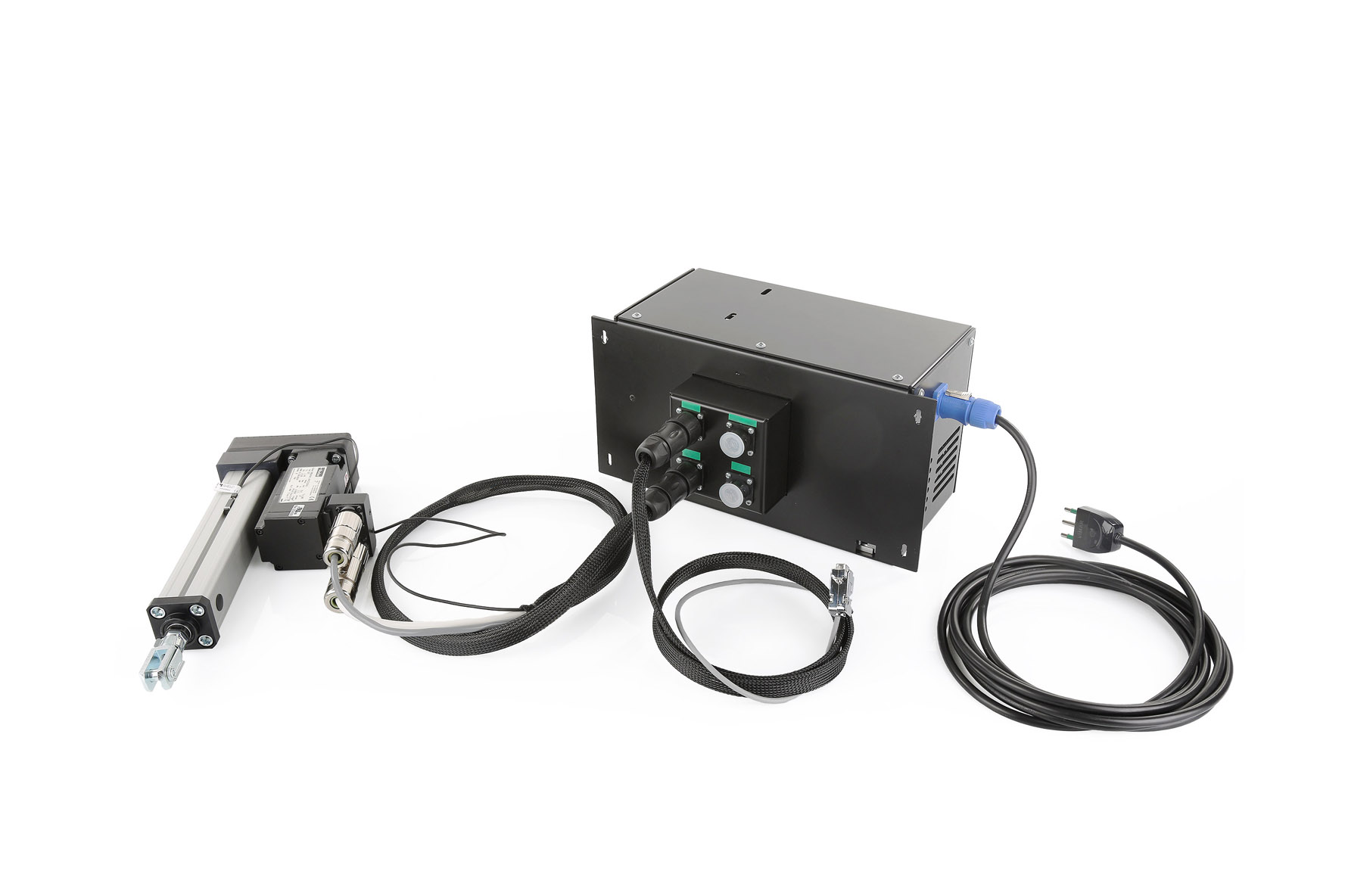

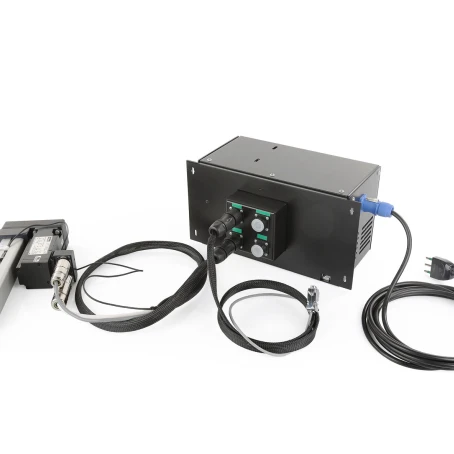

It is possible to combine the rudder pedals with our control loading system.
Designed and manufactured with extreme reliability and accuracy in mind, the Pedals are built with a strong full-metal frame and mechanics ensuring trouble and maintenance-free operations.

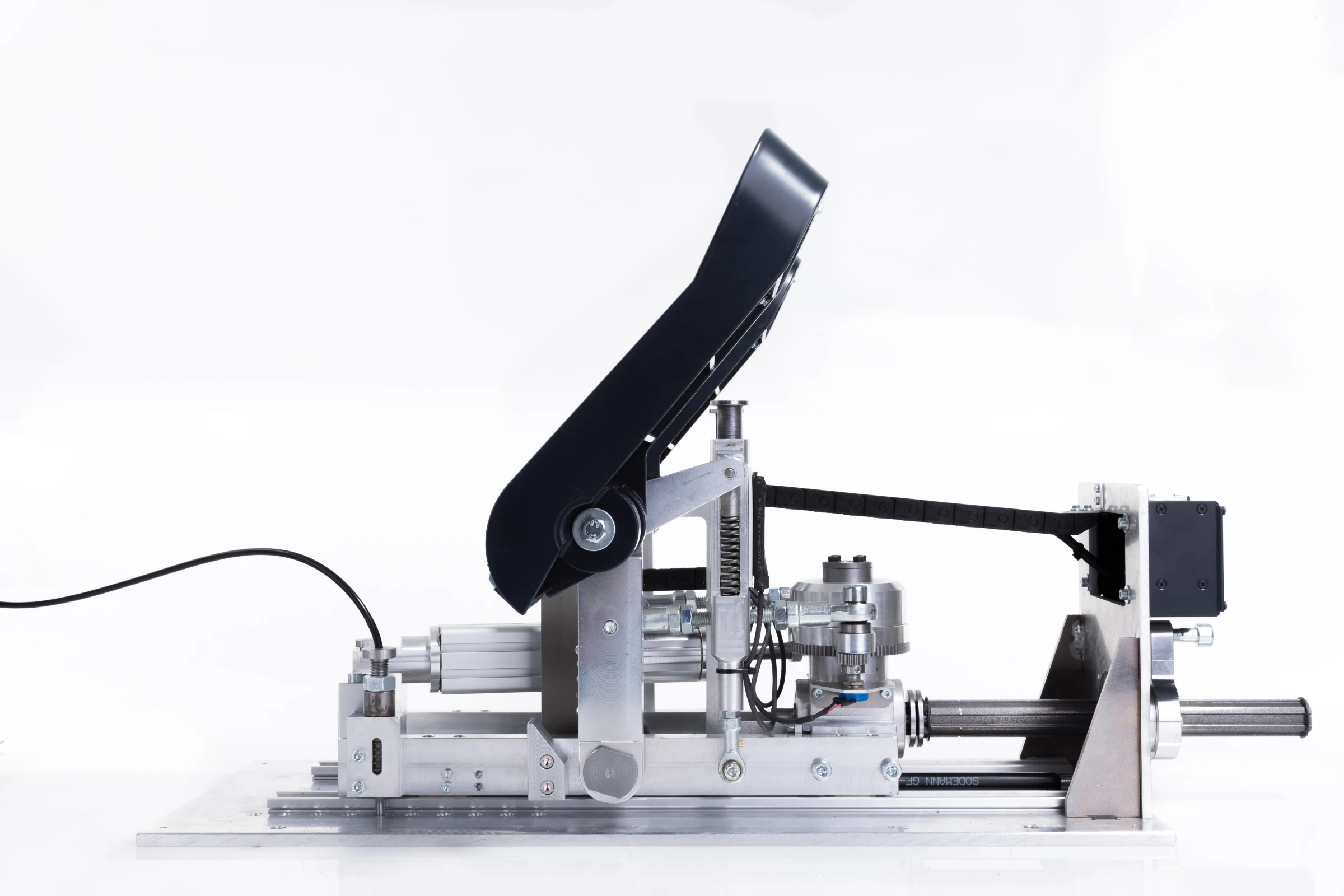

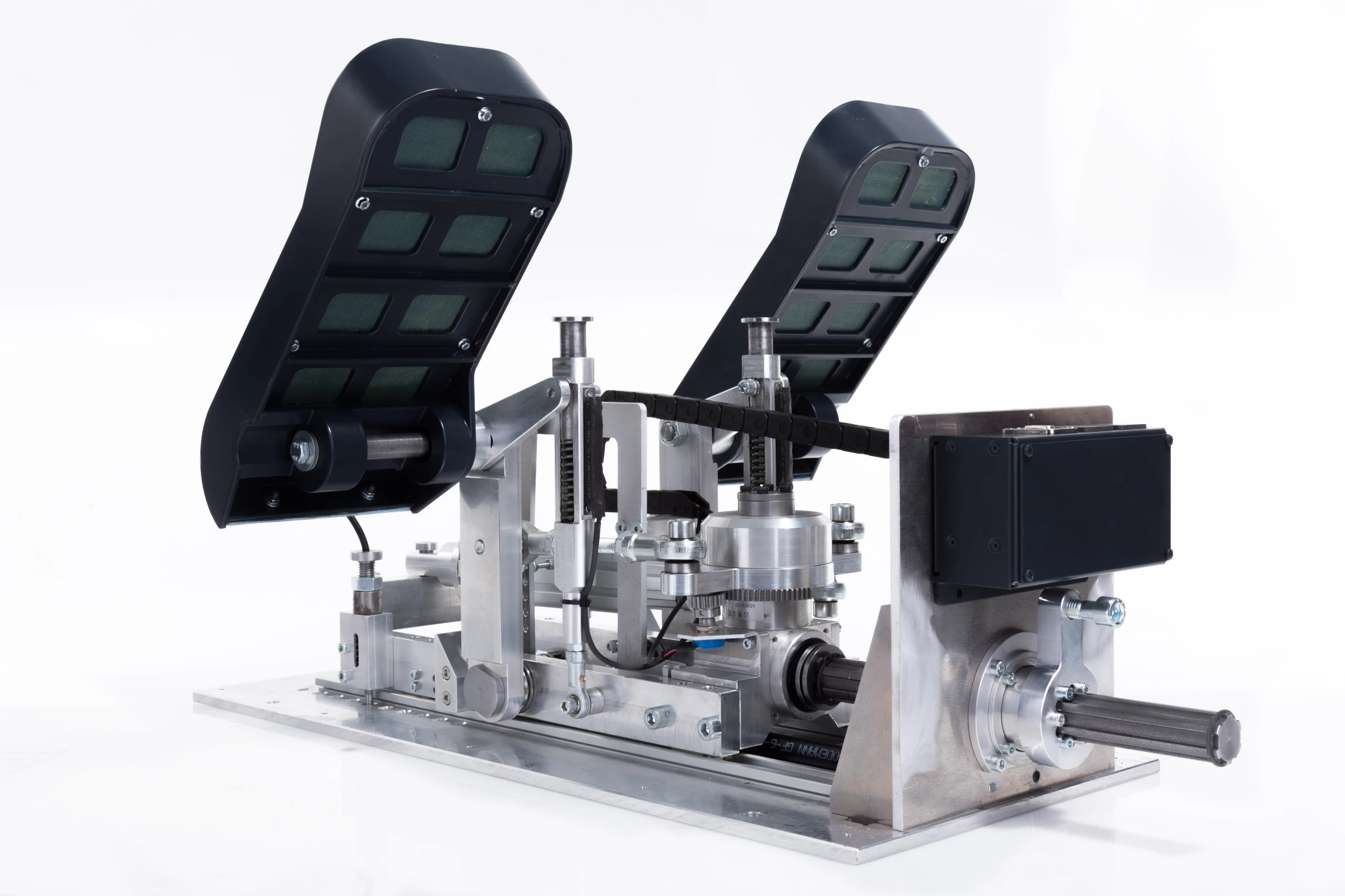

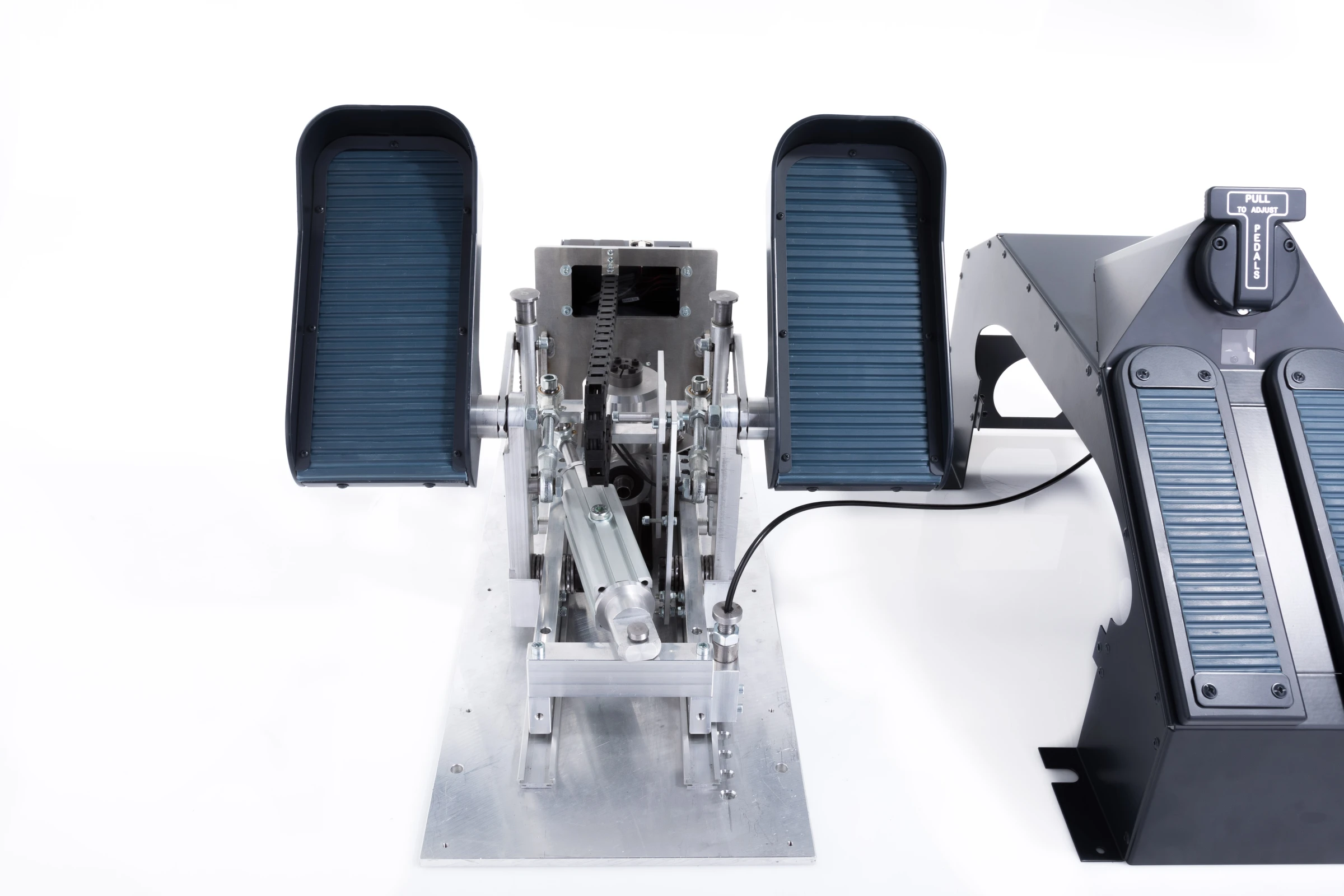

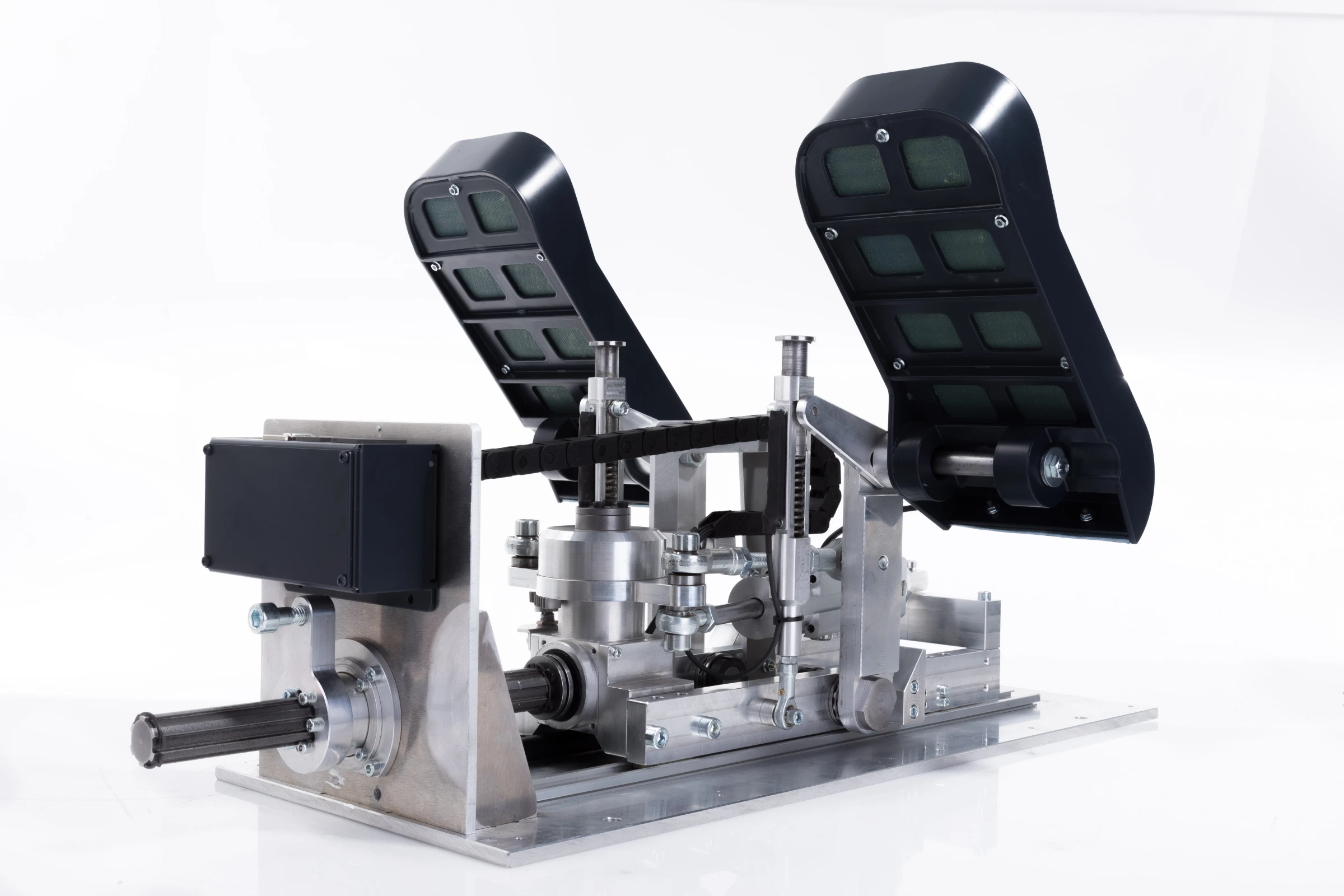

The whole Rudder Pedals internal assembly is mounted on a stable carriage system and is fully and precisely distance-adjustable, complete with an accurate position indicator and a stable and strong locking mechanism.
The hydraulic damping mechanism is engineered to ensure precision in control and correct return to zero point for the utmost realistic feeling.

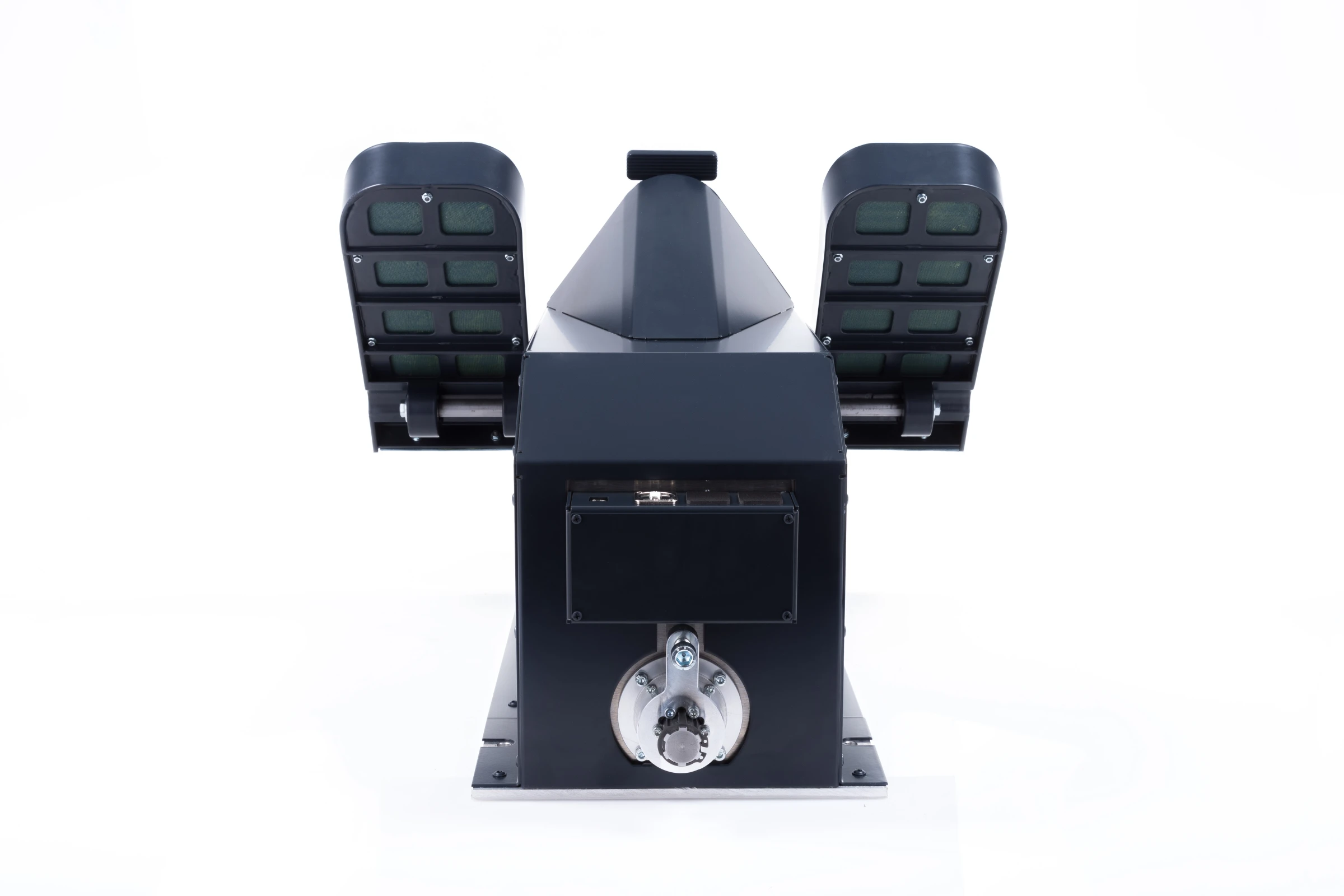

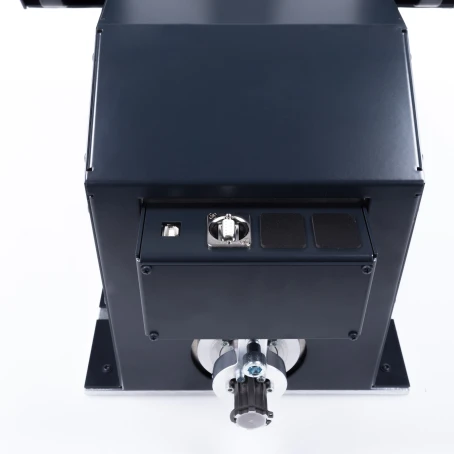

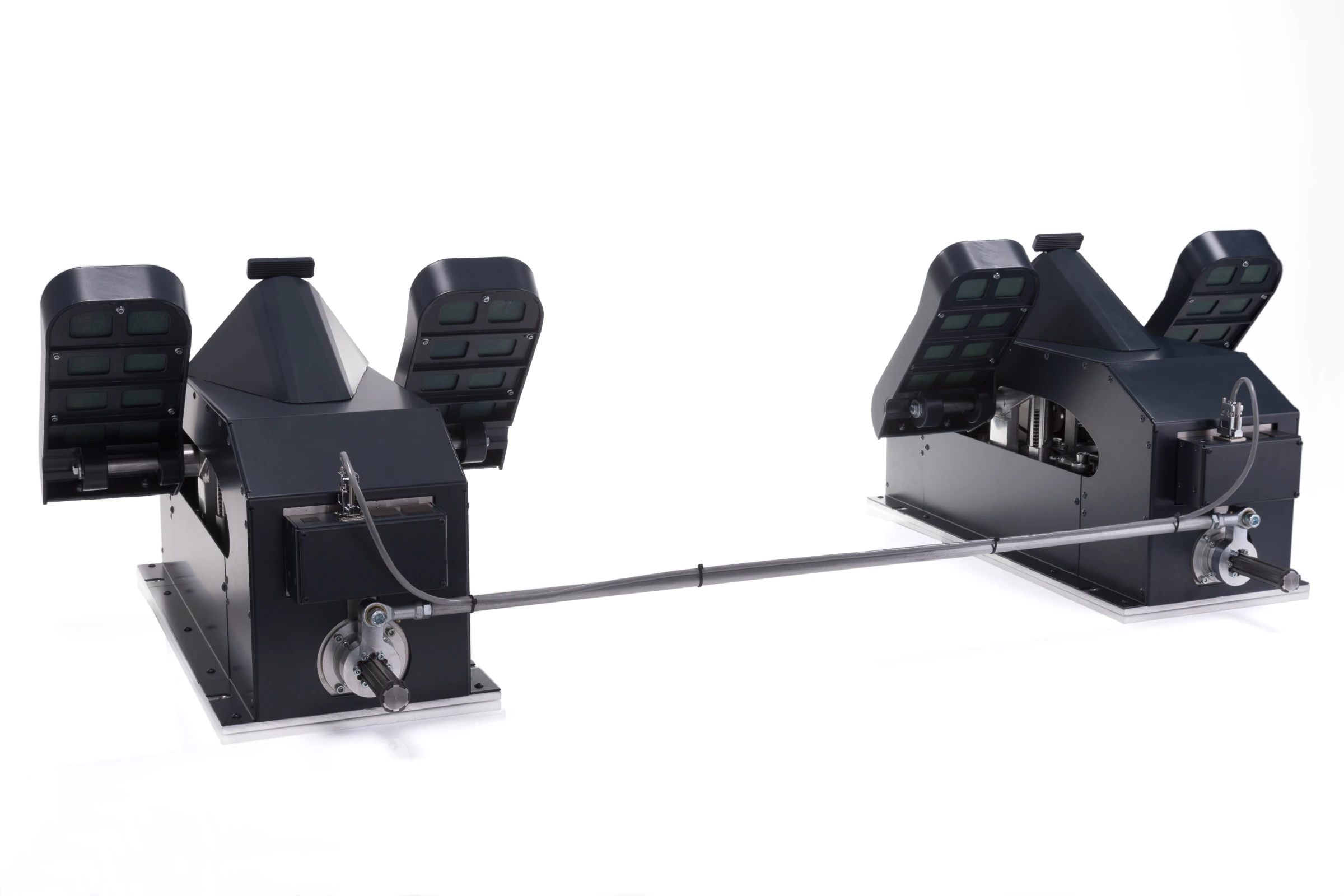

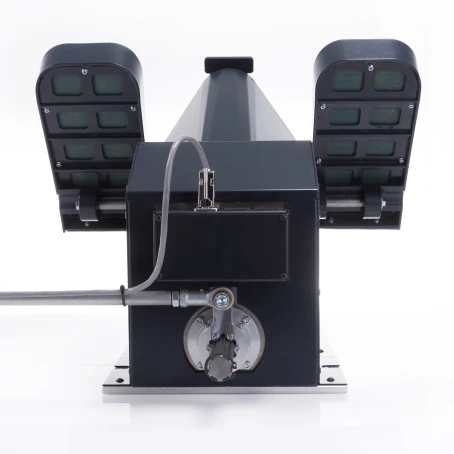

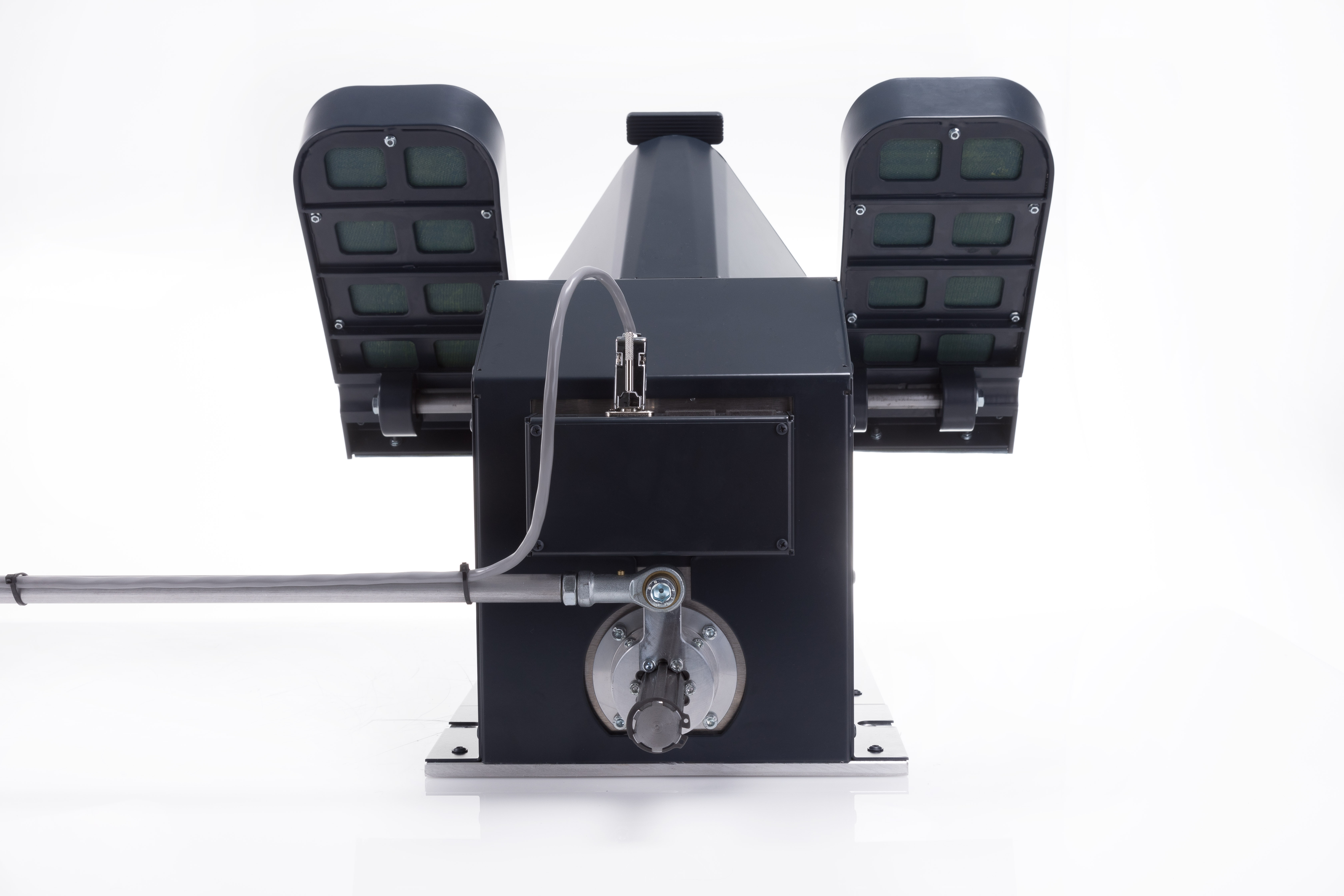

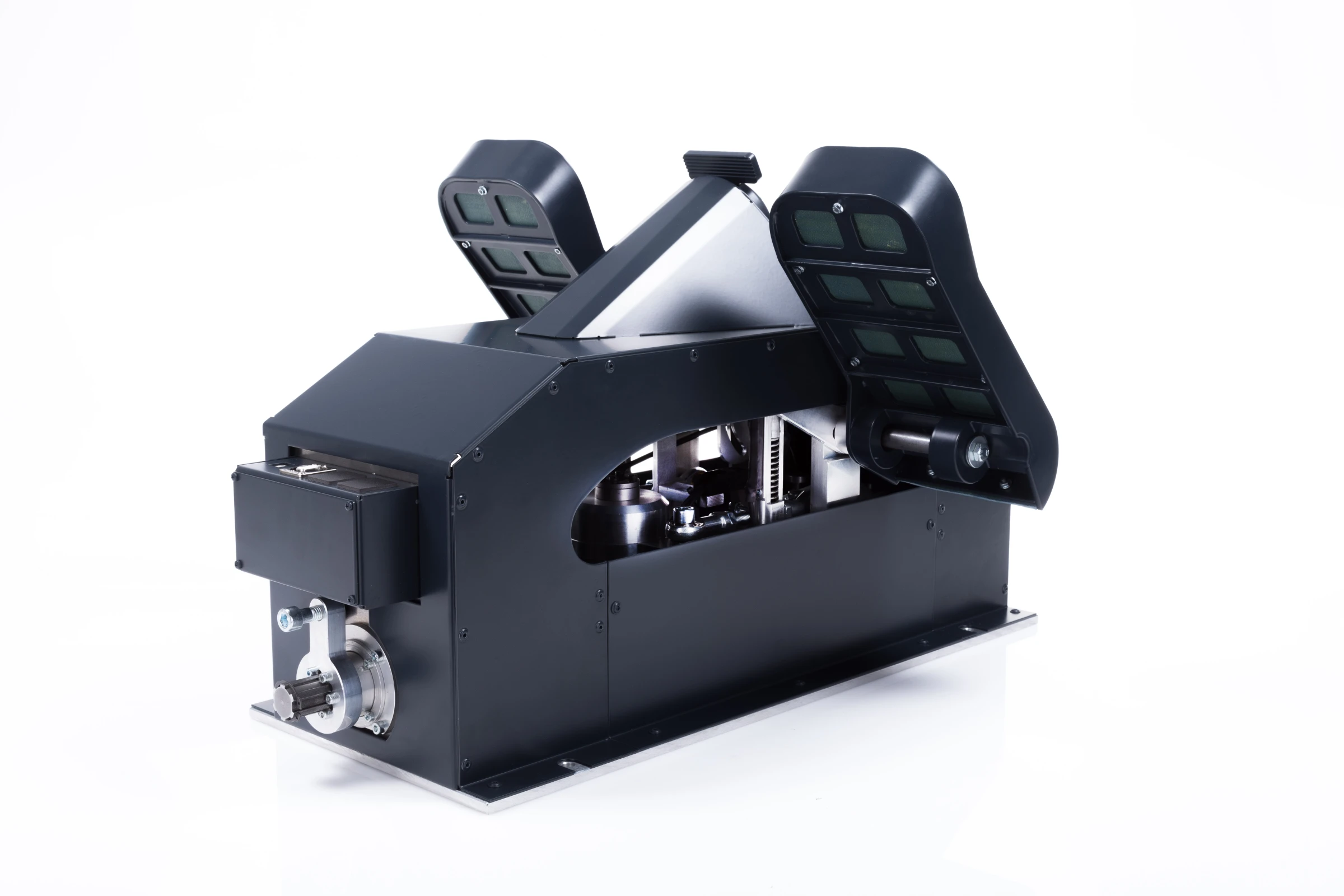

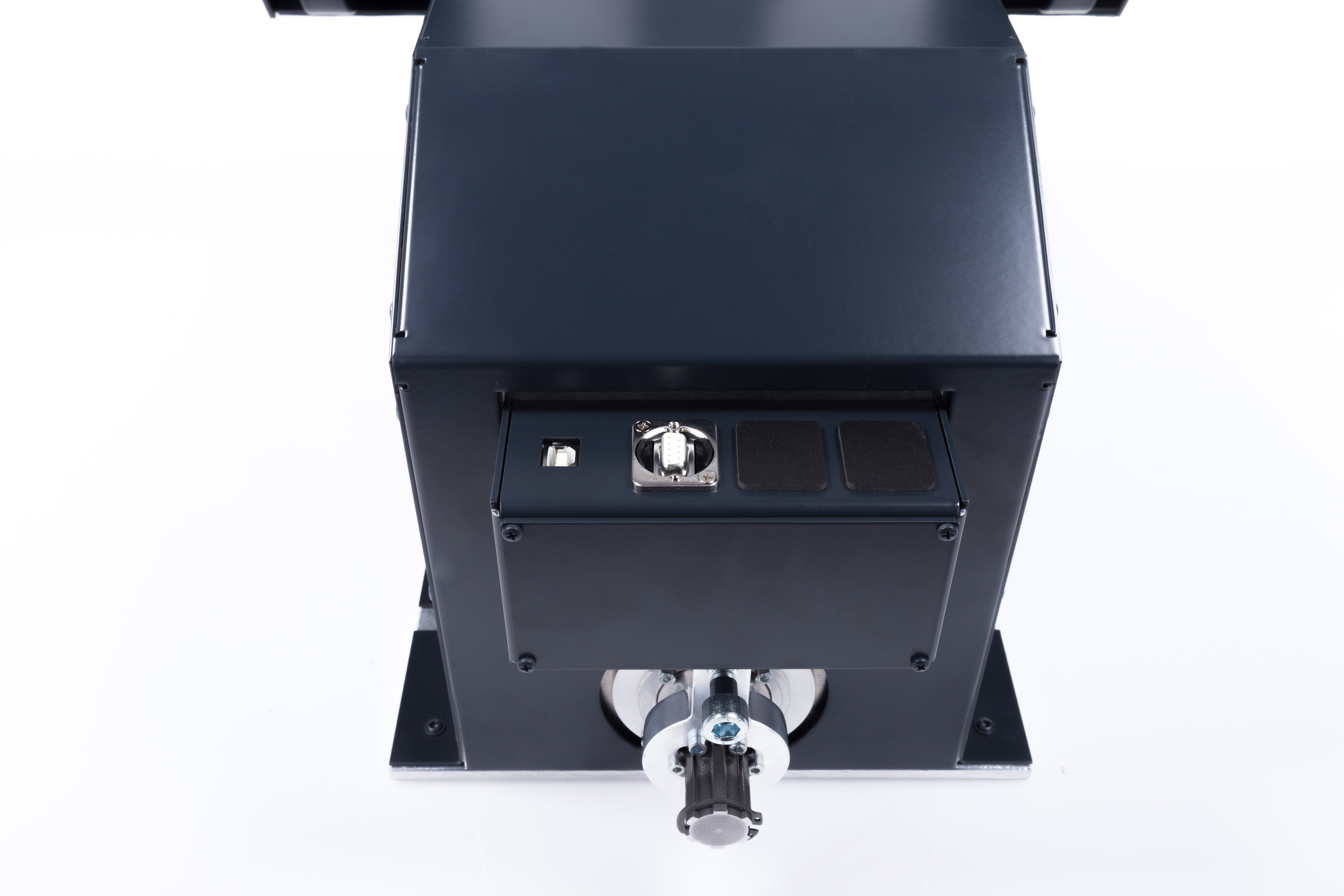

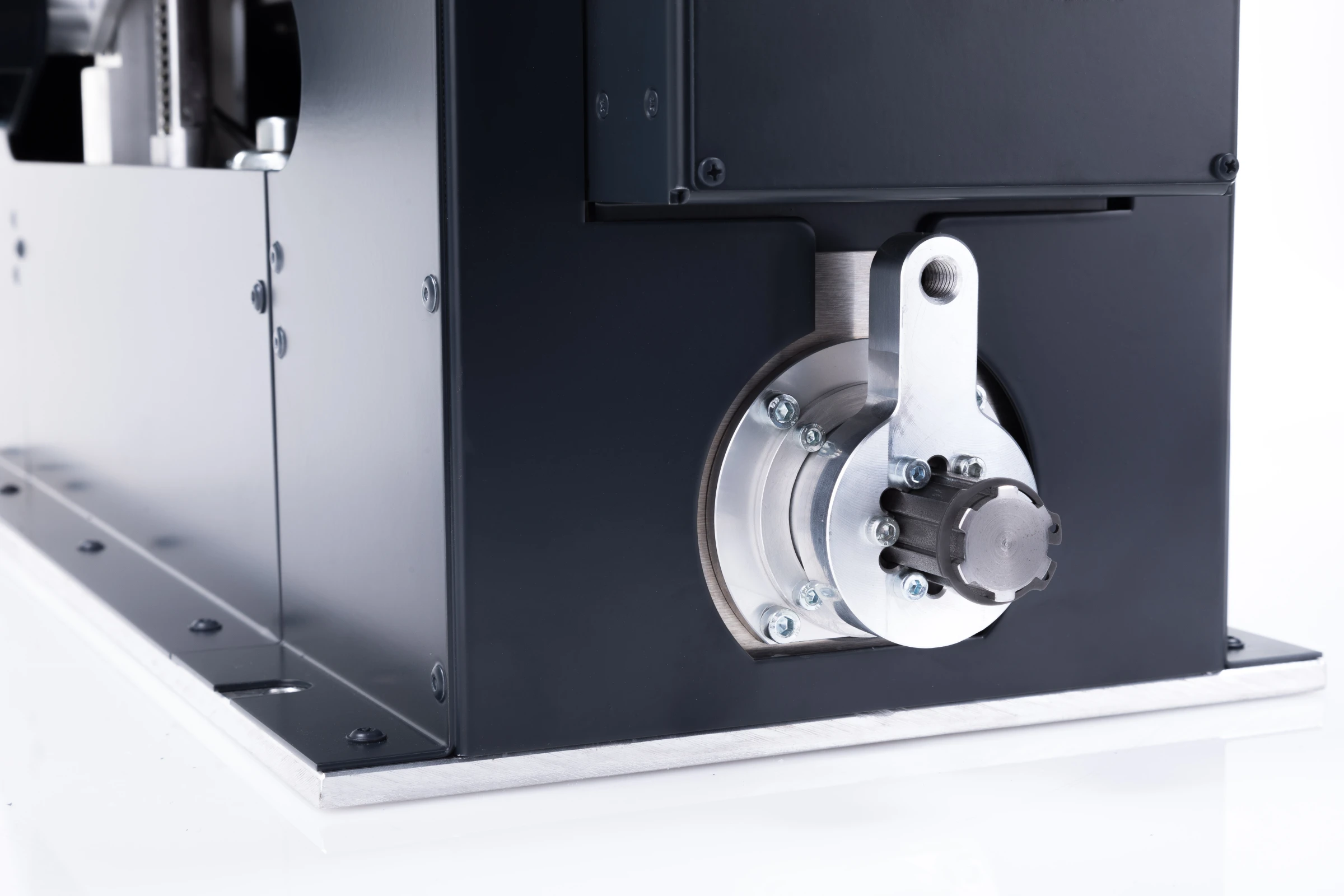

On the back of the unit, along with the USB connection to the simulator computer, there's an electronical and robust mechanical link to the other side. An articulated bar links the units through heavy-duty splined shafts, ensuring a strong, free of play connection.
