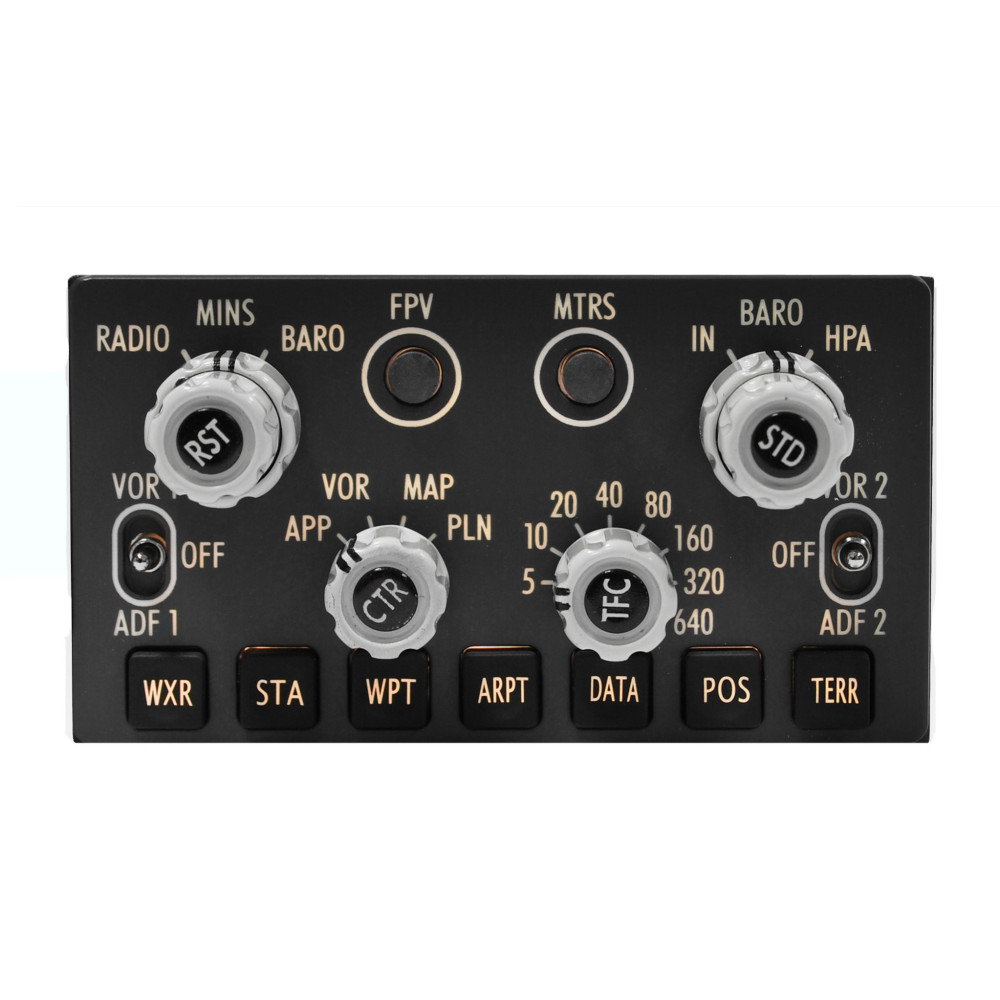

Electronic Flight Instrument System for Boeing 737 Style Flight Simulator Systems.
Every single button, switch, lever and mechanism works to simulate the original
Every single button and switch works simulating the original
Knobs are made of aluminium with printed symbols on course knobs
Military grade encoders
Data and power connection via daisy-chain DIN cable (supplied) to B737 MCP PRO
Designed by studying the dimensions of the original components
| Warm white high resolution backlighting frontplate |
Adjustable backlight |
|
|---|---|---|
| Daisy Chain connection for external devices |
5-pole DIN connector for connection to secondary peripherals, such as MIP panels and pedestal |
|
| RST/STD buttons do not rotate with the knobs |
They have their own axis and remain with the writing always straight |
|
| TFC/XTR buttons do not rotate with the knobs |
They have their own axis and remain with the writing always straight |
|
| The RADIO/BARO and IN/HPA switches mantain the settled position |
They are two positions 60° index rotary switches (outer knobs) |
|
| The MODE and RANGE commutators (outer knobs) as the original |
They work respectively 4 and 8 positions 30°index |
|
| The MINS and BARO (middle knobs) are included |
They work on two positions with the return to the center, like the original |
Useful for night flights
The connections.
Kit with EFIS PRO, connection cable with MCP PRO and installation bracket.
A Daisy Chain connection is a type of configuration where multiple devices are connected in series, one after the other, forming a chain. In this setup, each device is directly connected to the next, creating a continuous line of connections.
The main connection is the MCP, without which it is not possible to connect all other peripherals to the computer.
We prepare our products for dispatch with care, to ensure they reach our customers in exactly the same condition as when they leave our premises.
We avoid generic packaging and work with specialist partners who create bespoke solutions for us for each product, using extremely robust, high-quality packaging materials.
Where necessary, we provide additional protection for individual components using heat-sealed, multi-layer internal barriers to ensure complete protection against moisture, temperature fluctuations and any extreme weather conditions.
