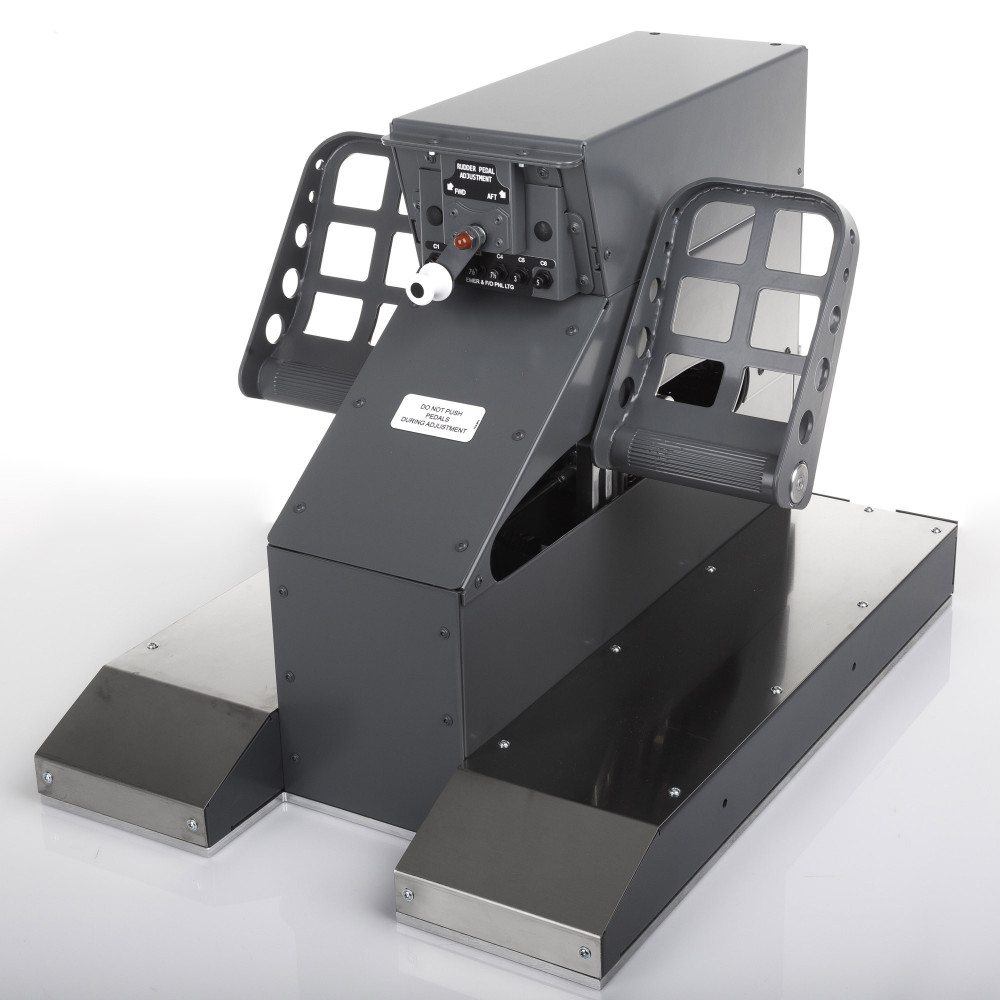

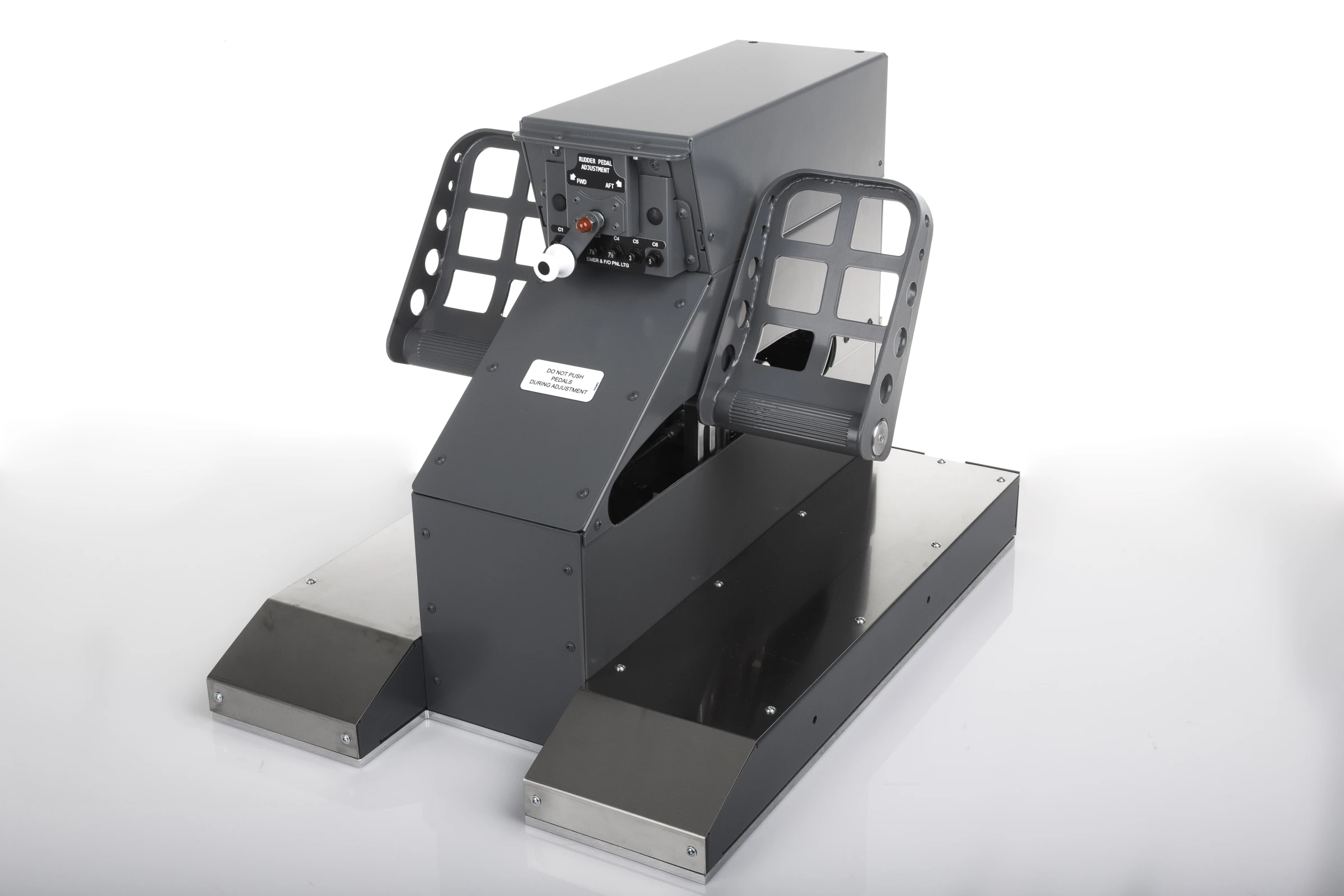

Standalone PRO rudder pedals for Boeing 737 style Flight Simulators, F.O. side.
Breakers are dummy but identical to the originals

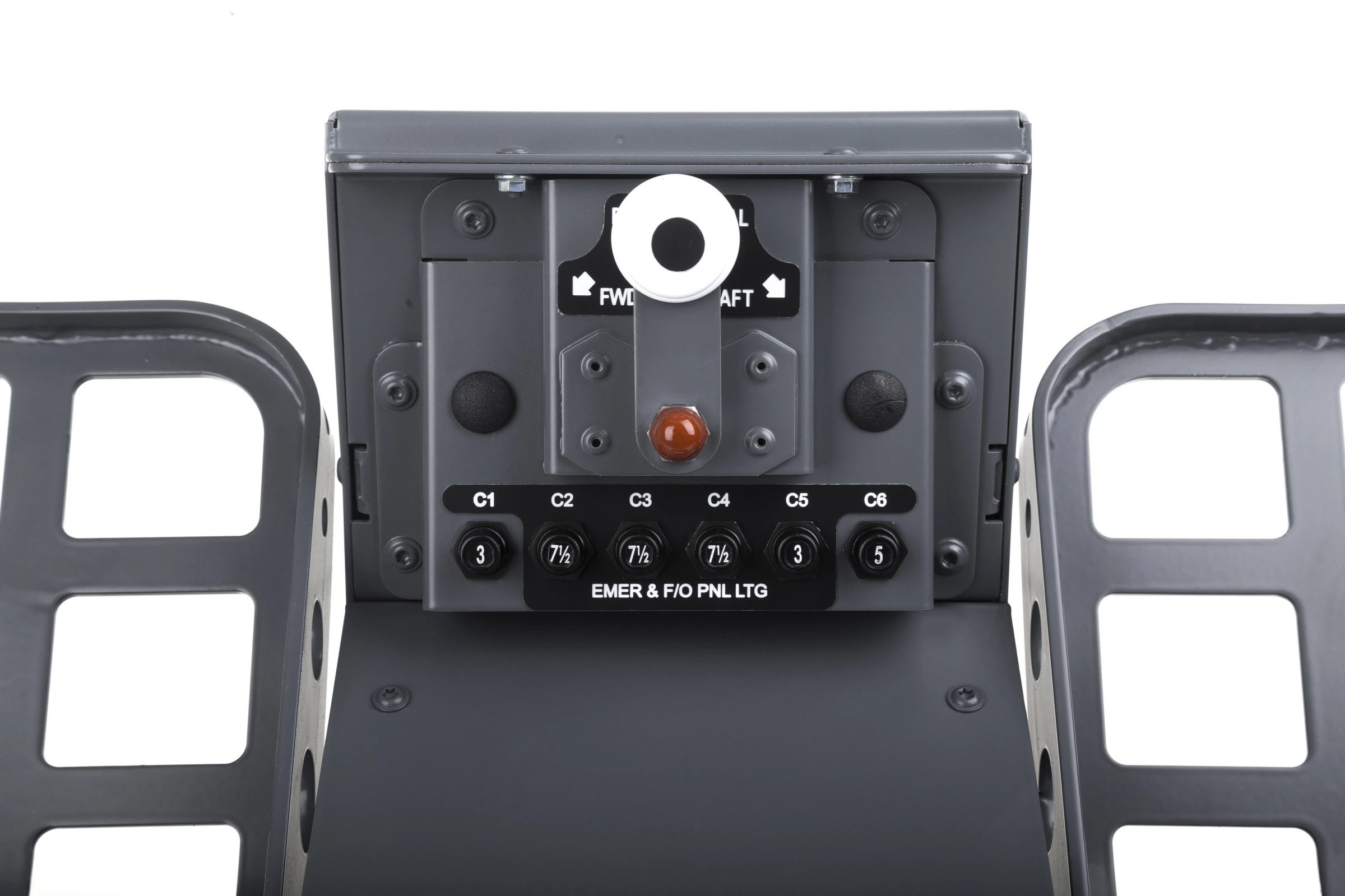

Adjustment crank with chain and pedal support trolley sliding back and forth, direction and number of turns required like the original
System assembled and tested in FSC laboratories with the assistance of 737 pilots
Made of aluminum using high quality electrical/electronic materials
Designed by studying the dimensions of the original components
Linkable to CPT side with the steel bar included in the product
| Joystick board included |
USB connection, Standard Joystick |
|
|---|---|---|
| Double spring and damper, double potentiometer |
In case of coupling with the pedalboard of the other side, double springs and dampers are supplied (one for each pedal) and double potentiometer to have the same behavior and response on the simulator for both sides |
|
| Bodnar Joystick card |
USB interface board designed for use with flight simulators, driving simulators, and other custom game controls. It supports up to 32 buttons. It has 8 analog inputs for potentiometers (for example, for joystick axes). Compatible with Windows without the need for additional drivers, as it uses standard HID (Human Interface Device) drivers. The board is plug-and-play, so once connected via USB, it is automatically recognized by the operating system |
|
| Boeing style gray painted |
RAL 7011, Professional anti-corrosion coating |
|
| USB Connection |
All USB types are supported |
|
| Upgradeable with control loading system |
The passive version can be motorized later |
|
| Distance adjustment |
±75mm/span |
Exceptional reliability over time.

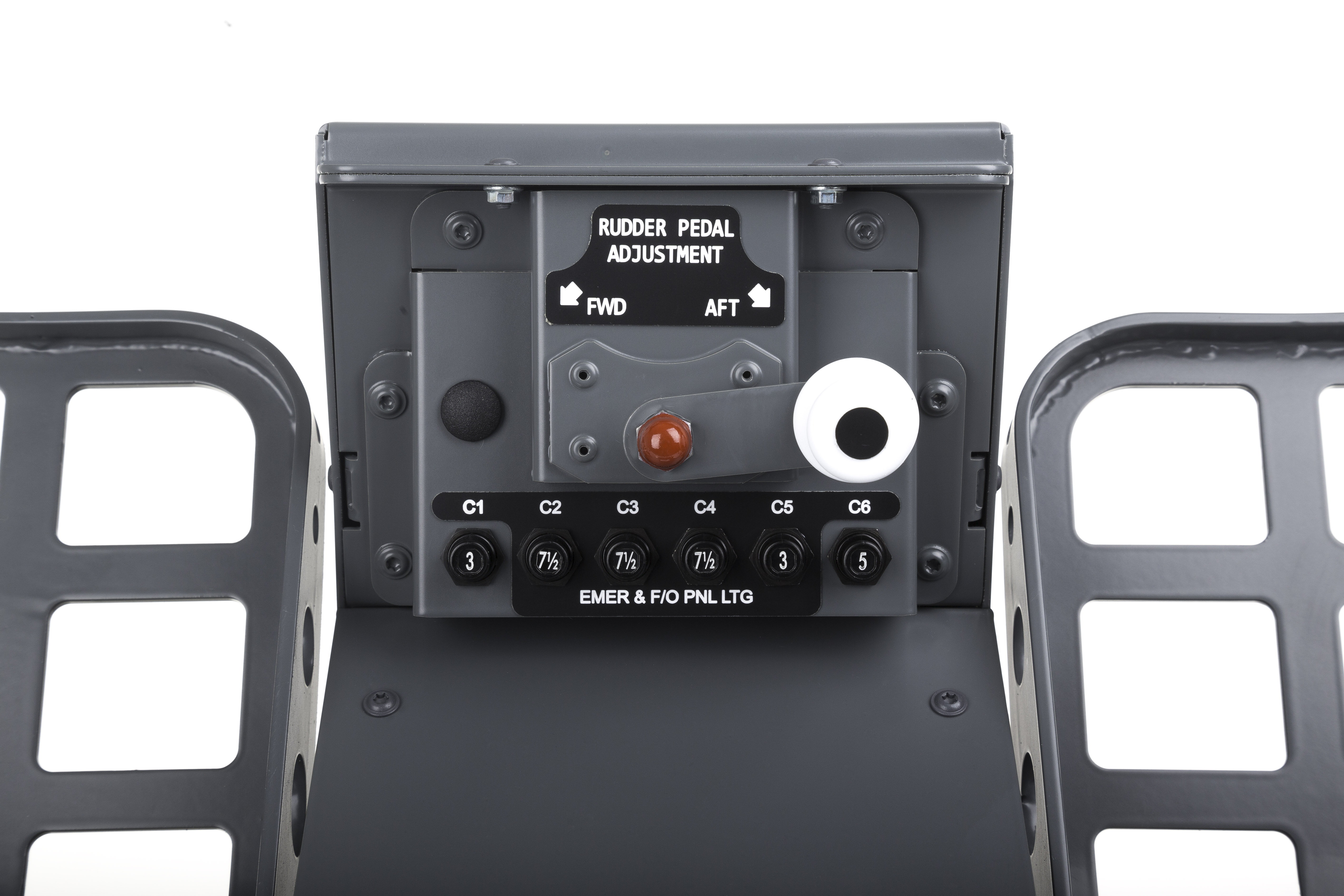

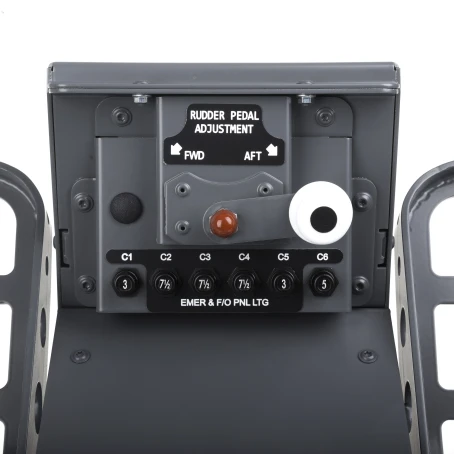

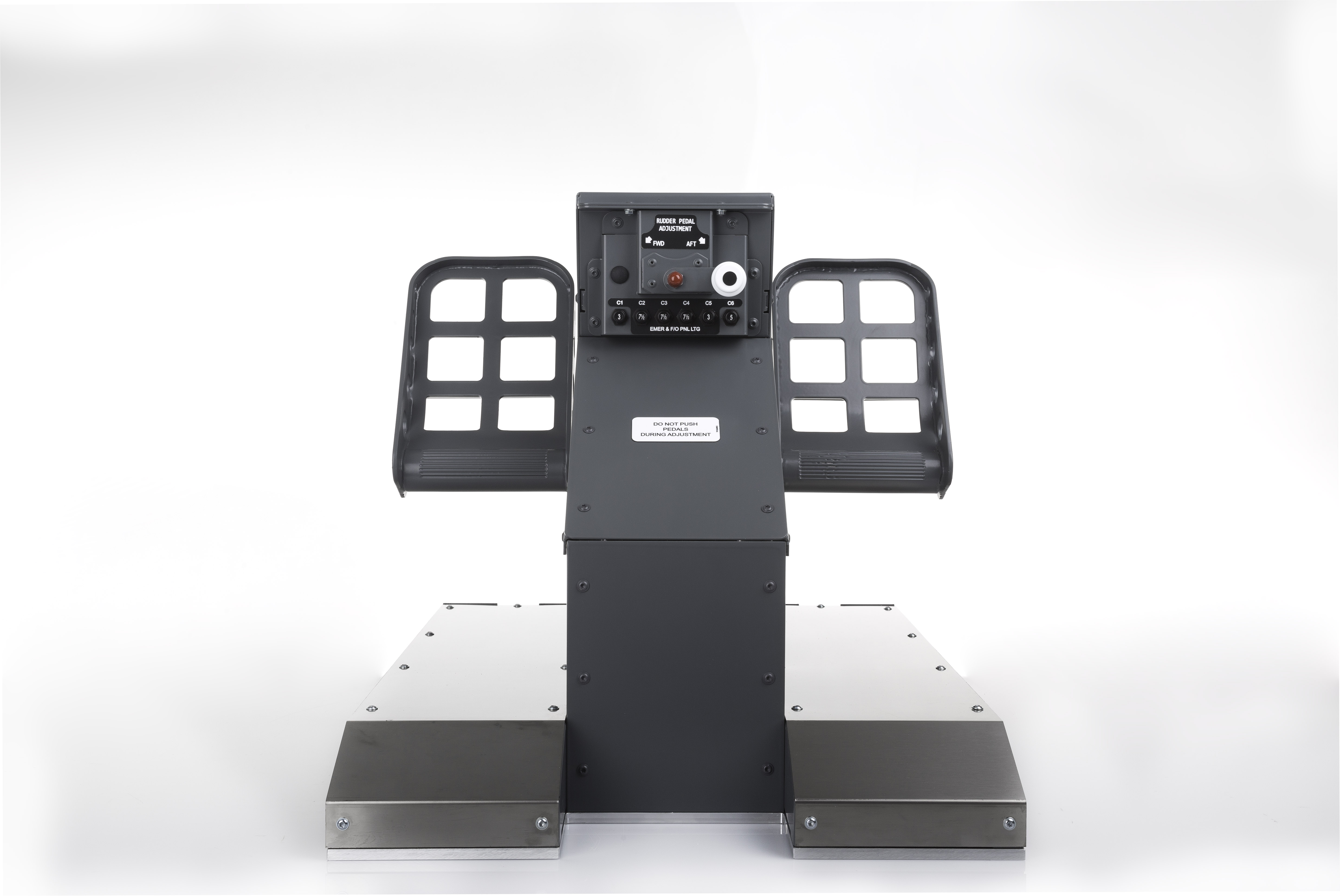

Pedals distance adjustment and dummy circuit breakers.

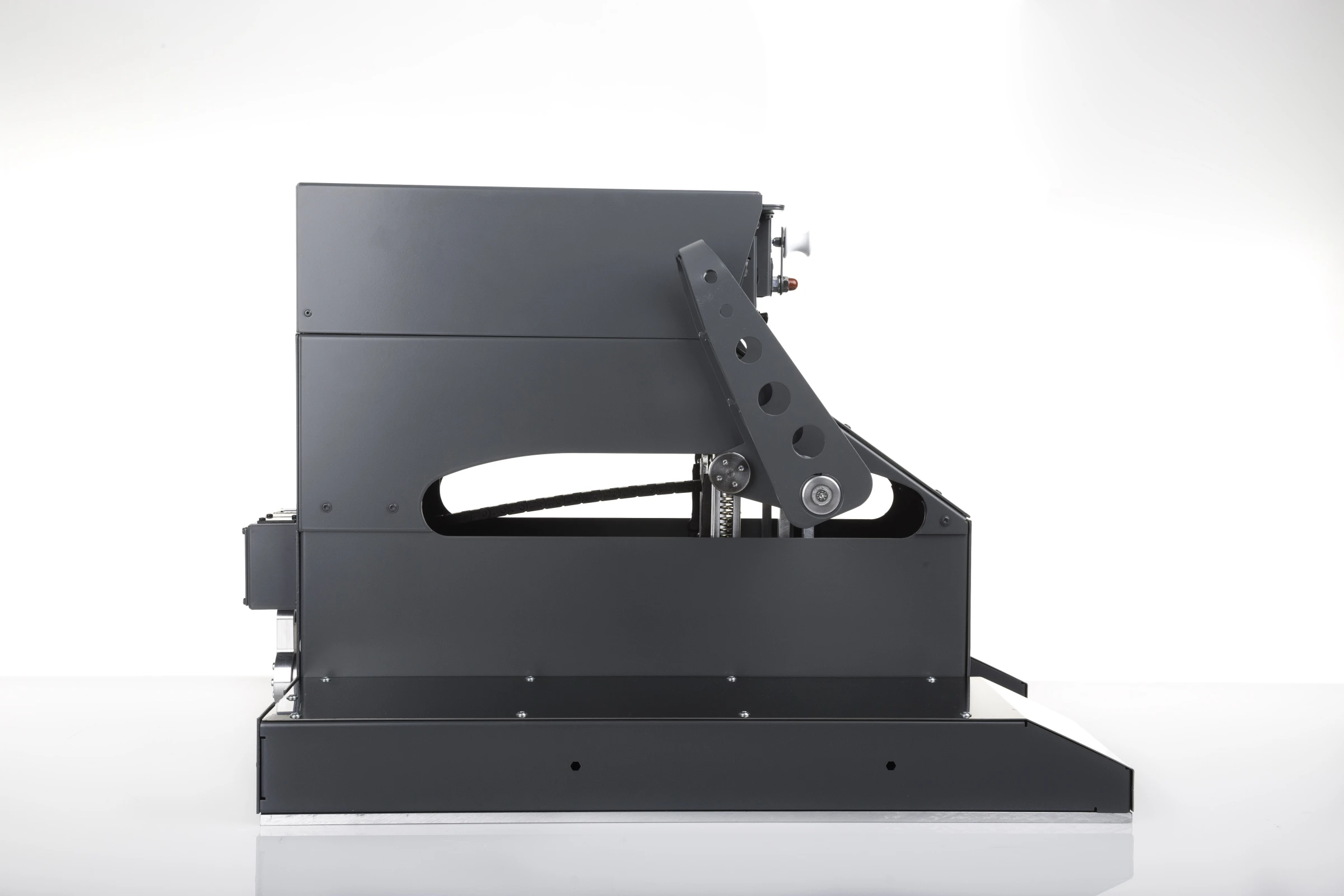

The entire mechanism is rail-mounted for AFT/FWD adjustment.

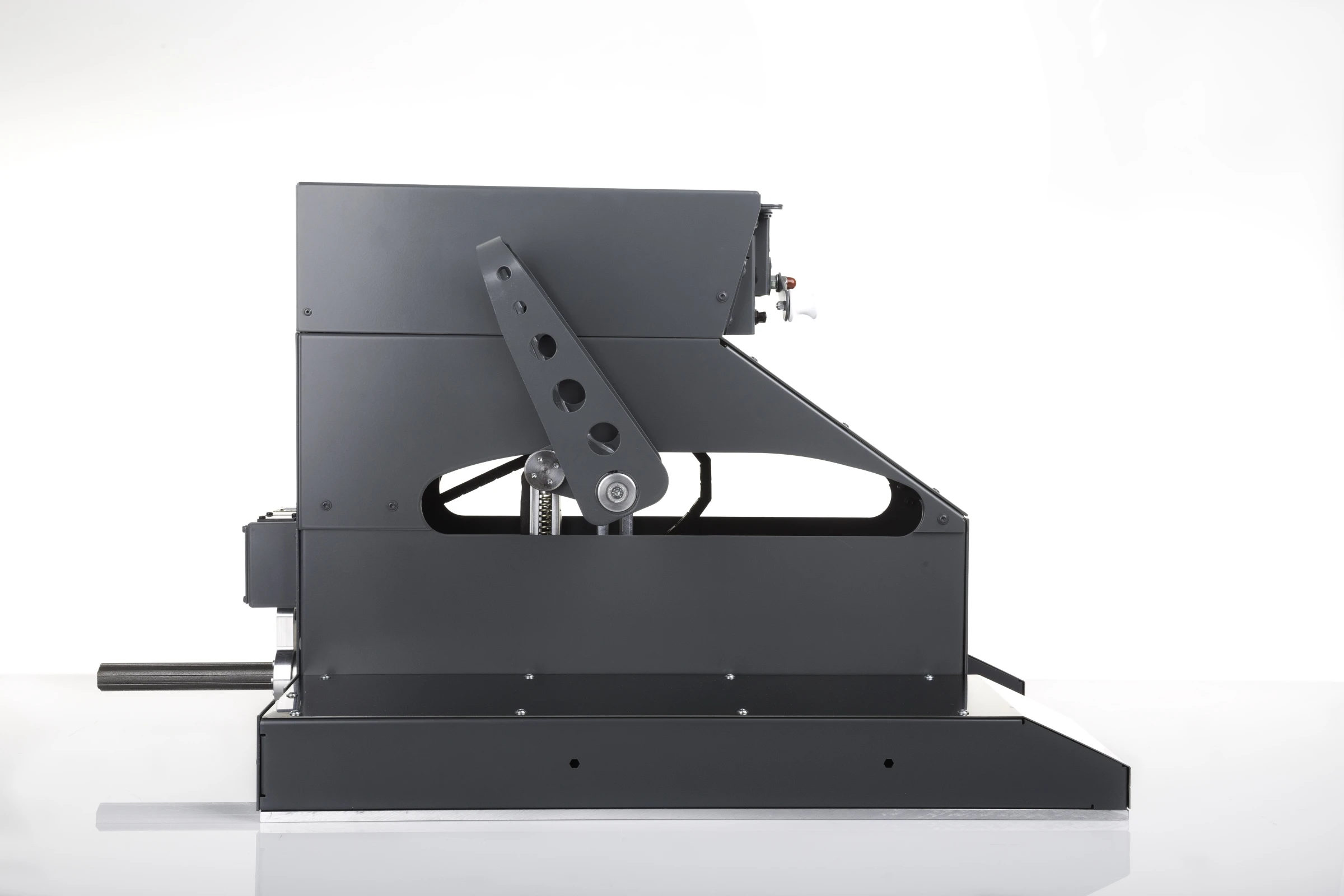

Levers and pistons for force dampening.

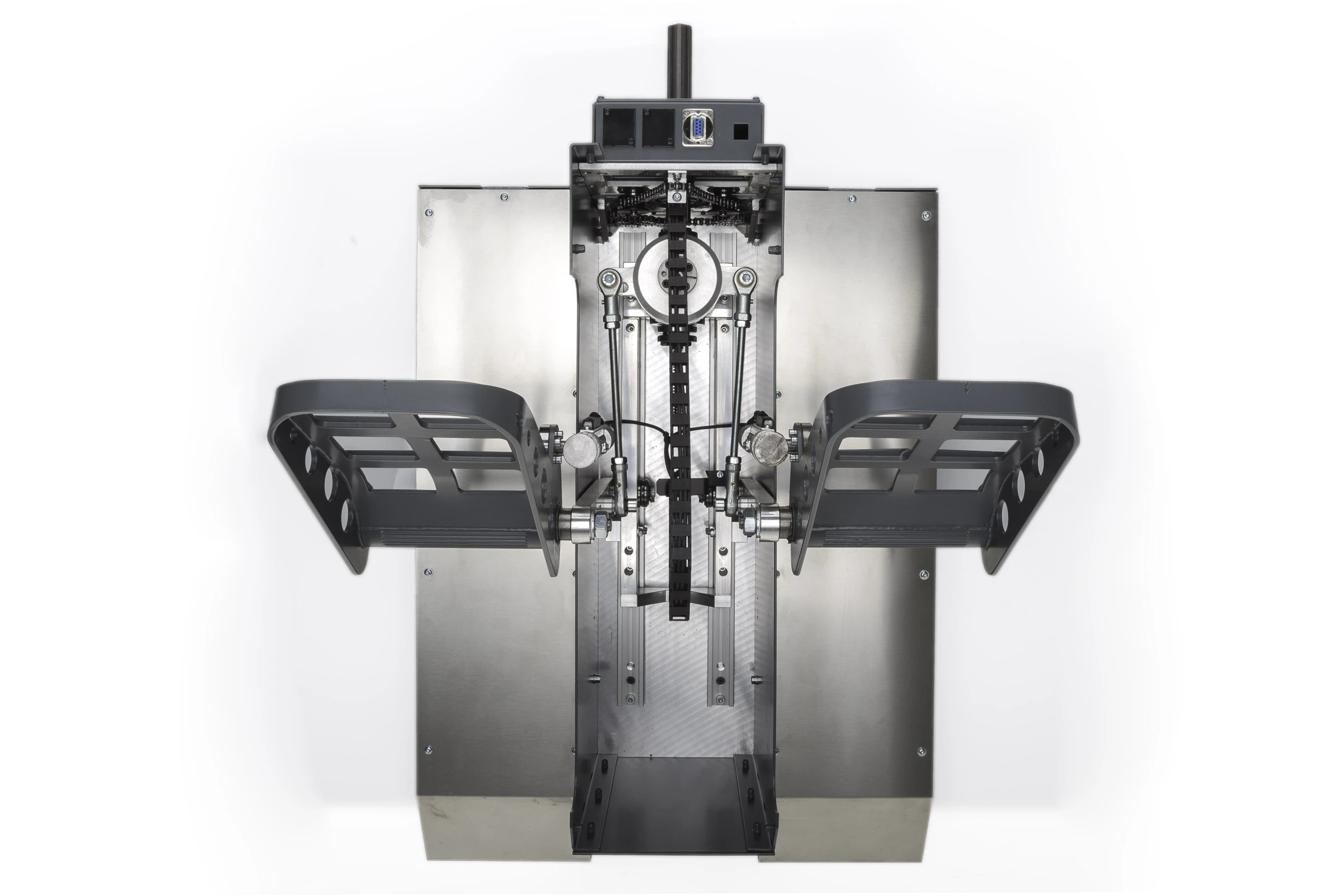

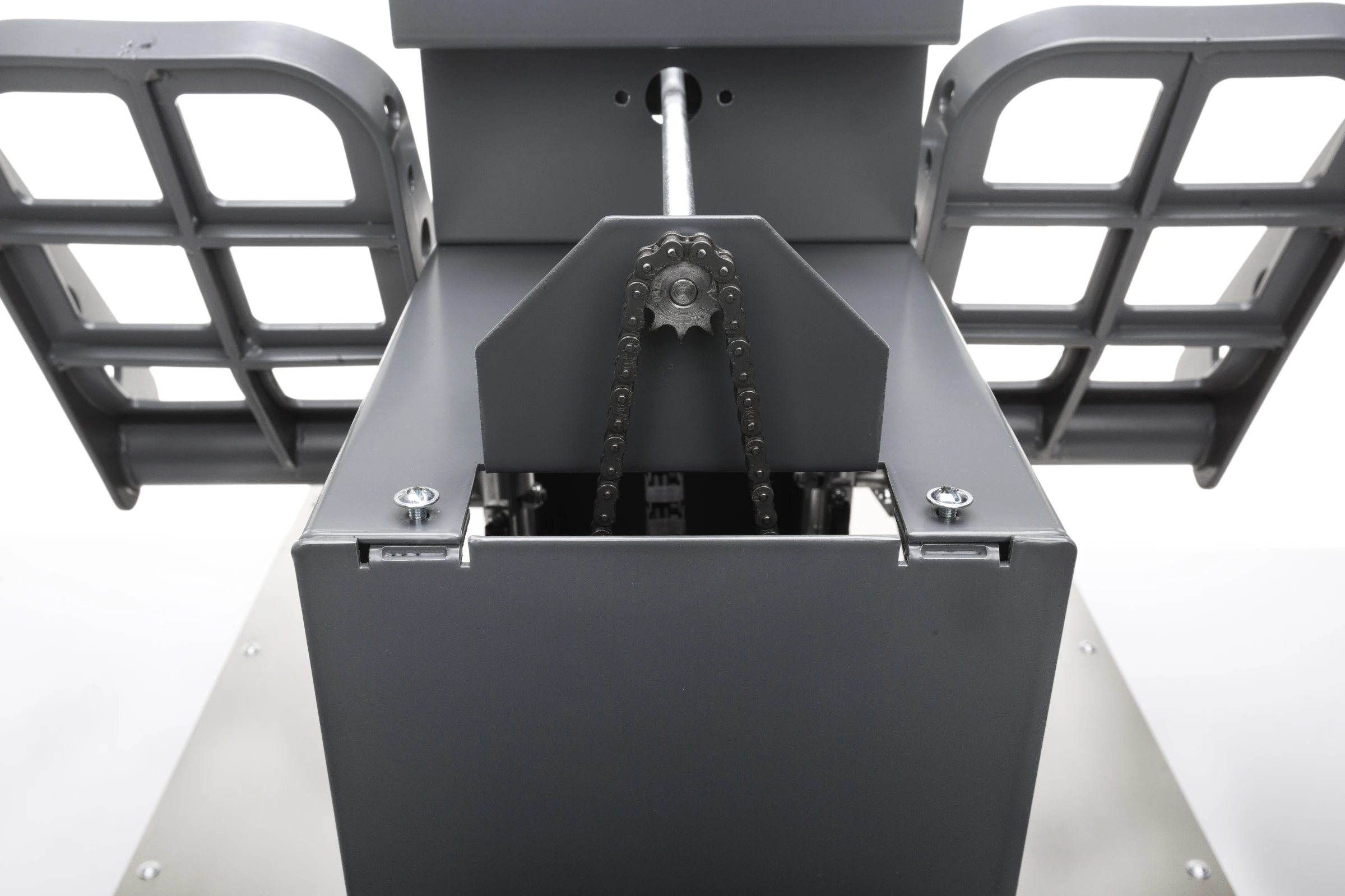

Chain conveyor mechanism for AFT/FWD adjustment.
The base of the Yoke fits perfectly with the space between the pedals.
the connection cable is supplied with the F.O. pedal.

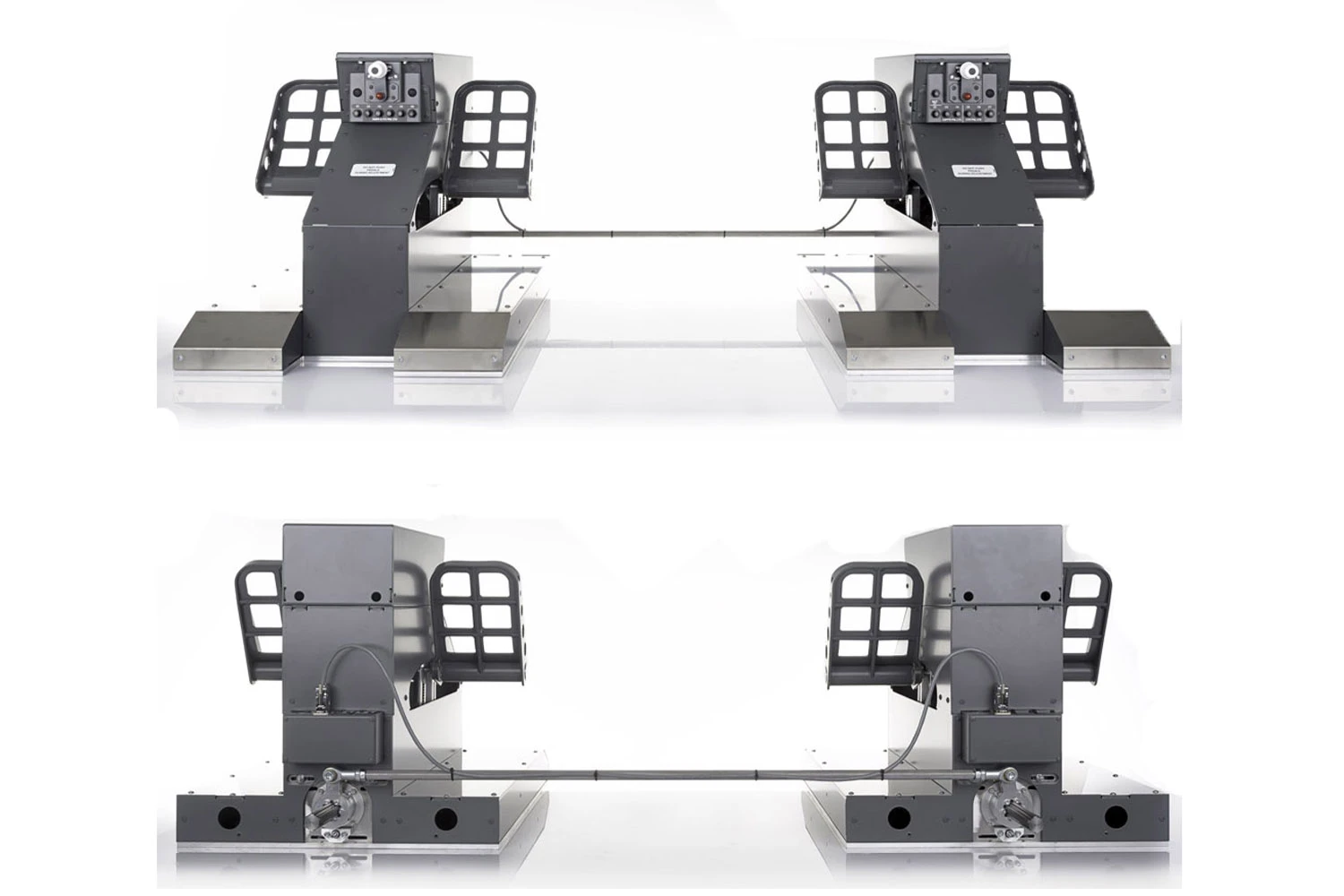

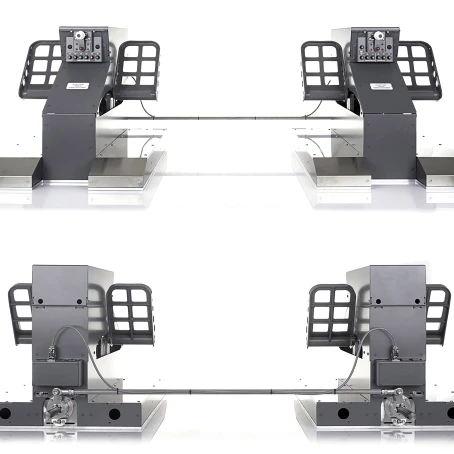

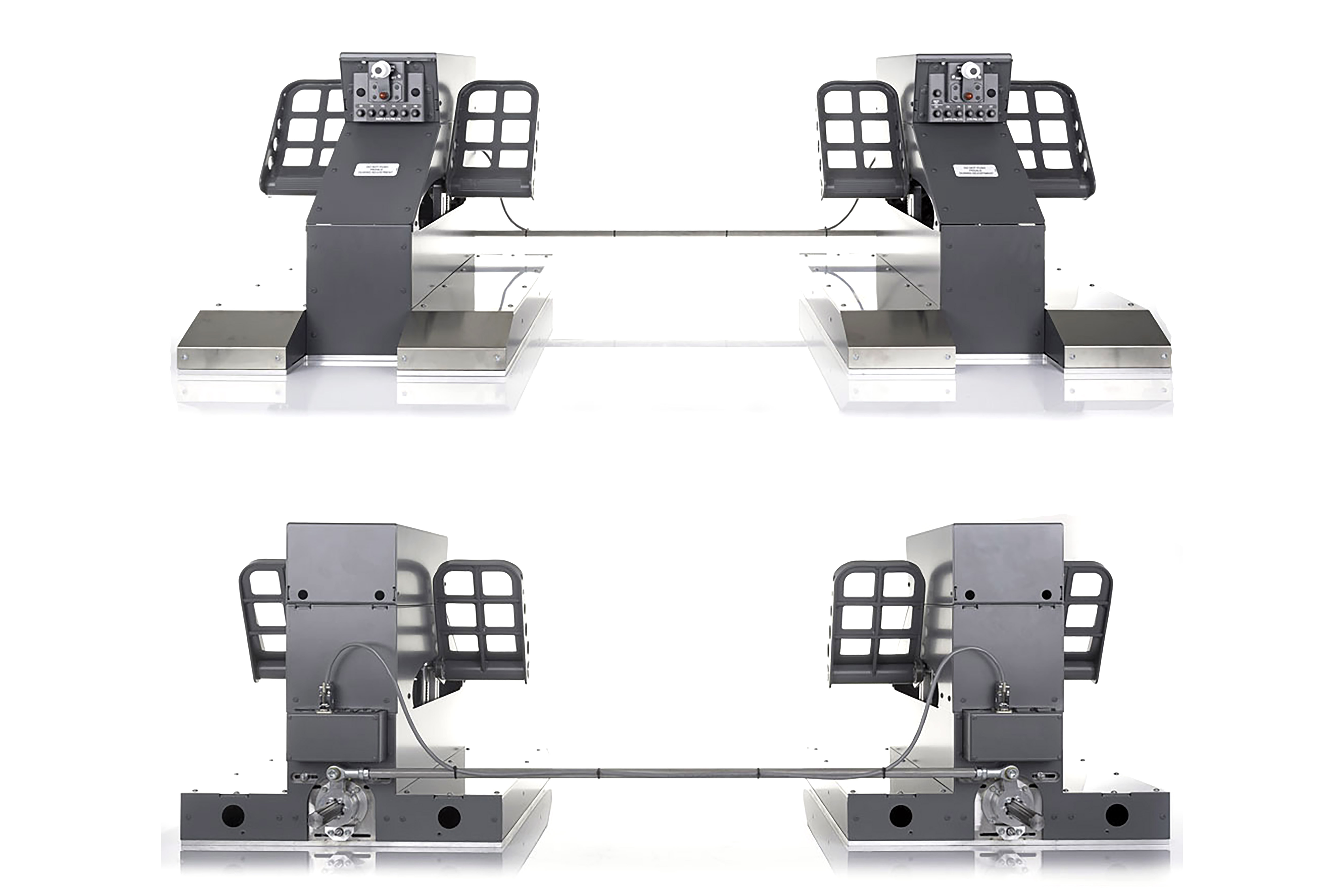

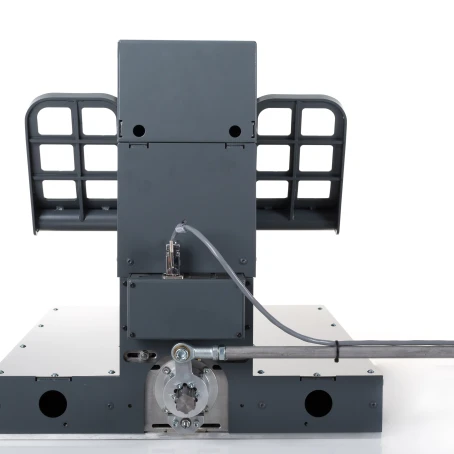

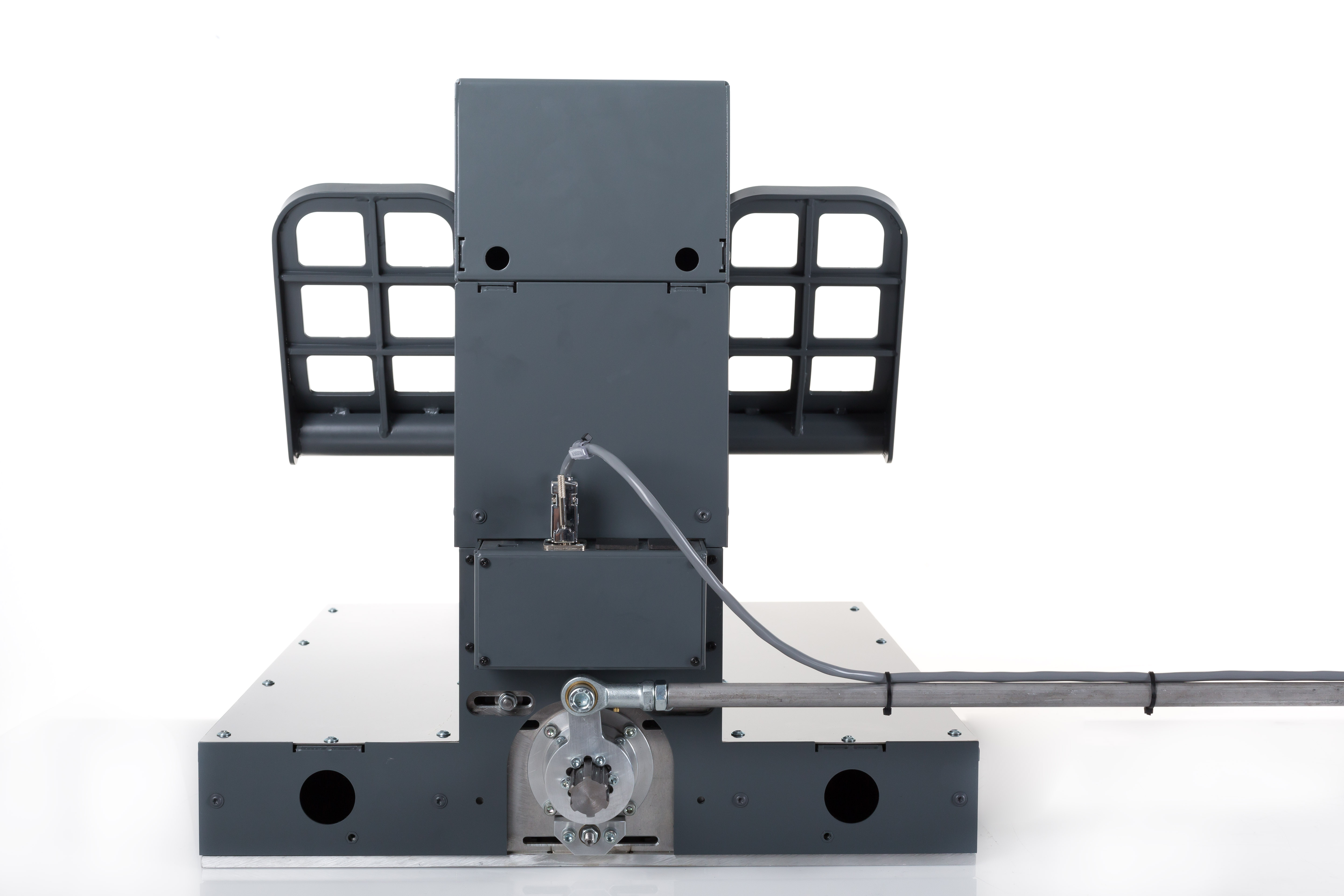

Electrical and mechanical connection bar with Captain side pedals.
It is possible to combine the pedals with our active control loading system.
The long term experience with pilots, but also with inexperienced audiences, in the intensive use of flight simulators, led us to engineer and produce the FSC B737NG rudder pedals, captain side and first officer side.
The first characteristic of this construction is in fact the robustness: the forces applied to the flight controls of the pedals can be very high, and the stress for the lever systems is certainly considerable. Given the high thrust capacity of the lower limbs, which can result in hundreds of kilos of force applied, we have created a rudder pedals system built with high quality materials, used in a project in which every diameter and connection between mechanical parts and levers, is designed to withstand any type of load possible.
The eventual connection between the rudder pedals on the captain's and first officer's side is made by splined shafts and a very strong articulated bar. In addition, the mechanisms are designed to work in pairs without changing the resulting load compared to the single use.
The system so engineered is for this reason also very stable and precise: thanks to the rigidity of the assembly, no backlash between the parts or mechanical deformation is possible. This level of mechanical solidity and precision, combined with the use of high-resolution potentiometers, has made it possible to obtain a flight control that provides a very accurate response in the simulated aircraft.
The entire mechanism is also driven on a carriage, which is also absolutely rigid and free of play, which allows, together with the extremely precise and stable chain transmission, a safe adjustment of the distance between the pedalboard and the pilot.
The damping obtained through a system of hydraulic springs and pistons, guarantees a constant fluidity and an almost perfect response, without compromising the correct return to zero point.
The rudder pedals guarantee a response equal to the originals and exceptional reliability over time.
