The FSC fleet features a variety of Training / Educational and Entertainment simulators fully built in the FSC factory in Italy thanks to the extreme professionalism and experience of FSC team of designers, mechanical, and electrical engineers. FSC simulators are the most advanced in the market and utilize the latest in wide-screen visual system technology to deliver a realistic sensation of motion. The MTGS is a turnkey device ideal for familiarization with Glass Cockpit and IFR-VRF flights. Thought for Flight Schools and Aeronautic institutes, the FSC1000 Glass Cockpit replica, with its sturdy and configurable flight controls, allows great versatility and customization to simulate different aircrafts, from single up to four engines.

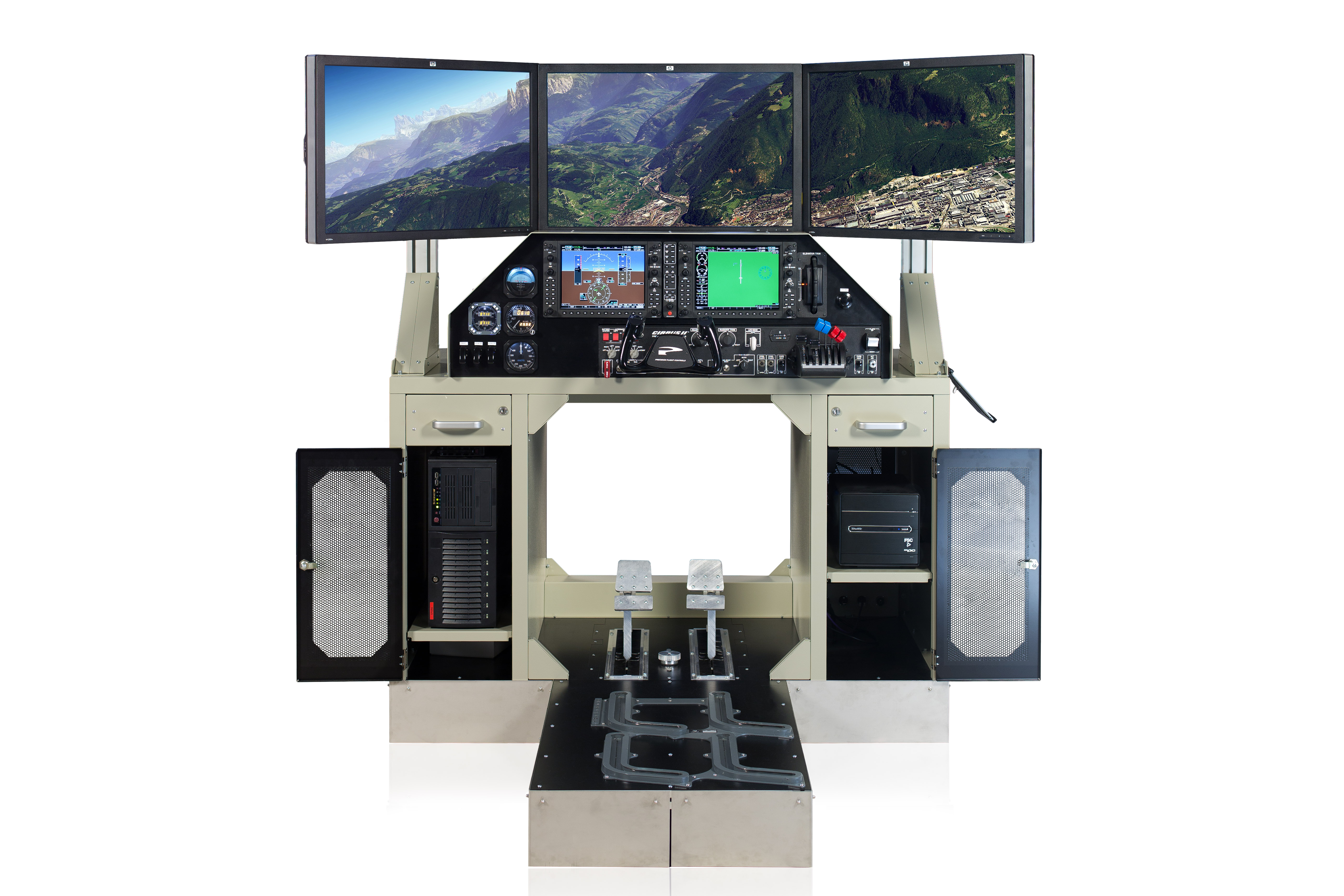

FSC MTGS330 general aviation simulator with garmin 1000 front view
FSC MTGS330 general aviation simulator with garmin 1000 front view 34
FSC MTGS330 general aviation simulator with garmin 1000 lateral view
FSC Garmin 1000 full kit
FSC Garmin 1000 PFD primiary flight dispaly
FSC Garmin 1000 MFD mulfunction flight dispaly
The FSC1000 is a full-scale (1:1) reproduction of a widely used glass cockpit system found in many modern aircraft.
It functions as an integrated digital avionics suite, consisting of two display units: one operating as the Primary Flight Display (PFD) and the other as the Multi-Function Display (MFD), accompanied by an audio panel.
All major onboard instruments are presented on the FSC1000 screens, replacing traditional analog gauges. Each display contains all necessary controls for configuring the autopilot.
The G1000 system automatically detects the aircraft type and adjusts the displayed indicators and speed limitations accordingly.
The primary flight controls (yoke and rudder pedals) use Dynamic Control Loading technology, which adjusts control resistance and, when the autopilot is engaged, physically moves the controls. High-precision electric motors deliver realistic force feedback that changes with the air pressure acting on the aircraft’s surfaces. The system also reproduces the natural, reversible movement of the aerodynamic surfaces, and it simulates all aircraft vibrations.
The simulator is designed for easily upgrading in some of its main flight controls. For example, the Rudder Pedals are available in two different configurations: Passive Version with hydraulic damper system or with Control Loading. In this updated version the control forces and control travel broadly correspond to that of the replicated aeroplane and also the control force changes.
FSC MTGS330 general aviation simulator control loading yoke mechanism
FSC MTGS330 general aviation simulator control loading rudder pedals drawings
FSC MTGS330 general aviation simulator control loading rudder pedals mechanism
FSC MTGS330 general aviation with garmin 1000 mouse and keyboard
FSC MTGS330 general aviation with garmin 1000 pc system complete
FSC MTGS330 glass cockpit with garmin 1000 circuit breakers active detail
The MTGS is equipped with three 30-inch 2.560×1.600 WQXGA 16:10 LCD monitors that form an immersive visual system. With a combination of optimized hardware and carefully tuned software, the display setup is capable of achieving a fluid 60 frames per second.
The system is powered by custom-built computers specifically engineered for flight simulation, ensuring stable performance, fast loading times, and seamless rendering of both aircraft motion and environmental scenery. This high-fidelity visual and computing integration provides pilots with a smooth, realistic, and uninterrupted simulation experience.
Thanks to the expertise in manufacturing and integration of turnkey flight simulators, FSC is able to design and realize customized visual.
The MTGS is equipped with an easy-to-use touch panel that displays essential information and provides instant access to the simulator’s main functions. The interface is clean, intuitive, and neatly organized into dedicated sections for quick navigation. Through this panel, users can control a wide range of features, from adjusting the environmental audio levels to selecting aircraft liveries, choosing starting positions on the map, and browsing available airports. It also includes a practical maintenance section, designed for efficiency, that allows users to reboot the entire system—or individual computers—within seconds. Thanks to its responsive design, the touch panel greatly enhances operational convenience, enabling instructors and users to manage the simulator with precision, speed, and minimal effort.
FSC MTGS AOP quick operations panel
FSC MTGS AOP enviroment panel
FSC MTGS AOP weather panel
FSC MTGS general aviation 6 levers multi engine tq prop mixture
FSC MTGS general aviation 3 levers tq carb heat and mixture
FSC MTGS general aviation jet tq, spoilers and reversers
The M.T.G.S. provides greater flexibility and more efficient training by allowing the TQ to be adapted and modified to replicate a wide variety of aircraft configurations, including models with up to four engines.
It offers:
-Easy throttle changes using a quick-release system.
-Access to more than 20 interchangeable throttle types.
All throttle units are manufactured by Precision Flight Controls.
Technical Specifications
| Professional audio system |
Advanced Audio System with volume control |
|
|---|---|---|
| Flight controls |
Heavy-duty flight controls with passive force feedback or with Dynamic Control Loading system on the yoke and on the rudder pedals |
|
| VFR and IFR Turnkey System with Glass Cockpit |
Synthetic Vision Technology (SVT), Terrain (TAWS-C), Traffic (TCAS) and FlightCharts |
|
| Cockpit |
FSC1000 with standby analog gauges, switch panel and circuit breaker panel |
|
| Visual system |
3 Monitors 30" 2.560 x 1.600 WQXGA 16:10 LCD |
|
| Visual resolution |
Global 7.680 x 1.600 Pixels |
|
| Wireless tablet with customized interface |
iPad Connectivity for use with ForeFlight & other aviation apps (upon request) |
| High-Quality, comfortable and full adjustable seat with J-rails |
Single seat version available |
|
|---|---|---|
| VPATH waypoint Navigation |
Obstacle icons, terrain, and waypoints on the map page |
|
| Software compatibility |
X-Plane or Prepar3D flight simulation software with Project Magenta G1000 or Flight1 Student PRO |
|
| Full Metal Structure |
Compact Dimension for an easy transport and integration in any environment (classroom, office….) |
Client Pc
Rudder Pedals
A.O.P.
Throttles
Sceneries
J-Rails/Seat
Server
FSC1000
Customized PFC
Reliability
